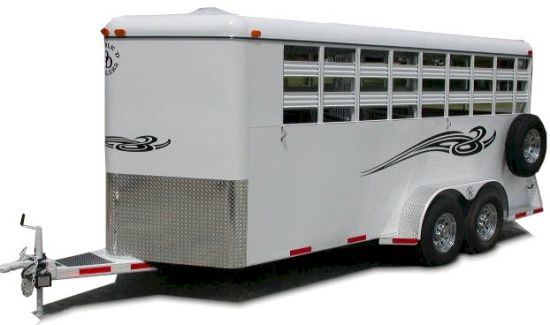

3 Horse Slant Bumper Pull Stock trailer


3H slant combo bumper pull

Base price: $12,985

- Customize your new Slant load


- Features & Options
- Floor plan (PDF Format)
- Photo Gallery
- Need recommendations or have questions?

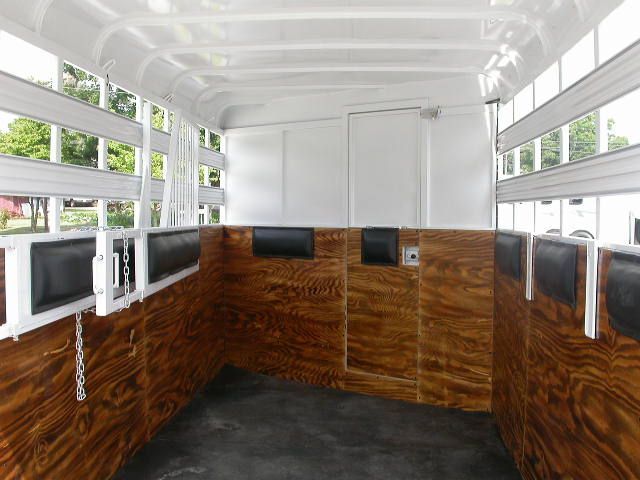

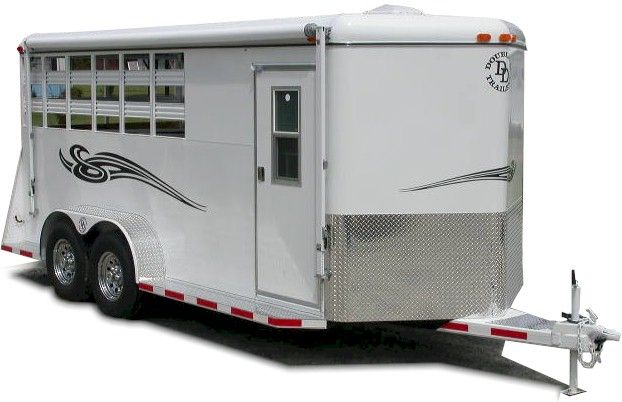

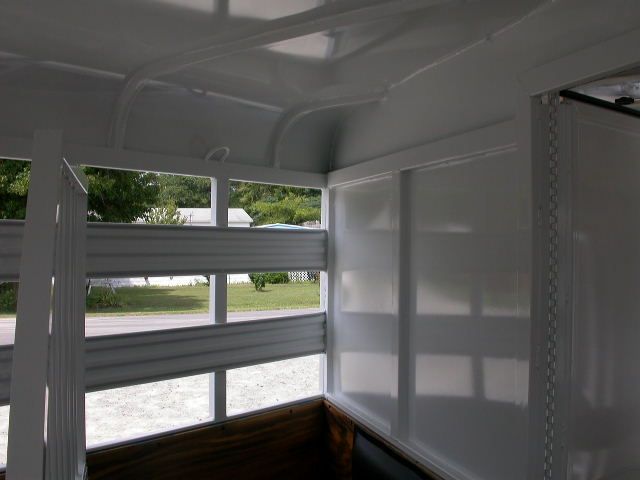

This trailer is standard 7' tall, 81" wide and 18' in length, has lined and padded stalls with mats, walk thru door from front to rear. Divider is totally removable and operates on an easy slam latch design. You will have plenty of air flow with the smooth skin design and stock sides on the trailer.  We also use barred head dividers for more air flow and it makes the horses calmer by being able to "see thru".  The three Horse Slant combo trailer comes standard with the large size dressing room including aerodynamic "V" shape design front end.  Unlike most of our competition, on Double D Trailers our dressing room wall goes to the chassis of the which allows for much more strength with the horse pressing against the wall, particularly if you have to slam on brakes. This feature also prevents any horse waste/water coming inside your dressing room and running up underneath the wall.  . If you are looking a 3 Horse bumper pull stock trailer, slant load, this is the trailer for you. With a  weight of 3600 lbs approximately, you can tow with most any 1500 series vehicle or large size SUV such as GMC Yukon or Ford Expedition.  This trailer is built with the horses safety in mind all the way around by having the kick sides, padded stalls and no obstructions in the way for loading or unloading the horse.

**3 Horse Bumper Pull Slant Load stock side difference:

  • Z-Frame Technology (learn More)
  • Adjustable height saddle racks inside your dressing room
  • aluminum tubular head dividers standard (more air flow, less stress on your horses)
  • V-Nose in the front walk in tack room
  • Heat reflective roof system and SafeKick® Wall System  (learn more)

Features & Options:

Standard Features:

This Model is available in extra heights and length to accomodate varying size horses

3 Horse Bumper pull Slant load with Dress
Body Color
White is Standard. Other colors available
Vinyl stripe Color and Graphic
Weight (without options)
3700 lbs
Z-Frame Technology
Standard

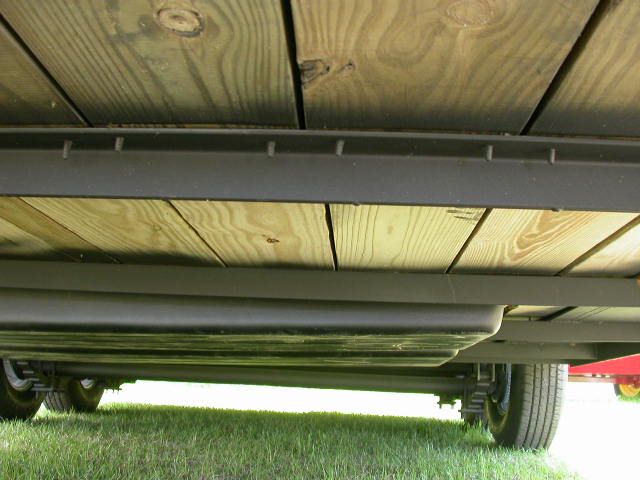

2"x8" pressure treated pine flooring on 16" crossmembers
Standard
Exterior Skin
22 Gauge Zinc Sheets with Baked on Siliconized Paint
Overall box length
18'
Dress side
24" short wall x 72" long wall
Walk thru door to horse area
Standard
Inside Height
7', optional 7'6"
Stall Length
122" diagonal, 96" divider length
Stall width
40"
Coupler
2 5/16" Ball
EZ Lube durable never adjust brakes 6,000 # capacity per axle
Smooth leaf spring suspension
Brakes
4 wheel
Wheels
Powder coated gray, optional aluminum
Tire Size
235/75R16 (E) Radial

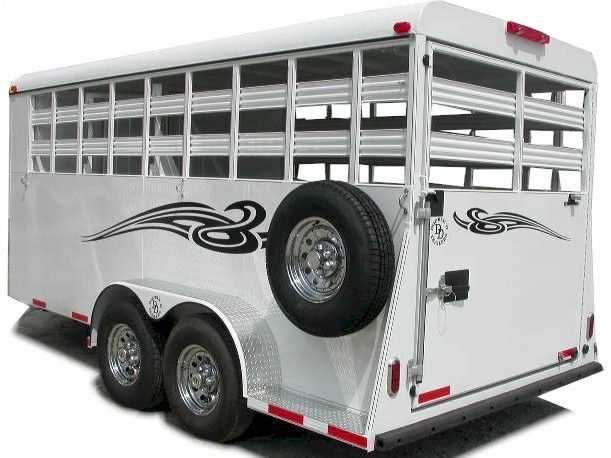

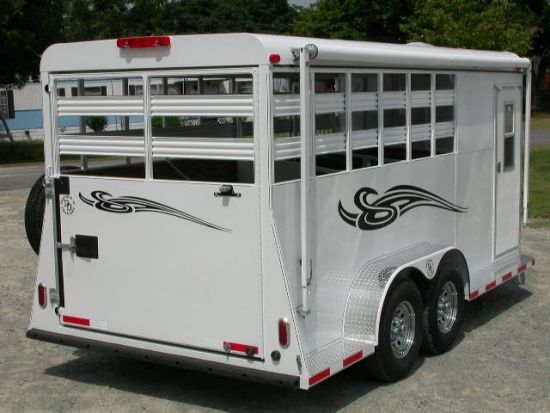

One piece stock style rear door
Standard
24" Diamond plate Gravel Guard at Nose
Standard
Running board steps down dressing room side
Standard
Mat in dressing room floor
Standard

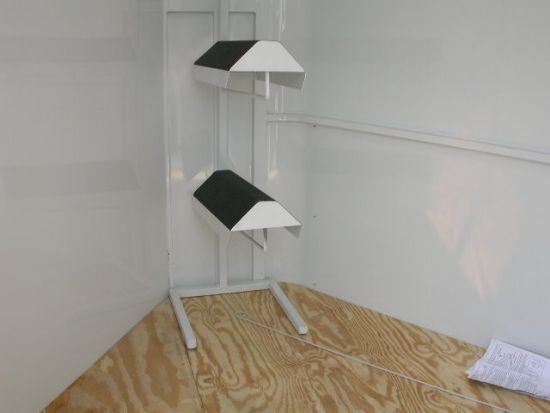

Saddle racks in dressing room
3
Bridle Hooks
3
Side Wind Jack
Standard
Marker Lights on Fender
Standard
LED Turn Signal Lights on Rear
(2) Standard up high

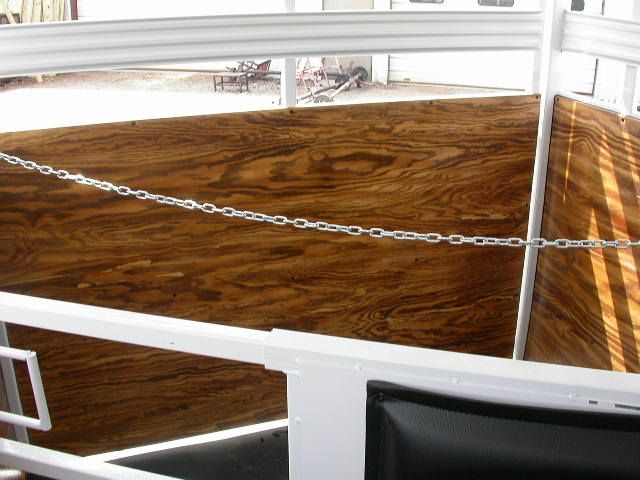

Padded chain to prevent last horse from backing out
Standard
Spare Tire
Standard
All locks keyed the same
Standard

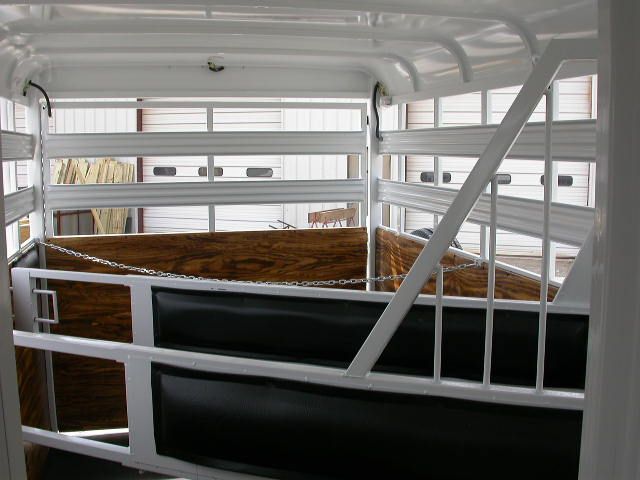

Aluminum Slant dividers with hand made padding and safety slam latches
Standard Removable
24" walk thru Escape door
Standard

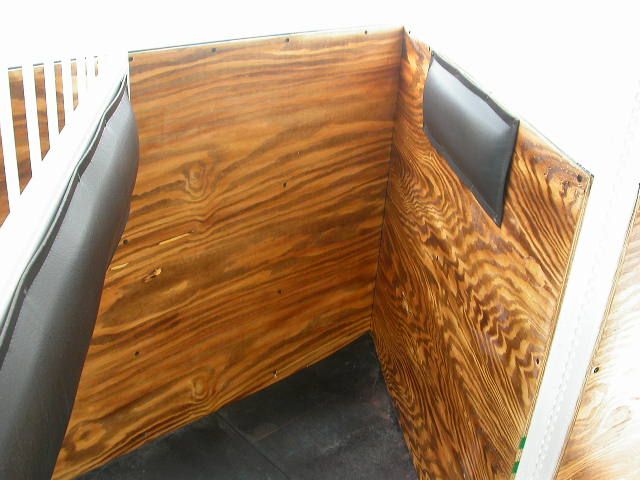

Custom hand made padding on dividers and slant wall
2" Standard
30" dress door
Standard
SafeKick® Wall System

Standard

Heat reflective Roofsystem
Standard
Insulated side walls in horse area for maximum temperature protection and safe, quiet ride
Standard
Floor Mats in horse area
Standard
Interior Tie Rings per stall
1
Exterior Tie Rings per horse
1
Lights in horse area on rear remote switch
2
Light in dress
1
Rechargeable emergency Break-away system
Standard
Windows in dress - (2) sliding with screens
optional
plexiglass to enclose side slats for hauling during winter months
optional
7-Pin RV Style Plug
Standard
Warranty

(4) Year on Structure
(2) Year bumper to bumper
(1) Year on non-Double D Manufactured parts



Base Price: $12,985
Optional Features
Price
Dressing room comfort and convenience options
Add 1' or 2' to dressing room (specify quantity) NOTE: Use this feature to increase the size of your dressing room (up to 2' larger) for more space $
600
Tack trunk/seat: This storage trunk and combination carpeted seat, is installed against the front wall in the nose and runs the full width of the trailer.  Optional footage (at least one foot of length) is often added to the dressing room to better accommodate this addition without using up floor space. Box has a hinged lid, two piece split and is fully aluminum $
550
Add "SafeBump" to your roof and insulate the roof of your horse area and dressing room (enclosed trailers are standard "SafeBump") $
500
Brush Tray on dress door (Inside your rear tack around, there is plenty of space to throw in brushes. Use this option to add a brush tray on your dressing room door up front NOTE: Can't be used with screen door option $
45
Screen door on dress door: All doors now are built at the factory and are very sturdy.  Use this feature to add a retractable screen door to your dress door. Use the screen to keep bugs out when your door Is open**Not recommended with a brush tray $
250
Roof Mount A/C with heat strip (choose wiring option) $
850
Wiring for A/C unit, includes breaker box and power cord, and one inside receptacle (NOTE: use this option to plug in to a camp ground, also if you plan to add additional electrical items at a later date) $
285
wire a/c to 15 amp outside plug, no breaker box or receptacle or power cord (NOTE: This option routes your air conditioner wire to an outside plug. You will need to purchase your own extension cord to operate your unit. Also doesn't include any inside receptacles and doesn't have a breaker box for extra safety and future add on's) $
100
Carpet on bulk head wall (prevents bridles from scratching your wall) $
300
Change flooring in dress from a rubber mat to carpet: NOTE: Comes standard with a rubber floor mat, easy to clean, can be hosed down.  Use this option if you want to change from a rubber mat to carpet $
50
Blanket bar inside dressing room on saddle tree $
85

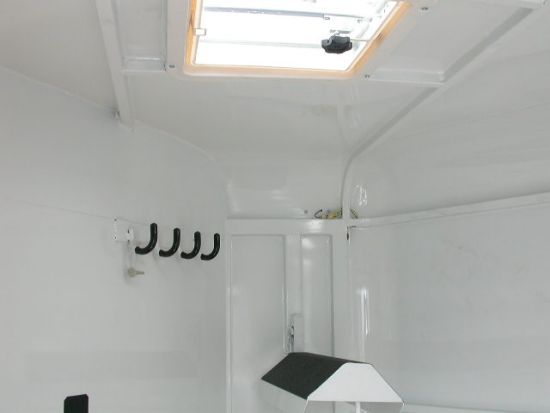

14" rollup Vent in dressing room $
150
14" rollup Vent in dressing room with 12V fan $
225
Water Tank-25 gallon triangle with stand for inside the dressing room.
Suggestion: This smaller water tank (14" per side of triangle and 56" tall) easily tucks into corner of the dressing room. Additional footage recommended
$
285
Install water pump under water caddy with switch for tank $
200
Horse area convenience options
7'6" Height option only (NOTE: works well for taller horses) $
800
Add 1' to one horse stall for Draft size or Warm blood horses (specify which stall and # of stalls) $
600
Change flooring to Rumber in place of 2"x8" pressure treated pine (rumber has a life time warranty, doesn't require a rubber mat and is easy to clean, prevents slippage) $
900
Fans for hauling in the summer time (priced each) $
85
Remote switch for interior horse fans $
60
Ramp door: NOTE: your new slant load trailer is standard with a step up and a one piece rear door. Use this feature to split the rear doors into two separate doors, and add a spring assist ramp in addition to the full height rear doors $
1250
Ramp door with dutch doors: NOTE: your new slant load trailer is standard with a step up and a one piece rear door. Use this feature to eliminate the one piece stock door, and replace with a folding ramp door and two stock gates fold around dutch style doors up top. $
950
Extra interior tie ring (one is standard per horse, add a second for tying hay bags) NOTE: Lay flat tie rings are standard to prevent injury to a horses eye, specify quantity) $
30
Extra exterior tie ring (3 are standard) specify location of additional rings $
40
Feed bag works great for feeding while trailering (priced per stall) $
65
Storage partition on front divider: many folks prefer to use the front stall for storage. This feature keeps your cargo in the front stall $
450
Plexiglass on sides and on rear door to enclose during winter months $
600
Popular Ad On's
600
RV grab handle on outside to assist with getting in and out of trailer $
30
Roof mount hay rack with side ladder $
1100
Outside 55 Watt rear halogen loading spot light for night time use on remote switch $
120
Outside light at dress door, wired to wall switch inside dressing room $
65
Battery—Interior deep cell 12 Volt wired to charge from truck.
Suggestion: This deep cell battery (holds a charge for long time) is installed inside the dressing room and powers your interior lights, fans, and load lights, without being plugged into your truck. It is wired so that your tow vehicle will trickle charge it when driving.
$
285
Set of (3) are standard in your dressing room. Add an extra set of (3) Bridle hangers your dressing room $
55
Extra saddle rack (3) are standard $
85
Electric Jack  $
500
Battery add on for hydraulic jack/rack and wiring $
225
Awning up to 15' $
900
Change awning to two step (NOTE: Worth the extra money, simply flip the lever and pull the release to set up your awning) $
300
Color other than white $
400
Stainless nose sheet on "V" portion of trailer (NOTE: this option has a "mirror" style sheet on the front of your trailer, much easier to clean bugs and really adds to the look of the trailer) $
650
Aluminum wheels in place of standard gray wheels (NOTE: use this feature to upgrade to aluminum wheels.  They are worth the extra cost in adding longevity to your trailer. These wheels will look good 10 years from now) Spare remains gray and is covered with a tire cover, add $150 to change the spare as well $
600

Sub Total *
$
  Your State estimated Sales Tax (enter your tax rate, %) $
  Your State estimated License Fees $
  Document Fees $
  Service Provider Fee (if financing) $
  Bank Closing Cost (if financing) $
  Delivery (specify miles from factory, free within 1000 miles)
Click here to find your distance from the factory
$

Total with Fees *
$

  If you are financing and/or have a trade in, please complete the following:
  Down Payment amount
NOTE: most banks like to see a minimum down payment of 10% of the purchase price, without sales tax
$
  Trade in Value of your current trailer $
  Payoff on your trade in trailer (how much you owe at your bank, if any) $
  Equity in Trade In $
  Total Down Payment with Trade In $

Financing Amount *
$
  Interest Rate (enter the Interest Rate from your Bank, %)   %
  Term of Loan in Months
For loans of $10K or more, most banks will go up to 120 months.  For less than $10K, the maximum term is 84 months.


Estimated Monthly Payments *
$
  * Options calculations are for estimation only. Firm quotes available on request.
