Boss III Slant Trailer

Base price:   Boss III $11,400 - Features & Options - Floor plan (PDF Format) - Photo Gallery - Request Additional Information Form

Take time to look at our Boss III gooseneck 3H Slant load trailer.  It is standard 7' tall, 6'8" wide and 18' in length, has lined and padded stalls with mats.  The divider separator wall of the dressing room is a tall swinging gate which is shown in the photos.  This feature allows for the entire trailer to be open if needed for hauling most anything. All horse dividers are totally removable and operate on an easy slam latch design. You will have plenty of air flow with the smooth skin design and stock sides on the trailer.  We also use barred head dividers for more air flow and it makes the horses calmer by being able to "see thru".  The Boss III has a 40" short wall dressing room and 8' long wall with a 3 tier removable free standing saddle rack inside.  Dressing room has the camper door with screen, plenty of bridle hangers.   This new Double D trailer Design comes standard with everything shown in the pictures down to the wide graphics package and the chrome wheels. If you are looking a three horse open side trailer with a dressing room, slant load, this is the trailer for you. With a  weight of 4400 lbs approximately, you can tow with most any 1/2 ton series pick up truck.  This trailer is built with the horses safety in mind all the way around by having the kick sides, padded stalls and no obstructions in the way for loading or unloading the horse.  All Double D Trailers are undercoated for longer protection and feature no rust Galvaneal metal, Galvanized latches and stainless steel hinges with rubber bumper on the rear.

All Double D Trailers are now built with the new **NO Rust Galvaneal metal and painted with an Automotive Style paint system. All metal is stored indoors so there is no rust on the trailers when they roll out of the factory...everything is washed with a steamer and iron phosphate to open up the pores of the metal to allow the primer to stick better, and to remove oil residue. Once that dries, all the seams are sealed with 3M sealant inside and out. Then we prime with two coats of Valspar, automotive primer and paint with three coats of Valspar automotive paint. End result is a very durable, smooth, shining, long lasting finish.

---

Features & Options:

Standard Features:

1"x 2"x 14 gauge uprights 20 gauge rolled top 16 gauge sides 6'8'" wide 7' tall Full nose for more space Electric brakes Both axles Butt Chain for rear load horse CCA pressure treated 2x8 pine flooring 24" centers on uprights, cross members & roof   supports Galvaneal Teardrop fenders 2 5/16" ball size adjustable coupler Heavy duty spring loaded jack Dexter 6000# E-Z lube axles 16" radial tires ten ply Diamond Aluminum Tread plate Gravel guard D.O.T lighting D.O.T. tape

Stock Side Trailer with 12" radius Roof 3-Tier removable saddle tree in dressing room Swinging divider dressing room wall 4400 lbs approximately Spare tire and wheel 12" Radius sides and roof line Solid Rear door with Galvanized latch/stainless hinge Lights in horse and Dressing Room Two Barred Horse stall dividers standard (removable) Aluminum Outside Tie loops for each horse Heavy duty rubber mats in stalls Padded stalls Double D Exterior finish package Wide GRAPHICS  Package/pinstripe Smoked plywood kick lining Sealed seams in Dressing Area, roof, fenders & uprights

Optional Features:

	Awning		$800.00
	7'6" height		$800.00
	50" width, 7'6" height  Warmblood Size Stalls		$2,000.00
	Rubber Wall Liner (in place of smoked plywood)		$650.00
	Chrome wheels		STD
	Aluminum Roof Mount Hay Rack		$950.00

---

Images:
(Click small thumbnail picture for larger photo)

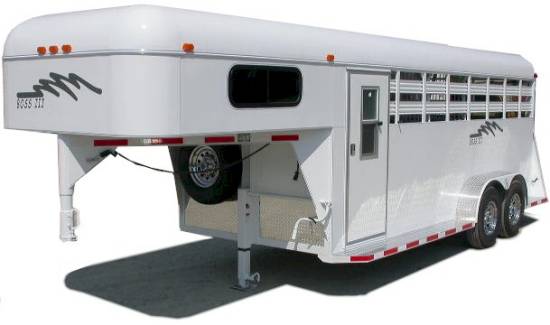

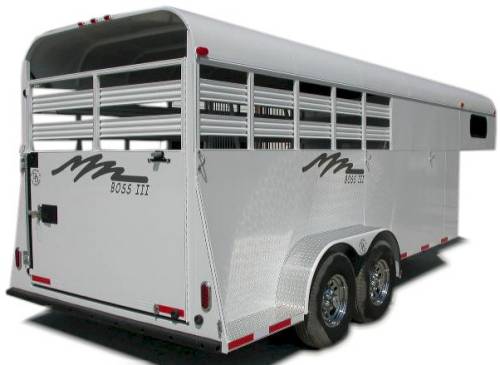

3H Slant combo trailer with stock dressing room space

Wide graphics, smooth skin design

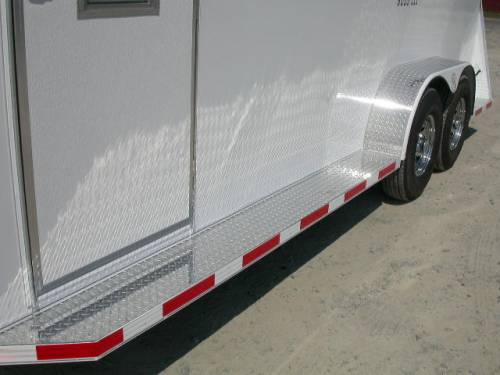

Diamond plate on front, Fenders, Running board step

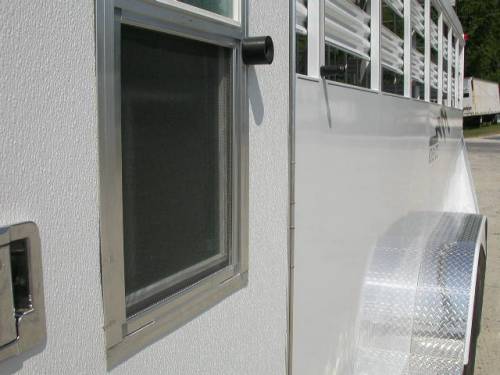

Camper door with screen and window

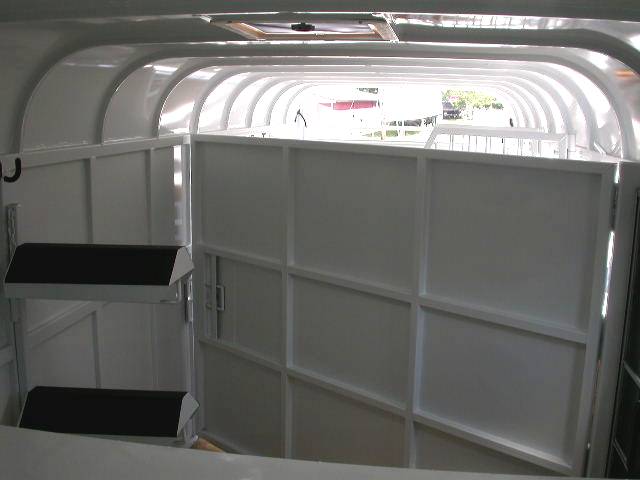

Sitting in nose of trailer looking back, dressing room wall swings

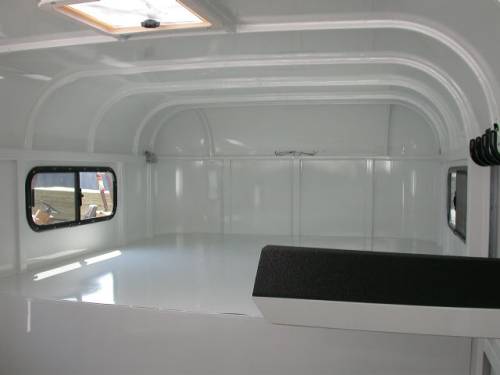

Nose area

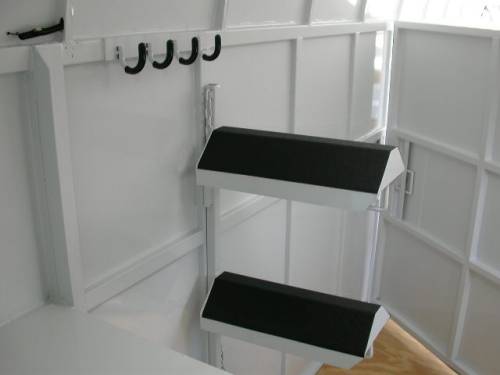

Saddle racks and bridle hangers, racks are removable

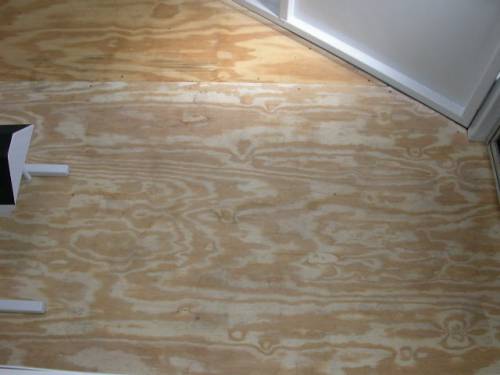

Plywood floor in dressing room, 2x8" boards underneath plywood

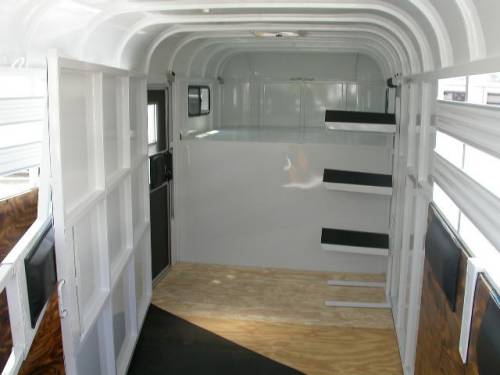

Shown with swinging wall in open position

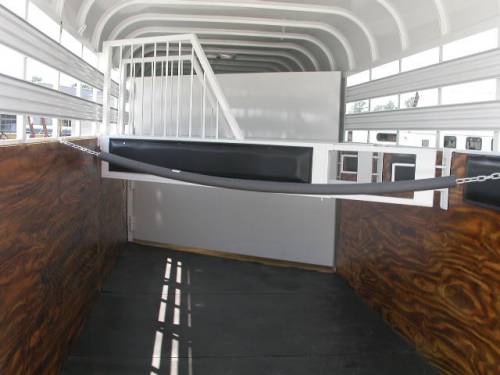

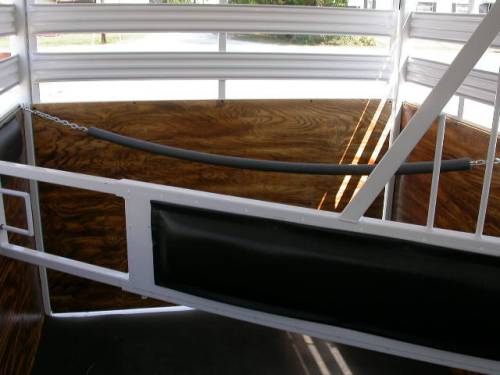

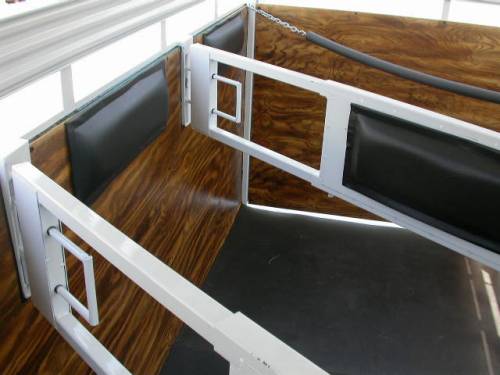

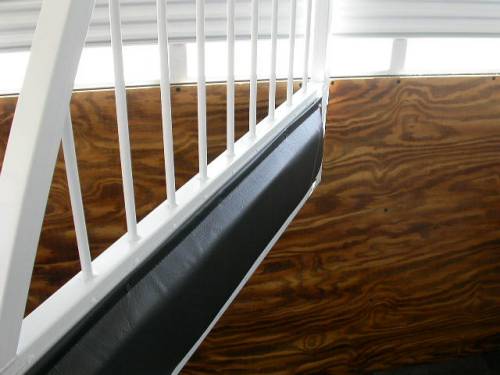

Slant slam dividers, padded stalls all around

Barred head dividers for more air flow and horses trailer better

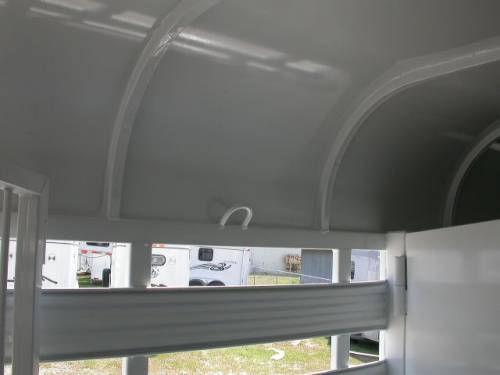

Tie loop for each horse

Tie loops on outside of the trailer

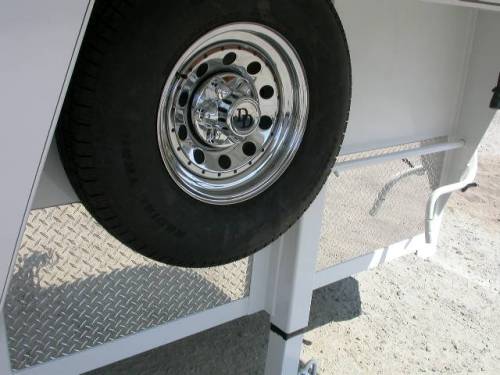

Matching Radial Chrome spare included

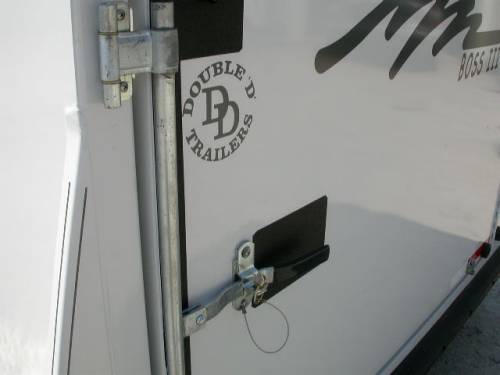

Galvanized latches for longer lasting

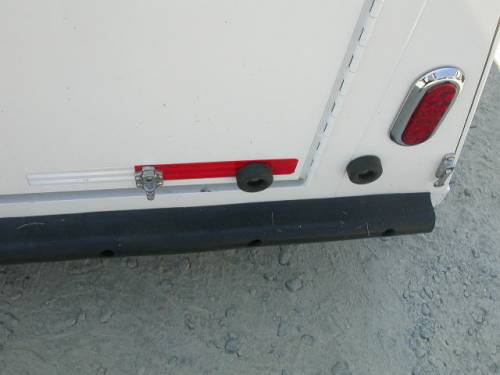

Rubber Bumper, LED Lights and door hold back included

.

3H Slant combo trailer with stock dressing room space
