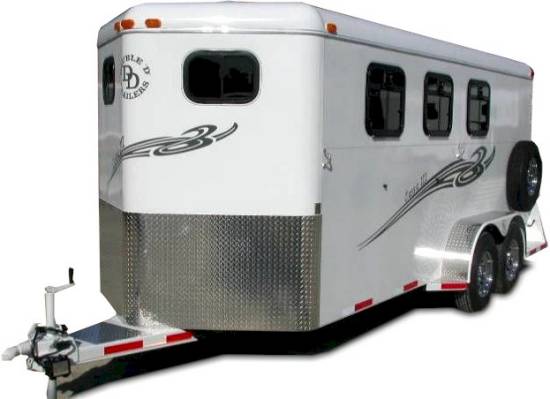

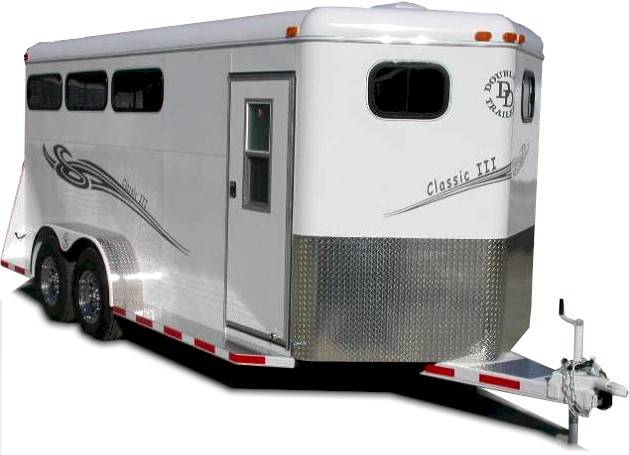

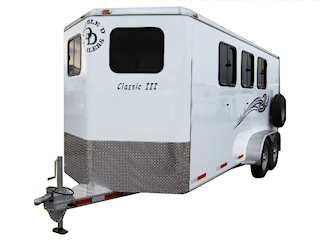

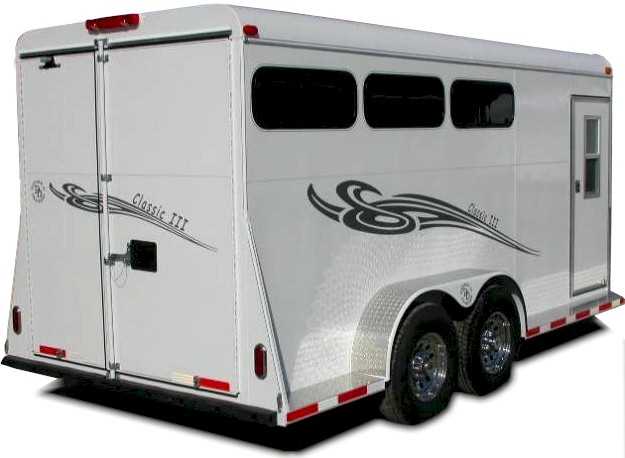

Safe-tack® 3 Horse Slant Bumper pull Trailer


Safe-tack® 3 Horse Slant Bumper Pull



Base price:
$15,100 three horse
$17,100 four horse

 - Customize your new Classic







- Features & Options
- Floor plan (PDF Format)
- Photo Gallery
- Request Additional Information Form


Have you ever thought why some horse trailers are built on a slant and some are on a straight load layout? On a Bumper Pull two horse trailer, it's easy to haul your horses in a straight load or in a 2 Horse slant load. However, when hauling three horses, it's difficult to design a trailer in a straight load layout due to width restrictions, plus making it difficult to see behind you.

A 3 Horse Bumper Pull Slant Load solves this delimna. Your new bumper pull slant load utilizes your space to create the ultimate hauling experience. First, your new Double D Classic 3 Horse Bumper pull will feature the "Safe-Tack" design. Safe-Tack means it's designed to provide maximum safety for you, and for your horses. (learn more about Safe-Tack)


**3 Horse Bumper Pull Slant Load difference:

  • Z-Frame Technology (learn More)
  • Unique, safe and Functional rear Safe-tack® Design (learn more)
  • aluminum tubular head dividers standard (more air flow, less stress on your horses)
  • V-Nose in the front walk in tack room
  • SafeBump Roof® and SafeKick® Wall System  (learn more)

Standard Features:

This Model is available in extra heights and length to accomodate varying size horses

3 Horse Bumper pull Slant load with Dress
Body Color
White is Standard. Other colors available
Vinyl stripe Color and Graphic
Weight (without options)
3700 lbs
Z-Frame Technology
Standard

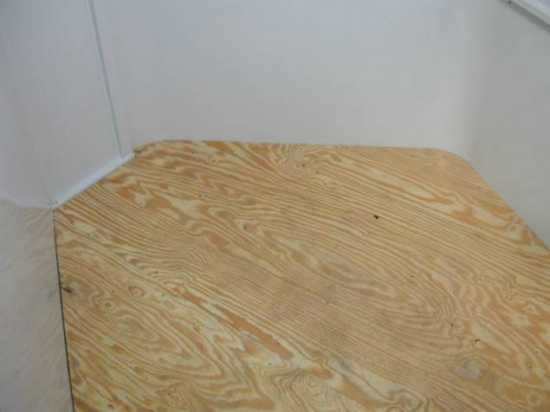

2"x8" pressure treated pine flooring on 16" crossmembers
Standard
Exterior Skin
22 Gauge Zinc Sheets with Baked on Siliconized Paint
Overall box length
18'
Dress side
24" short wall x 72" long wall

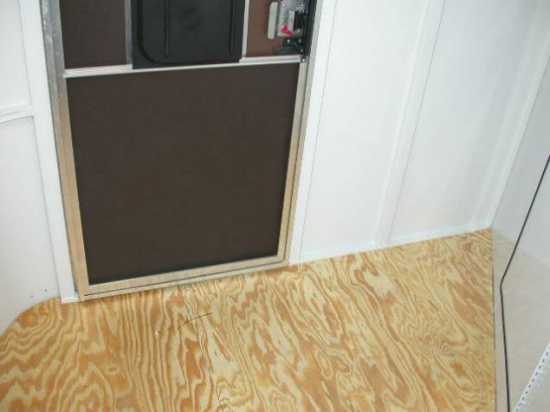

Walk thru door to horse area
Standard
Inside Height
7', optional 7'6"
Stall Length
122" diagonal, 96" divider length
Stall width
40"
Coupler
2 5/16" Ball
EZ Lube durable never adjust brakes 6,000 # capacity per axle
Smooth leaf spring suspension
Brakes
4 wheel
Wheels
Powder coated gray, optional aluminum
Tire Size
235/75R16 (E) Radial

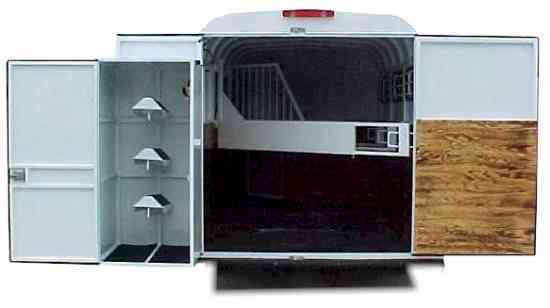

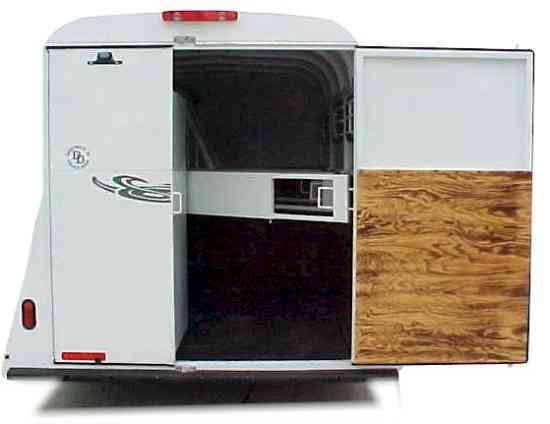

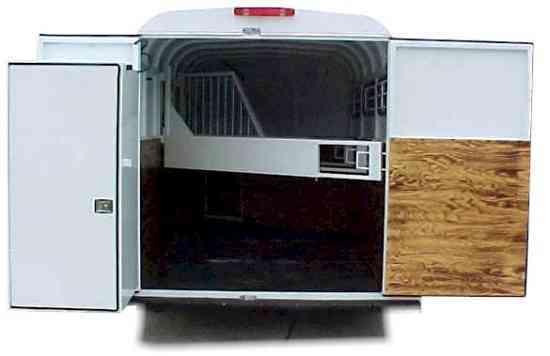

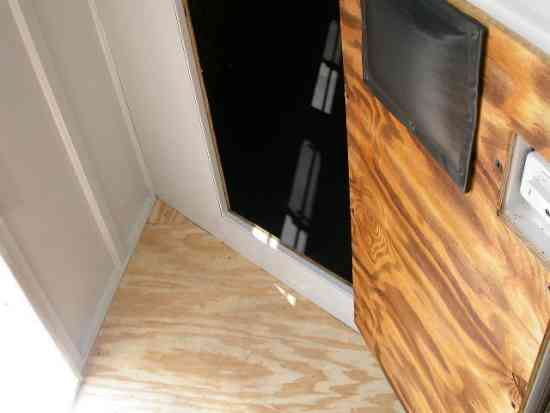

Full Height rear doors with Safe-Tack® Design
Standard
24" Diamond plate Gravel Guard at Nose
Standard
Running board steps down dressing room side
Standard
Mat in dressing room floor
Standard
Saddle racks
3
Safe-Tack® Slant load design
Standard
Bridle Hooks
3
Side Wind Jack
Standard
Marker Lights on Fender
Standard
LED Turn Signal Lights on Rear
(2) Standard up high
Extra divider on rear stall to prevent horses from backing out when rear doors are opened
Standard
Spare Tire
Standard
All locks keyed the same
Standard

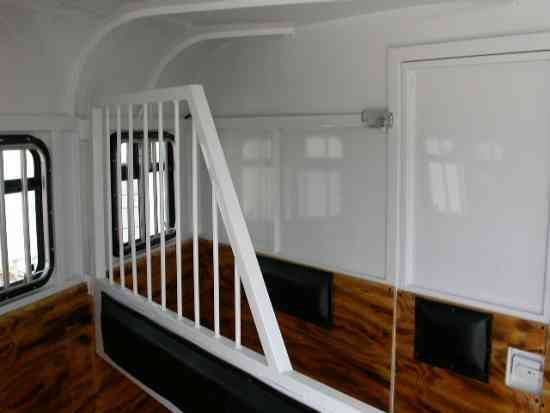

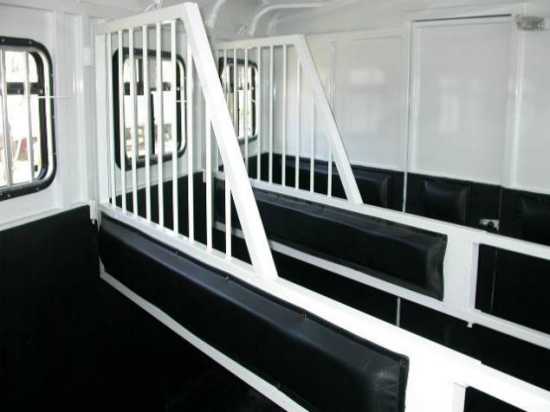

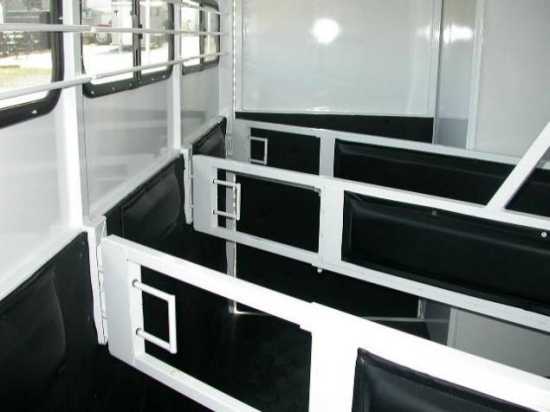

Aluminum Slant dividers with hand made padding and safety slam latches
Standard Removable
24" walk thru Escape door
Standard

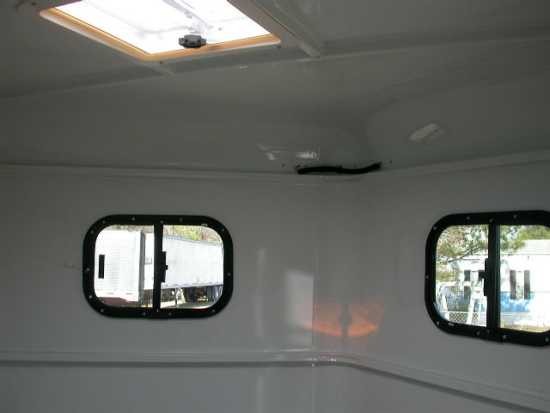

Horse area roof vents, one per stall aluminum
Standard
Custom hand made padding on dividers and slant wall
2" Standard
30" dress door
Standard
SafeKick® Wall System

Standard

Heat reflective SafeBump® Roofsystem
Standard
Insulated side walls and roof in horse area for maximum temperature protection and safe, quiet ride
Standard
Floor Mats in horse area
Standard
Interior Tie Rings per stall
1
Exterior Tie Rings per horse
1
Horse Area Roof Vents one per horse
Standard
Lights in horse area on rear remote switch
3
Light in dress
1
Rechargeable emergency Break-away system
Standard
Windows in dress - (2) sliding with screens
20"x24"
Windows in stall area - (3) drop down with bars on head side. Windows and bars fold independent, features mid-latch easy to reach system
24"x30"
Windows on butt side- (2) sliding with screens
20"x51"
7-Pin RV Style Plug
Standard
Warranty

(4) Year on Structure
(2) Year bumper to bumper
(1) Year on non-Double D Manufactured parts

Base Price: $15,100
Optional Features
Price
Dressing room comfort and convenience options
Make this a 4 Horse trailer $
2000
Add 1' or 2' to dressing room (specify quantity) NOTE: Use this feature to increase the size of your dressing room (up to 2' larger) for more space $
600
Tack Truck and seat: This storage trunk and combination carpeted seat, is installed against the front nose wall and runs the full width of the trailer.  This storage bin/seat fits in the entire "V" portion of the trailer in the floor. Optional footage (at least one foot of length) is often added to the dressing room to better accommodate this addition without using up floor space. $
550
Roof of your dressing room is insulated. Use this feature to insulate the side walls and nose area for a 100% insulated side wall and roof $
475
Brush Tray on dress door (Inside your rear tack around, there is plenty of space to throw in brushes. Use this option to add a brush tray on your dressing room door up front NOTE: Can't be used with screen door option $
45
Screen door on dress door: All doors now are built at the factory and are very sturdy.  Use this feature to add a retractable screen door to your dress door. Use the screen to keep bugs out when your door Is open**Not recommended with a brush tray $
250
Roof Mount A/C with heat strip (choose wiring option) $
850
Wiring for A/C unit, includes breaker box and power cord, and one inside receptacle (NOTE: use this option to plug in to a camp ground, also if you plan to add additional electrical items at a later date) $
285
wire a/c to 15 amp outside plug, no breaker box or receptacle or power cord (NOTE: This option routes your air conditioner wire to an outside plug. You will need to purchase your own extension cord to operate your unit. Also doesn't include any inside receptacles and doesn't have a breaker box for extra safety and future add on's) $
100
Outside light at dress door, wired to wall switch inside dressing room $
65
Carpet on bulk head wall (prevents bridles from scratching your wall) $
300
Change flooring in dress from a rubber mat to carpet: NOTE: Comes standard with a rubber floor mat, easy to clean, can be hosed down.  Use this option if you want to change from a rubber mat to carpet $
50
Blanket bar inside dressing room or on rear saddle tree (specify which) $
85
14" rollup Vent in dressing room $
150
14" rollup Vent in dressing room with 12V fan $
225
Water Tank-25 gallon triangle with stand for inside the dressing room.
Suggestion: This smaller water tank (14" per side of triangle and 56" tall) easily tucks into corner of the dressing room.
$
285
Install water pump under water caddy with switch for tank $
200
Install a 20"x51" window in the bulk head wall (NOTE: this provides more light when loading, as well as additional air flow during transit. You may also see your horses from your tow vehicle with this feature) **eliminate walk thru door with this feature $
225
Horse area convenience options
Add 1 horse stall for a 4H trailer (note: up charges may apply for options such as additional height and Rumber flooring) $
2000
7'6" Height option only (NOTE: works well for taller horses) $1100 on a 4H $
800
Add 1' to one horse stall for Draft size or Warm blood horses (specify which stall and # of stalls) $
600
Change flooring to Rumber in place of 2"x8" pressure treated pine (rumber has a life time warranty, doesn't require a rubber mat and is easy to clean, prevents slippage) $1200 on a 4H $
900
Rear door window for more air flow (20"x24" size) $
150
Fans for hauling in the summer time (priced each) $
85
Remote switch for interior horse fans $
60
Ramp door in addition to full height rear doors (NOTE: your new slant load trailer is standard with the rear tack around and is a step up. Use this feature to add a spring assist folding ramp in addition to your tack around) $
1050
Extra interior tie ring (one is standard per horse, add a second for tying hay bags) NOTE: Lay flat tie rings are standard to prevent injury to a horses eye, specify quantity) $
30
Extra exterior tie ring (3 are standard) specify location of additional rings $
40
Feed bag works great for feeding while trailering (priced per stall) $
65
Front stall escape door (note: used to access front horse in case of an emergency) $
550
Storage Partition on front stall: many folks prefer to use the front stall for storage. This feature keeps your cargo in the front stall $
450
Popular Add on's
RV grab handle on outside to assist with getting in and out of trailer $
30

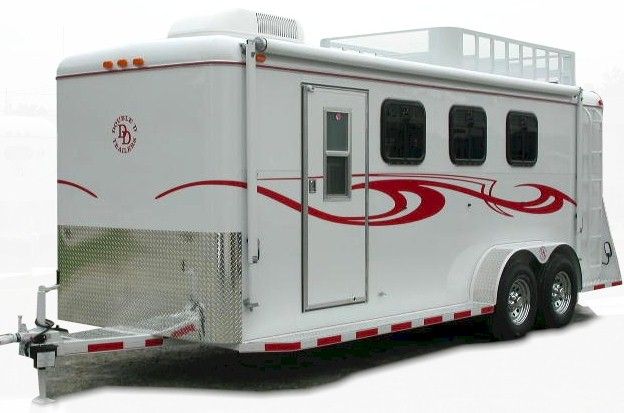

Roof mount hay rack with side ladder $
1100
Outside 55 Watt rear halogen loading spot light for night time use on remote switch $
120
Outside light at dress door, wired to wall switch inside dressing room $
65
Battery—Interior deep cell 12 Volt wired to charge from truck.
Suggestion: This deep cell battery (holds a charge for long time) is installed inside the dressing room and powers your interior lights, fans, and load lights, without being plugged into your truck. It is wired so that your tow vehicle will trickle charge it when driving.
$
285
Set of (3) are standard in your rear tack around. Add an extra set of (3) Bridle hangers in rear tack or dressing room (specify location) $
55
Extra saddle rack (3) are standard $
85
Slide out saddle racks (NOTE: Saddle Boss Saddle racks are in your new trailer, use this feature to be able to slide your saddle rack towards you when removing your saddles. Aids in getting your saddles in and out of the trailer and is quite convenient) (specify quantity) $
85
Electric Jack $
550
Battery add on for electric jack and wiring $
225
Awning up to 15' $
900
Change awning to two step (NOTE: Worth the extra money, simply flip the lever and pull the release to set up your awning) $
300
Color other than white $
400
Stainless nose sheet on "V" portion of trailer (NOTE: this option has a "mirror" style sheet on the front of your trailer, much easier to clean bugs and really adds to the look of the trailer) $
600
Aluminum wheels in place of standard gray wheels (NOTE: use this feature to upgrade to aluminum wheels.  They are worth the extra cost in adding longevity to your trailer. These wheels will look good 10 years from now) Spare remains gray and is covered with a tire cover, add $150 to change the spare as well $
600

Sub Total *
$
  Your State estimated Sales Tax (enter your tax rate, %) $
  Your State estimated License Fees $
  Document Fees $
  Service Provider Fee (if financing) $
  Bank Closing Cost (if financing) $
  Delivery (specify miles from factory, free within 1000 miles)
Click here to find your distance from the factory
$

Total with Fees *
$

  If you are financing and/or have a trade in, please complete the following:
  Down Payment amount
NOTE: most banks like to see a minimum down payment of 10% of the purchase price, without sales tax
$
  Trade in Value of your current trailer $
  Payoff on your trade in trailer (how much you owe at your bank, if any) $
  Equity in Trade In $
  Total Down Payment with Trade In $

Financing Amount *
$
  Interest Rate (enter the Interest Rate from your Bank, %)   %
  Term of Loan in Months
For loans of $10K or more, most banks will go up to 120 months.  For less than $10K, the maximum term is 84 months.


Estimated Monthly Payments *
$
  * Options calculations are for estimation only. Firm quotes available on request.
