Horse trailer hitches and brakes

Gooseneck Hitch installed

Fold down Atwood hitch or B&W Turnover installed price $695.00
--**If you have a plastic bed liner, add $50.00
--**If you have a tool box in your truck and plastic bed liner, add $200 or remove your tool box prior to bringing the truck.

Be sure your truck bed is CLEAN before bringing to us!

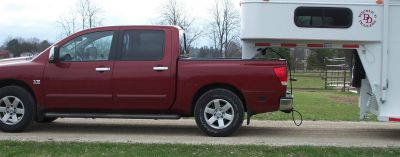

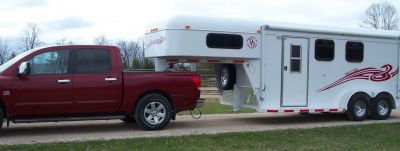

You will need 36" approximately from the center of your hitch ball to the back window of the truck. There are many myths about towing and many installers are really clueless. The facts are that you can use a short bed truck on a trailer with a full nose (not tapered) and be okay. The key is to put the ball in the correct place. Many bolt in style hitches will automatically bolt to your chassis 6" approximately in front of the center of the rear axle. However, in today's markets, tow ratings are increasing and truck bed sizes are decreasing resulting in a need to move the center of the ball farther away from the cab of the truck (36" needed). The above style hitch can be installed where you need it. In some cases, if cross rails on your truck prevent you from being 36" from the center of the cab, you may use an offset hitch on the trailer costing $300 and this will gain you 9" additional clearance from your cab. See the photos to the right and below of the offset hitch installed on a Nissan Titan Truck. Notice the trailer is behind the axle and tows great....

Before you get bent out of shape from what an "expert" hitch installer recommends, please read this exerpt from someone that has "been there done that" (click to read)

1. Smaller Size and Sleek Styling

• Voyager and Voyager XP are one-half the size of the Tekonsha® Mark 12TM 2030 and Mark 24TM 2035, the original industry standards.
• The unit is more attractive, easier to install, and makes better use of space.
• Recessed controls protect gain and level settings from accidental readjustment.
• Ergonomically designed control lever for easy, accurate gain and level settings.

2. Easy as Ever

• The traditional 4-wire hookup and under-dash U-bracket assure secure and permanent installation.
• The system is compatible with virtually any 12-volt, negative ground tow vehicle, foreign or domestic.
• The broad control range makes setting quick and easy.

3. It Gives You the Green Light

• The green LED display tells you that the unit is on and there is a complete circuit with the trailer brakes.

4. The Green LED Turns Red

• As braking power is applied, the LED changes color gradually from green to red, to indicate relative braking power.

5. New Sensor Gives a Smoother Ride

• The advanced electronics in the Voyager minimizes false braking, to give you a smoother ride, even on the roughest roads.

All the power You'll Ever Need

• XP means "Extra Power," and the Voyager XP is ideal for all 6 & 8 brake trailers.

Warranty

• The Voyager and Voyager XP come with a five-year limited warranty.

Tekonsha manufactures an advanced selection of electric brake control systems.  Every Tekonsha brake control features the industry's foremost inertia-activated braking sensor. Working at the speed of light, this patented inertia-sensing device helps your trailer stop evenly and proportionally with your tow vehicle. Additional brake control features include a bi-colored LED power delivery display, three-position Load-Fix[TM] switch, convenient four-wire hookup and "No-Fault" limited warranty coverage.

For more information on Tekonsha brake controllers, go to www.tekonsha.com
