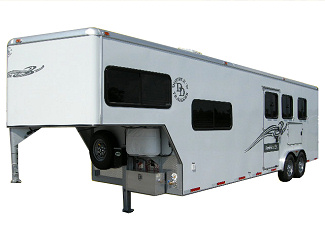

Rawhide EX 8' wide


**photo shown with optional roof rack




Base price:
3H - $36,500
4H - $42,000




- Structural Features & Options
- Living Quarter Features & Options
- Floor Plans (PDF Format)
- Photo Gallery
- Request Additional Information Form



Video Tours:
- Gooseneck/Bed area
- Kitchen/Sofa area
- Bathroom
- Slide Out



The Rawhide EX is identical to the standard width Rawhide model trailer. The differences are the Rawhide EX is 8' wide, 7'6" height, comes standard with the fold out sleeper sofa and electric jack. All other amenities are the same as the standard Rawhide trailer including all appliances. The 3 cu refrigerator, the 2 burner cook top, RV style microwave, double sink (not single like competition), Radio/CD player with inside and outside speakers. Bathroom has HUGE stand up shower stall, floor to ceiling closet big enough for all of you ladies' clothing (men to). Separate sink in the bathroom, toilet, dual wastewater tanks....and it's not jam packed like most of the competition trailers out there. Our shower is large enough for two people. Scroll thru the pages of the Rawhide EX and see for yourself why more and more people are pulling Double D trailers.

 The slant dressing room comes standard with a walk-through door to the horse area. Each stall in the horse area has a pop-up roof vent, drop down feed windows with aluminum safety bars, and sliding windows with safety bars and screen. Rubber wall liner is installed on the left and right walls to prevent damage to the trailer. Also, check out our new exclusive rear Tack Around design--It has easy access for tack and works well for loading and un-loading the horse. This new design leaves the entire rear of the trailer open yet still utilizes the space. This trailer weighs about 10,500 lbs approximately and we do recommend a minimum of a 2500 series diesel truck for towing.

All Double D Trailers are now built with the new **NO Rust Galvaneal metal and painted with an electrostatic paint system. All metal is stored indoors so there is no rust on the trailers when they roll out of the factory...everything is washed with a steamer and iron phosphate to open up the pores of the metal to allow the primer to stick better, and to remove oil residue. Once that dries, all the seams are sealed with 3M sealant inside and out. Then we prime with two coats of Valspar, automotive primer and paint with three coats of Valspar automotive paint. End result is a very durable, smooth, shining, long lasting finish.


Structural Features & Options:

Standard Features:

  • 24' length, 7'6" height, 8' width (4H 28' floor)
  • 20 gauge Galvaneal rolled top
  • 16 gauge Galvaneal sides
  • 8" channel iron neck
  • Double walled Rubber lined Horse Area
  • Padded stall in horse area
  • 14,000 LB GVWR capacity axles, four wheel brakes
  • ***Weight Chart
  • Rubber Bumper
  • Primed and painted underside of trailer
  • 2x8" CCA pressure treated pine flooring
  • Spare Tire/wheel/Chrome wheels
  • 24" centers on uprights,
    crossmembers & roof   supports
  • Galvaneal Teardrop fenders
  • 2-5/16" adjustable coupler
  • 3-Ton Electric over hydraulic jack
  • 16" Radial Tires load rand E
  • Aluminum Treadplate Gravel Guard
  • D.O.T lighting and Tape
  • Safety Chains
  • Formed outside smooth skin completely enclosed with Galvaneal
  • Plenty of Lights in the horse area
  • Camper door with screen
  • Fold out step to the camper door
  • Tie Loops for each horse
  • Heavy duty rubber mats in stalls
  • Fully enclosed **Tack-Around design
  • Sliding bus windows butt side of horse
  • Stud gate on the first stall
  • Walk thru door from front to rear
  • Pop-Up roof vent for each horse
  • Drop down feed windows with aluminum bars
  • Available Graphics package
  • Available Color Choices

Optional Features:

  Aluminum Roof Mount Hay Rack with ladder-   $950
  6 ton elec./hydraulic jack   included
  Rubber Liner 3H   Included
  Rubber Liner 4H   Included
  Ramp Door   $950
  Escape door on the first stall with breast bar   $450
  Feed Mangers 3 Horse (includes mangers rear
2 stalls, escape door on front stall)
  $1,950
  Feed Mangers 4 Horse (includes mangers rear
3 stalls, escape door on front stall)
  $2,700

Living Quarter Features & Options:

Standard Features:

  • 13,500 BTU A/C Coleman Mach
  • 10' short wall x 14' long wall
  • 50 gallons water storage
  • (2) 20LB propane cylinders
  • 2" foam insulation thru out interior
  • Hand Made Solid Oak Cabinet finish raised panel doors
  • Hand made moldings
  • RV style walls
  • Soft felt ceiling
  • 3 Cu. Refrigerator with Freezer 110V or Propane
  • Large 2 Burner cook-top
  • Large kitchen double sink for dishes
  • Nice counter space for cooking
  • Excellent cabinet space thru out
  • Bed area has 4" foam covered mattress Queen
  • Folding step ladder to bedroom
  • Very nice lighting in the Bed area
  • Pleated day and night combo shades
  • 19' Roll Out awning
  • 6 Gallon propane hot water heater direct ignition
  • Front wardrobe
  • Fold out sleeper sofa, your choice of color, has
    Removable pedestal table in front of it
  • 13" TV/DVD combo enclosed in cabinet on pull out
    Swivel tray
  • CD player/radio with inside/outside speakers (it kicks)
  • 30' 30 Amp Power cord
  • 40 Amp Power converter
  • RV Style 1.0 Cu. Microwave
  • Front wardrobe, Closet in Bathroom
  • Pleated Fabric folding door to bathroom
  • Walk thru door to horse area
  • China Toilet with foot pedal flush
  • Roomy Corner shower, large enough for two adults
  • Nice storage in the bathroom
  • Sink in the bathroom
  • Mirrors in the bathroom
  • Tank Monitors on Holding tanks including
    battery power/fresh water/black/gray tanks
  • 30 gallon waste water tanks
  • Fold out sleeper sofa with table in front
  • Molding Thru Out



Optional Features:

  16,500 BTU Furnace ducted   $600
  Privacy door in the bed portion   $200
  Ducted Roof A/C (vents in the ceiling vs. forced air)   $400
  Honda EU3000 IS generator (sits in back of truck)
pricing includes all necessary adapter cords for
Trailer
  $1,850
  Slide Out on the Sofa   $4,000
  On-board Generator (remote start) Pricing includes
roof mount aluminum Hay rack priced at $950
  $5,950
  Soft Walls in place of hard wall   $2,000
  Maple Cabinets in place of Oak   $300
  Dark stain on cabinets (light or natural is std)   $1,000
  15" Flat Screen TV/DVD player wall mount   $300
  15 gallon fuel capacity on Generator in place of 5
gallon tank
  $300
  6 Cu Refrigerator in place of 3 cu. refrigerator
Note: Requires eliminating window at appliance
Bar, switch from double sink down to single sink.
Other option is to eliminate the bathroom sink
and install taller refrigerator on the sofa side.
  $800

 Would you like more information?




Images:
(Click small thumbnail picture for larger photo)

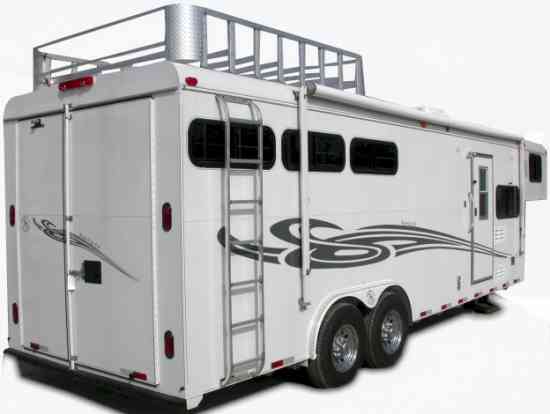

Shown with Optional Aluminum roof mount hay rack

Slant slam dividers standard

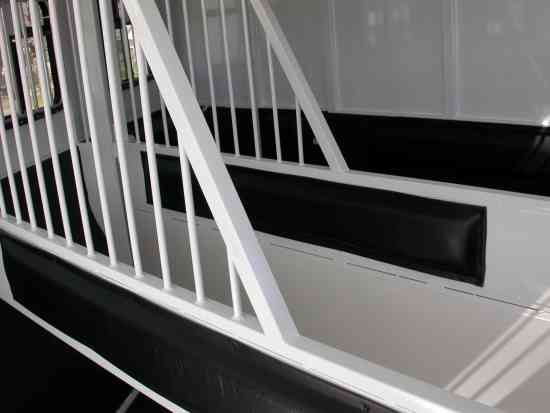

Stud gate is standard, rubber on the walls is optional

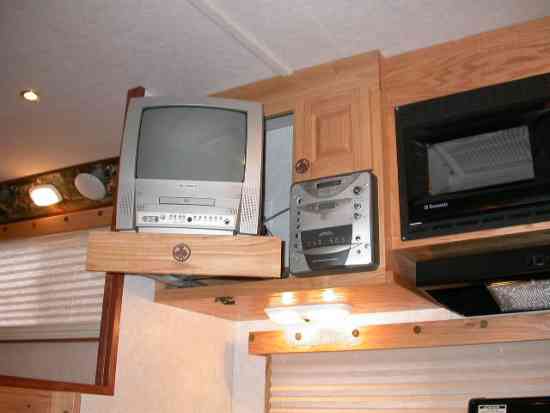

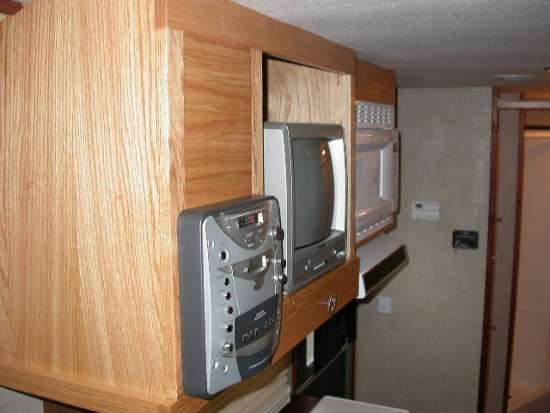

TV is built into a cabinet, pulls out and swivels...you don't see this everyday, stereo system is to the right of the TV

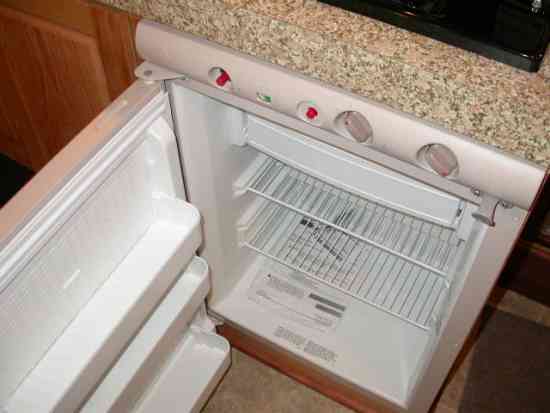

3 cu refrigerator operates off of propane and 110V

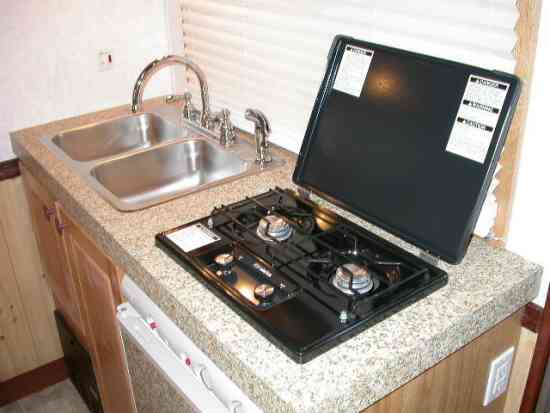

Two burner cook top, your choice of black, white or stainless finish.

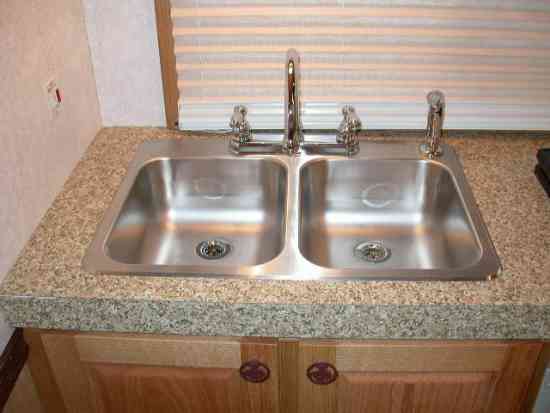

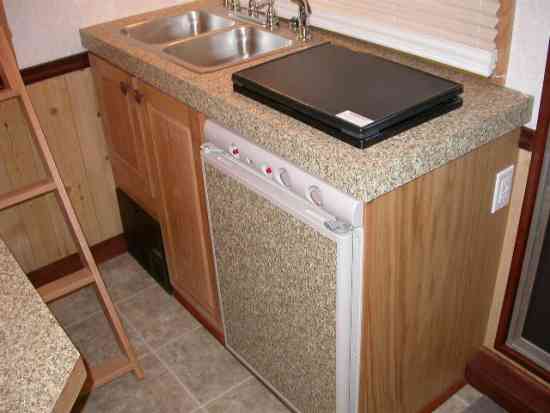

Double sink...WOW!! Nicer than the one in your kitchen, available in stainless, black or white

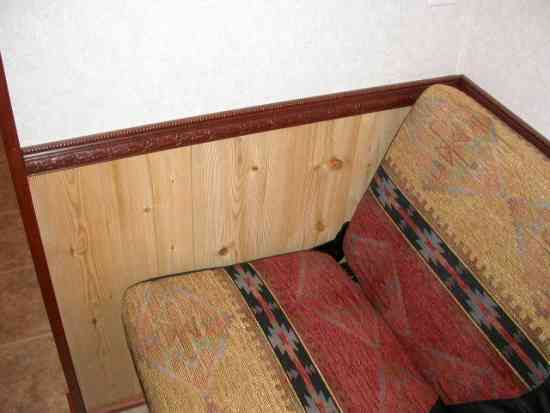

Nice Chair rail all around and paneling at the bottom

Sitting in the nose area looking backwards.

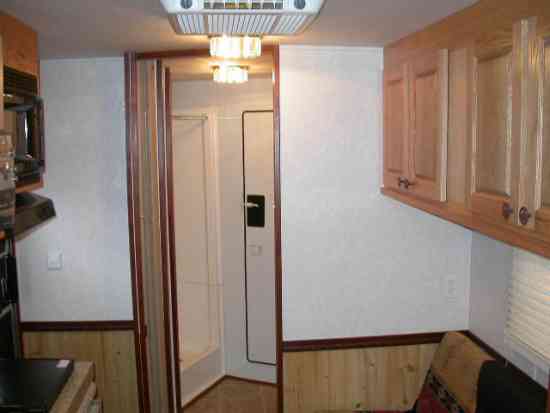

Standing in the bathroom looking forward

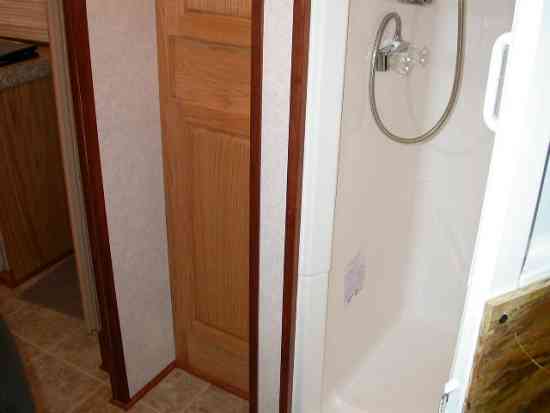

The shower in this trailer is huge, the photos do not do justice...large enough for two adults (not if you weigh 300 lbs ea.)

Better photo of the shower

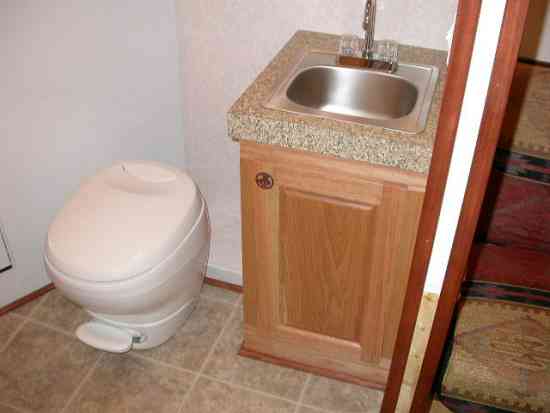

Toilet has plenty of room around it, over to the side where it should be, not in the middle of the bathroom like on competition trailers. Cool sink to

You will need space to put all your "stuff" in the bathroom, toothbrush, hair dryer, shaving cream, whatever,

Soft Ceiling now standard in Rawhide trailers, NO SEAMS, looks great, easy to clean and no upkeep.

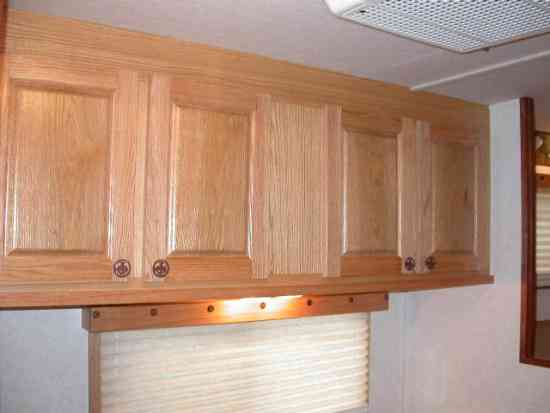

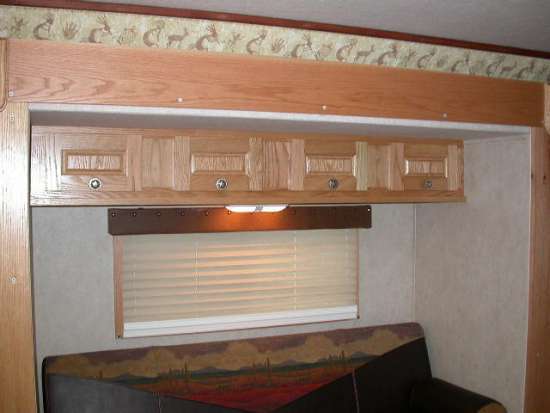

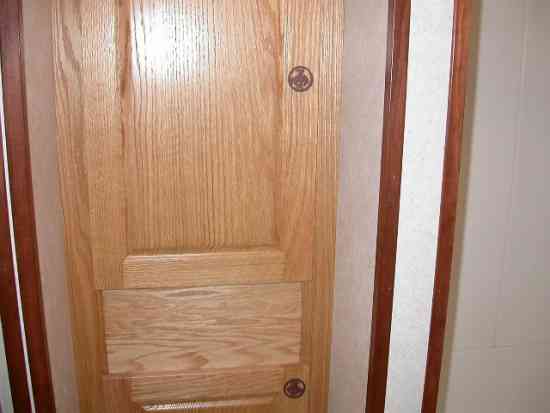

Solid Oak cabinets with raised panel doors, all of our cabinets are built in house by hand, no prefab material or pressboard

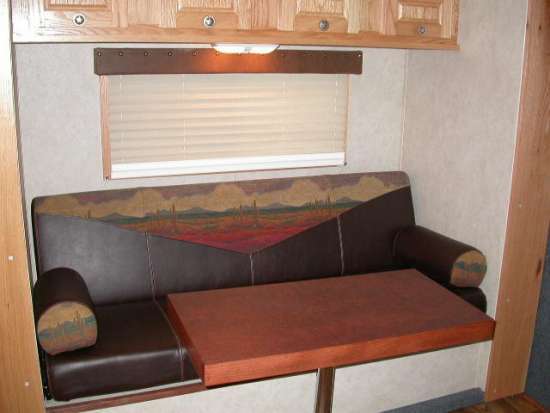

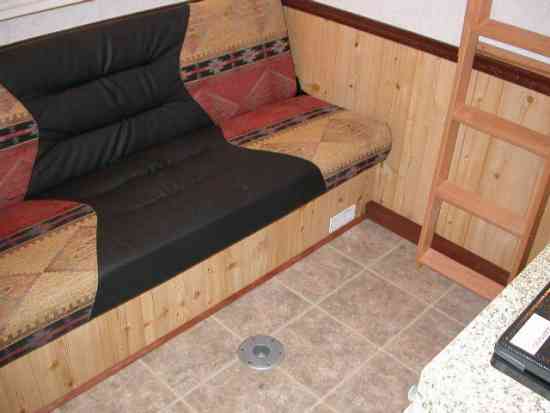

We have a variety of sofa choices, colors, styles, etc. You see in the floor where the table mounts

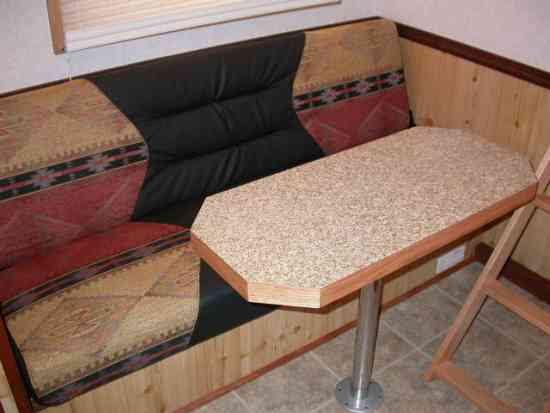

There's the table, we normally store it underneath the sofa

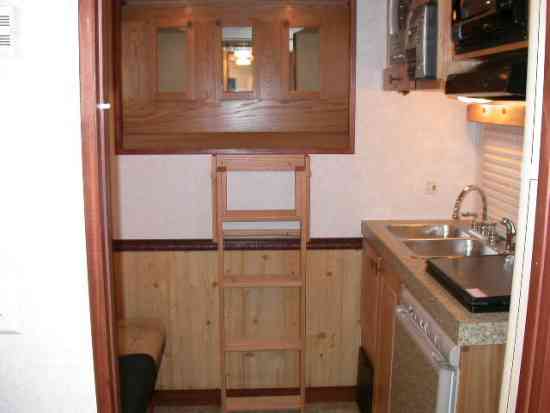

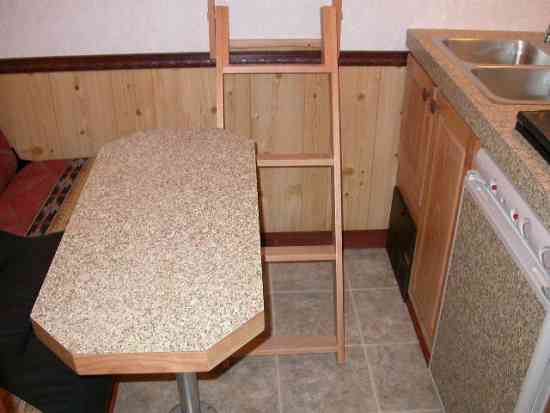

Good room to walk around even with the table set up, see our folding ladder to the bed

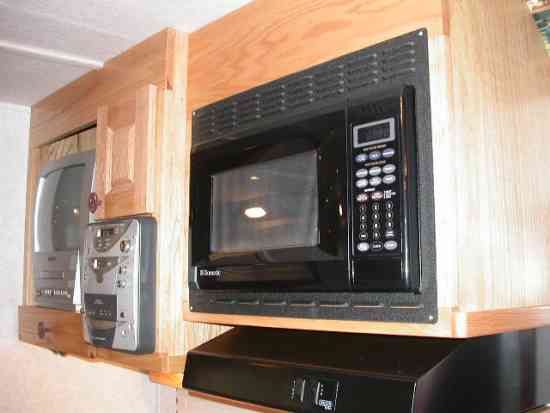

RV style microwave, white or black availability in color

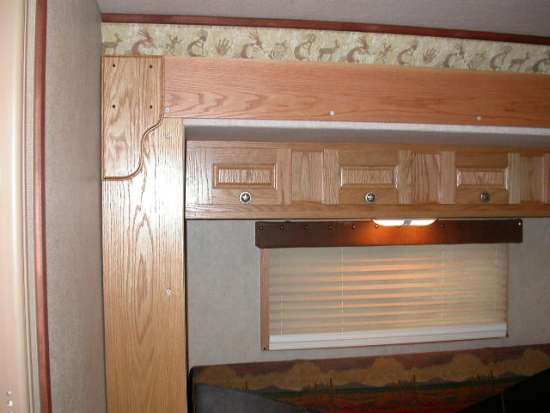

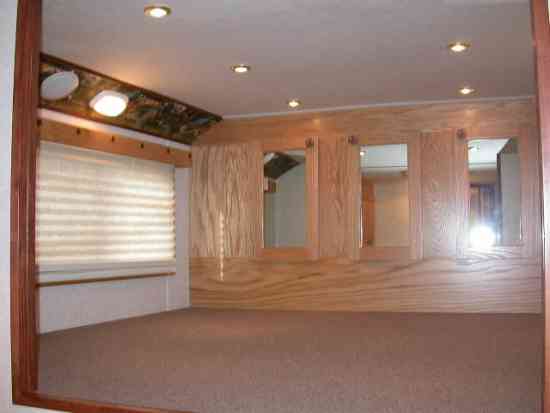

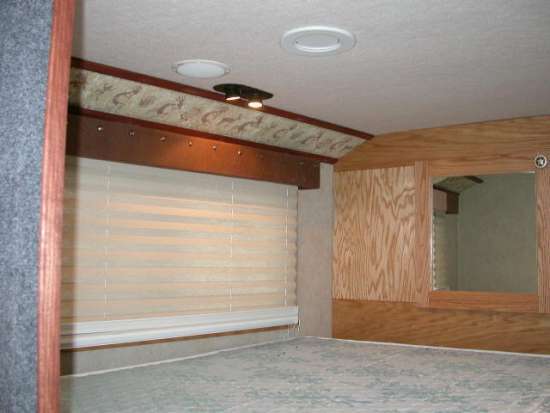

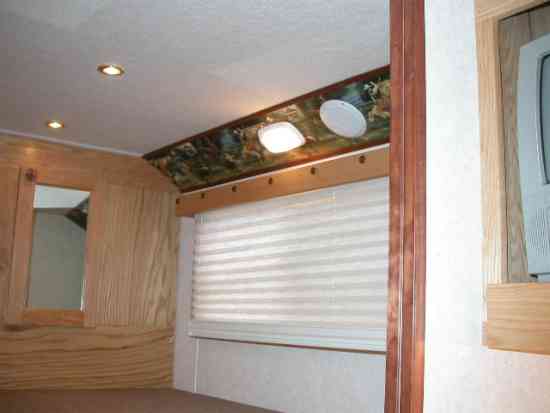

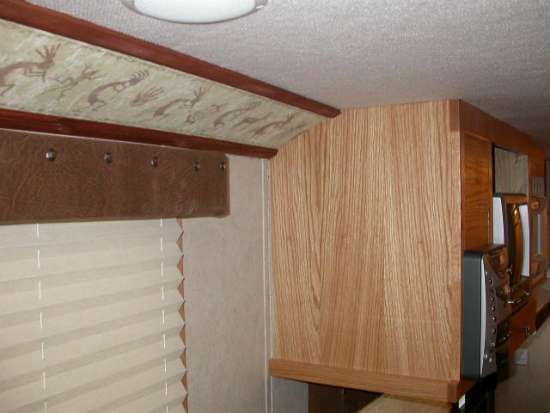

Plenty of lights in the nose, front wardrobe, day/night combo shades

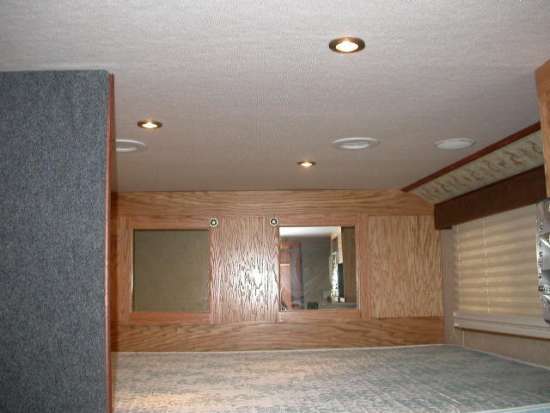

Better view of the nose area...sometimes we change up and do something different, we get tired of doing the same thing all the time

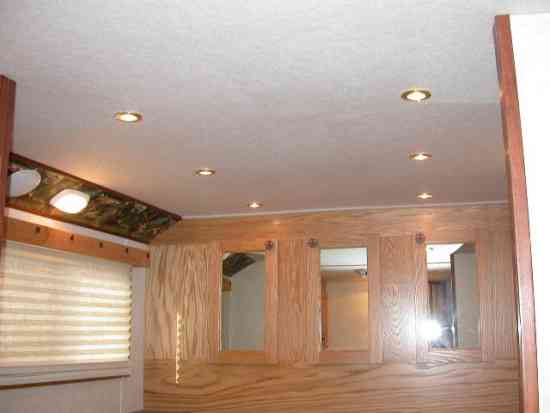

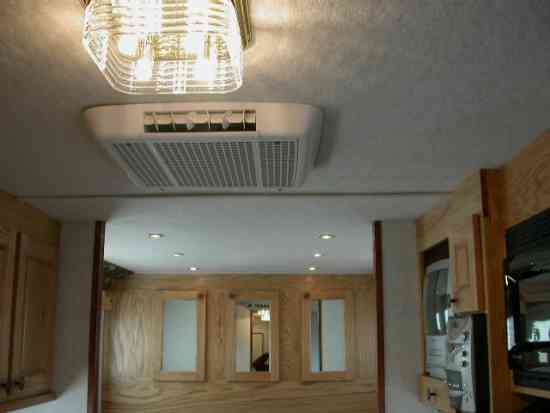

We always use nice quality lighting in our Rawhide trailers, A/C is standard with heat strip

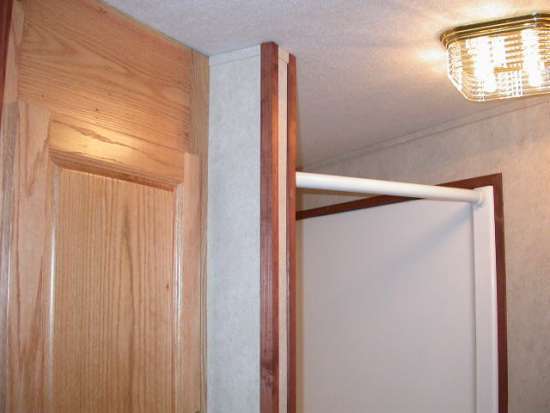

We let you choose what shower curtain to hang up, we do offer a hidden shower door if you like as an option

Now this is a HUGE closet in the bathroom, for clothing and plenty of space below for much more stuff

Bottom side of the closet...nice to be able to get your clothes without walking out of the bathroom

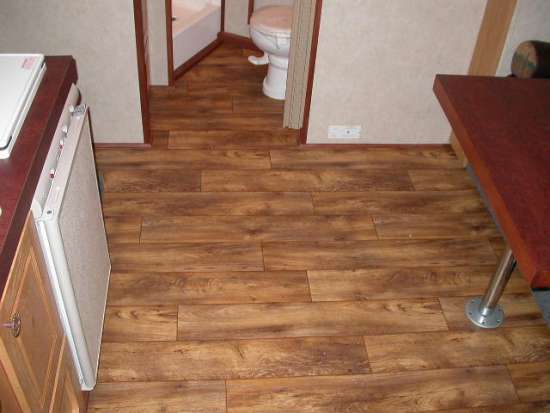

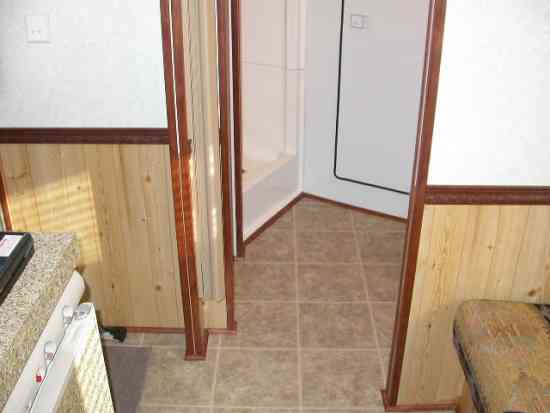

Entrance to bathroom, there is a walk thru door to the rear...be sure to look at the video tours for more details

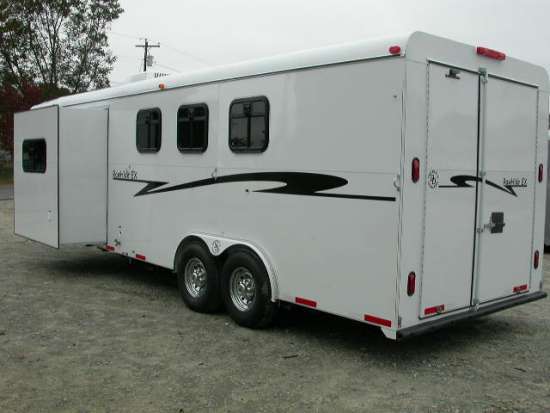

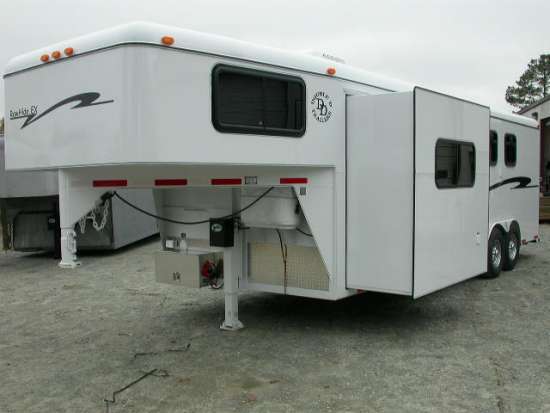

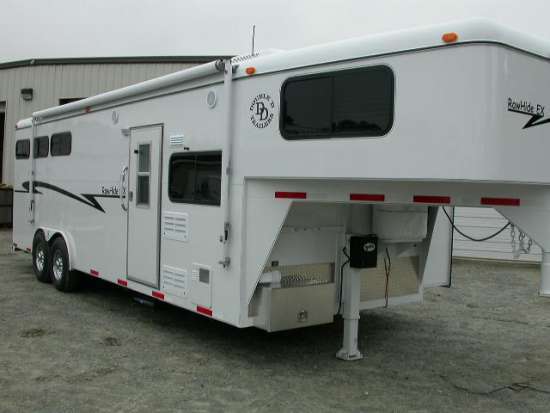

Rawhide EX Slide Out:

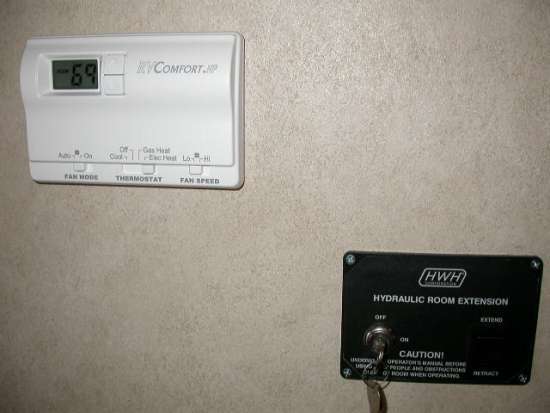

Easy access switch on the slide, simply press the button, one finger operation

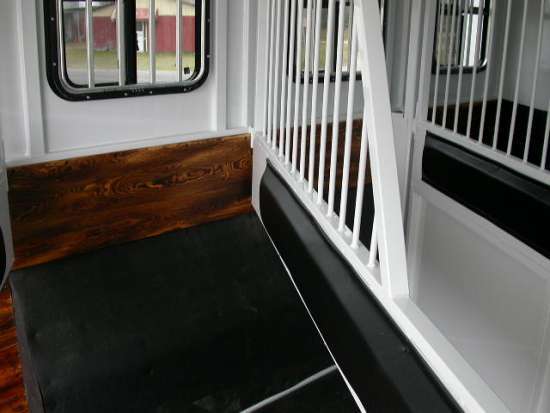

Stud Divider, smoked plywood kick lining

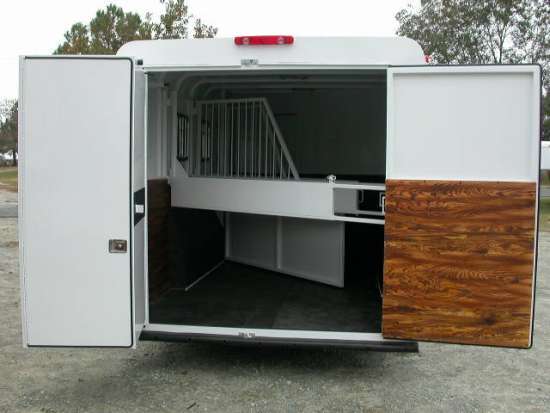

Rear-Tack around is standard

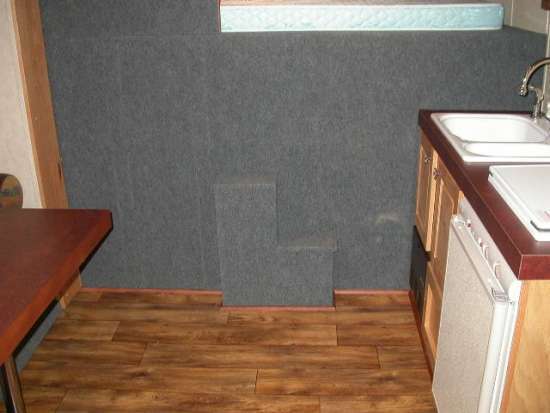

Slide out works great

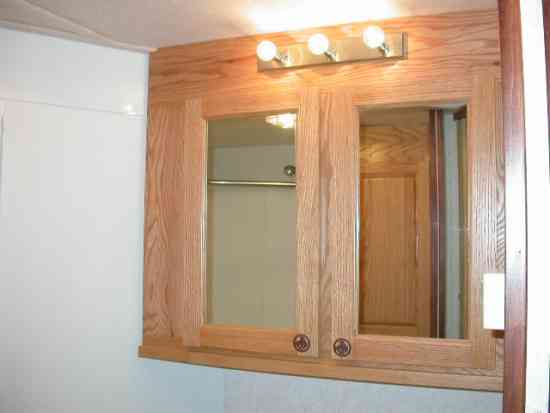

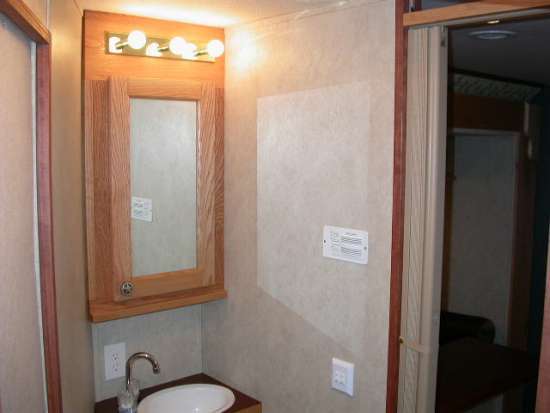

Nice mirror in here with ample lighting

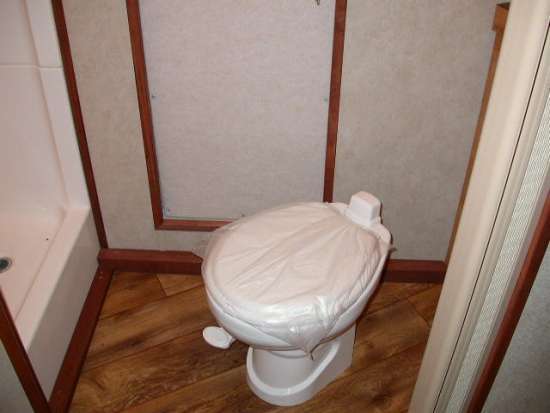

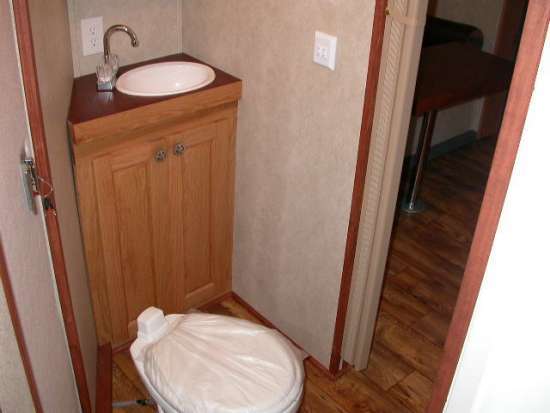

Separate toilet in the bathroom

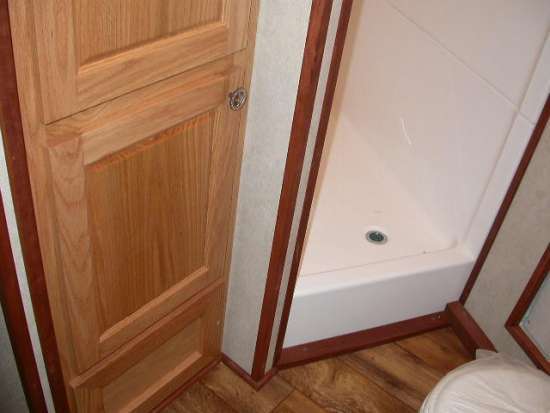

Huge Closet

Walk thru door from front to rear standard

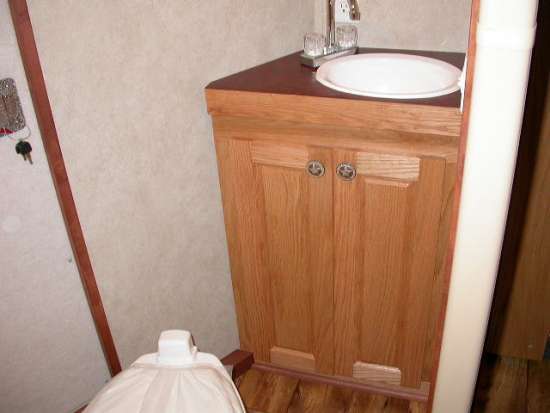

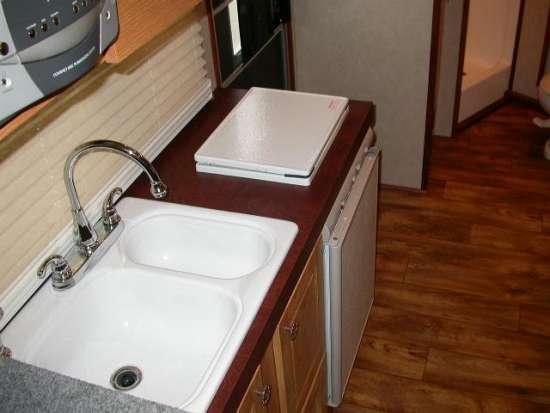

Decent storage around sink area

Slide out works like a champ

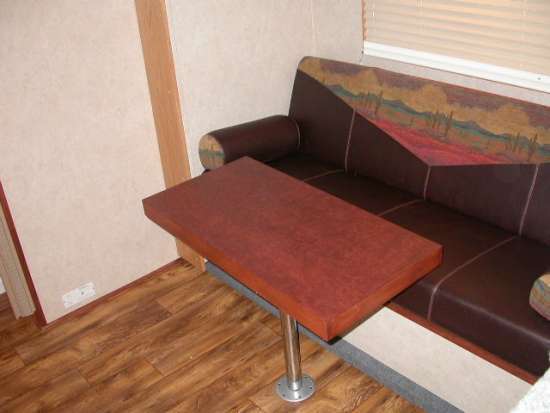

Table is removable

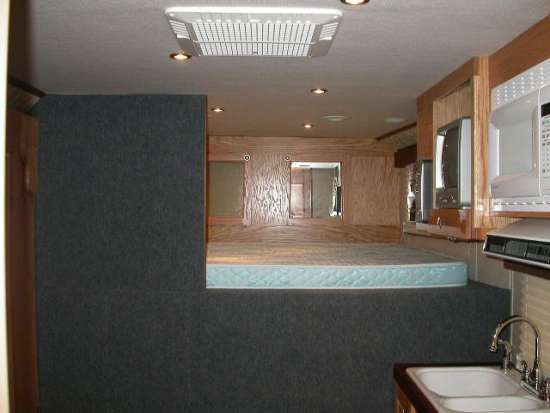

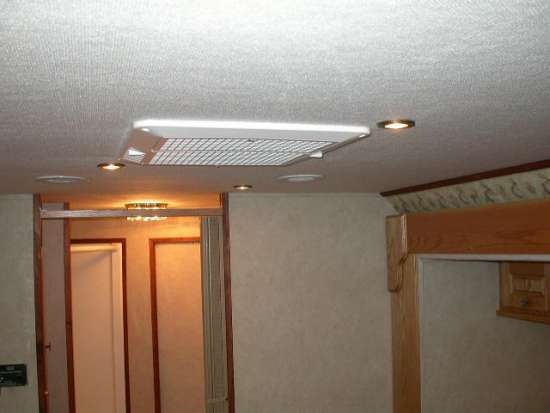

Shown with ducted roof A/C which blows thru vents located from front to rear in the ceiling
