Revelation Trailer
Do you know what "Revelation" is? Revelation is a bright idea, a thought, a new beginning of something and of course the last book of the Bible. This horse trailer model has over taken all of our other models in sales. With features like a full separate bathroom, all the appliances you can think of, solid oak hand made cabinets with wonderful fit and workmanship, it is no wonder why all of our customers have enjoyed "their Revelation." Double D Trailers is major player in the horse trailer market today with horse trailer sales factory direct over the internet with worldwide distribution and delivery. We have sold in almost every state in the US and exported horse trailers to countries like Australia, New Zealand, Taiwan, Iceland and Europe.
Recently released, the Revelation has been a huge success. From it's original design, it was intended to be an "in between" model of the Sundance and the Rawhide. With that thought in mind, that's just what we did.

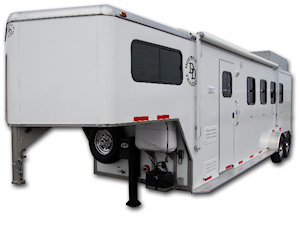

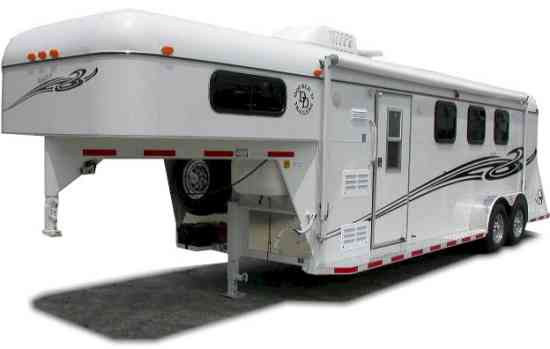

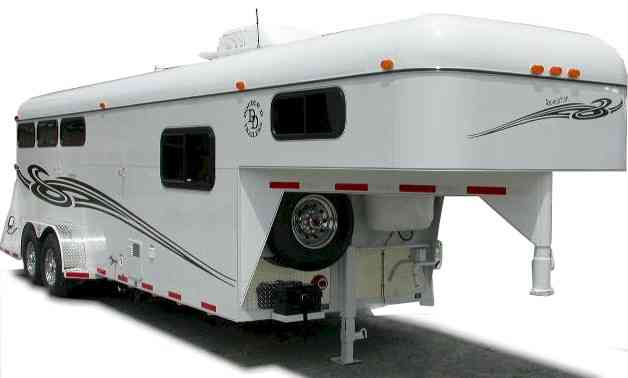

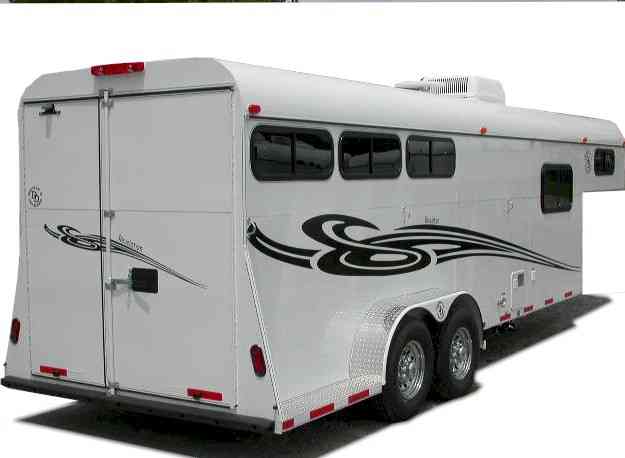

The Revelation is a 22' 3H Slant load model trailer with a 7' plus short wall. While featuring basically all of the comforts of the larger Rawhide trailer, it's scaled back design reduces overall weight and pricing of the trailer while still maintaining interior room and functionality. Weighing at 6900 lbs approximately, it will compare in weight to most all aluminum frame trailers and can be easily towed with a 2500 series 3/4 ton pick up. 1500 series isn't quiet large enough for this trailer. The living quarters is finished with most amenities such as Awning, A/C with heat strip, kitchen has 3 cu. refrig, microwave, single sink, two burner cook top. Also has TV/DVD player, CD player with inside/outside speakers, fold out sleeper sofa with 50 gallon water tank underneath, overhead storage cabinets. Bathroom has very roomy closet, decent size shower, separate toilet and walk thru door to the back. There isn't a sink in the bathroom.

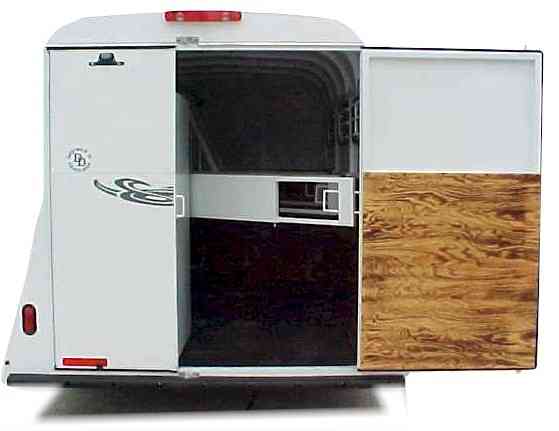

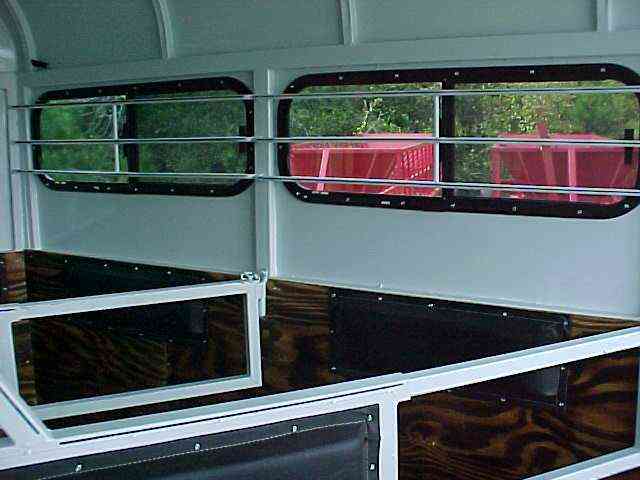

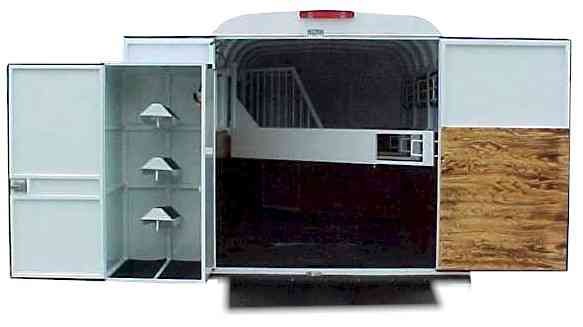

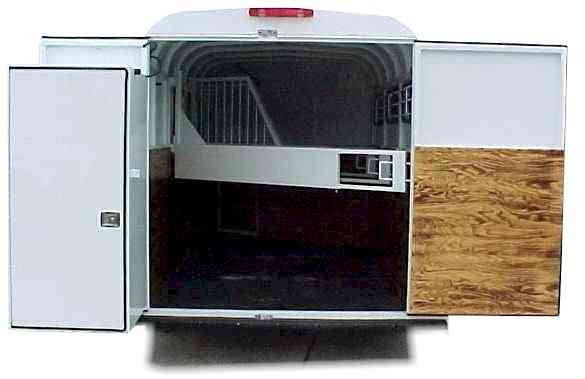

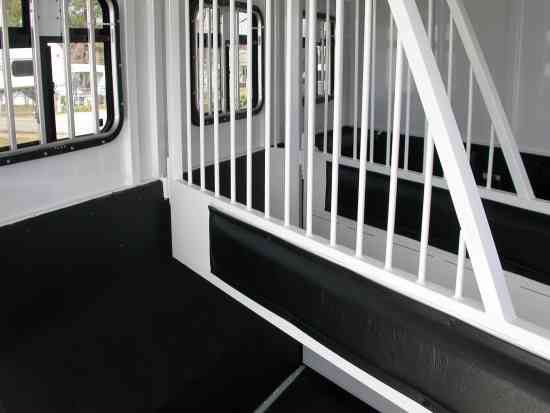

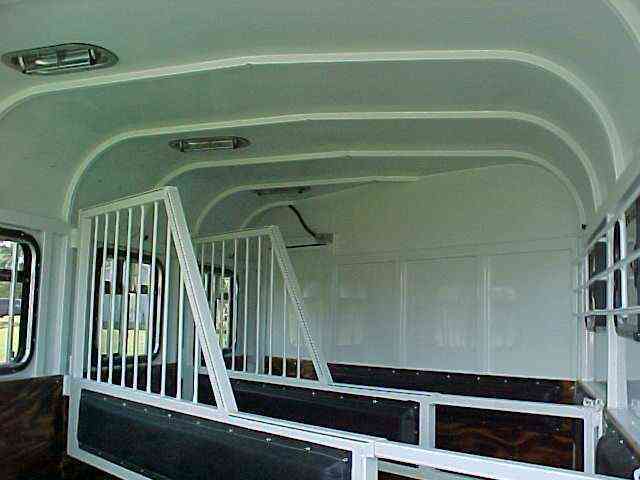

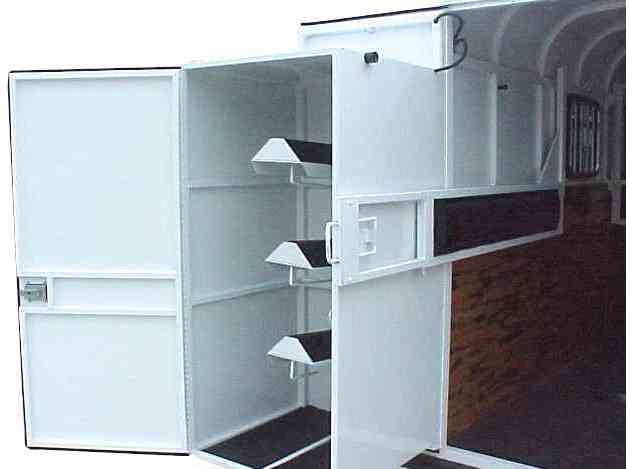

Each stall in the horse area has a pop-up roof vent, drop down feed windows with aluminum safety bars, and sliding windows with safety bars and screen. Smoked plywood kick lining is installed on the left and right walls to prevent damage to the trailer. Also, check out our new exclusive rear Tack Around design--It has easy access for tack and works well for loading and un-loading the horse. This new design leaves the entire rear of the trailer open yet still utilizes the space. This trailer weighs about 6900 lbs and can be towed with most any 2500 series 3/4 ton pick up truck. Call for more details.
Be sure to read thru the FAQ/Safety Information on the website. It is worth the time.
Structural Features & Options:
Standard Features:
-
- 1"x 2"x 14 gauge uprights
- 20 gauge Galvaneal rolled top
- 16 gauge Galvaneal sides
- 6" channel iron neck
- 6'8" wide
- 7' tall
- Full nose
- Rubber Bumper
- Four Wheel Electric brakes
- 2x8" CCA pressure treated pine flooring
- Spare Tire/wheel all Chrome matching
- 24" centers on uprights,
crossmembers & roof supports
- Galvaneal Teardrop fenders
- 2-5/16" adjustable coupler
- Spring loaded jack
- Dexter Heavy Duty 7000# axles
- 16" Radial Tires 10 ply (load range E)
- Aluminum Treadplate Gravel Guard
- D.O.T lighting and Tape
- **Weight chart
|
- Formed outside smooth skin completely enclosed with Galvaneal
- Slant dressing room wall
- Escape door in dresssing room wall
- Lights throughout
- Sub-floor in dressing area
- Camper door with screen
- Dressing room running board
- Tie loops for each horse
- Heavy duty rubber mats in stalls
- Sliding bus windows (2 in nose, one large picture window)
- Trailer weight 6900 lbs approximately
- Fully enclosed **Tack-Around Design
- 13,500 BTU A/C with Heat Strip
- Smoked plywood kick lining
- Pop-up roof vent for each horse
- Drop down feed windows with aluminum bars
- Wide GRAPHICS package
- Your Choice of Color/white is standard
- Double D Exterior finish package with electrostatic paint system
- Sealed seams in Dressing Area, roof, fenders & uprights
|
Optional Features:
| |
|
|
|
| |
Rubber Wall Liner (horse Area) |
|
$650 |
| |
Chrome Wheels |
|
included |
| |
Roll Out Awning |
|
included |
| |
Available Graphics |
|
included |
| |
Available color Chart |
|
included |
| |

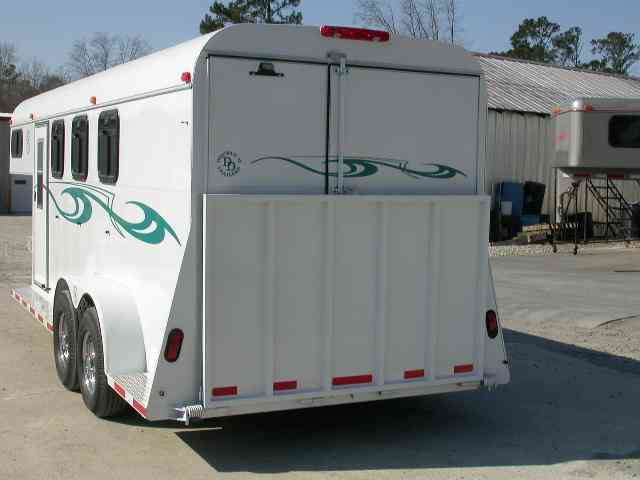

Ramp Load |
|
$950 |
| |
Electric/Hydraulic Jack |
|
$1200 |
| |
Aluminum Roof Mount Hay Rack |
|
$950 |
| |
Front Stall Escape door |
|
$450 |
| |
Stud Gate |
|
$350 |
| |
|
|
|
| |
|
|
|
Living Quarter Features & Options:
Standard Features:
- 13,500 BTU A/C Coleman Mach
- 7'6"" short wall x 12' long wall
- 50 gallons water storage
- (2) 20LB propane cylinders
- 2" foam insulation thru out interior

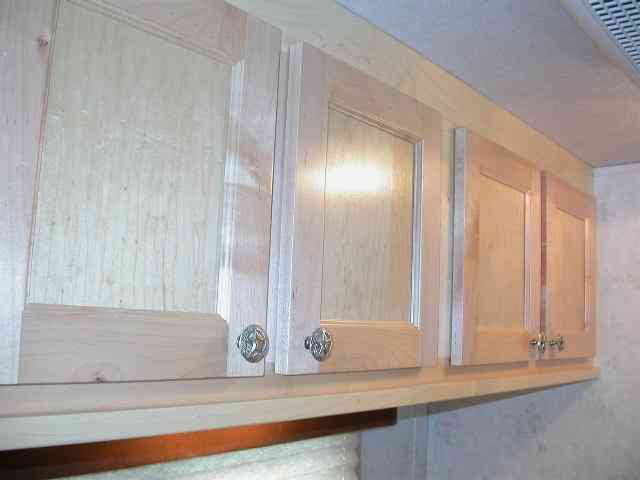

- Hand Made Solid Oak Cabinet finish with panel doors
- Quality moldings
- RV style walls

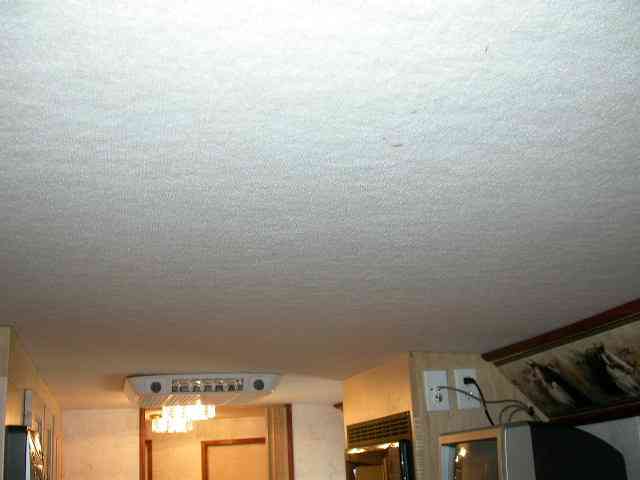

- Soft felt ceiling
- 3 Cu. Refrigerator with Freezer 110V or Propane
- Large 2 Burner cook-top

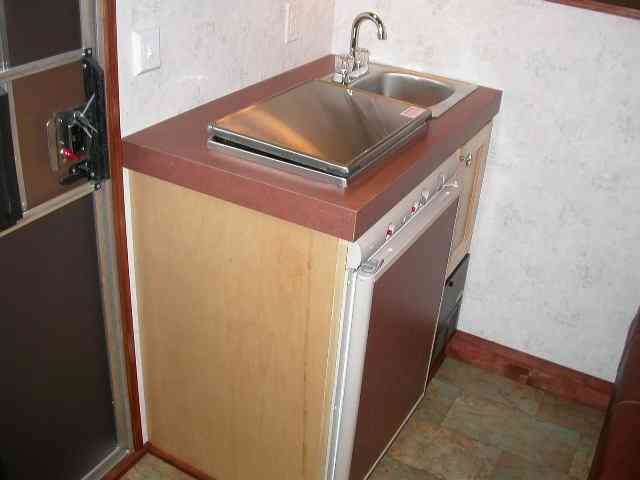

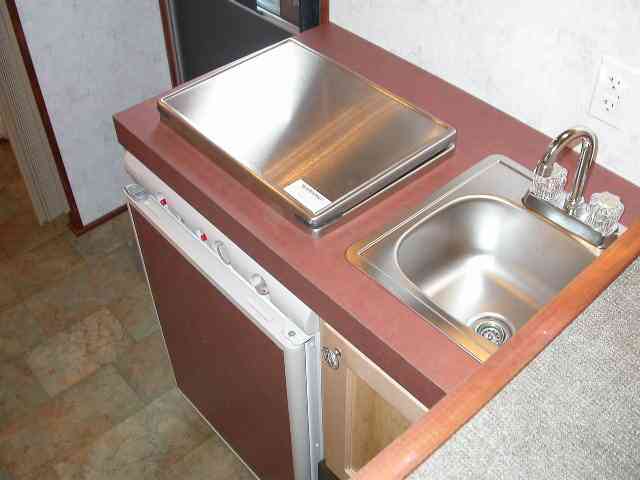

- Single Stainless steel sink in the kitchen area
- Nice counter space for cooking
- Excellent cabinet space thru out
- Will hold up to a queen size mattress, not included
- Very nice lighting in the Bed area

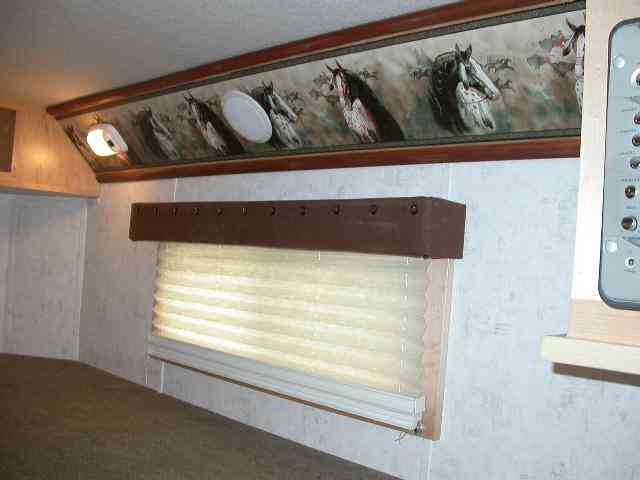

- Pleated day and night combo shades
- 19' Roll Out awning
- 6 Gallon propane hot water heater direct ignition
|

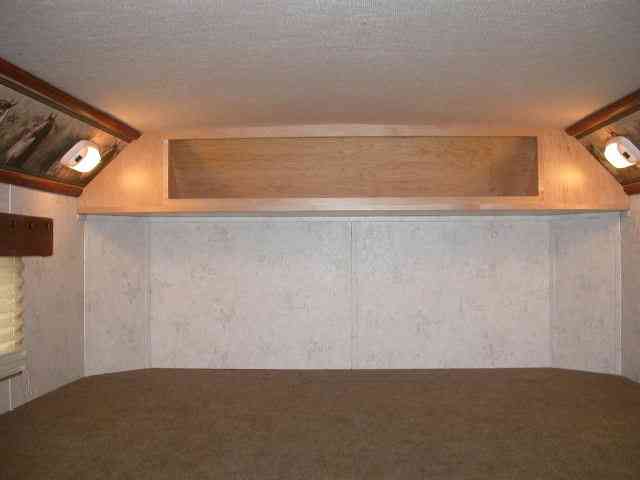

- Front Nose Shelf

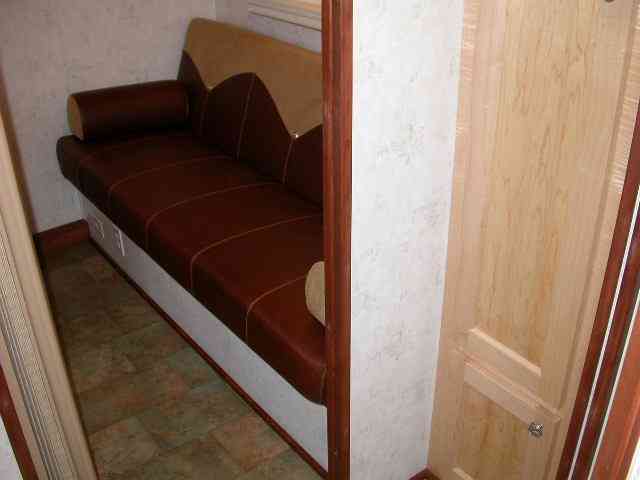

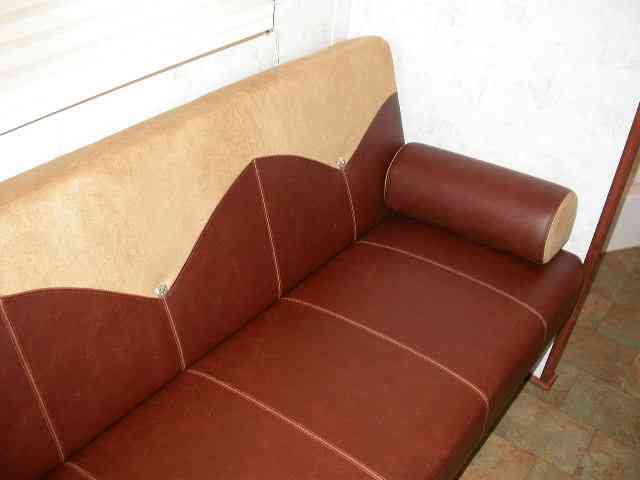

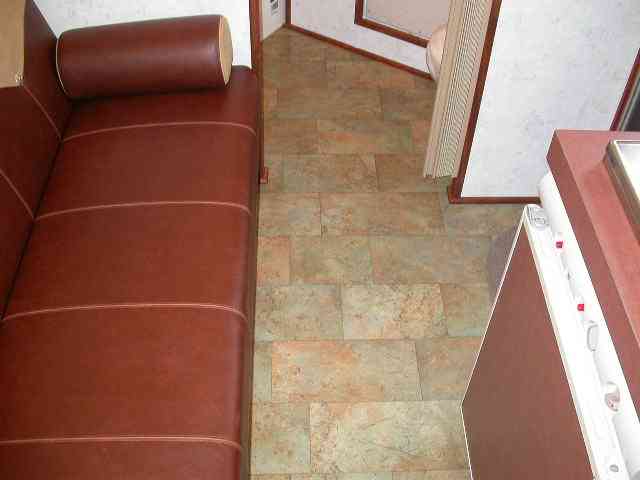

- Fold out sleeper sofa, your choice of color

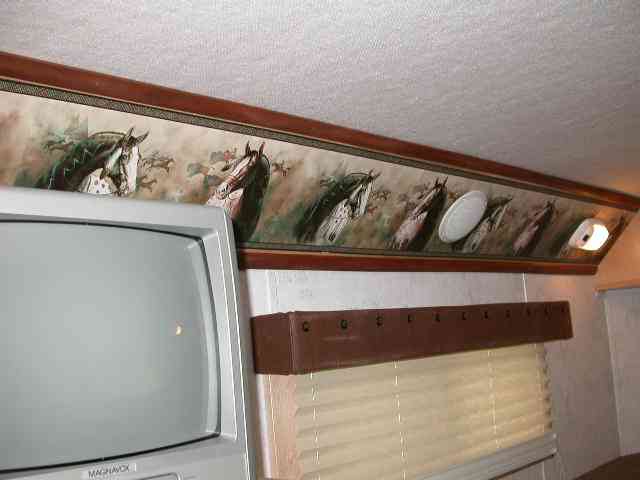

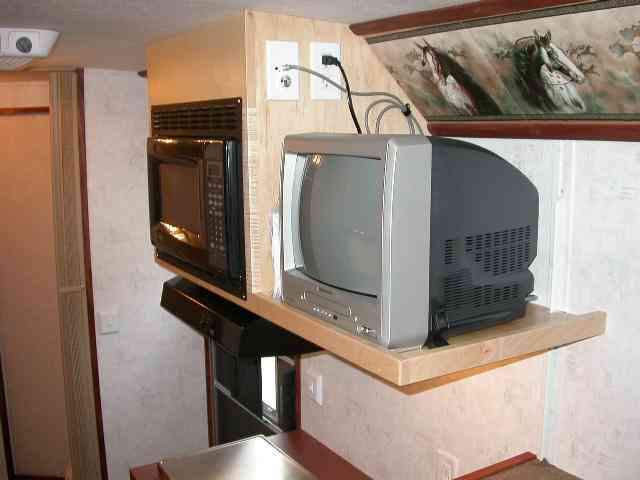

- 13" TV/DVD combo secured on a hand built shelf

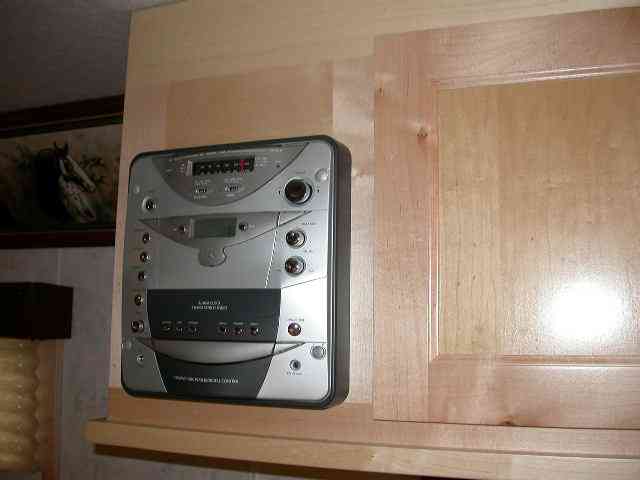

- CD player/radio with inside/outside speakers (it kicks)
- 30' 30 Amp Power cord
- 40 Amp Power converter

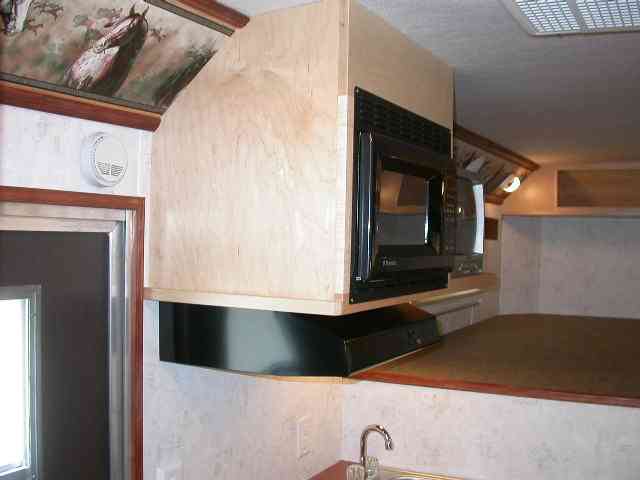

- RV Style 1.0 Cu. Microwave
- Closet in Bathroom which is pretty roomy
- Pleated Fabric folding door to bathroom

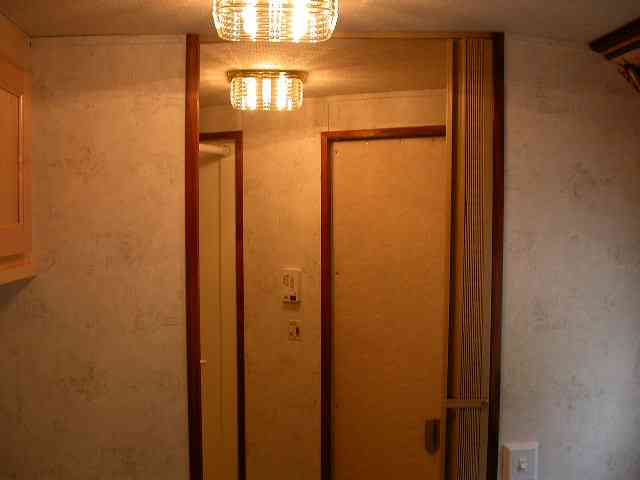

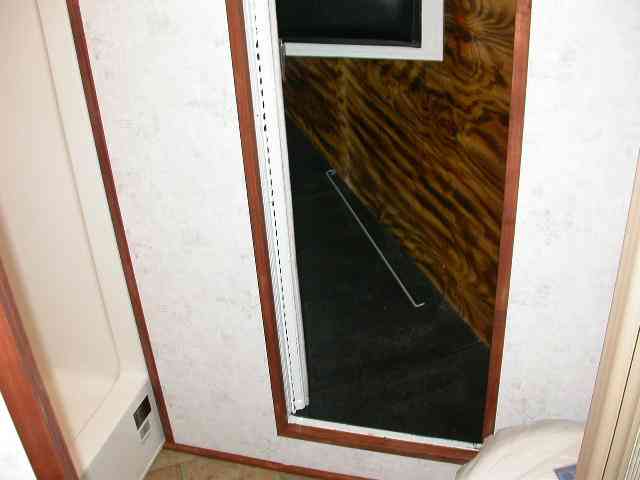

- Walk thru door to horse area

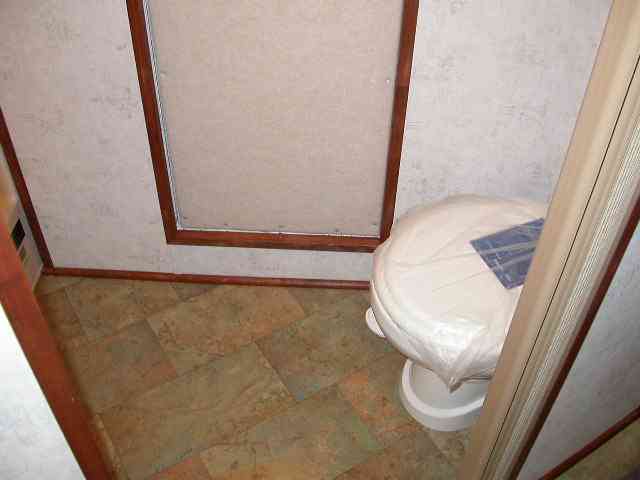

- China Toilet with foot pedal flush

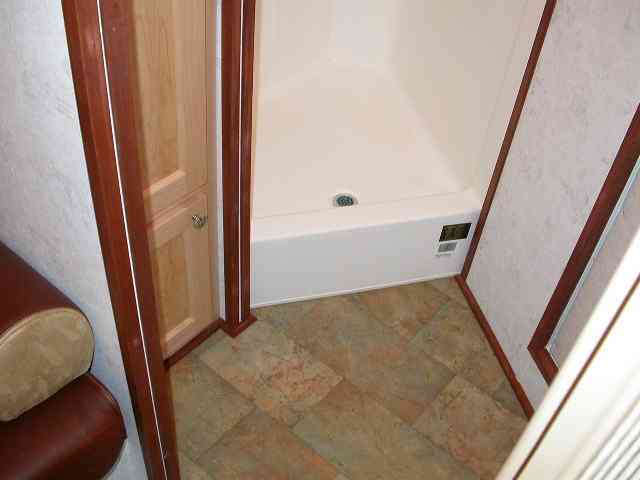

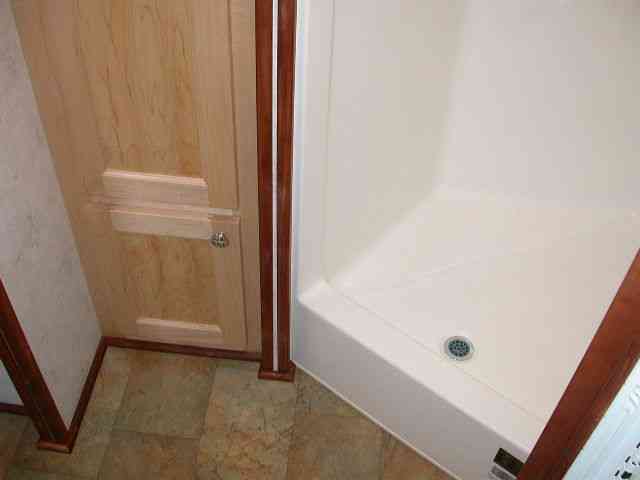

- Roomy Corner shower
- Decent storage in the bathroom
- Tank Monitors on Holding tanks including battery power/fresh water/black/gray tanks
- 30 gallon waste water tanks
- Molding Thru Out
|
Optional Features:
| |
16,500 BTU Furnace ducted |
|
$600 |
| |
Ducted Roof A/C (vents in the ceiling vs. forced air) |
|
$400 |
| |
Honda EU3000 IS generator (sits in back of truck)
pricing includes all adapter cords need to fit trailer |
|
$1,850 |
| |
On-board Generator (remote start) Includes Aluminum
Roof mount hay rack priced at $950 |
|
$5,950 |
| |
Dinette in place of Sofa |
|
N/C |
| |
Soft Walls in place of hard wall |
|
$1,500 |
| |
Maple Cabinets in place of Oak |
|
$300 |
| |
Dark stain on cabinets (light or natural is std) |
|
$1,000 |
