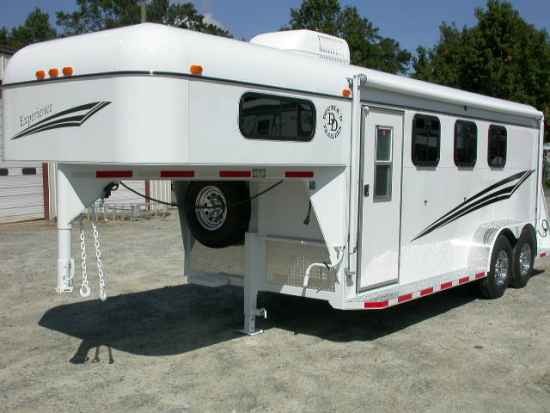

Experience Weekender Living Quarter Horse Trailer

Base price: $23,800

- Features & Options
- Floor Plans (PDF Format)
- Image Gallery
- Need some help?

If you are looking for a Living Quarter Horse trailer, the Experience is a base living quarter model trailer that allows you to "pick-and-choose" what you want on the inside. It features basic necessities so that you can shower and sleep. Other amenities such as a toilet, appliances and additional cabinet storage is available.

**The Experience Gooseneck Horse trailer with Living Quarter difference:

Z-Frame Technology (learn More)
Unique, safe and Functional rear Safe-Tack® (learn more about Safe-Tack)
aluminum tubular head dividers standard (more air flow, less stress on your horses)
Walk thru door from the dress to the horse area
SafeBump Roof® and SafeKick® Wall System (learn more)

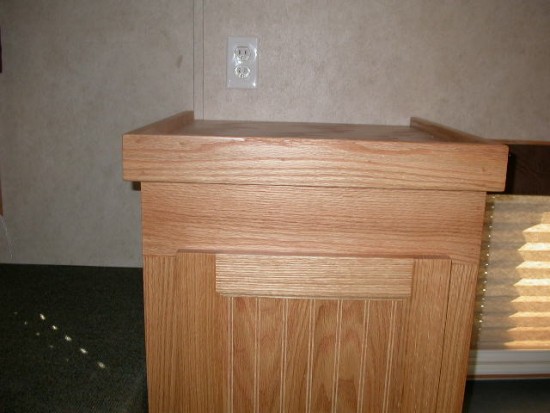

Hand built cabinets inside with real home style cabinets and wood working
ability to customize to fit your needs

Standard Features:

This Model is available in extra heights and length to accomodate varying size horses	3 Horse Slant Living Quarter Horse Trailer
Body Color	White is Standard. Other colors available
Vinyl stripe Color and Graphic	Your choice
Weight (without options)	6800lbs
	Standard
2"x8" pressure treated pine flooring on 16" crossmembers	Standard
Exterior Skin	22 Gauge Zinc Sheets with Baked on Siliconized Paint
Overall box length	18'
Overall trailer length with gooseneck	25' 6'
Dress side	48" short wall x 96" long wall
Walk thru door to horse area	Standard
Inside Height	7', optional 7'6"
Stall Length	122" diagonal, 96" divider length
Stall width	40"
Coupler	2 5/16" adjustable height couplerl
EZ Lube durable never adjust brakes 6,000 # capacity per axle	Smooth leaf spring suspension
Brakes	4 wheel
Wheels	Powder coated gray, optional aluminum
Tire Size	235/75R16 (E) Radial
Full Height rear doors with Safe-Tack® Design	Standard
24" Diamond plate Gravel Guard at Nose	Standard
Running board steps down dressing room side	Standard
Saddle racks	3
Safe-Tack® Slant load design	Standard
Bridle Hooks	3
Spring loaded drop leg jack	Standard
Marker Lights on Fender	Standard
LED Turn Signal Lights on Rear	(2) Standard up high
Extra divider on rear stall to prevent horses from backing out when rear doors are opened	Standard
Spare Tire	Standard
All locks keyed the same	Standard
Aluminum Slant dividers with hand made padding and safety slam latches	Standard Removable
24" walk thru Escape door	Standard
Horse area roof vents, one per stall aluminum	Standard
Custom hand made padding on dividers and slant wall	2" Standard
30" dress door	Standard
SafeKick® Wall System	Standard
Heat reflective SafeBump® Roofsystem	Standard
Insulated side walls and roof in horse area for maximum temperature protection and safe, quiet ride	Standard
Floor Mats in horse area	Standard
Interior Tie Rings per stall	1
Exterior Tie Rings per horse	1
Horse Area Roof Vents one per horse	Standard
Lights in horse area on rear remote switch	3
Rechargeable emergency Break-away system	Standard
Windows in Gooseneck - (1) sliding with screens, (1) E-Gress Kickout	20"x51"
Picture window in dressing room on long wall - (1)	20"x51"
Windows in stall area - (3) drop down with bars on head side. Windows and bars fold independent, features mid-latch easy to reach system	24"x30"
Windows on butt side- (2) sliding with screens	20"x51"
7-Pin RV Style Plug	Standard

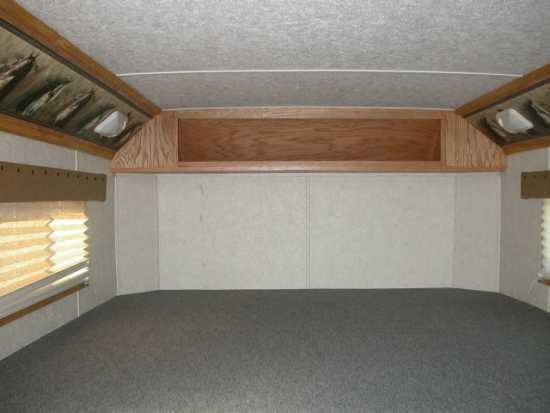

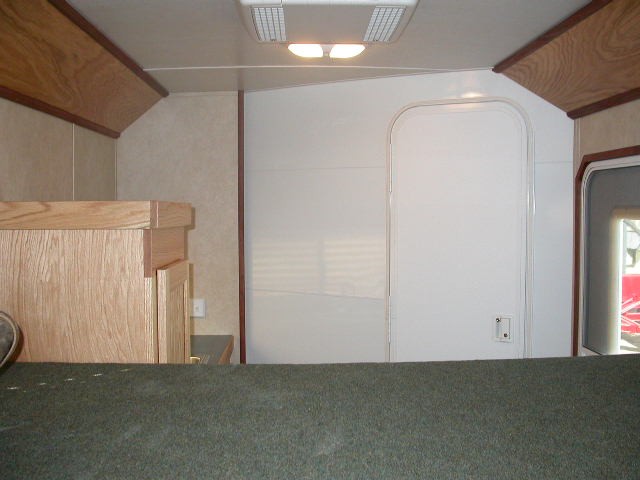

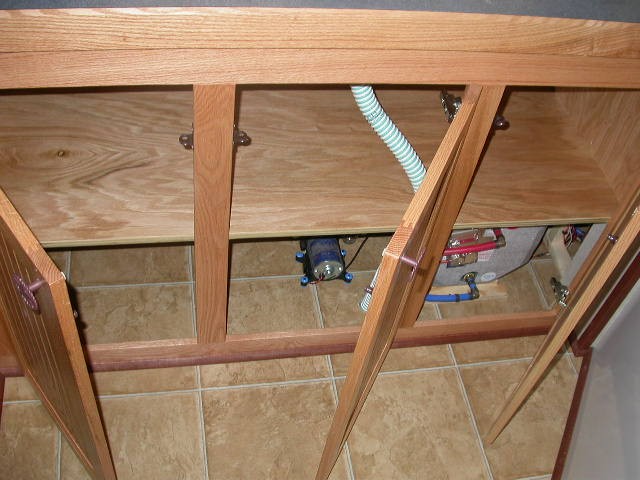

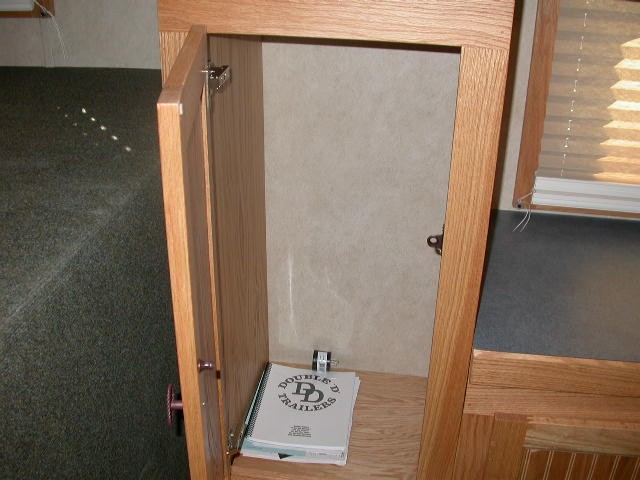

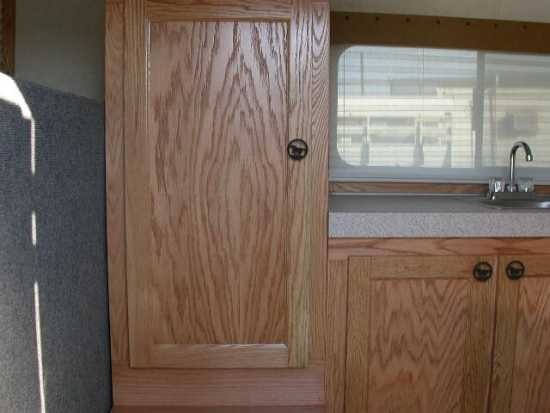

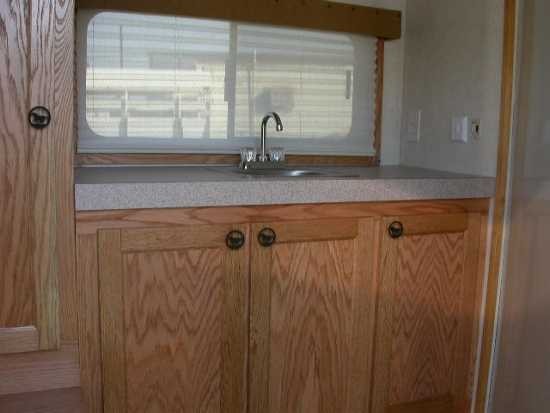

**Living Quarter Comforts: Dressing room is insulated and paneled with RV Style roof material, ceiling is Adobe white Ceiling material, has carpeted gooseneck area, vinyl flooring, nose shelf, leather covered valences, day/night combo shades on all windows, 13,500 BTU A/C with heat strip, 5' long kitchen style counter top/cabinet, roomy tall closet w/TV shelf and receptacle, sink, 25 gallon water capacity, city water hook-up, 6 gallon propane hot water heater with single propane tank, whisper king water pump, cowboy's shower in third stall, interior 110V outlets wired to breaker box with 30' 30 amp power cord, 12V battery included
Warranty	(4) Year on Structure (2) Year bumper to bumper (1) Year on non-Double D Manufactured parts

The Photo Gallery requires JavaScript and the Flash Player. Get Flash

Back to Trailer Models

Experience Base Price: $23,800
Optional Features			Price
Living Quarter Comforts and Conveniences

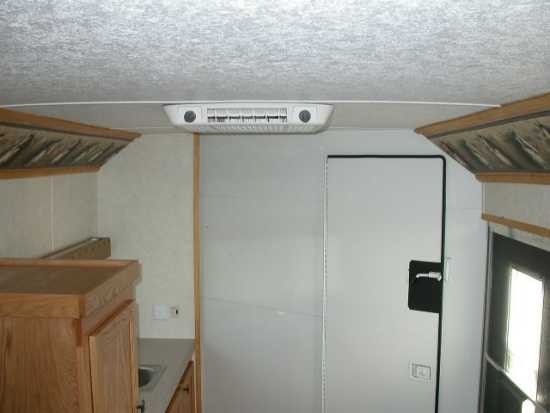

	Ducted roof air in place of standard air NOTE: this option gently blows air thru your living quarters and they system cuts off when the desired temp is reached. Recommended only with the 7'6" height option. The standard unit the fan runs constant and doesn't cut off.	$	400

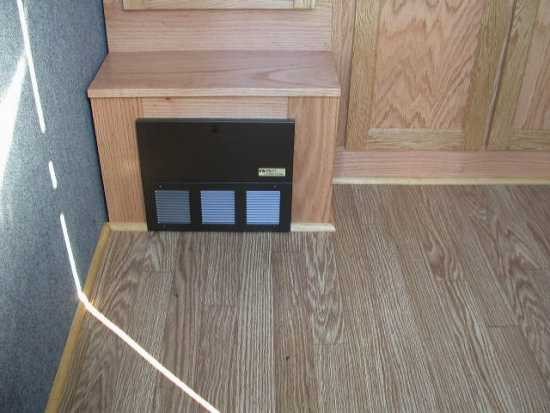

	Furnace 16,500 BTU on thermostat NOTE: your trailer comes standard with an air conditioner and heat strip. The heat strip requires power so if you do primitive caming in cold weather (no power), the furnace is a great option	$	600
	Screen door on dress door: All doors now are built at the factory and are very sturdy. Use this feature to add a retractable screen door to your dress door. Use the screen to keep bugs out when your door Is open	$	295
	1.0 Cu microwave over sink	$	200
	3 cu refrigerator, cook top/and safety package	$	1850
	Toilet with separate holding tank	$	500
	14" rollup Vent in Living Quarters with 12V fan (works well with toilet)	$	225
	Storage cabinet over toilet area (requires toilet option)	$	200
	European Birch wood in place of Oak	$	300
	Dark Stain other than Natural clear finish	$	800
	Flatscreen TV with DVD Player on swivel arm	$	675
	Stereo system with inside and outside speakers	$	600
	Mattress 4" foam covered, 60"x80"	$	250
	Soft wall feature (NOTE: with this feature, your living quarters will have the effect of a "soft" feel to the touch. The advantage, you may choose a vinyl/synthetic leather material to cover all of your walls. It really gives the interior a "richer" feel versus the standard hard wall. It's also easy to clean, looks fancy if that's your tastes)	$	600
Horse area convenience options
	Increase to a 4H by adding one stall (NOTE: other options may have an upcharge, like Rumber for example)	$	2200
	7'6" Height option only (NOTE: works well for taller horses)	$	1100
	Add 1' to one horse stall for Draft size or Warm blood horses (specify which stall and # of stalls)	$	600
	Change flooring to Rumber in place of 2"x8" pressure treated pine (rumber has a life time warranty, doesn't require a rubber mat and is easy to clean, prevents slippage)	$	985
	Rear door window for more air flow (20"x24" size)	$	150
	Fans for hauling in the summer time (priced each)	$	85
	Remote switch for interior horse fans	$	60
	Ramp door in addition to full height rear doors (NOTE: your new slant load trailer is standard with the rear tack around and is a step up. Use this feature to add a spring assist folding ramp in addition to your tack around)	$	1050
	Extra interior tie ring (one is standard per horse, add a second for tying hay bags) NOTE: Lay flat tie rings are standard to prevent injury to a horses eye, specify quantity)	$	30
	Extra exterior tie ring (3 are standard) specify location of additional rings	$	40
	Feed bag works great for feeding while trailering (priced per stall)	$	65
	Front stall escape door (NOTE: Walk thru door is standard from the horse area to the dressing room. Us this option if you want a door on the front stall, typically used in conjuction with a stud gate for storage (other than the horse)	$	550
	Mangers per stall (specify quantity), typically not installed on the front horse stall	$	750
	Front Stall storage partition: many folks prefer to use the front stall for storage. This feature keeps your cargo in the front stall	$	450
Popular Add on's
	Roof mount hay rack with side ladder	$	1100
	On board generator with remote start NOTE: this includes the roof mount hay rack and a 5 gallon gas tank. If you add the manger option, we can install a 15 gallon stainless tank with outside fill gauge, inside of the manger if you add a manger option. Run time on 15 gallons approximately 35 hours continous	$	5950
	Custom 15 gallon stainless fuel tank located inside manger	$	300
	Outside 55 Watt rear halogen loading spot light for night time use on remote switch	$	120
	Set of (3) are standard in your rear tack around. Add an extra set of (3) Bridle hangers in rear tack or dressing room (specify location)	$	55
	Extra saddle rack (3) are standard	$	85
	Slide out saddle racks (NOTE: Saddle Boss Saddle racks are in your new trailer, use this feature to be able to slide your saddle rack towards you when removing your saddles. Aids in getting your saddles in and out of the trailer and is quite convenient) (specify quantity)	$	85
	Blanket bar inside dressing room or on rear saddle tree (specify which)	$	85
	Hydraulic Jack (recommended extra battery)	$	1500
	Extra battery and enclosed aluminum battery box NOTE: a large portion of this cost is from the aluminum enclosed battery box. This works well with a trailer that has a hydraulic jack, and for extended stays without power, more than a couple of days. Otherwise, the single battery performs well	$	350
	Awning up to 17'	$	900
	Change awning to two step (NOTE: Worth the extra money, simply flip the lever and pull the release to set up your awning)	$	300
	Color other than white	$	400
	Stainless nose sheet on "V" portion of trailer (NOTE: this option has a "mirror" style sheet on the front of your trailer, much easier to clean bugs and really adds to the look of the trailer)	$	450
	Aluminum wheels in place of standard gray wheels (NOTE: use this feature to upgrade to aluminum wheels. They are worth the extra cost in adding longevity to your trailer. These wheels will look good 10 years from now) Spare remains gray and is covered with a tire cover, add $150 to change the spare as well	$	600
	Sub Total *	$
	Your State estimated Sales Tax (enter your tax rate, %)	$
	Your State estimated License Fees	$
	Document Fees	$
	Service Provider Fee (if financing)	$
	Bank Closing Cost (if financing)	$
	Delivery (specify miles from factory, free within 1000 miles) Click here to find your distance from the factory	$
	Total with Fees *	$

	If you are financing and/or have a trade in, please complete the following:
	Down Payment amount NOTE: most banks like to see a minimum down payment of 10% of the purchase price, without sales tax	$
	Trade in Value of your current trailer	$
	Payoff on your trade in trailer (how much you owe at your bank, if any)	$
	Equity in Trade In	$
	Total Down Payment with Trade In	$
	Financing Amount *	$
	Interest Rate (enter the Interest Rate from your Bank, %)		%
	Term of Loan in Months For loans of $10K or more, most banks will go up to 120 months. For less than $10K, the maximum term is 84 months.
	Estimated Monthly Payments *	$
	* Options calculations are for estimation only. Firm quotes available on request.
