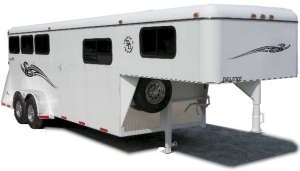

3 Horse Deluxe Trailer
This fully enclosed 3-Horse
model is designed for the weekend rider or show person. The dressing
area is finished with sub-floor, a camper door, and sliding bus
windows. The slant dressing room comes standard with a walk-through
door to the horse area. Each stall in the horse area has a pop-up
roof vent, drop down feed windows with aluminum safety bars, and
sliding windows with safety bars and screen. Smoked plywood kick
lining is installed on the left and right walls to prevent damage
to the trailer. Also, check out our new exclusive rear
Tack
Around design--It has easy access for tack and works well
for loading and un-loading the horse. This new design leaves the
entire rear of the trailer open yet still utilizes the space.
The 18' layout weighs 4980 lbs
and the 20' trailer is 5100 lbs approximately, about the same
weight as as a well built all aluminum trailer, check for
yourself. Call for more details.
All Double D Trailers are now built with
the new **NO Rust Galvaneal
metal and painted with an electrostatic
paint system. All metal is stored indoors so there is no rust
on the trailers when they roll out of the factory...everything
is washed with a steamer and iron phosphate to open up the pores
of the metal to allow the primer to stick better, and to remove
oil residue. Once that dries, all the seams are sealed with 3M
sealant inside and out. Then we prime with two coats of Valspar,
automotive primer and paint with three coats of Valspar
automotive paint. End result is a very durable, smooth, shining, long lasting
finish.
Features &
Options:
Standard features:
-
- 1"x 2"x 14 gauge uprights
- 4980 lbs 18',
5100 lbs 20'
- 20
gauge Galvaneal rolled top
- 16
gauge Galvaneal sides
- 8"
channel iron neck
- 6'8" wide
and 7' Tall
- Undercoated on entire underside of trailer for protection
- Full
nose

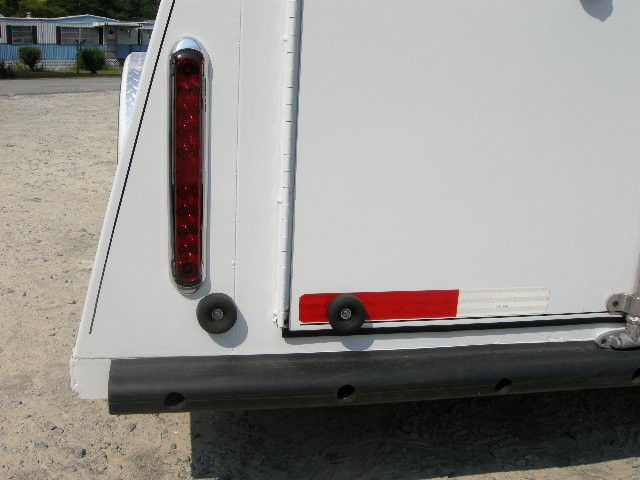

- Rubber
Bumper
- Four
Wheel Electric brakes
- Double Rear
doors on stainless hinges
- 2x8"
CCA pressure treated pine flooring
- Spare
Tire/wheel all Chrome Mod
- 24" centers on uprights,
crossmembers & roof supports
- Galvaneal
Teardrop fenders
- 2-5/16" adjustable coupler
- Spring loaded jack
- Dexter
Heavy Duty 6000# axles
- 16" Radial Tires (load range E)
- Aluminum Treadplate Gravel Guard

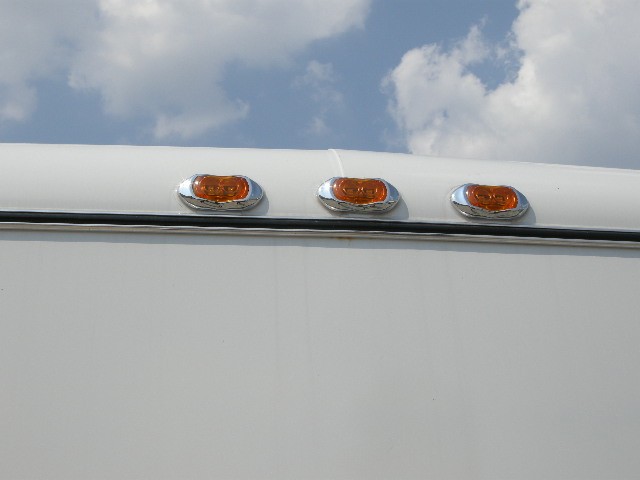

- D.O.T lighting and Tape
- Safety Chains
|
- Formed outside smooth skin completely enclosed
with Galvaneal
- Slant dressing room wall
- Escape door in dresssing room wall
- Venturi roof vent in dressing room
- Lights throughout
- Sub-floor in dressing area
- Camper door with screen
- Dressing room running board
- Tie loops for each horse
- Heavy duty rubber mats in stalls
- Sliding bus windows (three 12X36 in dressing
room)
- Telescoping slant dividers
- Fully enclosed rear tack compartment
with
swing out saddle rack
- Smoked plywood kick lining
- Pop-up roof vent for each horse
- Drop down feed windows
with aluminum bars
- Wide GRAPHICS package
- Double D Exterior finish package with
electrostatic paint system
- Sealed seams in Dressing Area, roof,
fenders
& uprights
|
Optional Features:
| Urethane
Paint finish (WHITE only) |
|
$600 |
| Available
Graphics choices |
|
included |
| Available
exterior colors |
|
included |
| Roll-out
A&E Awning |
|
$800 |
| WarmBlood Option
(50" width stalls, 7'6" height) |
|
$2,000 |
| Chrome
Wheels (included in pricing) |
|
|
| Rubber
Wall Liner (horse area) |
|
$650 |
| Roof Mount
Hay Rack |
|
$950 |
| Air
Conditioner with Heat Strip |
|
$850 |
| Ramp Load |
|
$950 |
Would you like more information?
Floor Plan
(64" short wall):
Click here to view 40" short wall floor
plan in PDF formatl
Images:
(Click small thumbnail picture for larger photo)
|
|
|
|
|
|
Flag Graphics in Gray trim
|
|
|
|

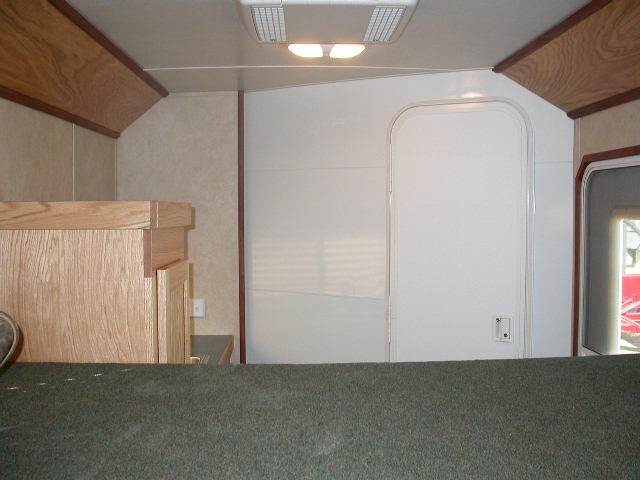

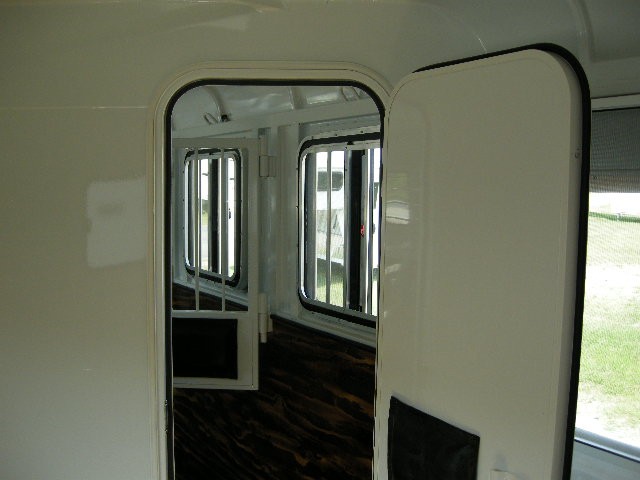

Sitting in the dressing room nose looking back
|
|
|
|
|
|

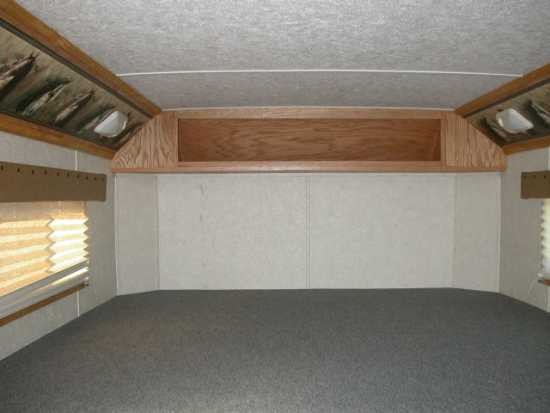

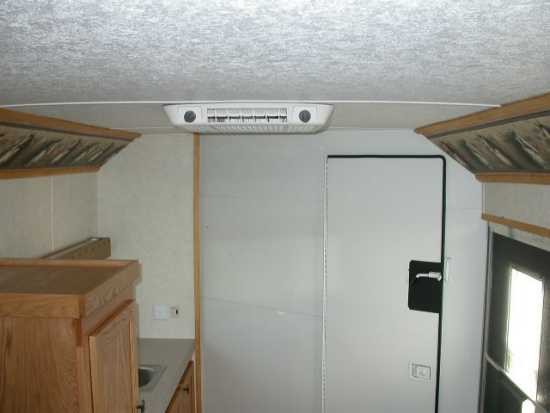

Nose area looking forward
|
|
|
|

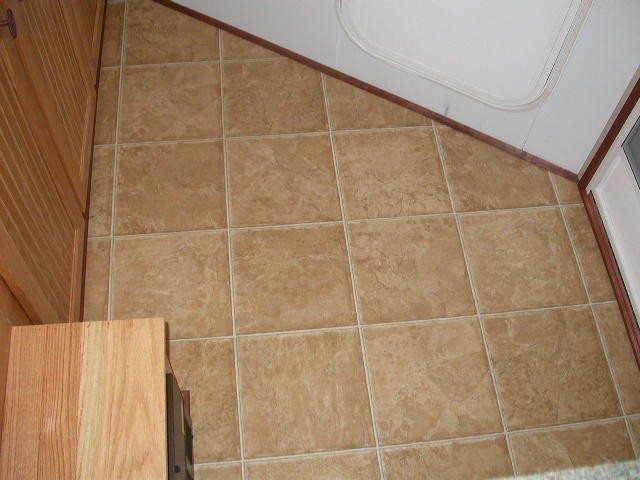

Flooring is 2x8" pressure treated pine boards with 1/2" plywood on top of that in the dressing room
|
|
|
|

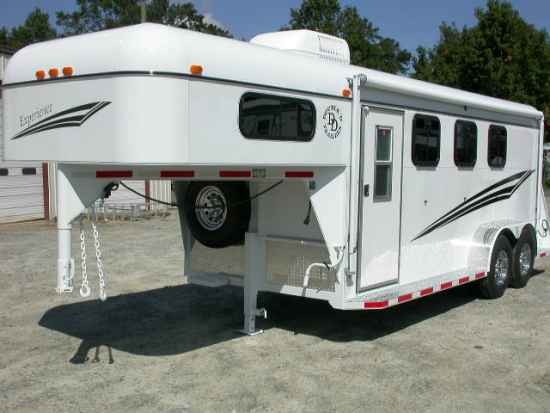

Shown with Gold graphics, Chrome wheels, Awning and A/C
|
|
|
|

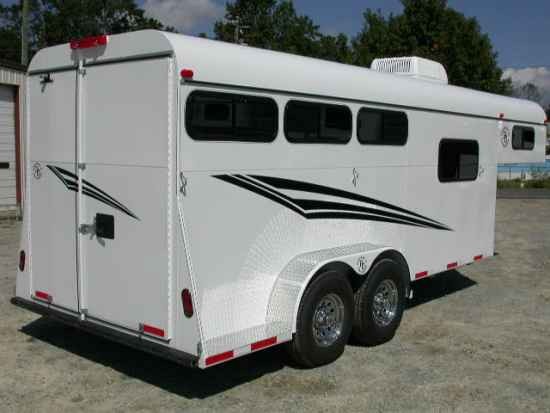

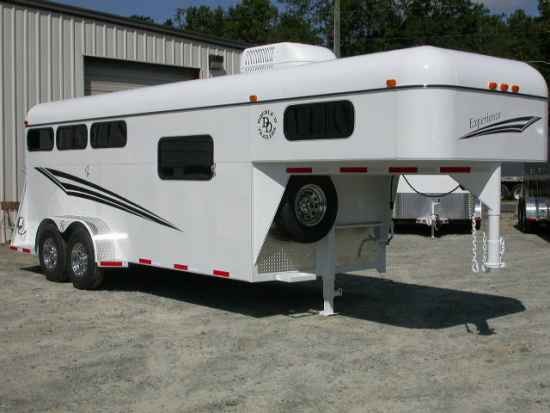

18' Model shown with optional Chrome wheels!
|
|
|
|
|
|
|
Notice the Wide Graphics...Sharp
|
|
|
|
20' Model shown with optional Chrome wheels, A/C and 12V battery
|
|
|
|
Optional Awning works nice
|
|
|
|
|
|
Double Rear Doors
|
|
|
|
Exclusive Rear **Tack-Around Design
|
|
|
|
Entire Saddle compartment comes out every time
|
|
|
|
|
|
|
|

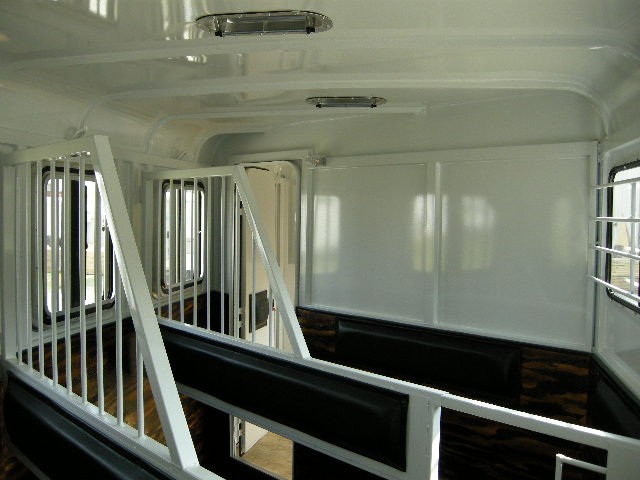

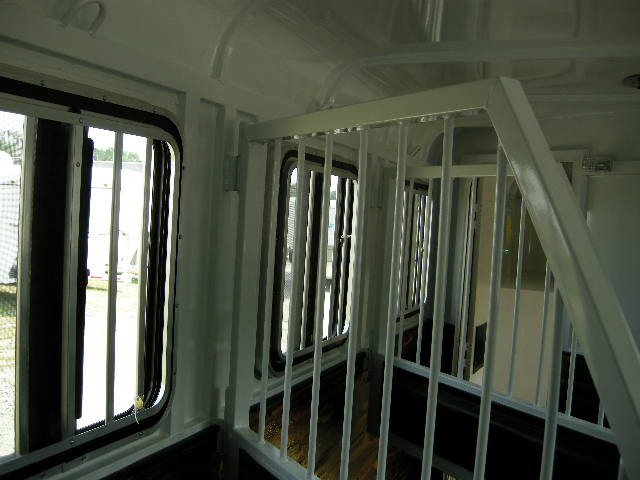

Bar Dividers so horses can see better
|
|
|
|

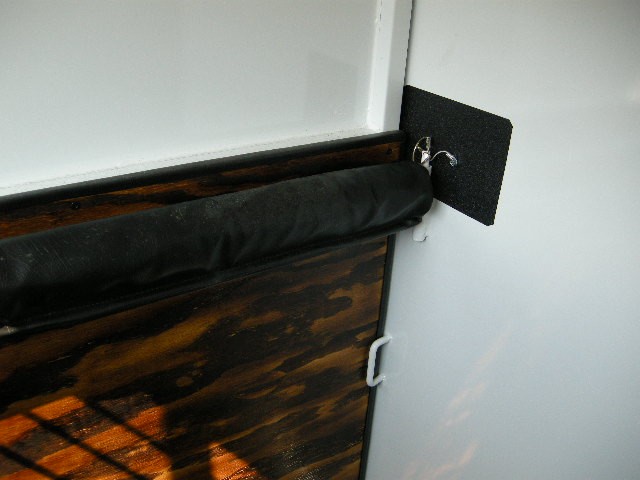

Positive Slam Latch Dividers are sure to hold
|
|
|
|

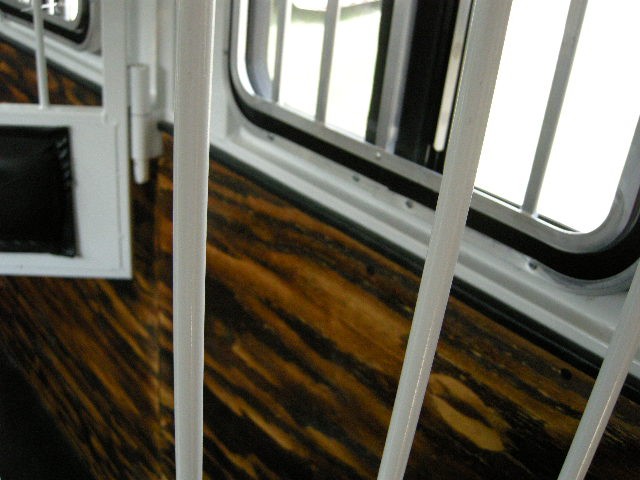

Drop down windows work great
|
|
|
|
|
|

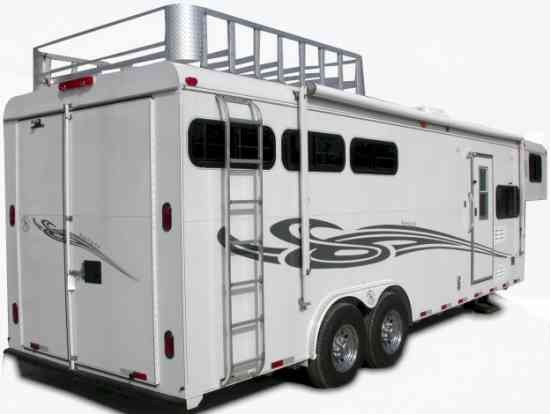

Optional Roof Mount Hay Rack
|
|
|
|
|

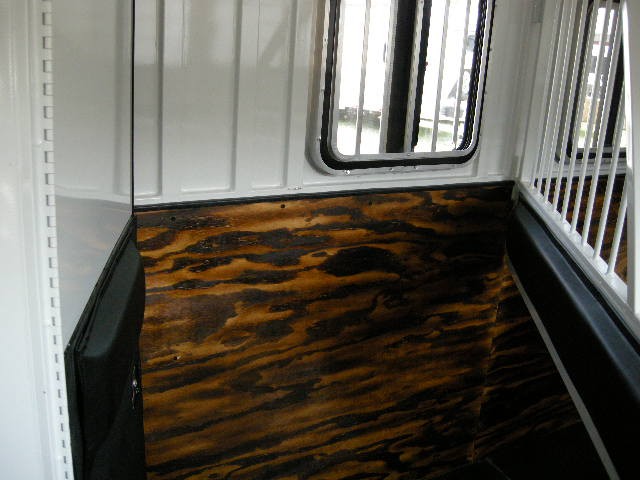

Shown with optional rubber wall liner
|
|
|
|

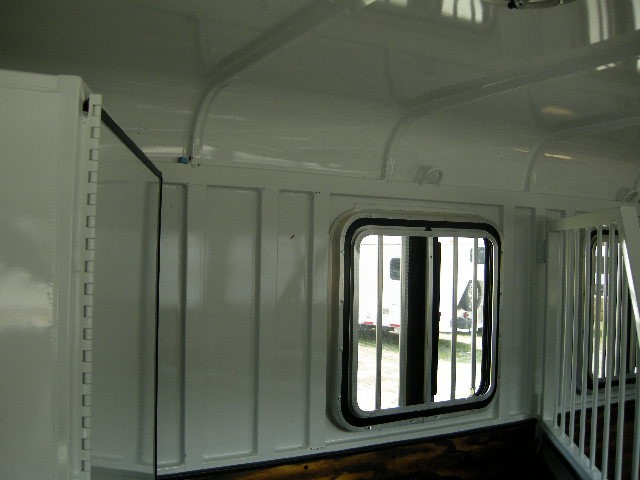

Horse area with optional rubber wall liner in place of smoked plywood kick lining
|
|
|
|
|
|
|

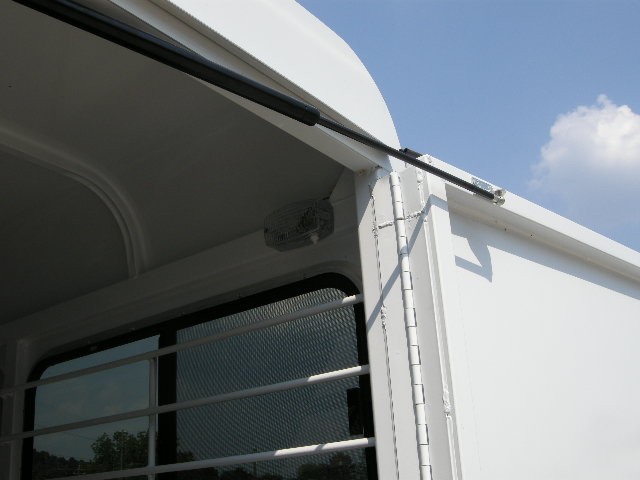

Positive latches will hold your doors on windy days
|
|
|
|

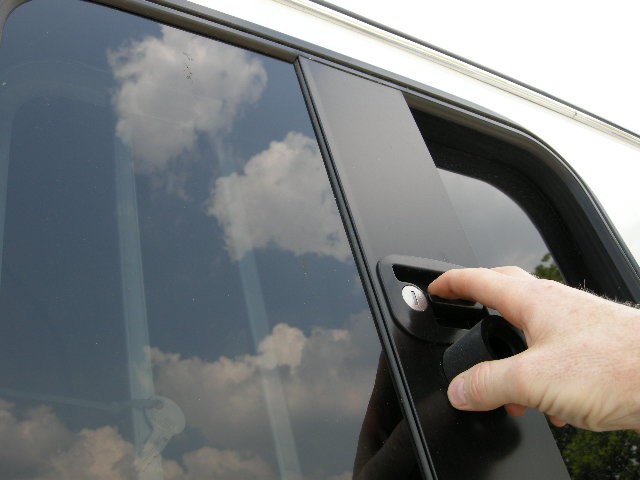

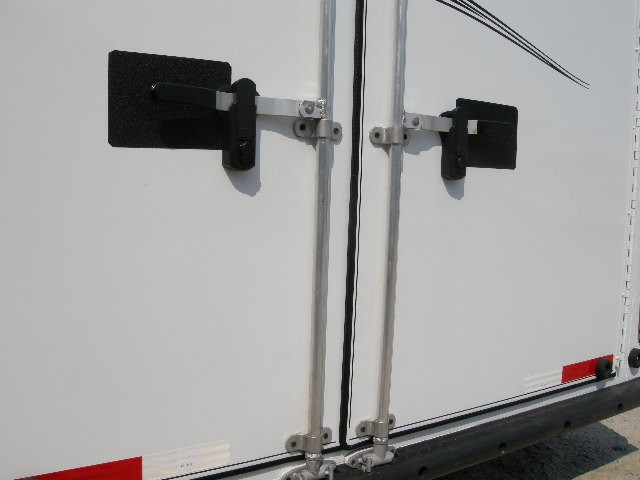

Easy to operate rear door latches
|
|
|
|

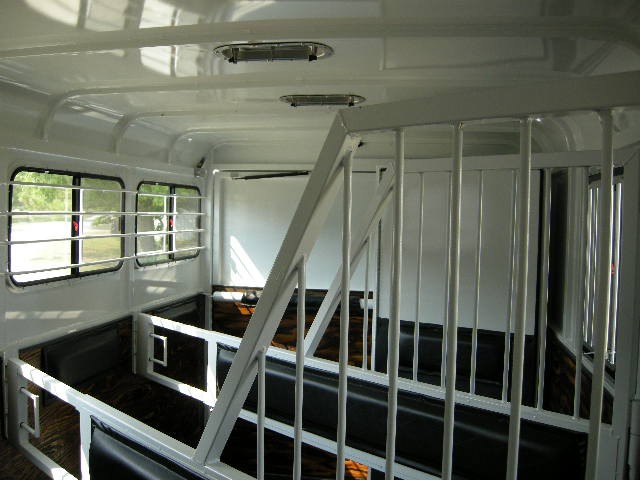

Barred dividers work well, shown with optional rubber liner
|
|
|
|
|
|
|
Bridle hooks, lights and lockable **Tack-Around Design
|
|
|
