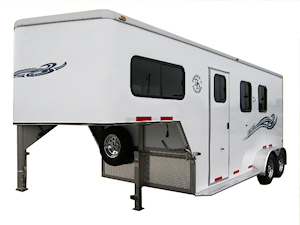

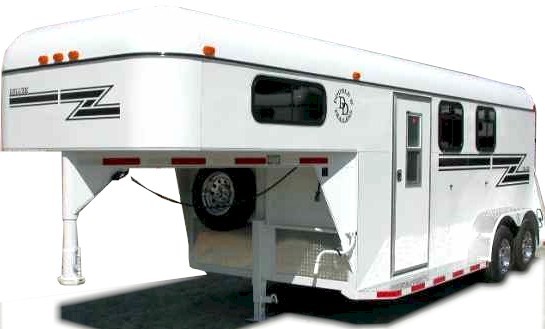

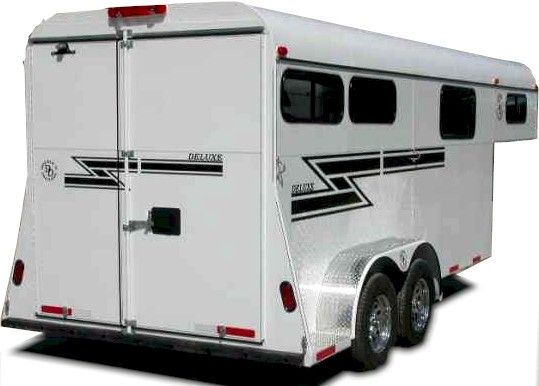

16' 2-Horse Deluxe Trailer

Base price:
$14,100





- Floor Plan (PDF Format)
- Features & Options
- WarmBlood Option
- Images
- Request Additional Information Form



This fully enclosed 2-Horse model is designed for the weekend rider or show person. The slant dressing room wall comes standard with a walk-through door to the horse area.  The dressing room is finished with sub-flooring, a camper door, and three sliding windows with Screens.   In the horse area, each stall has an aluminum pop-up roof vent to allow more air flow when needed.  Drop down feed windows with aluminum safety bars are on the head end and sliding windows with bars on the butt end. Smoked plywood kick lining is installed on the left and right walls to prevent damage to the trailer and all stalls are padded.  Also, check out our new exclusive rear Tack Around design--It has easy accessability for tack and works well for loading and un-loading. This new design leaves the entire rear of the trailer open yet still utilizes the space. And don't forget, our smooth skin design with the all new **No Rust Galvaneal finish** and our "State-of-the-Art" electrostatic paint system will last anyone a lifetime--you have steel strength, aluminum quality, and steel price. Weight is this unit is 4,400 lbs approximately and can be towed with any 1500 series truck

Two horse slant load horse trailers are becoming more popular these days due to rising fuel costs, smaller towing vehicles such as half ton series trucks. Also, there are more trail riding events and shows locally than ever so the need for traveling long distances with a number of horses is decreasing.  We have sold the 2H Deluxe model horse trailer in states like Florida, Georgia and up north in New York and Maryland.


Features & Options:

Standard features:

  • 1"x 2"x 14 gauge uprights
  • 20 gauge rolled top
  • 16 gauge sides
  • 6" channel iron neck
  • 6'6" wide
  • 7' tall
  • Full Nose
  • Electric brakes both axles

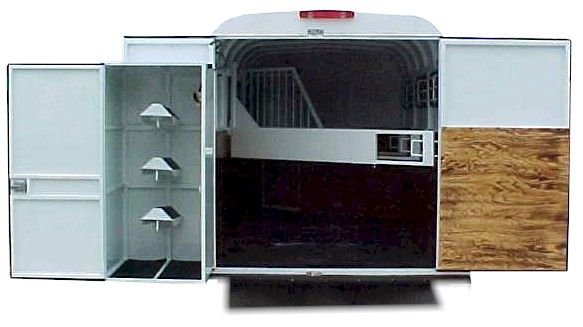

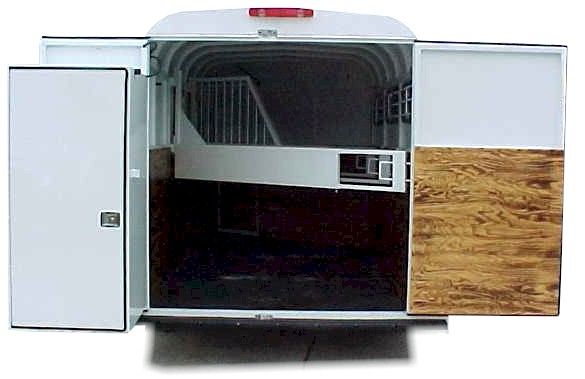

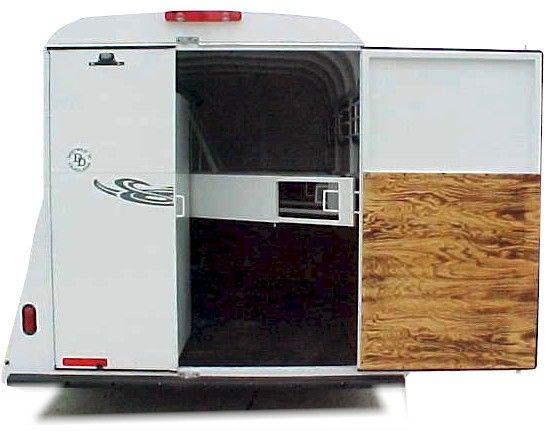

  • Double Door Rear Tack-Around Design

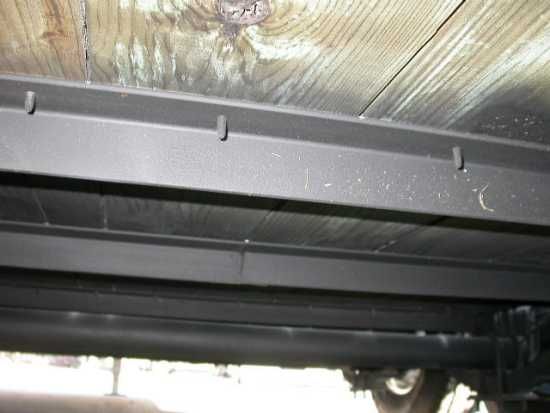

  • 2x8 pressure treated pine flooring
  • 24" centers on uprights,
    crossmembers & roof   supports
  • Galvaneal Teardrop fenders
  • 2-5/16" adjustable coupler
  • Spring loaded jack
  • Dexter 3500# axles
  • 15" Radial tires
  • Gravel guard and pinstripping
  • D.O.T lighting and Tape
  • Diamond Aluminum Treadplate Gravel
  • Formed outside smooth skin completely enclosed
  • Trailer weight, 4400 lbs approximately

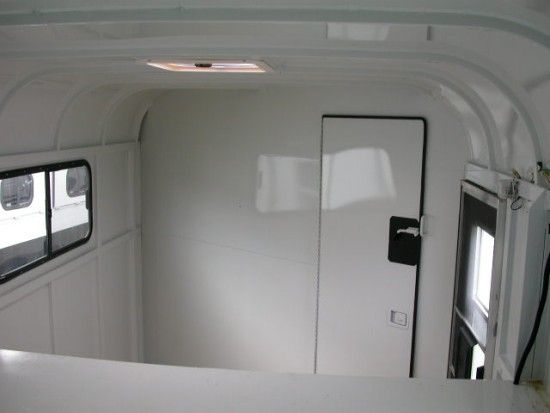

  • Escape door in dressing room wall
  • Venturi roof vent in dressing room
  • Dome light in dressing area & horse area

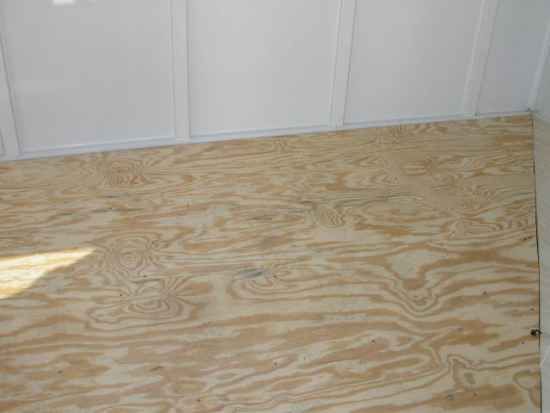

  • Sub-floor in dressing area
  • Camper door with screen
  • Dressing room running board
  • Tie loops for each horse
  • Heavy duty rubber mats in stalls
  • Three sliding windows in the dressing Room

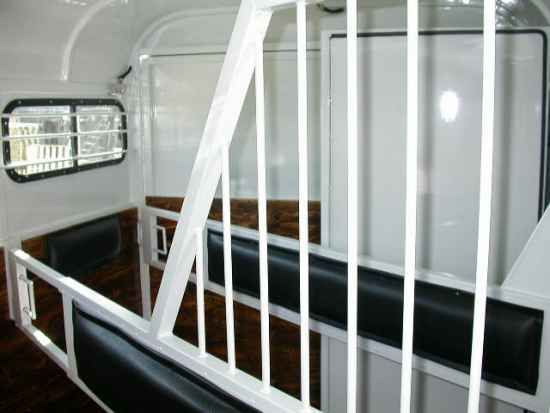

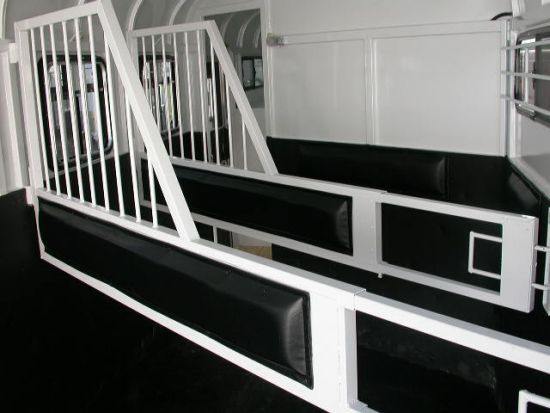

  • Padded Telescoping slant removable Slam dividers

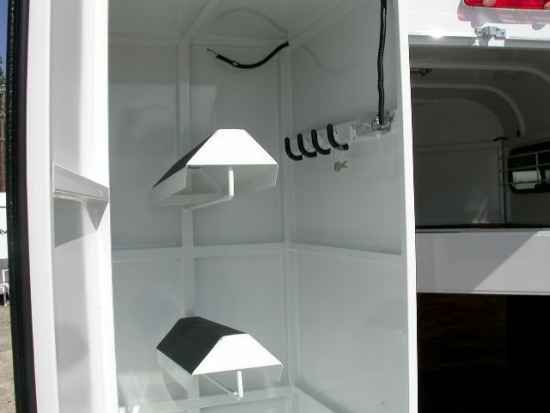

  • Fully enclosed rear tack compartment
    that swings out

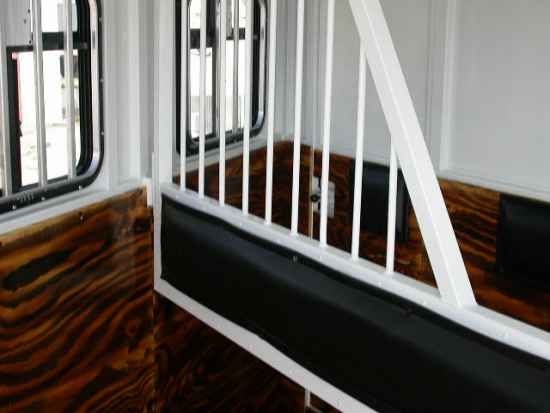

  • Smoked plywood kick lining
  • Pop-up roof  vent for each horse

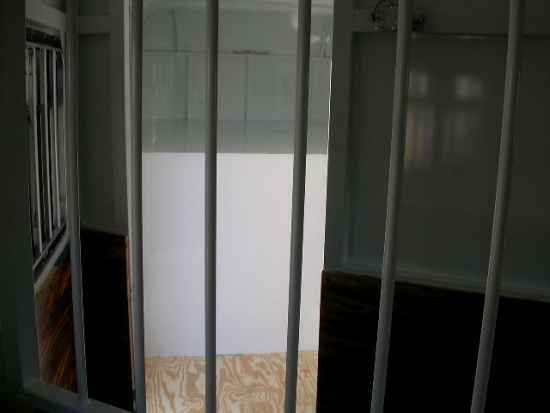

  • Drop down feed windows with aluminum bars
  • Wide graphics package
  • Double D Exterior finish package
  • Sealed seams in Dressing Area, roof,
    fenders & uprights
  • Chrome Wheels Standard with Spare

Base Price: $14,100
Optional Features Price
Rear Door Window $150
Graphics Chart included
Exterior Color Chart included
Roll-out Awning installed $900

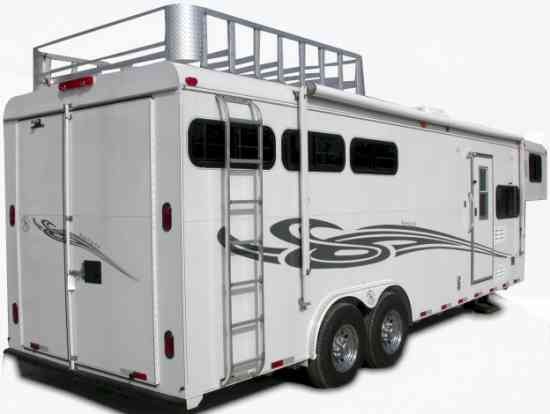

Roof Mount Hay Rack $950
Air Conditioner w/ heat  installed $850
50" width, 7'6" height WarmBlood Size Stalls, includes axle upgrade to 6K $2000
7'6" tall $800
Rubber Wall Liner in lieu of smoked plywood $550
Ramp Load $950
