4 Horse Bumper Pull Trailer

Base price:
$10,600
-Click to Customize

- Features & Options
- Floor Plan
- Photo Gallery
- Request Additional Information Form

Many people are wanting a bumper pull trailer and have the need to trailer four horses. While typical 16' bumper pull stock trailers serve the purpose in many occasions, most customer need more than a regular stock trailer will offer. Our solution to your needs, design a trailer with the features that works. The 4H bumper pull model offers features like 7' height, mats in the floor, kick gate so the horse in the front can't kick the horse in the back, dividers between the horses, padded stalls, kick lining on the walls, storage up front for all of your saddles and gear as well as a convenient place for feeding horses while traveling. With Double D trailers factory direct sales program, internet marketing and nationwide delivery and service program, we can offer you a better built, higher quality horse trailer than other steel trailer manufacturers. Not to mention, technologies like Z-Frame, SafeKick wall system, SafeBump Roof system along with others provide safety and durability.

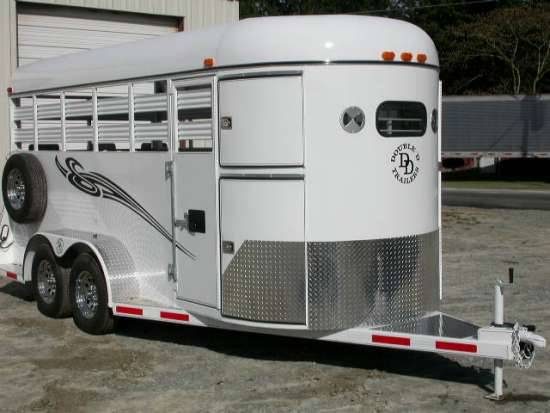

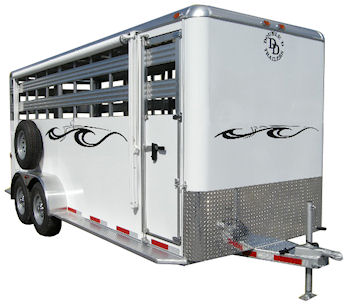

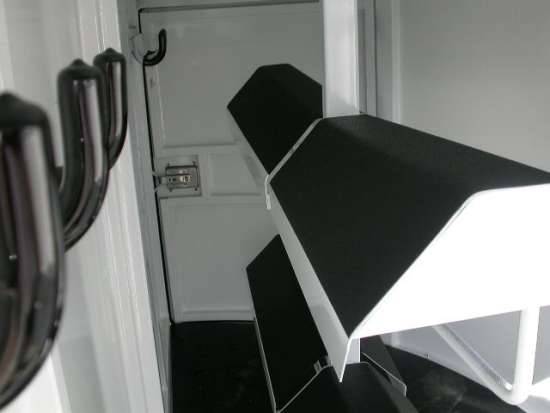

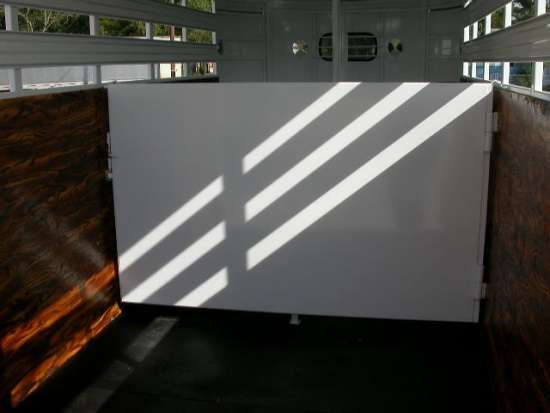

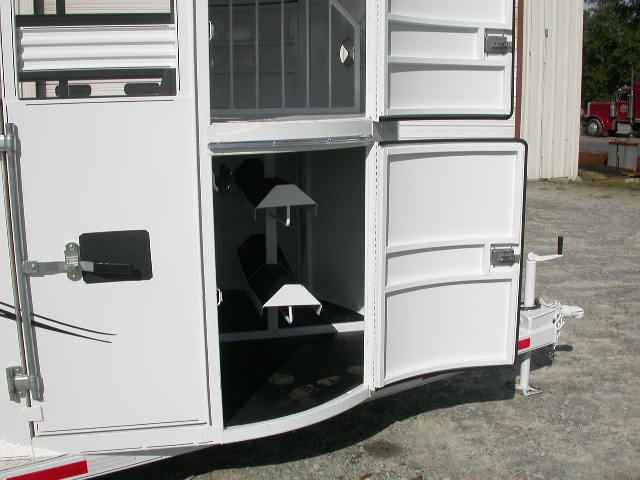

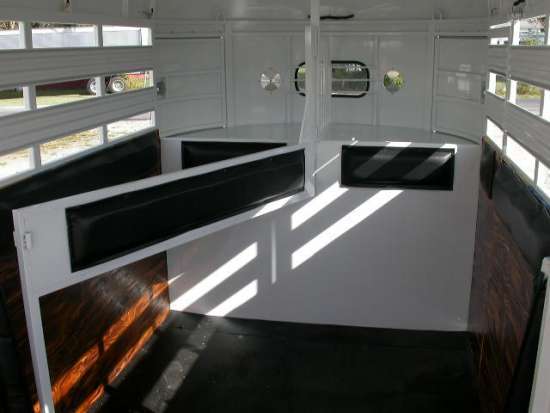

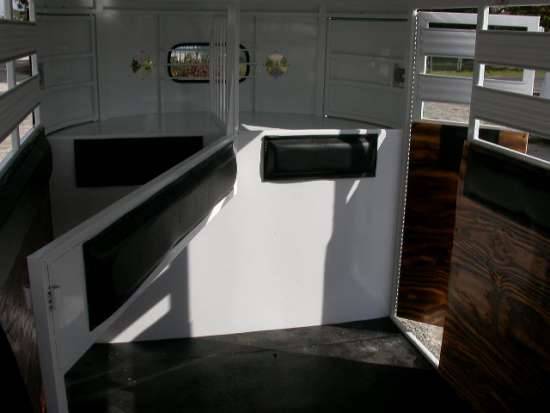

Check out this 4 Horse bumper pull design. This 4-horse model comes standard with a full tack compartment up front that has a four tier saddle rack accessible from both sides of the trailer. Inside it has a full straight divider in between the first two stalls and has a half cut gate in the center of the trailer as a divider from the front and the rear. It is ideal for hauling two to three horses at one time but does have enough space for four horses to be hauled on short distances.

Standard Features

This Model is available in extra heights and length to accomodate varying size horses	4 Horse Bumper Trailer
Body Color	White is Standard. Other colors available
Vinyl stripe Color and Graphic	Your choice
Weight (without options)	3200 lbs
	Standard
Exterior Skin	22 Gauge Zinc Sheets with Baked on Siliconized Paint
Overall box length on front stalls	10'
Stall length	7'
Head area	3'
Rear stall length	6'
Inside Height	7', optional 7'6"
Coupler	2" Ball
EZ Lube durable never adjust brakes	Smooth leaf spring suspension
Brakes	4 wheel
Wheels	Powder coated gray, optional aluminum
Tire Size	225/75R15 (D) Radial

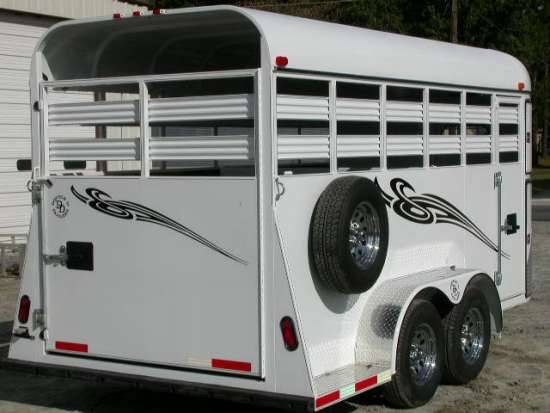

Single rear stock style gate	Standard

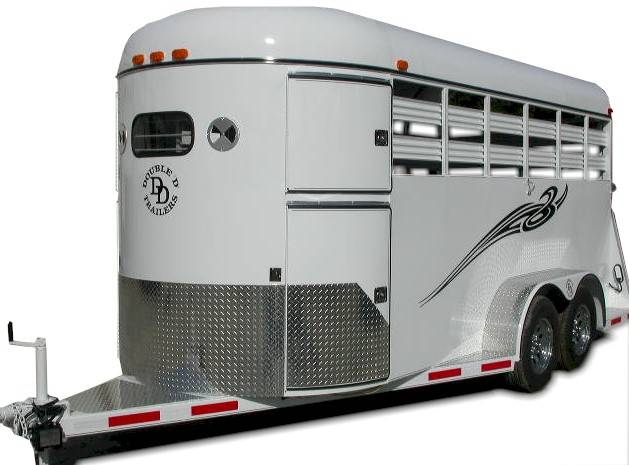

24" Diamond plate Gravel Guard at Nose	Standard
Saddle racks	2
Bridle Hooks	4
Side Wind Jack	Standard
Marker Lights on Fender	Standard
LED Turn Signal Lights on Rear	(2) Standard up high
One Piece butt and breast bar pins with safety holder	Standard
Spare Tire	Standard

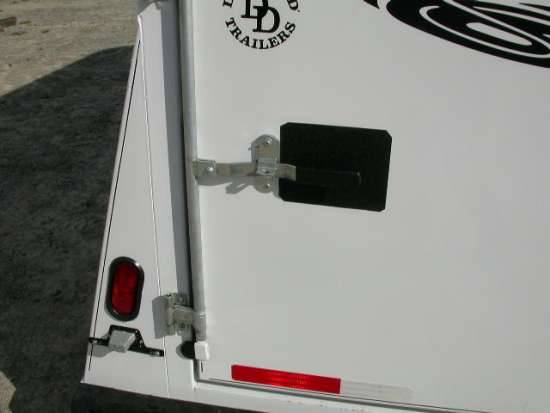

Durable latch on side escape door	Standard
Aluminum center divider with hand made padding	Standard Removable
30" Side Escape door	Standard

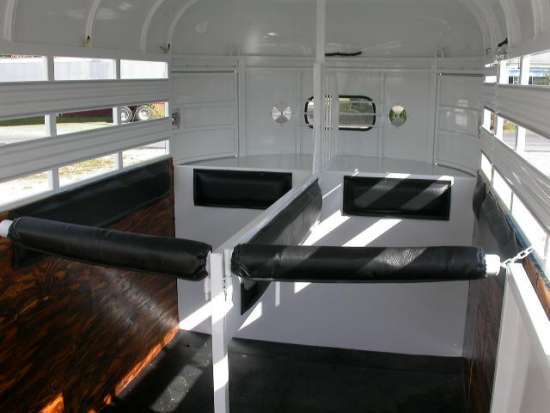

Butt and Breast Bars with hand made padding	Standard and Removable
Solid barred head divider non-swinging	Standard, optional swinging
SafeKick® Wall System	Standard
Heat reflective Roof System	Standard
Insulated side walls and to provide maximum safety, quiet ride and temperature control	Standard
Floor Mats	Standard
Interior Tie Rings per stall	1
Exterior Tie Rings per horse	1
Lights in horse area and saddle compartment	3
Rechargeable emergency Break-away system	Standard
7-Pin RV Style Plug	Standard
Warranty	(4) Year on Structure (2) Year bumper to bumper (1) Year on non-Double D Manufactured parts

Base Price: $10,600
Optional Features			Price
Tack room comfort and convenience options
	Brush Tray on tack door (Inside your manger, there is plenty of space to throw in brushes. Use this option to add a brush tray on your tack door (up to two, specify quantity)	$	45
	Set of (3) are standard in your tack compartment. Add an extra set of (3) Bridle hangers(specify location)	$	55
	Extra saddle rack (2) are standard on one side	$	85
	Slide out saddle racks (NOTE: Saddle Boss Saddle racks are in your new trailer, use this feature to be able to slide your saddle rack towards you when removing your saddles. Aids in getting your saddles in and out of the trailer and is quite convenient) (specify quantity)	$	85
	Blanket bar added to saddle tree	$	85
Horse area convenience options
	7'6" Height option only (NOTE: works well for taller horses)	$	900
	Add 1' to 2' per horse stall for Draft size or Warm blood horses (specify front or rear stall and footage)	$	600
	Upgrade axles from 3500 lb axles to 6,000 lb for larger horses	$	550
	Increase width to 81" for larger horses (requires axle upgrade)	$	800
	Change flooring to Rumber in place of 2"x8" pressure treated pine (rumber has a life time warranty, doesn't require a rubber mat and is easy to clean, prevents slippage)	$	1,100
	Fans for hauling in the summer time, specify quantity (priced each)	$	85
	Remote switch for interior horse fans	$	60
	Ramp door: NOTE: your 4H trailer is standard with a step up and a one piece rear door. Use this feature to split the rear doors into two separate doors, and add a spring assist ramp in addition to the full height rear doors	$	1,250
	Ramp door with dutch doors: NOTE: your bumper pull trailer is standard with a step up and a one piece rear door. Use this feature to eliminate the one piece stock door, and replace with a folding ramp door and two stock gates fold around dutch style doors up top.	$	950
	Extra interior tie ring (one is standard per horse, add a second for tying hay bags) NOTE: Lay flat tie rings are standard to prevent injury to a horses eye, specify quantity)	$	30
	Extra exterior tie ring (4 are standard) specify location of additional rings	$	40
	Extra Front stall escape door (NOTE: one door is standard on the passenger side, add a second escape door on the drivers side for additional safety)	$	550
	Stud gate on front stall: typically used when trailering a stud In the front. Also, many people prefer to use the front stall for storage. This feature keeps your cargo on one side	$	450
Popular Add on's
	RV grab handle on outside to assist with getting in and out of trailer	$	30
	Roof mount hay rack with side ladder	$	1100
	Outside 55 Watt rear halogen loading spot light for night time use on remote switch	$	120
	outside light at escape door, wired to switch on left rear of trailer	$	65
	Battery—Interior deep cell 12 Volt wired to charge from truck. Suggestion: This deep cell battery (holds a charge for long time) is installed inside the dressing room and powers your interior lights, fans, and load lights, without being plugged into your truck. It is wired so that your tow vehicle will trickle charge it when driving.	$	285
	Electric jack (requires battery)	$	550
	Battery add on for electric jack/rack and wiring	$	225
	Awning up to 13'	$	900
	Change awning to two step (NOTE: Worth the extra money, simply flip the lever and pull the release to set up your awning)	$	300
	Color other than white	$	400
	Stainless nose sheet on "V" portion of trailer (NOTE: this option has a "mirror" style sheet on the front of your trailer, much easier to clean bugs and really adds to the look of the trailer)	$	600

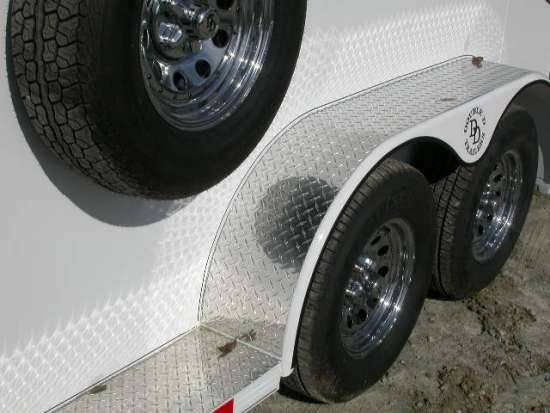

	Aluminum wheels in place of standard gray wheels (NOTE: use this feature to upgrade to aluminum wheels. They are worth the extra cost in adding longevity to your trailer. These wheels will look good 10 years from now) Spare remains gray and is covered with a tire cover, add $150 to change the spare as well	$	600
	Sub Total *	$
	Your State estimated Sales Tax (enter your tax rate, %)	$
	Your State estimated License Fees	$
	Document Fees	$
	Service Provider Fee (if financing)	$
	Bank Closing Cost (if financing)	$
	Delivery (specify miles from factory, free within 1000 miles) Click here to find your distance from the factory	$
	Total with Fees *	$

	If you are financing and/or have a trade in, please complete the following:
	Down Payment amount NOTE: most banks like to see a minimum down payment of 10% of the purchase price, without sales tax	$
	Trade in Value of your current trailer	$
	Payoff on your trade in trailer (how much you owe at your bank, if any)	$
	Equity in Trade In	$
	Total Down Payment with Trade In	$
	Financing Amount *	$
	Interest Rate (enter the Interest Rate from your Bank, %)		%
	Term of Loan in Months For loans of $10K or more, most banks will go up to 120 months. For less than $10K, the maximum term is 84 months.
	Estimated Monthly Payments *	$
	* Options calculations are for estimation only. Firm quotes available on request.
