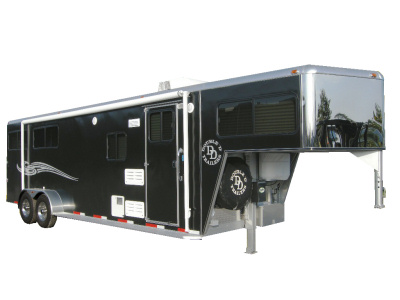

10' short wall living quarter horse trailer


Rawhide 10' living quarters, 7' wide





Base price: $34,500

- Price your new trailer



- Features & Options
- Floor plans (PDF Format)
- Photo Gallery
- Request Additional Information Form

Video Tours:
- 7' wide Interior
- Bathroom
- Horse area

This is your home away from home. Design your new living quarter horse trailer the way you like it. Choose details fro mthe type of wood, stain, cabinet knobs, counter tops, even change the layout if you want. It's all part of the package with your new Double D Living Quarter.

**The Rawhide Gooseneck Horse trailer with Living Quarter difference:

  • Z-Frame Technology (learn More)
  • Unique, safe and Functional rear Safe-Tack® (learn more about Safe-Tack)
  • aluminum tubular head dividers standard (more air flow, less stress on your horses)
  • Walk thru door from the dress to the horse area
  • SafeBump Roof® and SafeKick® Wall System  (learn more)
  • Hand built cabinets inside with real home style cabinets and wood working
  • ability to customize to fit your needs

Living Quarter Features:

Standard Features:

  • Panel Cabinet Doors on all Cabinets solid oak or maple
  • Hand Made molding
  • Drop down dinette or fold out sofa bed
  • Deluxe entry Aluminum Covered Step
  • Lots of cabinet storage including a roomy closet in the bathroom
  • Decor lights and fancy light fixtures
  • Double D Living Quarters Quality throughout
  • Roomy Bathroom with convenient storage
  • Your Choice of Vinyl flooring with carpeted bedroom area

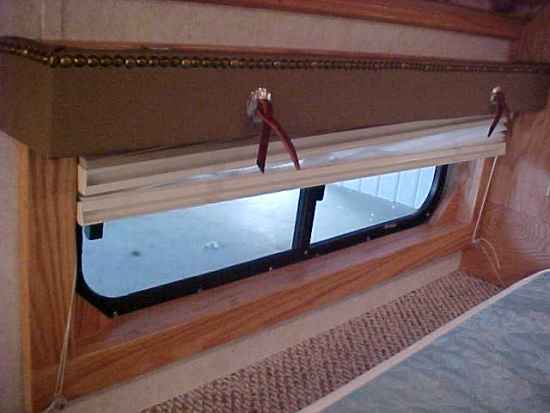

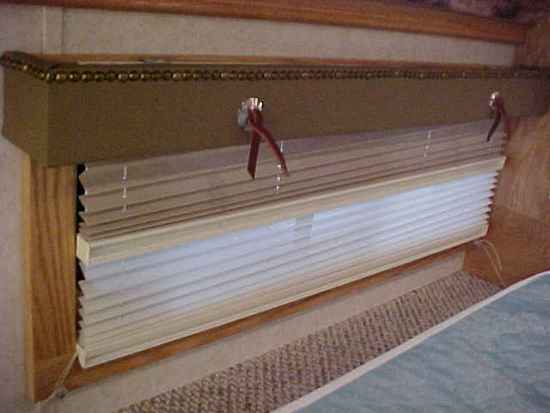

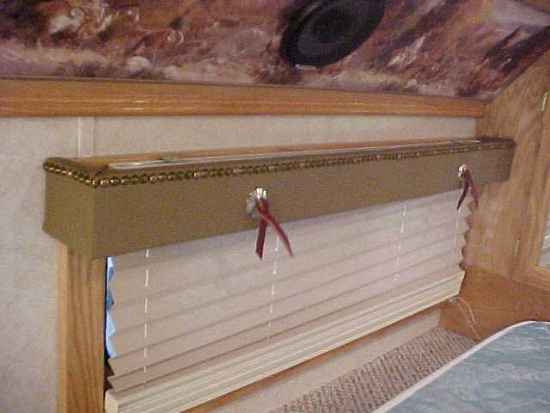

  • Pleated Day and night shades
  • 30' 30 amp power cord with 15 amp adapter
  • Ceiling Lights with wall switches
  • LP Gas leak detector
  • RVIA Approved E-gress window

Appliances:

  • 13,500 BTU A/C with heat
  • Full length roll out patio awning 8500 series
  • 3 CU. Ft. RV Gas/electric refrigerator w/ freezer
  • Double  kitchen style sink, stainless or white
  • RV Style microwave 1.0 white or black
  • 6 gal. propane hot water heater, direct spark ignition
  • 2 burner cook-top with lid, white, black or stainless
  • Outside Vented Hood for Cook top
  • 12V deep cycle battery and disconnect switch
  • 40 amp power converter with battery charger
  • Stereo CD player with inside speakers (it kicks)
  • 2 exterior waterproof speakers
  • Outside Antennae for stereo
  • Flatscreen TV with DVD player and roof antenna
  • Outlets thru out the trailer



Bath & Plumbing:

  • 30-50 Ga. Freshwater supply tank with 12-volt demand water pump super quiet pump
  • Dual wastewater holding tanks
  • City water hook up
  • (2) 20-lb. LP tank with cover
  • Top quality Thetford toilet with foot flush pedal and spray nozzle
  • 6-gal. gas water heater quick recovery, direct spark ignition
  • Storage cabinets
  • Linen and storage closet

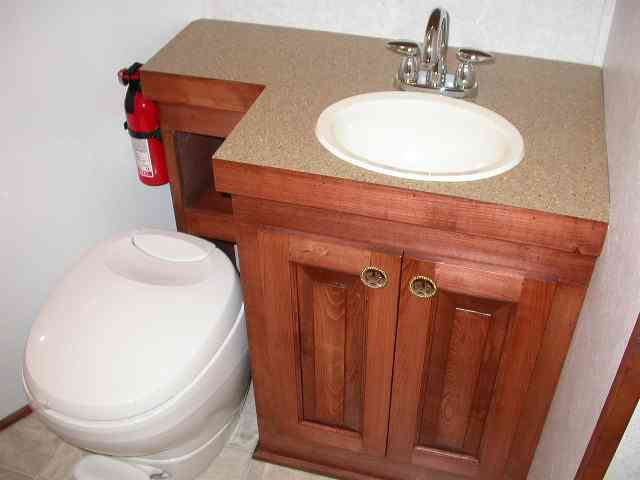

  • Bathroom sink and vanity
  • Medicine cabinet over sink
  • Vanity bar light on medicine cabinet
  • Tank Monitors Standard

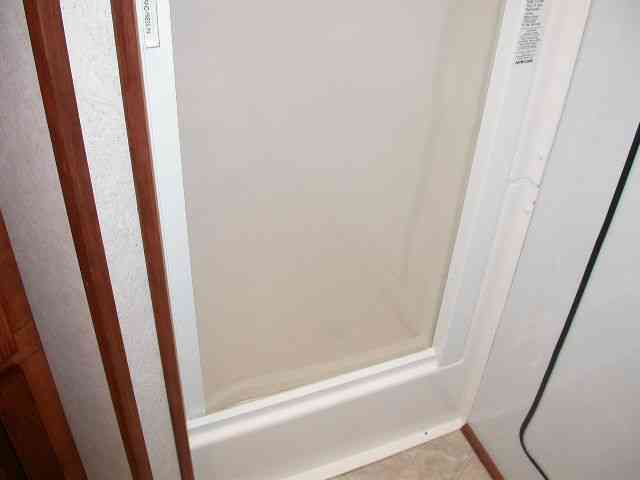

  • Roomy corner shower stall large enough for two adults
  • Nice Privacy door to bathroom area



Structure Features::

This Model is available in extra heights and length to accomodate varying size horses
Gooseneck Horse trailer with living Quarters
Body Color
White is Standard. Other colors available
Vinyl stripe Color and Graphic
Weight (without options)
7800lbs
Z-Frame Technology
Standard
2"x8" pressure treated pine flooring on 16" crossmembers
Standard
Exterior Skin
22 Gauge Zinc Sheets with Baked on Siliconized Paint
Overall box length
24'
Overall trailer length with gooseneck
31' 6'
Overall trailer box width
81"
Dress side
10" short wall x 14' long wall
Walk thru door to horse area
Standard
Inside Height
7', optional 7'6"
Stall Length
122" diagonal, 96" divider length
Stall width
40"
Coupler
2 5/16" adjustable height couplerl
EZ Lube durable never adjust brakes 6,000 # capacity per axle
Smooth leaf spring suspension
Brakes
4 wheel
Wheels
Powder coated gray, optional aluminum
Tire Size
235/75R16 (E) Radial
Full Height rear doors with Safe-Tack® Design
Standard
24" Diamond plate Gravel Guard at Nose
Standard
Running board steps down dressing room side
Standard
Saddle racks
3
Safe-Tack® Slant load design
Standard
Bridle Hooks
3
Spring loaded drop leg jack
Standard
Marker Lights on Fender
Standard
LED Turn Signal Lights on Rear
(2) Standard up high
Extra divider on rear stall to prevent horses from backing out when rear doors are opened
Standard
Spare Tire
Standard
All locks keyed the same
Standard
Aluminum Slant dividers with hand made padding and safety slam latches
Standard Removable
24" walk thru Escape door
Standard
Horse area roof vents, one per stall aluminum
Standard
Custom hand made padding on dividers and slant wall
2" Standard
30" dress door
Standard
SafeKick® Wall System

Standard
Heat reflective SafeBump® Roofsystem
Standard
Insulated side walls and roof in horse area for maximum temperature protection and safe, quiet ride
Standard
Floor Mats in horse area
Standard
Interior Tie Rings per stall
1
Exterior Tie Rings per horse
1
Horse Area Roof Vents one per horse
Standard
Lights in horse area on rear remote switch
3
Rechargeable emergency Break-away system
Standard
Windows in Gooseneck - (1) sliding with screens, (1) E-Gress Kickout
20"x51"
Picture window in dressing room on long wall - (1)
20"x51"
Windows in stall area - (3) drop down with bars on head side. Windows and bars fold independent, features mid-latch easy to reach system
24"x30"
Windows on butt side- (2) sliding with screens
20"x51"
7-Pin RV Style Plug
Standard



Warranty

(4) Year on Structure
(2) Year bumper to bumper
(1) Year on non-Double D Manufactured parts

Optional Features:

Base Price: $34,500
Optional Features
Price
Living Quarter Comforts and Conveniences
Ducted roof air in place of standard air NOTE: this option gently blows air thru your living quarters and they system cuts off when the desired temp is reached.  Recommended only with the 7'6" height option.  The standard unit the fan runs constant and doesn't cut off. $
400
Furnace 16,500 BTU on thermostat NOTE: your trailer comes standard with an air conditioner and heat strip. The heat strip requires power so if you do primitive caming in cold weather (no power), the furnace is a great option $
600
Screen door on dress door: All doors now are built at the factory and are very sturdy.  Use this feature to add a retractable screen door to your dress door. Use the screen to keep bugs out when your door Is open $
250
14" rollup Vent in Living Quarters with 12V fan (works well in bathroom area) $
225
Fantastic fan Model 6600r model over bed area, thermostat controled with rain sensor. (NOTE: use this feature to sleep at night without running your air conditioner.  These fans pull a lot of air, variable speed, will pull air or blow air either direction and has a rain sensor) $
550
Storage cabinet over toilet area (Note: This shifts the toilet out away from the wall and farther into the walk thru door area, in our opinion it "cramps" the bathroom) $
200
Raised panel cabinet doors in place of standard cabinet door (NOTE: your new Revelation comes standard with what is referred to as a "panel" cabinet door. Meaning the wood face is flat. Choose this option to have a "raised" panel door where the wood face is built raised and scultped around the edges) $
700
European Birch wood in place of Oak $
300
Dark Stain other than Natural clear finish $
800
Mattress 4" foam covered, 60"x80" $
250
Soft wall feature (NOTE: with this feature, your living quarters will have the effect of a "soft" feel to the touch. The advantage, you may choose a vinyl/synthetic leather material to cover all of your walls. It really gives the interior a "richer" feel versus the standard hard wall. It's also easy to clean, looks fancy if that's your tastes) $
900
Folding custom hand built wood ladder to bed area (NOTE: this feature tucks neatly against the wall, and when not in use you may easily remove and lay up on the bed to be totally out of the way) $
350
Removable pedestal table in front of Sleeper sofa $
350
Taller refrigerator (NOTE: change out the standard 3 cubic refrigerator to a 6 cubic. Requires eliminating window at appliance Bar, switch from double sink down to single sink. OR, you may eliminate the bathroom sink  and install taller refrigerator on the sofa side. $
800
Tray Ceiling (NOTE: Use this feature to add a tray/vaulted style ceiling over your bed area with mood lighting, available only on 7'6" height trailers with ducted A/C option) $
450
Slide out on sofa or dinette (NOTE: use this to slide out your sofa or dinette to create more space in the living quarters.  This does slightly decrease the size of your sofa/dinette area slighly by 4" on either end for additional bracing needed, and your overhead cabinets are a little smaller, Need 7'6" Height option for this feature. This feature works well on a standard with trailer when you need more floor space and do not want to pull around a really wide trailer) $
5000
Horse area convenience options
Decrease to a 2H instead of the standard 3H $
-2000
Increase to a 4H by adding one stall (NOTE: other options may have an upcharge, like Rumber for example) $
2000
7'6" Height option only (NOTE: works well for taller horses) $
1300
Add 1' to one horse stall for Draft size or Warm blood horses (specify which stall and # of stalls) $
600
Change flooring to Rumber in place of 2"x8" pressure treated pine (rumber has a life time warranty, doesn't require a rubber mat and is easy to clean, prevents slippage) $
985
Rear door window for more air flow (20"x24" size) $
150
Fans for hauling in the summer time (priced each) $
85
Remote switch for interior horse fans $
60
Ramp door in addition to full height rear doors (NOTE: your new slant load trailer is standard with the rear tack around and is a step up. Use this feature to add a spring assist folding ramp in addition to your tack around) $
1050
Extra interior tie ring (one is standard per horse, add a second for tying hay bags) NOTE: Lay flat tie rings are standard to prevent injury to a horses eye, specify quantity) $
30
Extra exterior tie ring (3 are standard) specify location of additional rings $
40
Feed bag works great for feeding while trailering (priced per stall) $
65
Front stall escape door (NOTE: Walk thru door is standard from the horse area to the dressing room. Us this option if you want a door on the front stall, typically used in conjuction with a stud gate for storage (other than the horse) $
550
Mangers per stall (specify quantity), typically not installed on the front horse stall $
750
Front Stall Storage Partition: you may prefer to use the front stall for storage. This feature keeps your cargo in the front stall $
450
Popular Add on's

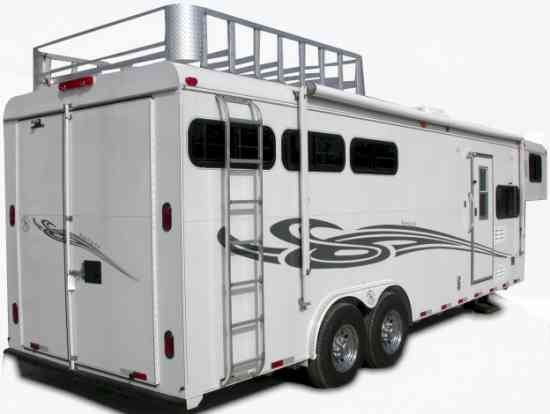

Roof mount hay rack with side ladder $
1100
On board generator with remote start NOTE: this includes the roof mount hay rack and a 5 gallon gas tank.  If you add the manger option, we can install a 15 gallon stainless tank with outside fill gauge, inside of the manger if you add a manger option.  Run time on 15 gallons approximately 35 hours continous $
5950
Custom 15 gallon stainless fuel tank located inside manger $
300
Outside 55 Watt rear halogen loading spot light for night time use on remote switch $
120
Set of (3) are standard in your rear tack around. Add an extra set of (3) Bridle hangers in rear tack or dressing room (specify location) $
55
Extra saddle rack (3) are standard $
85
Slide out saddle racks (NOTE: Saddle Boss Saddle racks are in your new trailer, use this feature to be able to slide your saddle rack towards you when removing your saddles. Aids in getting your saddles in and out of the trailer and is quite convenient) (specify quantity) $
85
Blanket bar inside dressing room or on rear saddle tree (specify which) $
85
Hydraulic Jack (recommended extra battery) $
1500
Extra battery and enclosed aluminum battery box NOTE: a large portion of this cost is from the aluminum enclosed battery box. This works well with a trailer that has a hydraulic jack, and for extended stays without power, more than a couple of days. Otherwise, the single battery performs well $
350
Change awning to two step (NOTE: Worth the extra money, simply flip the lever and pull the release to set up your awning) $
300
Color other than white $
400
Stainless nose sheet on "V" portion of trailer (NOTE: this option has a "mirror" style sheet on the front of your trailer, much easier to clean bugs and really adds to the look of the trailer) $
450
Aluminum wheels in place of standard gray wheels (NOTE: use this feature to upgrade to aluminum wheels.  They are worth the extra cost in adding longevity to your trailer. These wheels will look good 10 years from now) Spare remains gray and is covered with a tire cover, add $150 to change the spare as well $
600

Sub Total *
 $
  Your State estimated Sales Tax (enter your tax rate, %) $
  Your State estimated License Fees $
  Document Fees $
  Service Provider Fee (if financing) $
  Bank Closing Cost (if financing) $
  Delivery (specify miles from factory, free within 1000 miles)
Click here to find your distance from the factory 		$

Total with Fees *
$

  If you are financing and/or have a trade in, please complete the following:
  Down Payment amount
NOTE: most banks like to see a minimum down payment of 10% of the purchase price, without sales tax		 $
  Trade in Value of your current trailer $
  Payoff on your trade in trailer (how much you owe at your bank, if any) $
  Equity in Trade In $
  Total Down Payment with Trade In $

Financing Amount *
 $
  Interest Rate (enter the Interest Rate from your Bank, %)   %
  Term of Loan in Months
For loans of $10K or more, most banks will go up to 120 months.  For less than $10K, the maximum term is 84 months.

Estimated Monthly Payments *
 $
  * Options calculations are for estimation only. Firm quotes available on request.


Would you like more information?



Images:
(Click small thumbnail picture for larger photo)

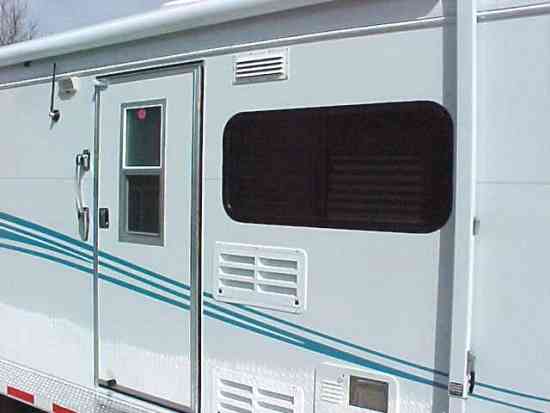

6'8" width trailer with Teal Swirl Graphics, your choice on graphic color

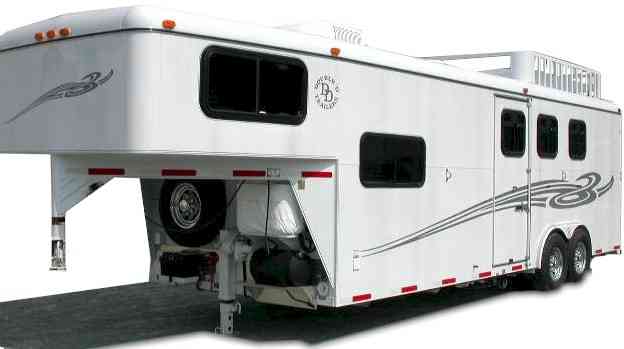

8' width trailer shown in standard white, dark gray swirl graphics, Optional roof ladder

Shown in 8' width trailer, optional front stall escape door

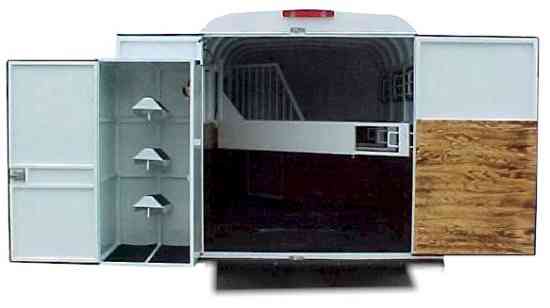

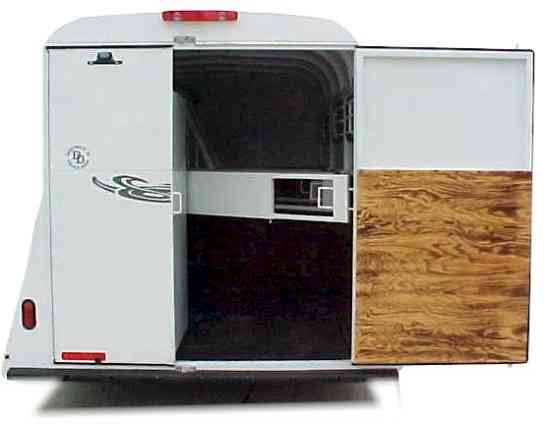

Double D Exclusive **Rear-Tack-Around Design

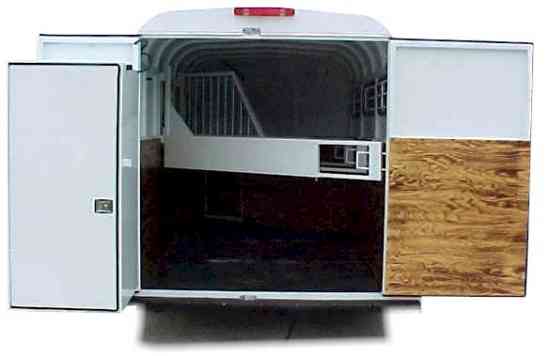

Notice the entire rear of the trailer is open, very safe for loading and unloading

Easy access to the saddle racks and compartment

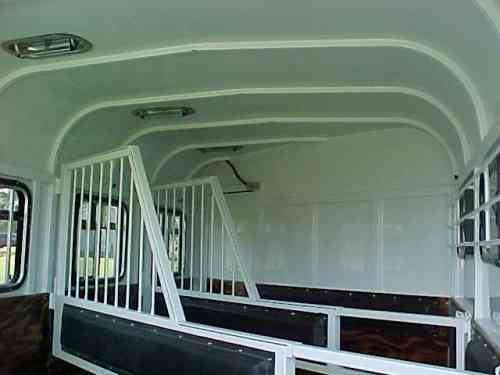

6'8" width trailer, see thru head dividers for calmer horses, lined and padded stalls

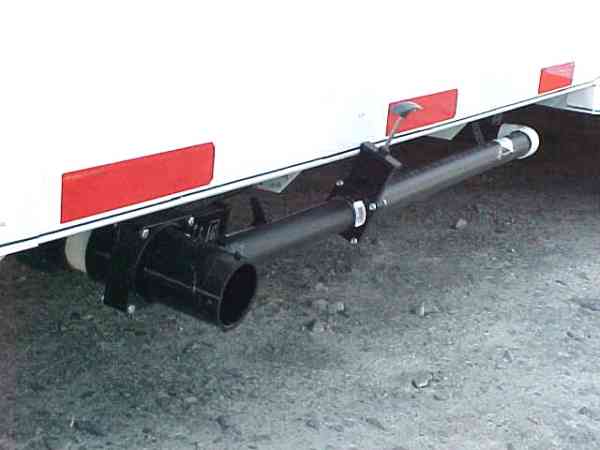

Sewage hook up for camp ground usage

E-Gress escape window standard to pass our certification

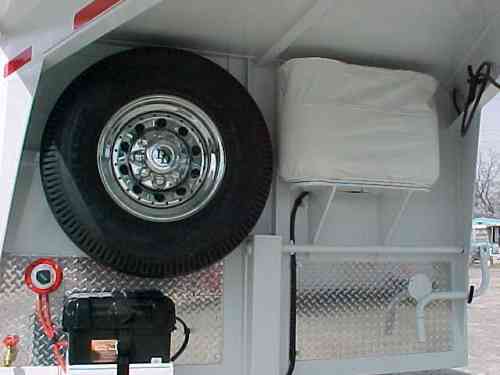

Underneath neck of the trailer

Your choice on the 6'8" width trailers for nose border

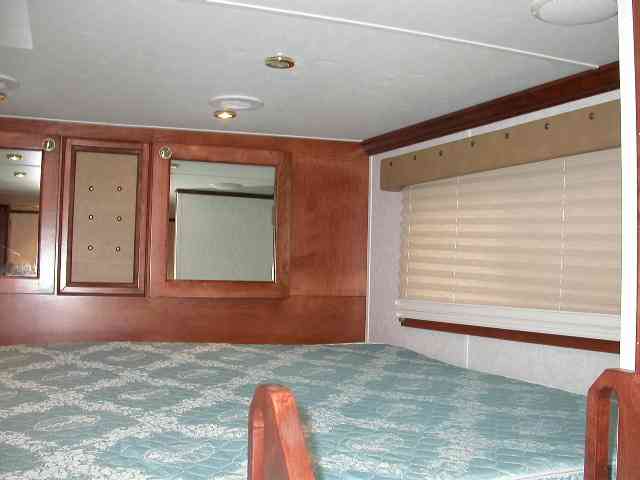

6'8" Width Nose Area

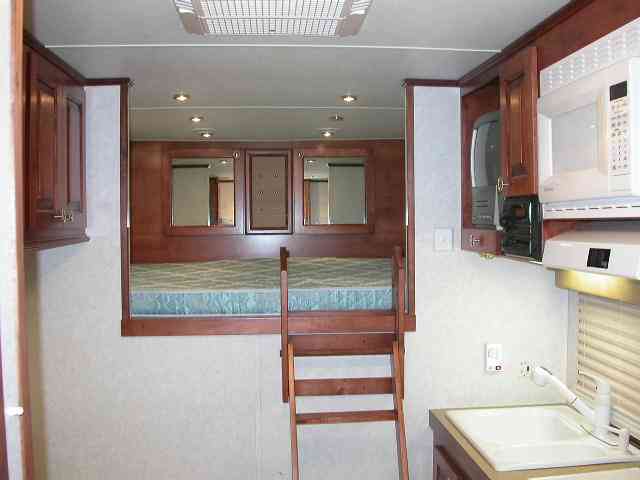

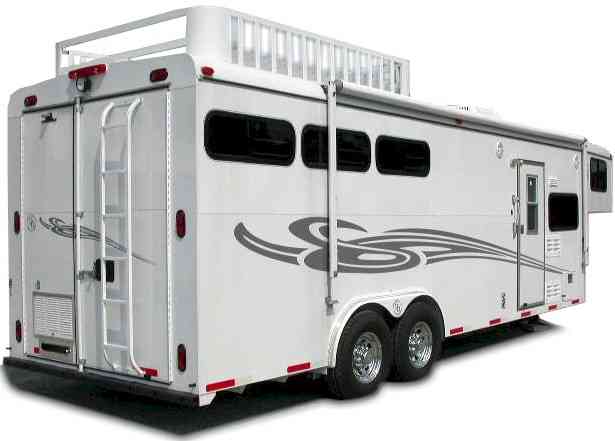

This is an 8' width trailer, ladder is standard on 8' wide units

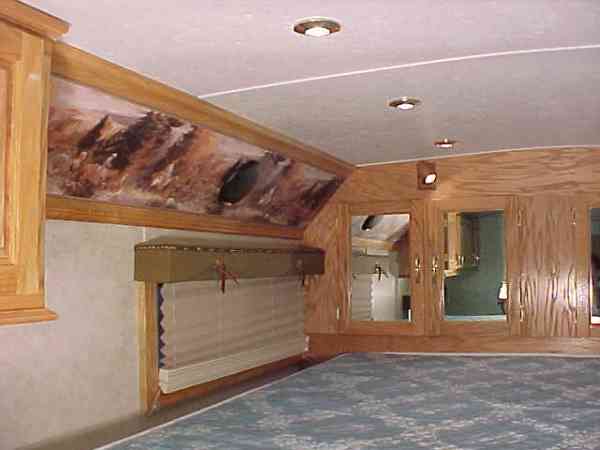

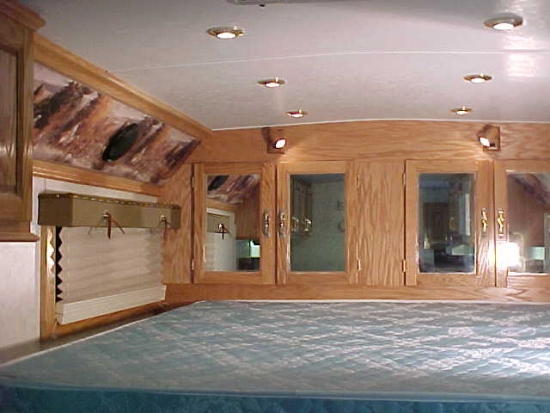

Nose area in 8' width trailer, Ducted A/C Unit, Squared corners, matress queen size mattress included

Fancy nose area in the 6'8" width trailer

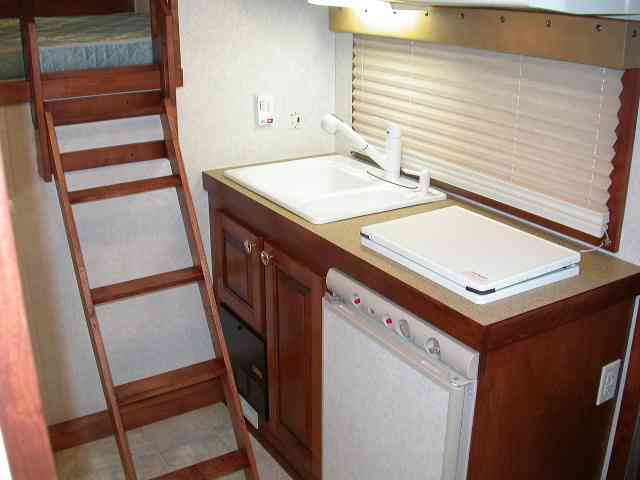

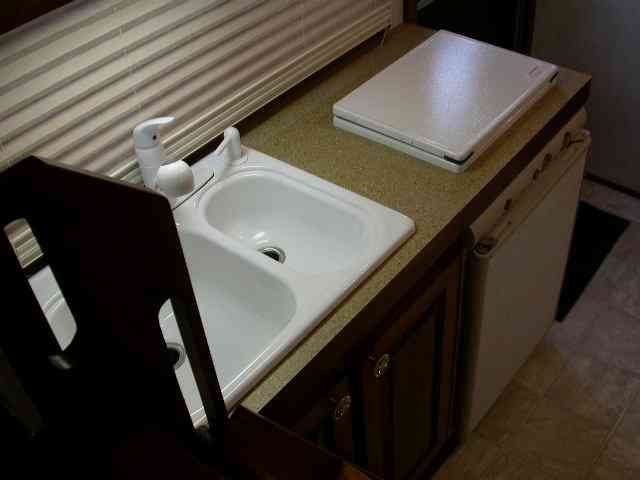

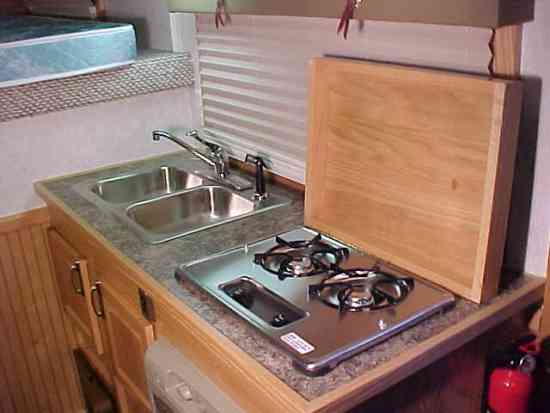

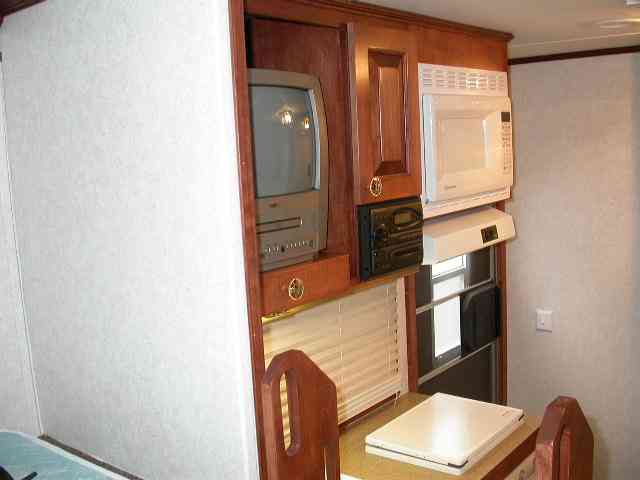

Fancy Kitchen Area, choice of Appliance colors, black, white or stainless

Fancy Kitchen area shown in optional modern stain finish

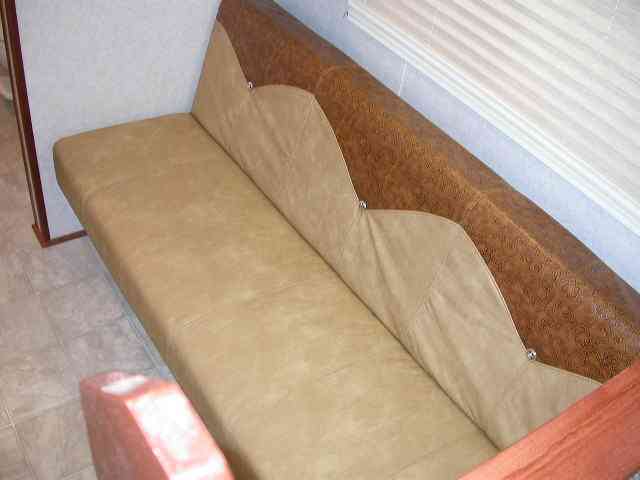

Wow, fancy fold out leather sofa or dinnette, your choice, same price

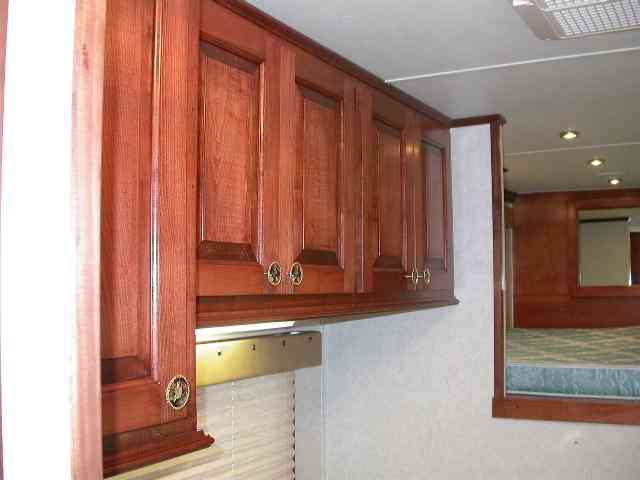

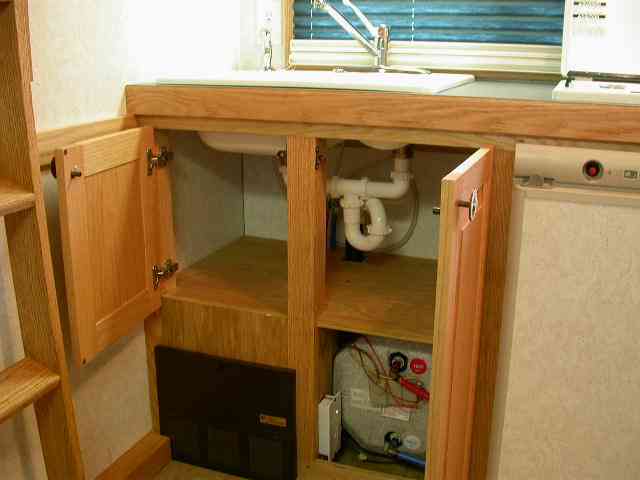

Notice how large the cabinets are in the 8' width trailer, Kitchen Style real oak wood cabinets, nothing pressboard or plastic in here

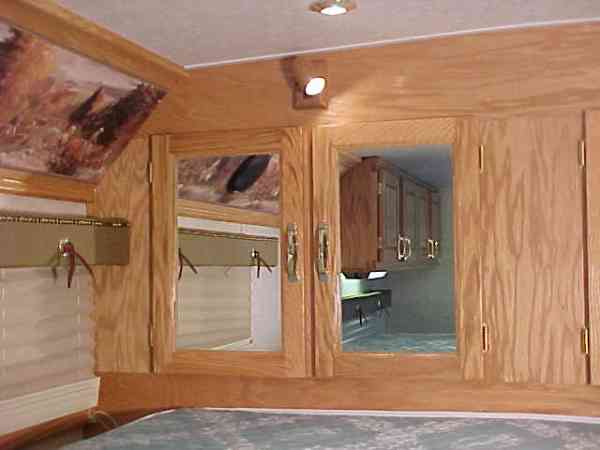

Sitting in the nose area looking towards the rear in the 8' wide model

Nice Privacy wall, shade door is available to close off the bedroom area, 8' width trailer only

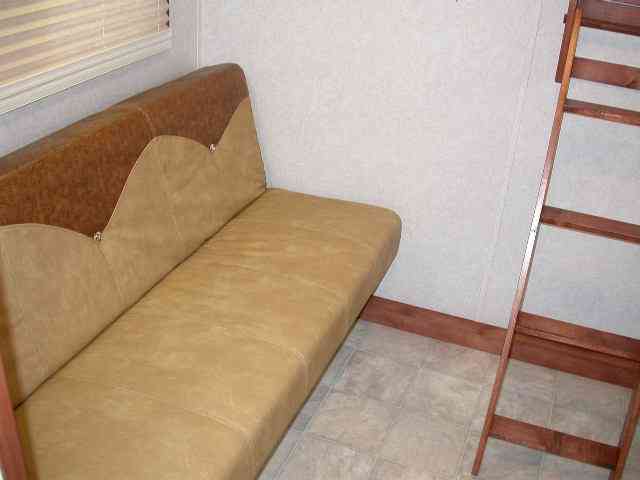

Leather sofa, we normally put in a removable pedestal table in front of the sofa, 50 Gallon water tank in this one,

LOT's OF ROOM!!

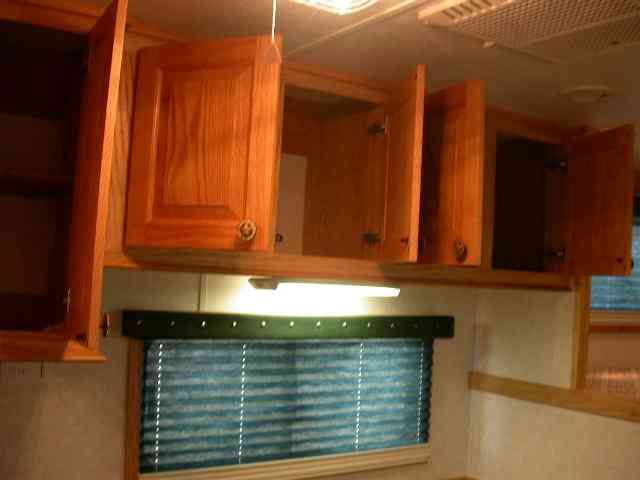

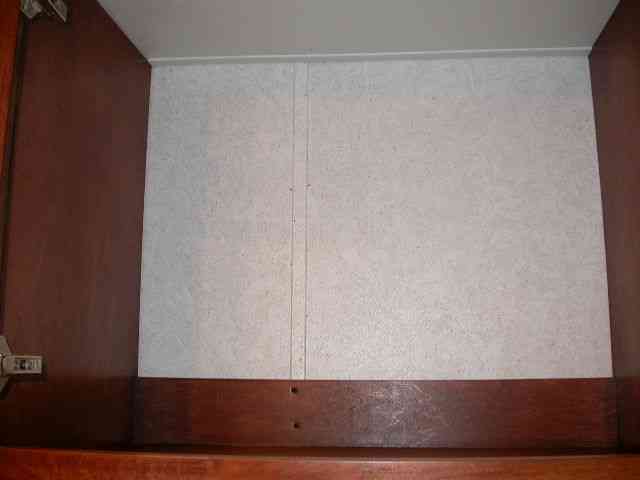

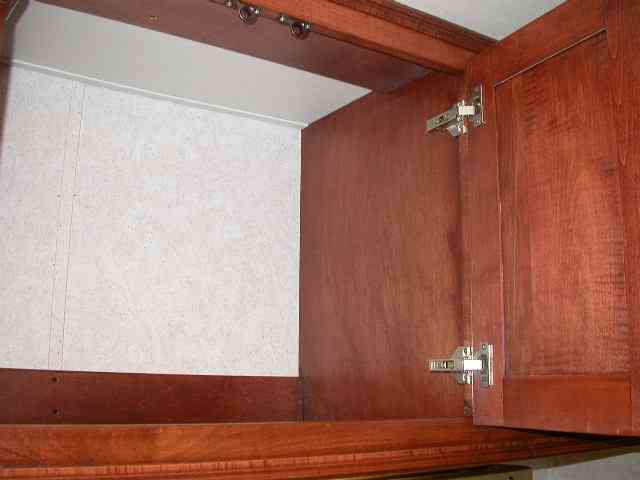

Inside of the cabinet shown, we care about what you see and "can't" see, look inside the competition's cabinets, you'll be surprised

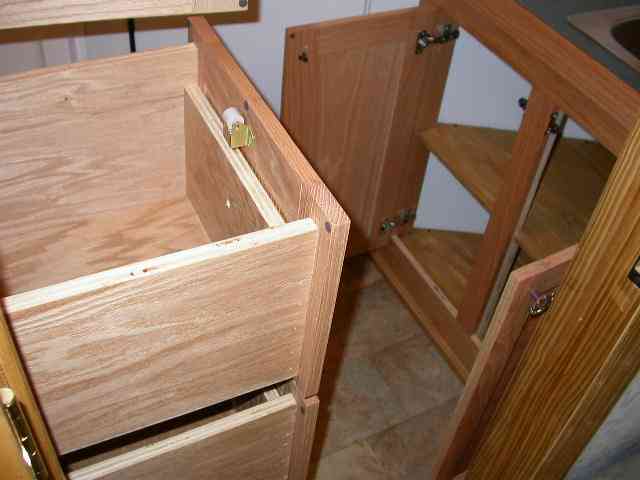

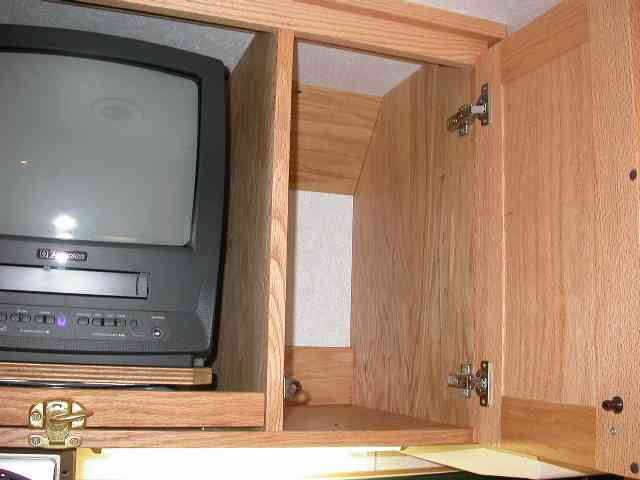

Interior of cabinet finished like the exterior is finished

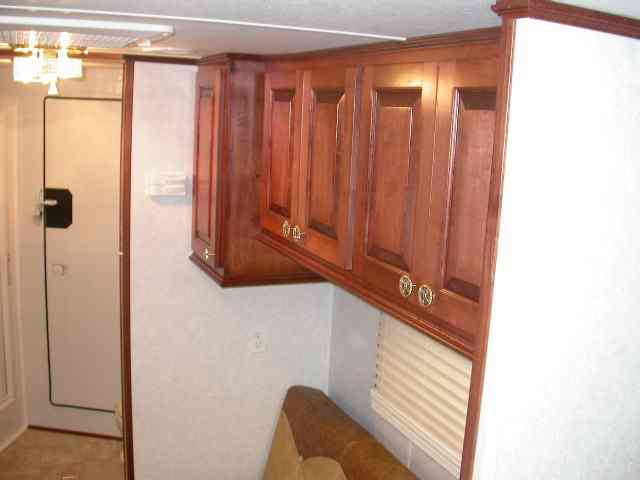

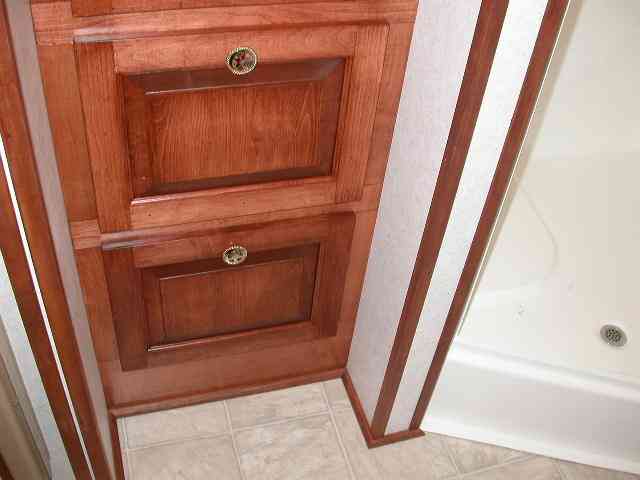

More storage, notice the size of the cabinets, they are HUGE

And of course, yes, you guess it, more storage

We must be the only folks that enjoys watching TV, ours slides out on a swivel tray to view from the bed or Sofa, also has a place for DVD Storage

Corner shower, door in open position

Corner shower shown with the "hidden Door" in the closed position, shower curtain rod is standard

Shower shown w/standard curtain

Plenty of Room in This shower, enough for two people

Check out that counter space for the ladies, plenty of room in here

Storage cabinets in the bathroom area, notice the lighter color standard finish

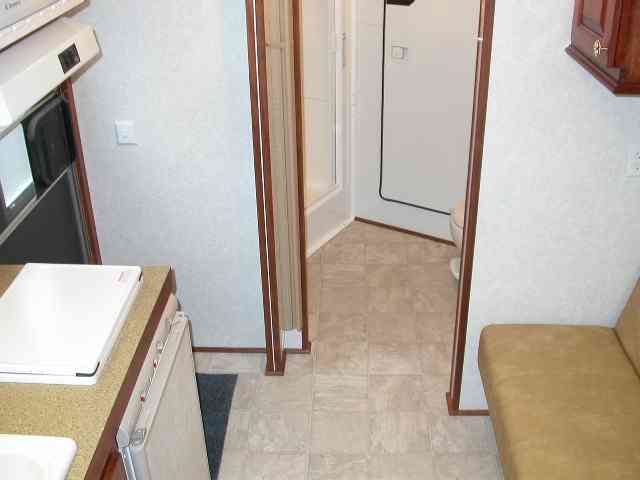

Bathroom area, LARGE slide out drawers, see the shower to the right of the photo

Bathroom Cabinets

Bathroom storage, drawers, closets, vanity bases hand made, overhead vanity storage, storage, storage, more than anybody else has

6'8" width trailer, day and night shade combos, normally no border in the 8' width trailers as the windows are taller
Back to Trailer Models
© 2009-2010. Double D Trailers
All Rights Reserved
