Renegade Trailers


*Photo show w/options

Base price:
$25,750 3H
$27,950 4H


- Features & Options
- Floor Plans (PDF Format)
- Image Gallery
- Request Additional Information Form

What makes a horse trailer a horse trailer? We believe it starts in the material and finishes with the people. That's why at Double D Trailers we use only top quality Galvaneal sheet metal for our exteriors and solid oak cabinets for our interiors. Whether you are in North Carolina, South Carolina or Washington State, we are able to build, sell and service a Double D Trailer to you factory direct at competitive prices.

Our "Renegade" Trailer is one of our latest production units offering room for three people to sleep and toilet inside. While it doesn't have all the luxuries of our RawHide Trailers, it has all the basic necessities for camping.  Dressing room is carpeted, insulated and paneled. It has a front Wardrobe in the nose, leather covered valences with conchos, vinyl flooring,  Drop down dinette for eating and sleeping, 110V electrical hook-up, 12V hook-up, 30 Gallon fresh water tank, whisper king water pump, 6 gallon propane hot water heater,  kitchen style cabinet w/laminate top, all hand built, also has a  Roof Mount A/C 13,500 BTU w/heat strip.  And the nice thing about this trailer, a cowboy's shower as well as the toilet equipped w/single wastewater tank.

 The slant dressing room comes standard with a walk-through door to the horse area. Each stall in the horse area has a pop-up roof vent, drop down feed windows with aluminum safety bars, and sliding windows with safety bars and screen. Smoked plywood kick lining is installed on the left and right walls to prevent damage to the trailer. Also, check out our new exclusive rear Tack Around design--It has easy access for tack and works well for loading and un-loading the horse. This new design leaves the entire rear of the trailer open yet still utilizes the space. This trailer weighs about 5800 lbs and can be towed with most any 1500 series half ton pick up truck.  Call for more details.


Features & Options:

Standard features:

  • 1"x 2"x 14 gauge uprights
  • 20 gauge Galvaneal rolled top
  • 16 gauge Galvaneal sides
  • 8" channel iron neck
  • 6'8" wide
  • 7' tall
  • Full nose
  • Rubber Bumper
  • Four Wheel Electric brakes
  • 2x8" CCA pressure treated pine flooring
  • Spare Tire/wheel all Chrome matching
  • 24" centers on uprights, crossmembers & roof   supports
  • Galvaneal Teardrop fenders
  • 2-5/16" adjustable coupler
  • Spring loaded jack
  • Dexter Heavy Duty 6000# axles
  • 16" Radial Tires 10 ply (load range E)
  • Aluminum Treadplate Gravel Guard
  • **Weight Chart
  • Safety Chains
  • Formed outside smooth skin completely enclosed with Galvaneal
  • Slant dressing room wall
  • Escape door in dresssing room wall
  • Venturi roof vent in dressing room
  • Lights throughout
  • Sub-floor in dressing area
  • Camper door with screen
  • Dressing room running board
  • Tie loops for each horse
  • Heavy duty rubber mats in stalls
  • Sliding bus windows (three 12X36 in dressing room)
  • Trailer weight 5800 lbs approximately
  • Fully enclosed **Tack-Around Design
  • 13,500 BTU A/C with Heat Strip
  • Smoked plywood kick lining
  • Pop-up roof  vent for each horse
  • Drop down feed windows with aluminum bars
  • Wide GRAPHICS package
  • Double D Exterior finish package with electrostatic paint system
  • Sealed seams in Dressing Area, roof, fenders & uprights

Optional Features:



Microwave over sink   $200
Cook top/3 cu refrig/safety pkg-   $1850
Rubber Wall Liner (horse Area)   $650
Silver Gray Wheels with chrome cap   included
Cabinet over toilet area   $200
Roll Out Awning   $900
Available color Color Chart   N/C
TV w/Antennae   $375
Ramp Load   $950
Mattress for bed area   $300

**Living Quarter Comforts: Dressing room is insulated and paneled with RV Style roof material, ceiling is Adobe white Ceiling material, has carpeted gooseneck area, vinyl flooring, Full Width Front Wardrobe, leather covered valences with conchos and brads, day/night combo shades on all windows,  13,500 BTU A/C with heat, Step to bed area, matching trim border all around (your choice), kitchen style counter top/cabinet, sink, mirror, 30 gallon water capacity, city water hook-up, 6 gallon propane hot water heater with single propane tank, whisper king water pump, Cowboy's shower in the third stall and toilet up front in the dressing area, Toilet wastewater holding tank, (3) 110V outlets wired to breaker box with 30' 30 amp power cord, 12V battery.  Also has drop down dinette across the front for sleeping a third person.

 Would you like more information?




Images:
(Click small thumbnail picture for larger photo)

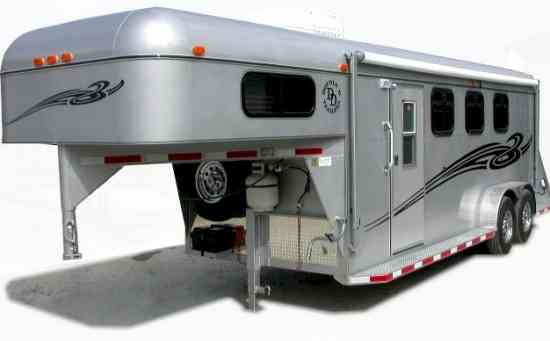

All new Renegade, trailer is actually white with black stripe, optional chrome wheels

Shown with Optional Awning

Double Rear Doors and Rubber Bumper

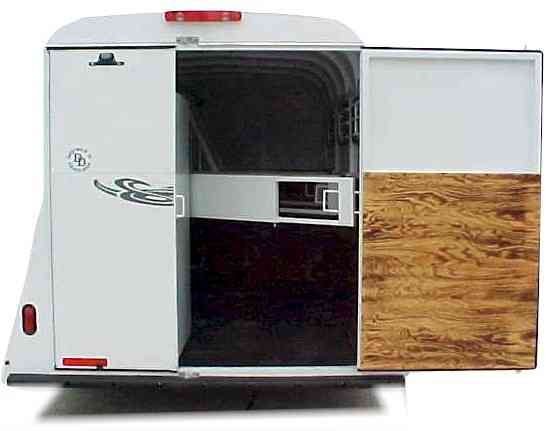

Open up the door on the right side

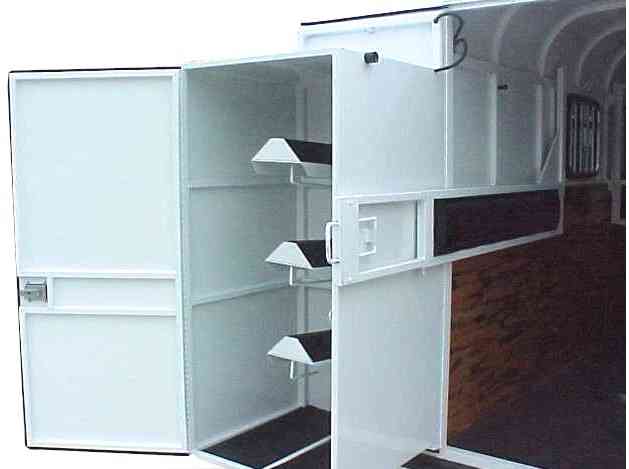

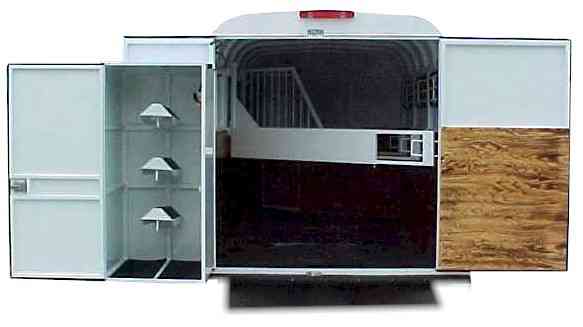

Then open the exclusive **Rear-Tack-Around on the left side

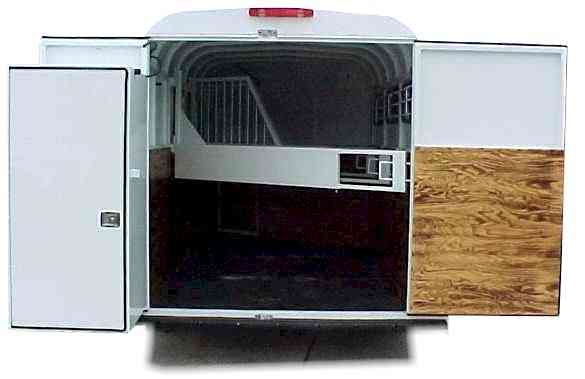

The entire rear of the trailer is available for loading, very safe, easy access to the saddle compartment, nothing in the way like most trailers

Standard 3rd divider latches on to the box for security on uneven ground or windy days to prevent box from moving

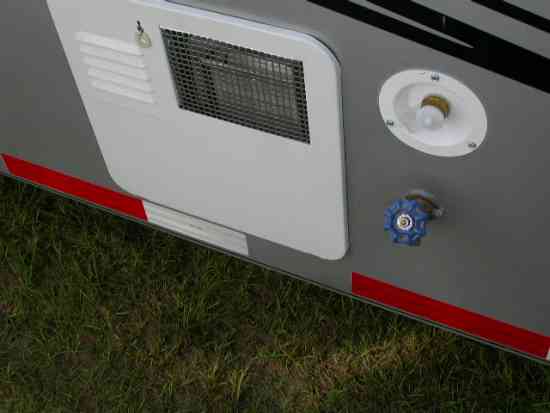

Outside city water hook up and faucet standard

Tie loops for each horse

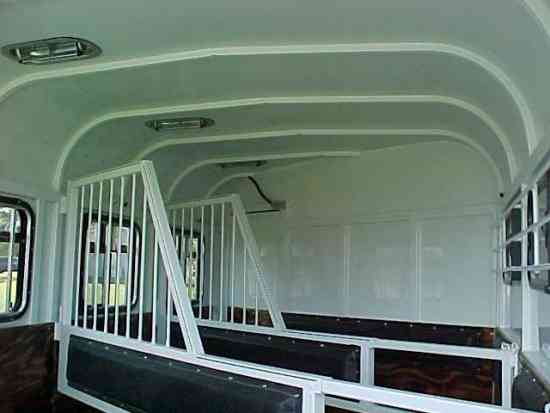

Trailer comes with walk thru door, lined and padded stalls with mats

Cowboy's shower in the third stall, mounted on the slant wall and shown in the closed position

Open position, hot water control, cold water, shower hose, good pressure..works great. Water runs in the floor of the horse area

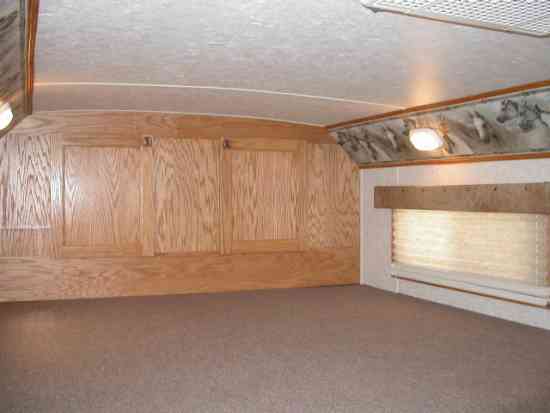

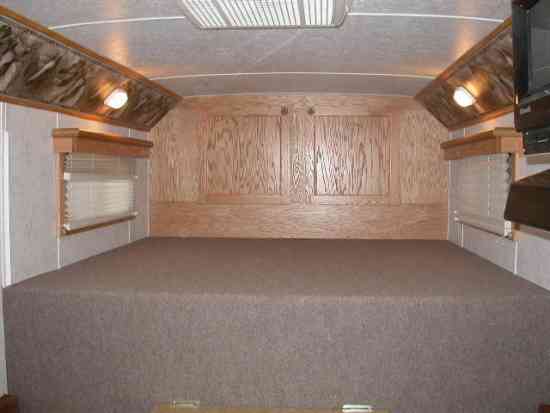

Nice Nose area, plenty of sleeping room

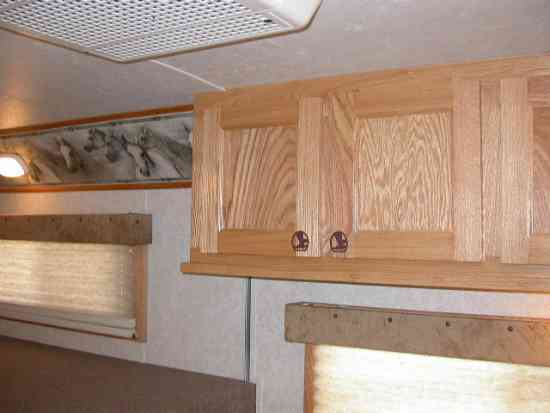

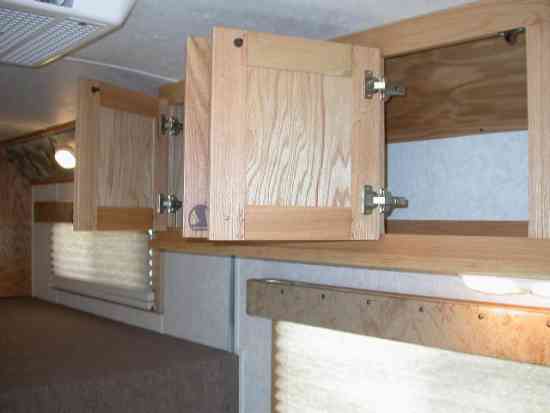

Overhead cabinets

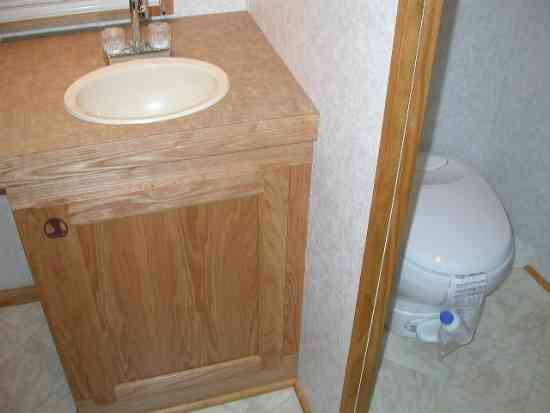

Sink and cabinet all hand built, your choice on laminate top

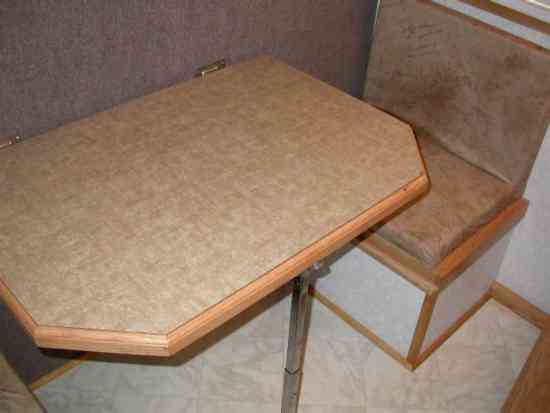

Drop down dinette work great for eating, notice how large the table is, made from solid oak

Dinette can also be used to sleep a third adult

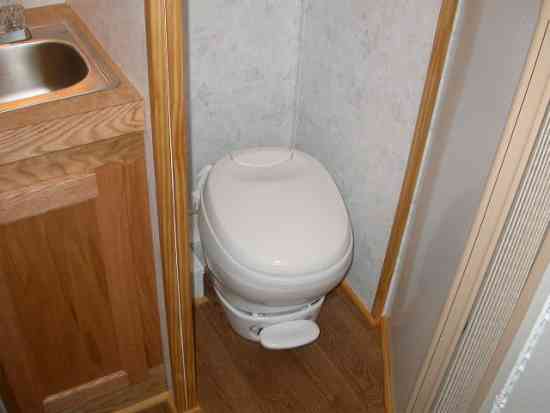

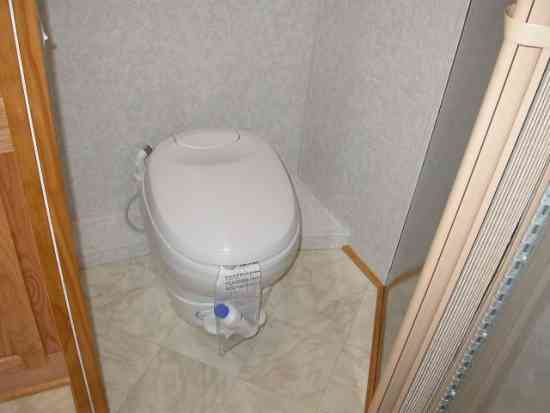

WOW! Huge toilet area, we offer a cabinet option in here

Privacy door to toilet area

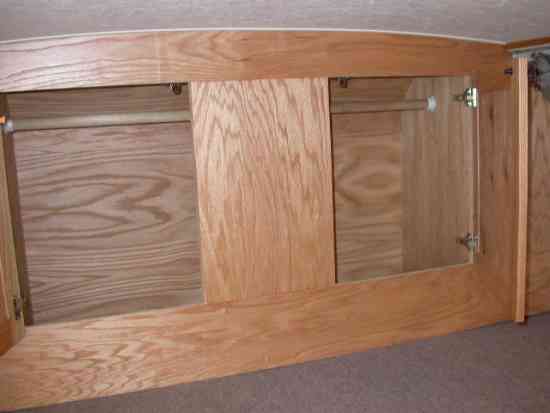

Since there isn't a closet, we have the front wardrobe as standard equipment

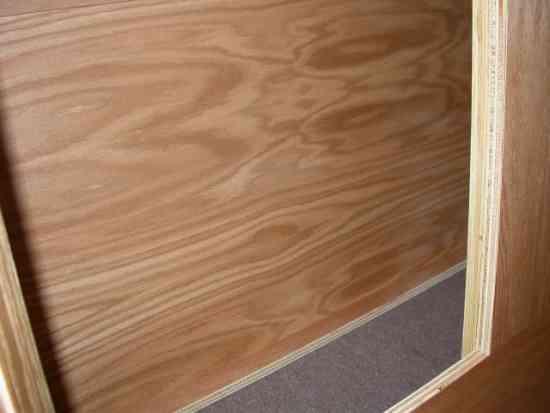

Notice the space in there, you can hang shirts, etc.

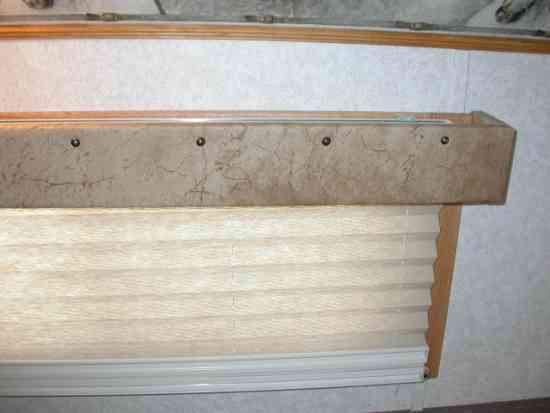

Valences over all the day/night shade combos

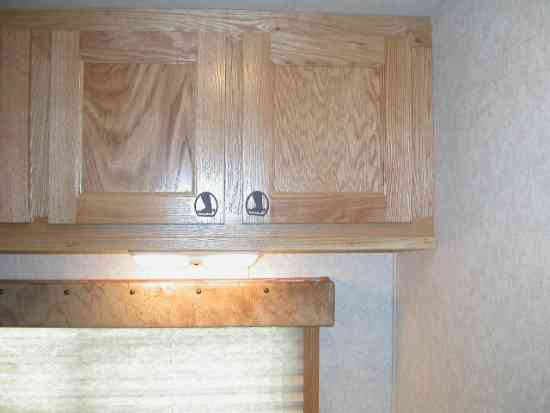

This cabinet comes standard, fair amount of space on the solid oak cabinets, no "prefab" material in here.

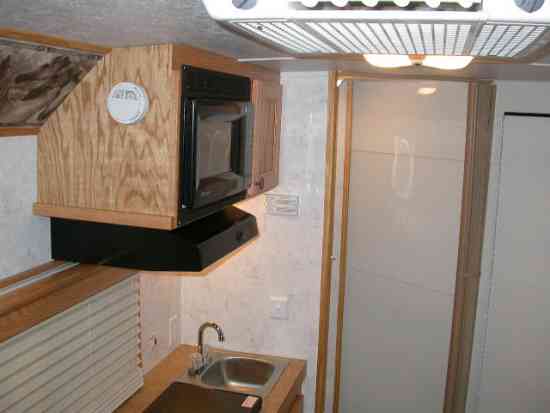

Optional Microwave

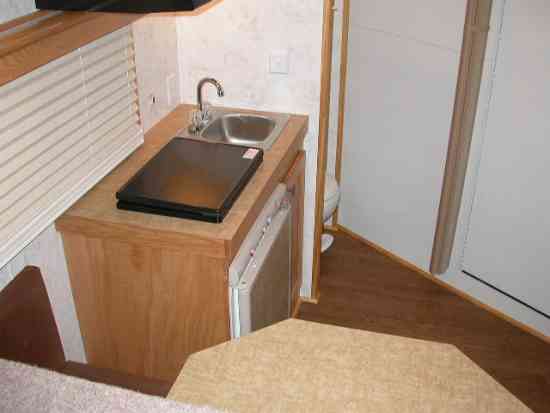

Shown with optional refrig/cook top package
