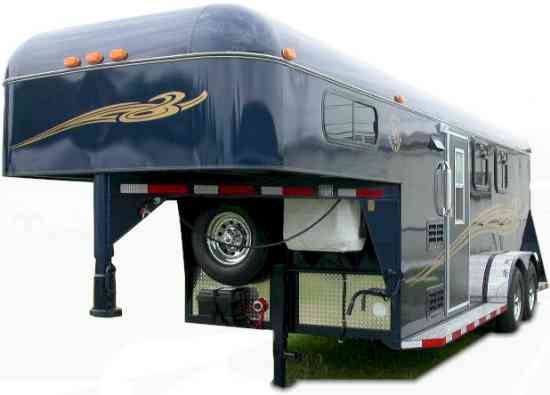

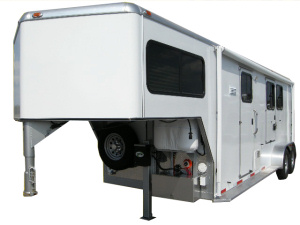

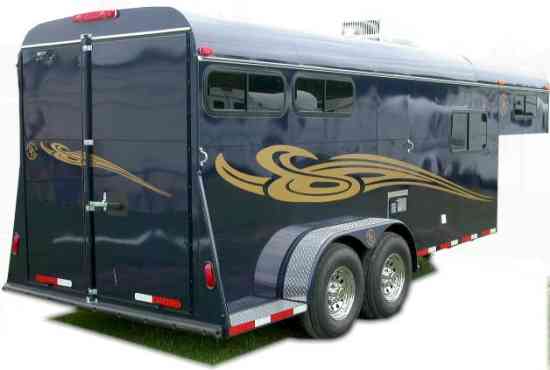

2 Horse Living Quarter Horse Trailer

Trail Blazer

Base price:
$26,975 2H

(PDF Format)
- Photo Gallery
- Video Tour #1
- Video Tour #2
- Request Additional Information Form

The Trail Blazer has been one of the hottest selling living quarters that we have built at Double D Trailers. With features like a full length fold out sleeper sofa long enough for an adult to sleep on, home style appliances and hand made solid oak cabinets, the Double D Trail Blazer has truly been a "Trail Blazer" in sales for us. Many people today need a living quarter trailer for a half ton pick up truck, the ability to carry one to two horses and all the comforts away from home. Of course, do not forget we need the reasonable price to go with it. With Double D Trailers, our factory direct manufacturing, internet marketing program and nationwide delivery program will fit all of the needs. We have delivered horse trailers in states like Nebraska, Wisconsin, Arkansas, Tennessee and out to California and Texas. If you have been looking at brands such as Sundowner, Featherlite, Exiss or Four Star, you will sure want to take a hard look at Double D Trailers and save yourself some money.

**The TrailBlazer 2 Horse Gooseneck trailer with Living Quarter difference:

Z-Frame Technology (learn More)

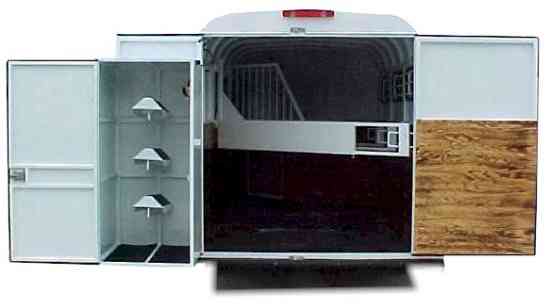

Unique, safe and Functional rear Safe-Tack® (learn more about Safe-Tack)
aluminum tubular head dividers standard (more air flow, less stress on your horses)
Walk thru door from the dress to the horse area
SafeBump Roof® and SafeKick® Wall System (learn more)
Hand built cabinets inside with real home style cabinets and wood working

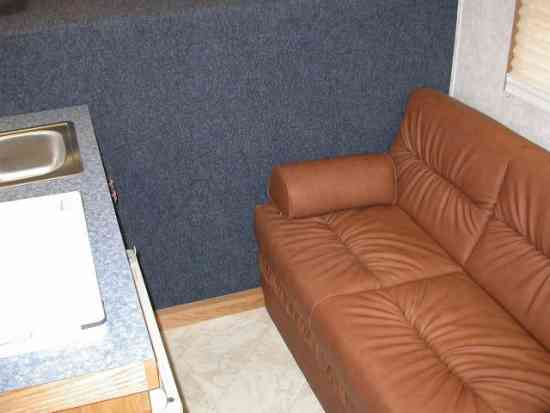

72" fold out sleeper sofa
space for a separate shower and separate toilet
customize in various height and widths, even for draft size horses

Features & Options:

This Model is available in extra heights and length to accomodate varying size horses	2 Horse Slant Living Quarter Horse Trailer
Body Color	White is Standard. Other colors available
Vinyl stripe Color and Graphic	Your choice
Weight (without options)	5900lbs
	Standard
2"x8" pressure treated pine flooring on 16" crossmembers	Standard
Exterior Skin	22 Gauge Zinc Sheets with Baked on Siliconized Paint
Overall box length	18'
Overall trailer length with gooseneck	25' 6'
Dress side	88" short wall x 136" long wall
Walk thru door to horse area	Standard
Inside Height	7', optional 7'6"
Stall Length	122" diagonal, 96" divider length
Stall width	40"
Coupler	2 5/16" adjustable height couplerl
EZ Lube durable never adjust brakes 6,000 # capacity per axle	Smooth leaf spring suspension
Brakes	4 wheel
Wheels	Powder coated gray, optional aluminum
Tire Size	235/75R16 (E) Radial

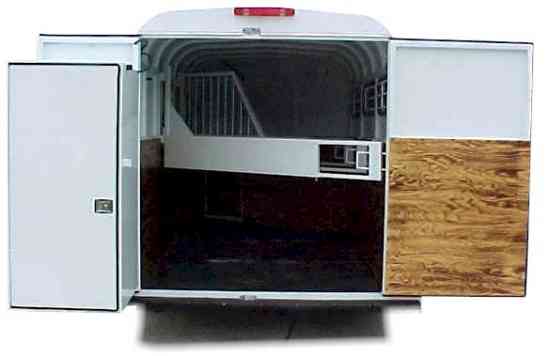

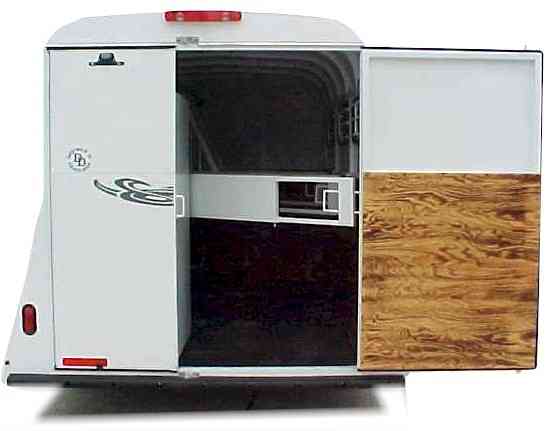

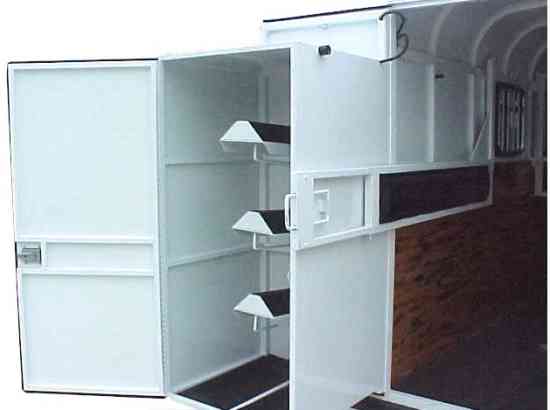

Full Height rear doors with Safe-Tack® Design	Standard
24" Diamond plate Gravel Guard at Nose	Standard
Running board steps down dressing room side	Standard
Saddle racks	2
Safe-Tack® Slant load design	Standard
Bridle Hooks	3
Spring loaded drop leg jack	Standard
Marker Lights on Fender	Standard
LED Turn Signal Lights on Rear	(2) Standard up high
Extra divider on rear stall to prevent horses from backing out when rear doors are opened	Standard
Spare Tire	Standard
All locks keyed the same	Standard

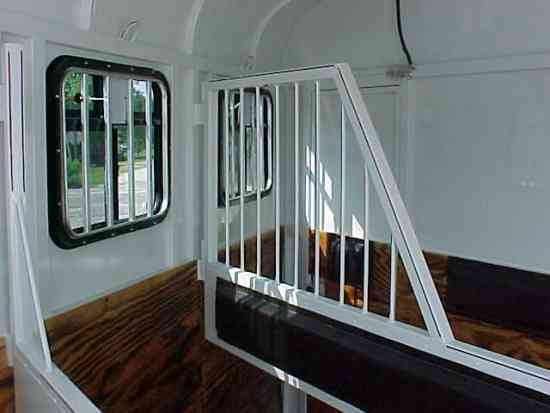

Aluminum Slant dividers with hand made padding and safety slam latches	Standard Removable
24" walk thru Escape door	Standard
Horse area roof vents, one per stall aluminum	Standard
Custom hand made padding on dividers and slant wall	2" Standard
30" dress door	Standard
SafeKick® Wall System	Standard
Heat reflective SafeBump® Roofsystem	Standard
Insulated side walls and roof in horse area for maximum temperature protection and safe, quiet ride	Standard
Floor Mats in horse area	Standard
Interior Tie Rings per stall	1
Exterior Tie Rings per horse	1
Horse Area Roof Vents one per horse	Standard
Lights in horse area on rear remote switch	3
Rechargeable emergency Break-away system	Standard
Windows in Gooseneck - (1) sliding with screens, (1) E-Gress Kickout	20"x51"
Picture window in dressing room on long wall - (1)	20"x51"
Windows in stall area - (2) drop down with bars on head side. Windows and bars fold independent, features mid-latch easy to reach system	24"x30"
Windows on butt side- (1) sliding with screens	20"x51"
7-Pin RV Style Plug	Standard

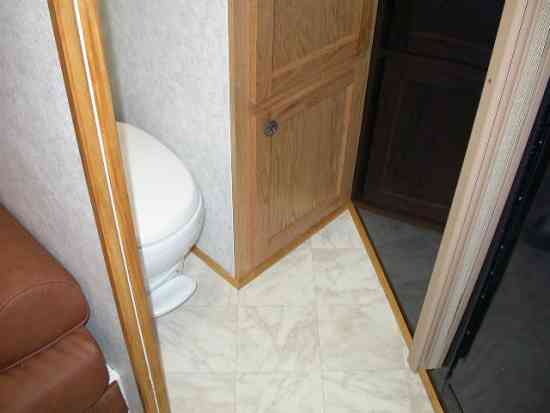

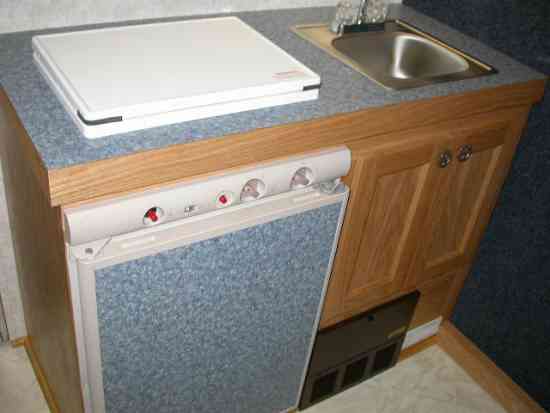

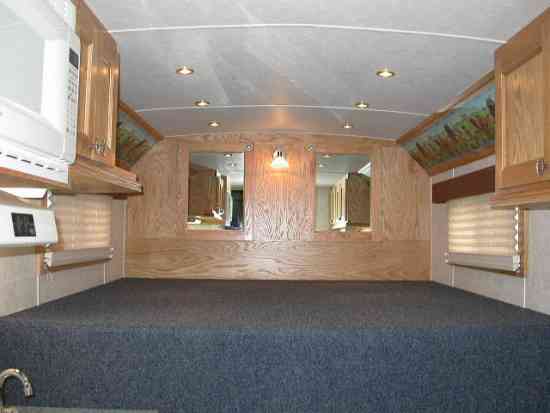

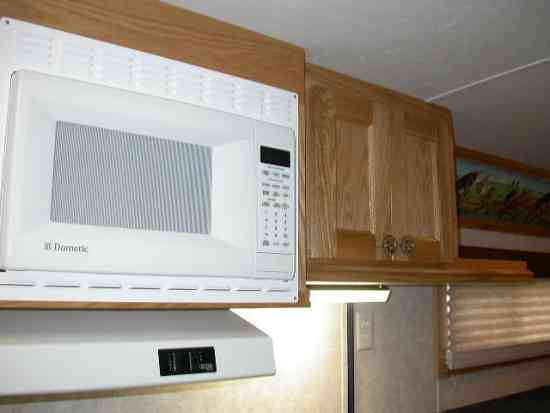

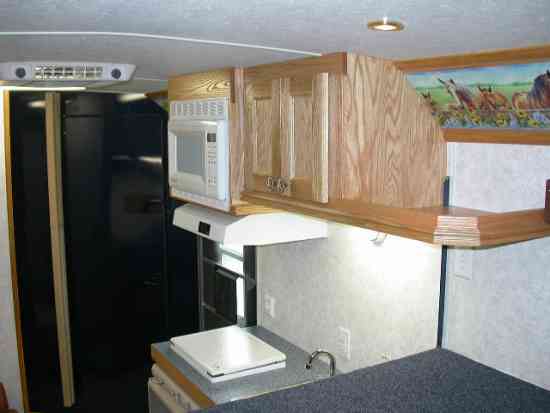

**Living Quarter Comforts: 72" fold out sleeper sofa, nice size kitchen area with sink, refrigerator, cook top, microwave. Toilet is included and closet. Roof for separate shower and toilet.
Warranty	(4) Year on Structure (2) Year bumper to bumper (1) Year on non-Double D Manufactured parts

Base Price: $26,975
Optional Features			Price
Living Quarter Comforts and Conveniences
	Full stand up shower with separate holding tank (NOTE: used this option to create a separate bathroom in place of the toilet only, and cowboy's shower)	$	1500
	TV with DVD player, Flatscreen on Swivel arm, includes roof ant.	$	675
	Stereo system with inside and outside speakers	$	600
	ducted roof air in place of standard air NOTE: this option gently blows air thru your living quarters and they system cuts off when the desired temp is reached. Recommended only with the 7'6" height option. The standard unit the fan runs constant and doesn't cut off.	$	400
	Furnace 16,500 BTU on thermostat NOTE: your trailer comes standard with an air conditioner and heat strip. The heat strip requires power so if you do primitive caming in cold weather (no power), the furnace is a great option	$	600
	European Beech wood in place of Oak	$	300
	Dark Stain other than Natural clear finish	$	1000
	Soft walls NOTE: Your new interior comes standard with a paneled wall and vinyl finish, easy to clean. Choose the soft wall option to have a foam material added to the wall and then a leather looking material on top of the foam, easy to clean, providing a great look	$	600
	Raised Panel Cabinet doors in place of regular panel doors	$	350
	Screen door on dress door: All doors now are built at the factory and are very sturdy. Use this feature to add a retractable screen door to your dress door. Use the screen to keep bugs out when your door Is open**Not recommended with a brush tray	$	250
	On board generator with remote start NOTE: this includes the roof mount hay rack and a 5 gallon gas tank. If you add the manger option, we can install a 15 gallon stainless tank with outside fill gauge, inside of the manger. Run time on 15 gallons approximately 35 hours continous	$	5950
	custom 15 gallon stainless fuel tank located inside manger	$	300
	14" rollup Vent in dressing room with 12V fan	$	225
	mattress 4" foam covered, 60"x80"	$	250
Horse area convenience options
	7'6" Height option only (NOTE: works well for taller horses, plus the real advantage is you have more head room in the bed area, and taller/more storage cabinets)	$	1200
	Add 1' to one horse stall for Draft size or Warm blood horses (specify which stall and # of stalls)	$	600
	Change flooring to Rumber in place of 2"x8" pressure treated pine (rumber has a life time warranty, doesn't require a rubber mat and is easy to clean, prevents slippage)	$	800
	Rear door window for more air flow (20"x24" size)	$	150
	Fans for hauling in the summer time (priced each)	$	85
	Remote switch for interior horse fans	$	60
	Ramp door in addition to full height rear doors (NOTE: your new slant load trailer is standard with the rear tack around and is a step up. Use this feature to add a spring assist folding ramp in addition to your tack around)	$	1050
	Extra interior tie ring (one is standard per horse, add a second for tying hay bags) NOTE: Lay flat tie rings are standard to prevent injury to a horses eye, specify quantity)	$	30
	Extra exterior tie ring (2 are standard) specify location of additional rings	$	40
	Feed bag works great for feeding while trailering (priced per stall)	$	65
	Mangers per stall (specify quantity),	$	750
Popular Add on's
	Roof mount hay rack with side ladder	$	1100
	outside 55 Watt rear halogen loading spot light for night time use on remote switch	$	120
	Set of (3) are standard in your rear tack around. Add an extra set of (3) Bridle hangers in rear tack or dressing room (specify location)	$	55
	Extra saddle rack (2) are standard	$	85
	Slide out saddle racks (NOTE: Saddle Boss Saddle racks are in your new trailer, use this feature to be able to slide your saddle rack towards you when removing your saddles. Aids in getting your saddles in and out of the trailer and is quite convenient) (specify quantity)	$	85
	Blanket bar on rear saddle tree	$	85
	Hydraulic Jack (wired to Living quarters battery)	$	1500
	Extra battery and enclosed aluminum battery box NOTE: a large portion of this cost is from the aluminum enclosed battery box. This works well with a trailer that has a hydraulic jack, and for extended stays without power, more than a couple of days. Otherwise, the single battery performs well	$	395
	Awning up to 17'	$	900
	Change awning to two step (NOTE: Worth the extra money, simply flip the lever and pull the release to set up your awning)	$	300
	Color other than white	$	500
	Stainless nose sheet on "V" portion of trailer (NOTE: this option has a "mirror" style sheet on the front of your trailer, much easier to clean bugs and really adds to the look of the trailer)	$	450
	Aluminum wheels in place of standard gray wheels (NOTE: use this feature to upgrade to aluminum wheels. They are worth the extra cost in adding longevity to your trailer. These wheels will look good 10 years from now) Spare remains gray and is covered with a tire cover, add $150 to change the spare as well	$	600
	Sub Total *	$
	Your State estimated Sales Tax (enter your tax rate, %)	$
	Your State estimated License Fees	$
	Document Fees	$
	Service Provider Fee (if financing)	$
	Bank Closing Cost (if financing)	$
	Delivery (specify miles from factory, free within 1000 miles) Click here to find your distance from the factory	$
	Total with Fees *	$

	If you are financing and/or have a trade in, please complete the following:
	Down Payment amount NOTE: most banks like to see a minimum down payment of 10% of the purchase price, without sales tax	$
	Trade in Value of your current trailer	$
	Payoff on your trade in trailer (how much you owe at your bank, if any)	$
	Equity in Trade In	$
	Total Down Payment with Trade In	$
	Financing Amount *	$
	Interest Rate (enter the Interest Rate from your Bank, %)		%
	Term of Loan in Months For loans of $10K or more, most banks will go up to 120 months. For less than $10K, the maximum term is 84 months.
	Estimated Monthly Payments *	$
	* Options calculations are for estimation only. Firm quotes available on request.
