You've chosen the following horse trailer model:

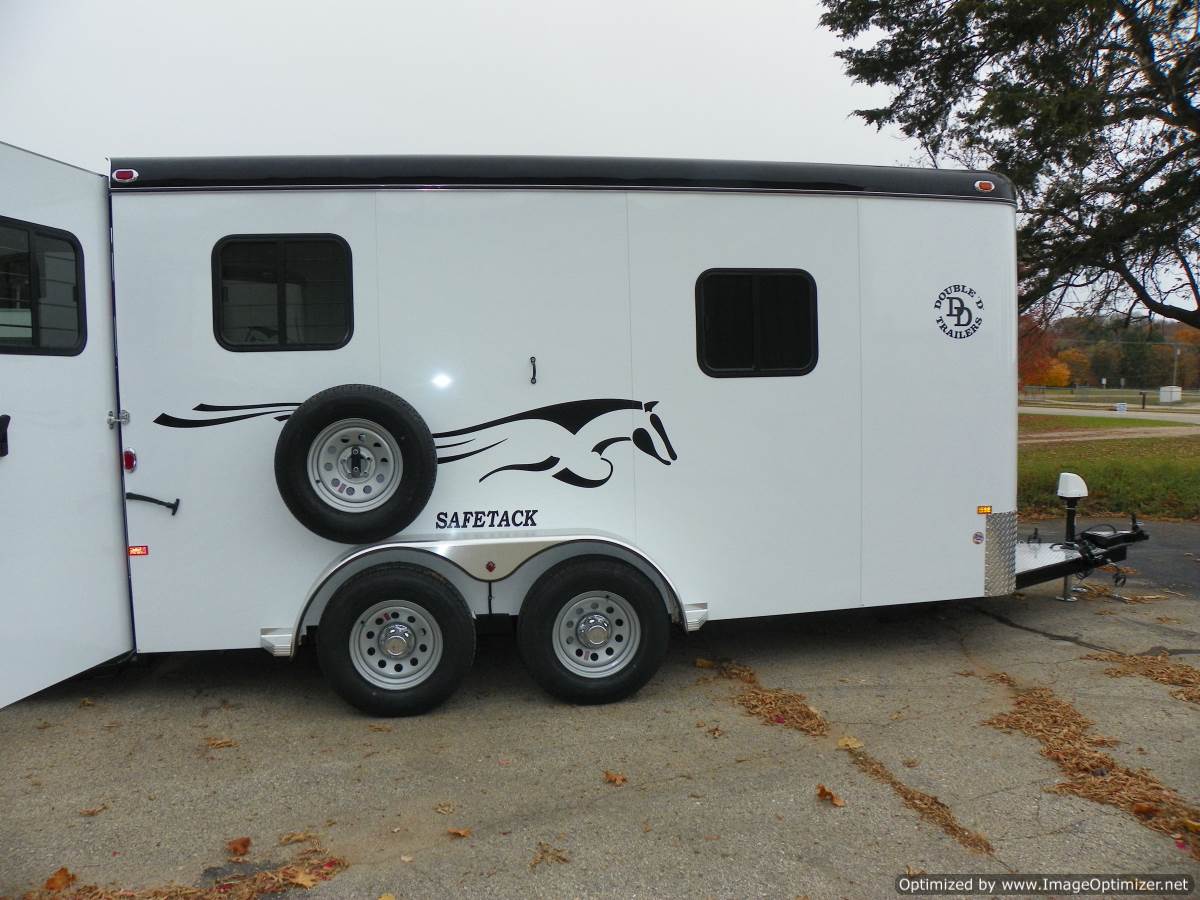

SafeTack 1 Horse Bumper Pull With Living Quarters photo

Overview

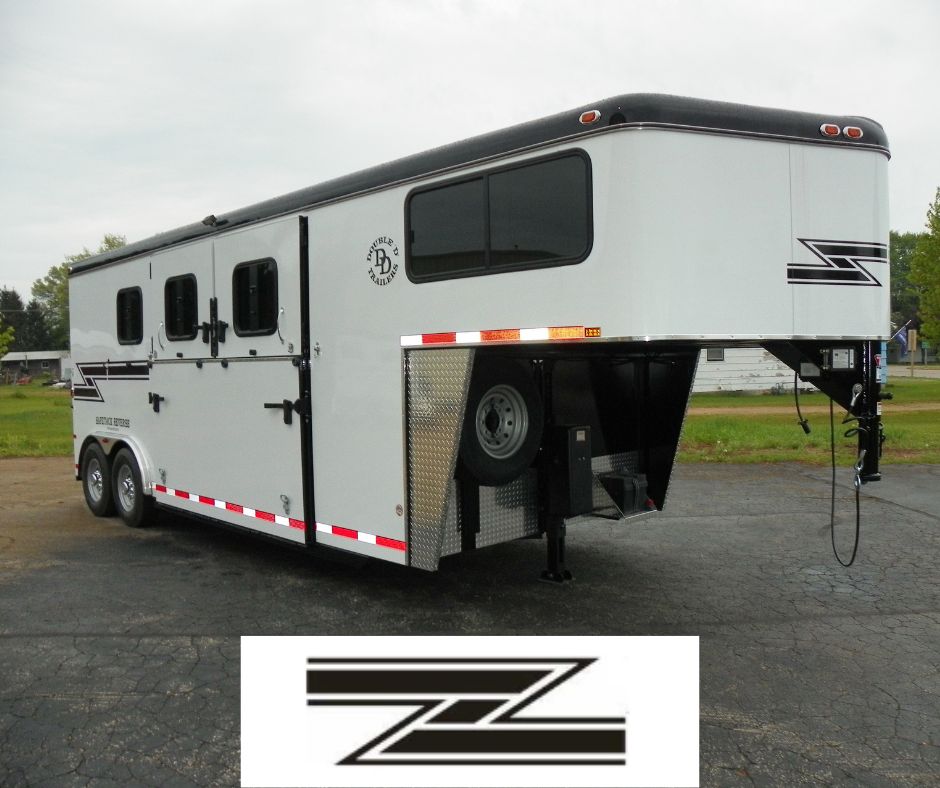

  • Z-Frame Technology

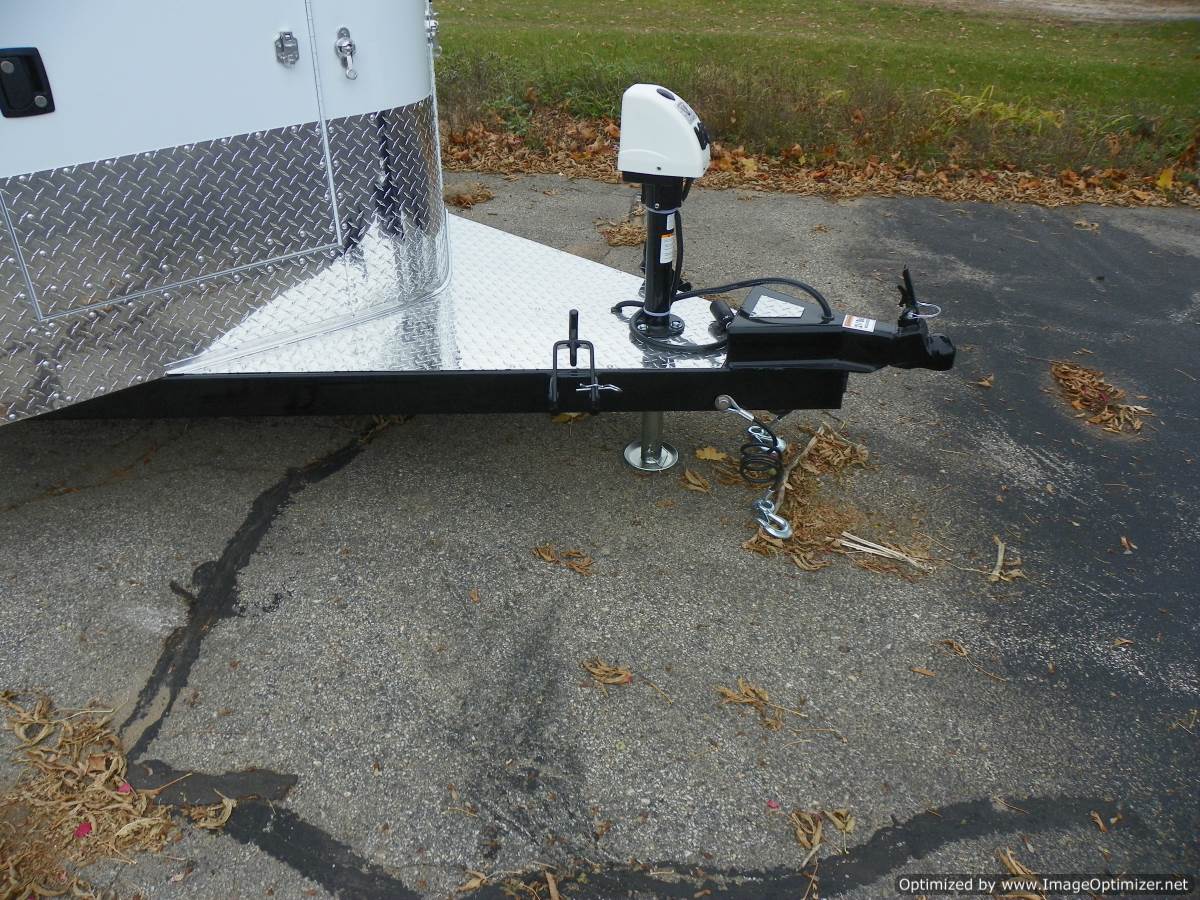

  • Easy to tow with a half ton pick up truck or full size SUV.  Tongue weight of only 600 lbs and trailer weight of 5,100 lbs.
  • Standard size stall will support a horse up to a 15.2. Optional 16.2 Thoroughbred option or 17 hand warmblood.
  • Customize features tailored to your specific hauling requirements and need.
  • One Piece Fibercomposite Safebump Roof system (It can't ever leak)
  • SafeKick® Wall System
  • Ideal for one person and one horse

Weighing at only 5100 lbs. and tongue weight of only 600 lbs., this SafeTack 1 horse slant load trailer with living quarters is the perfect little trailer for the equestrian on-the-go.  Whether you’re a trail warrior who likes to meet up with friends or a competitor with one prized horse you like to show, this trailer is the perfect fit.

At Double D Trailers, we believe that every time you use your new 1 horse living quarter trailer, it should be a "Wow" experience for you and your horse. With your new trailer, you will enjoy standard features like the SafeTack swing out saddle compartment for your horse and a toilet and shower for yourself.

Safer Bumper Pull Living Quarters Design

bumper pull living quarters horse trailerWe've written numerous articles on the dangers of 2 horse living quarter bumper pulls (and 3 horse) regarding overloading tow vehicles and negative tongue weight, but this one horse model solves those safety issues.

Unlike other bumper pull living quarter models, this trailer’s weight is perfectly balanced over the axles.  You won’t experience the two most common problems we’ve seen with other brands: overly heavy tongue weights or see-saw trailers!

Your single horse is held secure in his stall while the front of this trailer includes a small but mighty living quarters area.

Easier Towing With This Bumper Pull Model

We’ve had many customers ask us for bumper pull living quarters over the years. This is the first model we’ve ever created or even found to work safely.  Honestly, we understand the appeal.  A bumper pull trailer like this one is easier to hook up with just one person.

Best of all, it can be towed with a variety of smaller vehicles like a half-ton truck or a full sized SUV such as a Chevy Tahoe.  The shorter wheelbase means you can maneuver this trailer around gas pumps and into parking lots at restaurants.

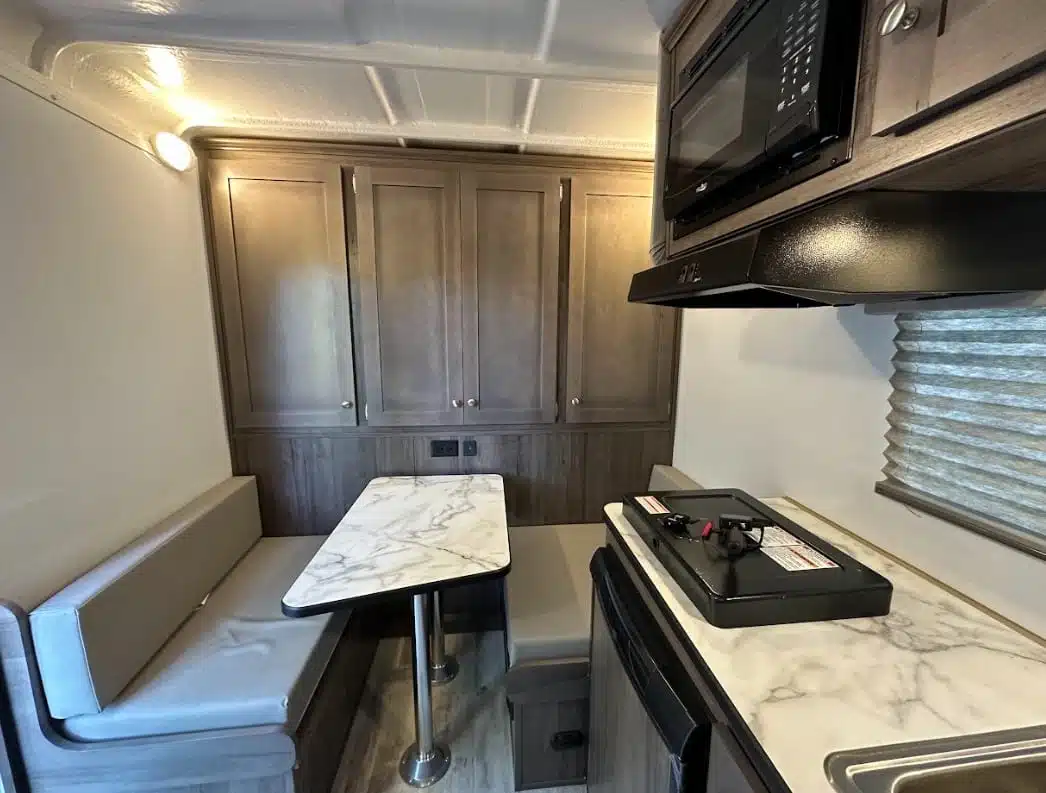

Convenient Living Quarters for the Equestrian On-the-Go

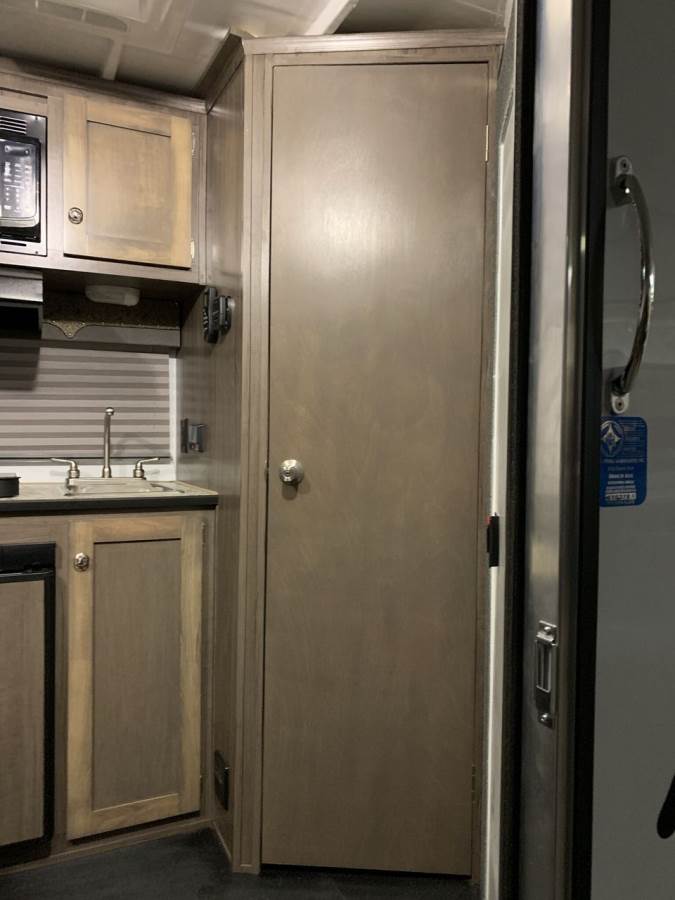

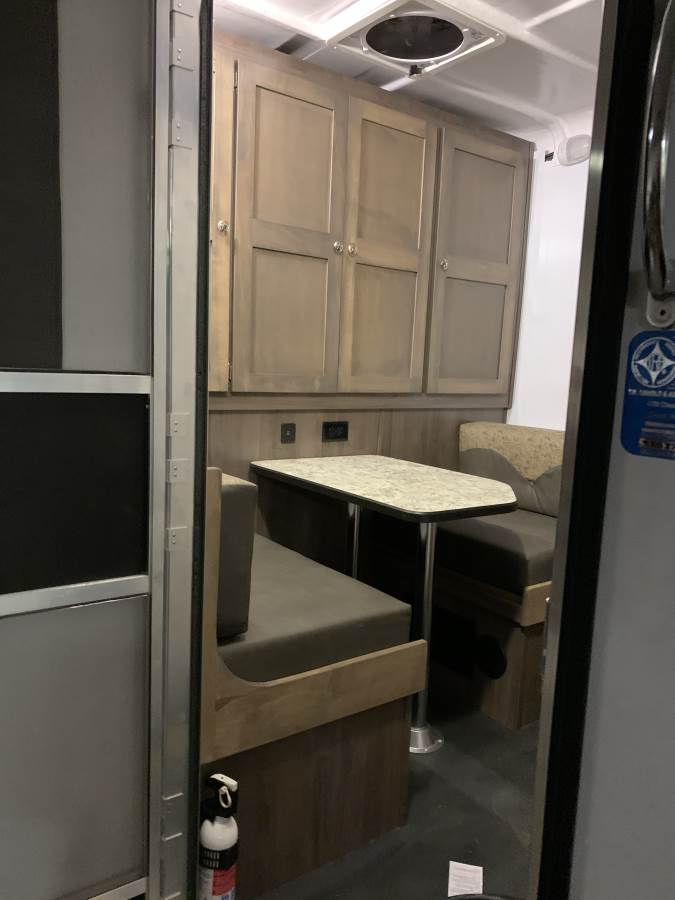

bumper pull living quarters horse trailerInside the living quarters, you will find ample storage, drop down dinette for having a snack or convert it to a comfortable bed.  Enjoy the refrigerator, cook top, air conditioner toilet and cowgirl's shower.  "Cowgirl's shower" means you are standing in the horse area to shower, but there is hot water and cold water and a shower wand.

If you have a support crew along with you, you can easily pack this area with camping supplies for the rest of the family to sleep outdoors.  You’ll still have the cold food storage and bathroom facilities that turn a rough camping trip into one of comfort.

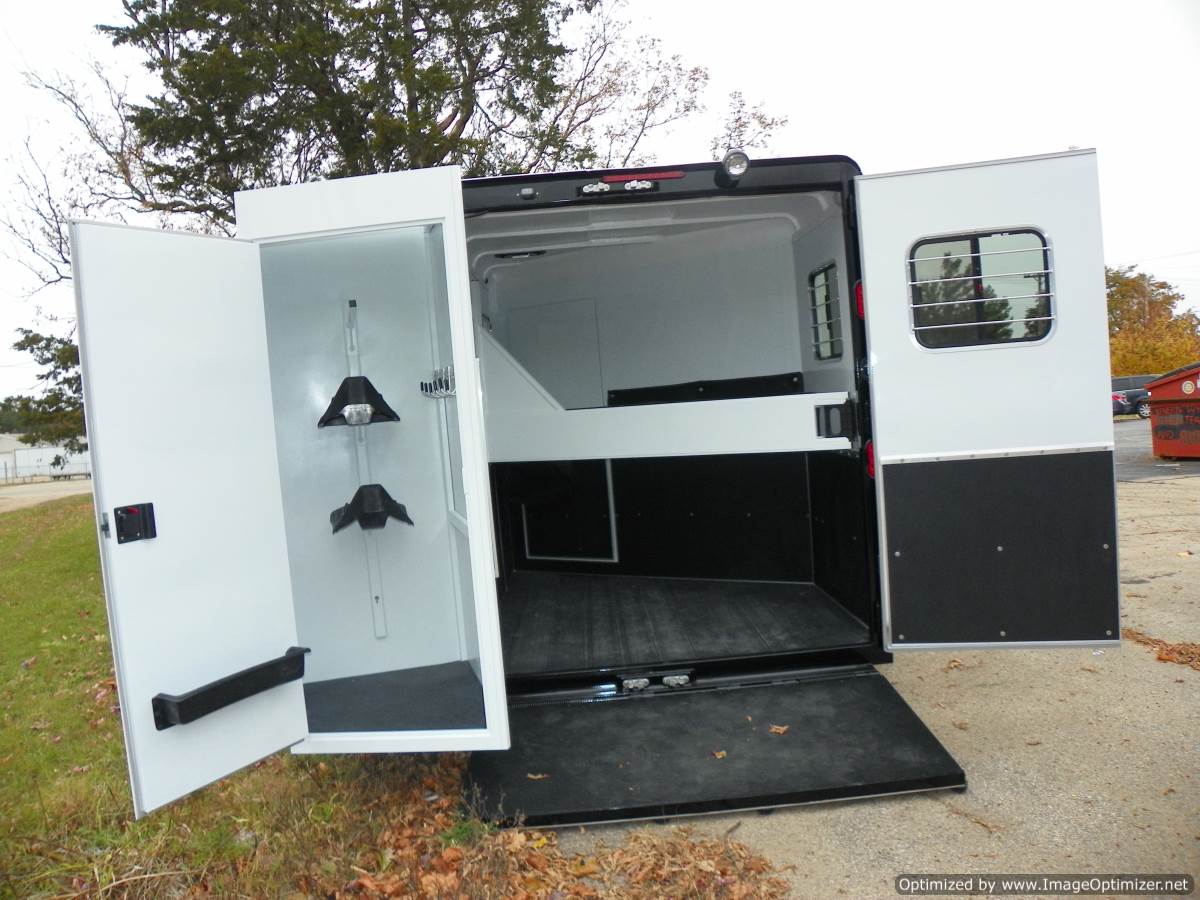

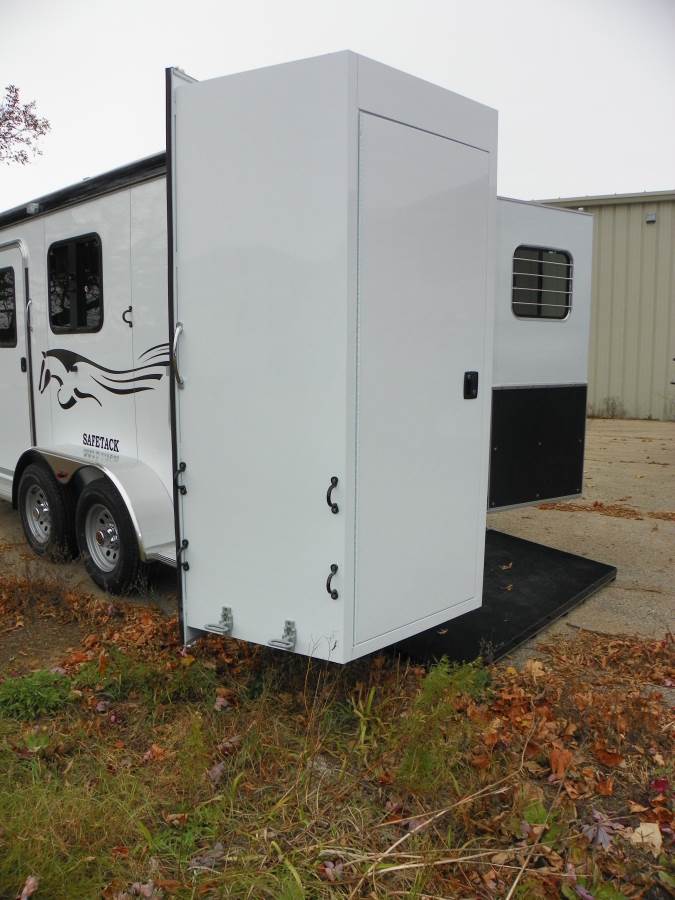

Safer Loading and Unloading with SafeTack Design

While the safety feature of the SafeTack compartment may be extras from other manufacturers, we consider it to be essential to the 1 horse slant trailer. The rear SafeTack compartment is perfectly balanced so it can swing out like a second door.  This leaves a wide open rear opening in your trailer for loading and unloading.

In contrast, we’ve seen other 1 horse bumper pull living quarters models that put the living quarters lengthwise back into the horse area.  This results in a single stall with high walls that creates a narrow hallway for your horse to enter.  This type of layout will make your horse claustrophobic and less likely to load easily.  Plus, he’ll need to back up to offload from the trailer.

With the SafeTack design, there is enough room to walk up to your horse behind the extra divider, clip a lead onto his halter, open the gate, and then safely walk him off the trailer in the forward direction.  No backing needed!

Your horse will appreciate the wide open entryway, airy open windows for light and air flow. Not to mention the extra safety partition keeps your horse safely in place until you are ready to unload.

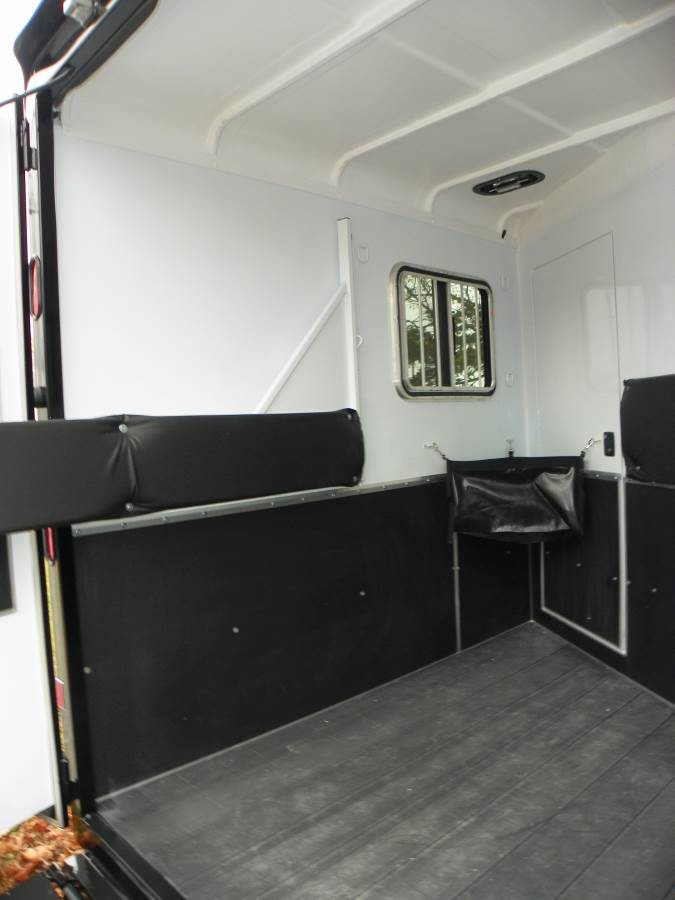

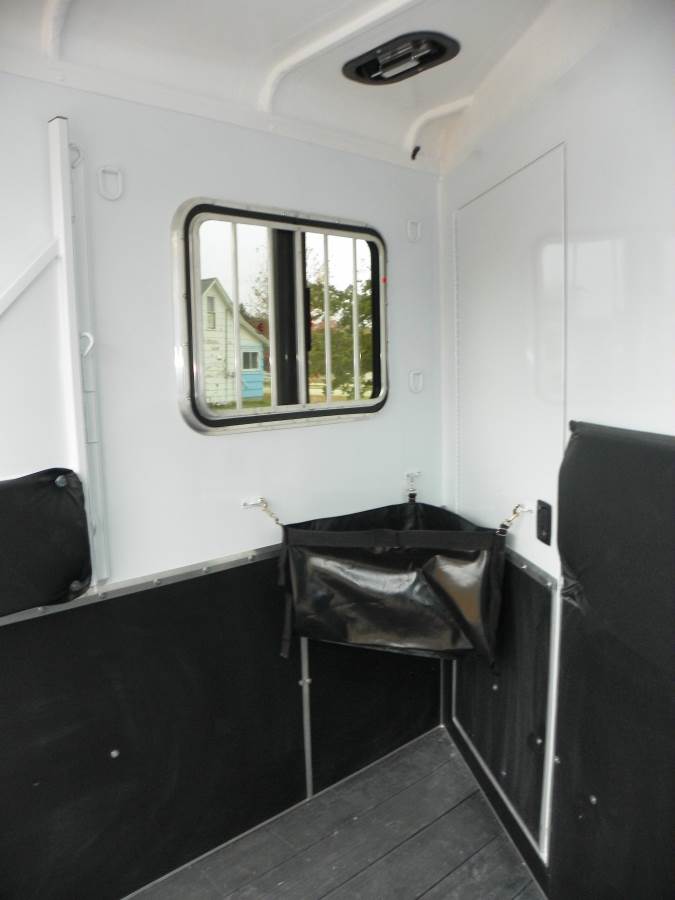

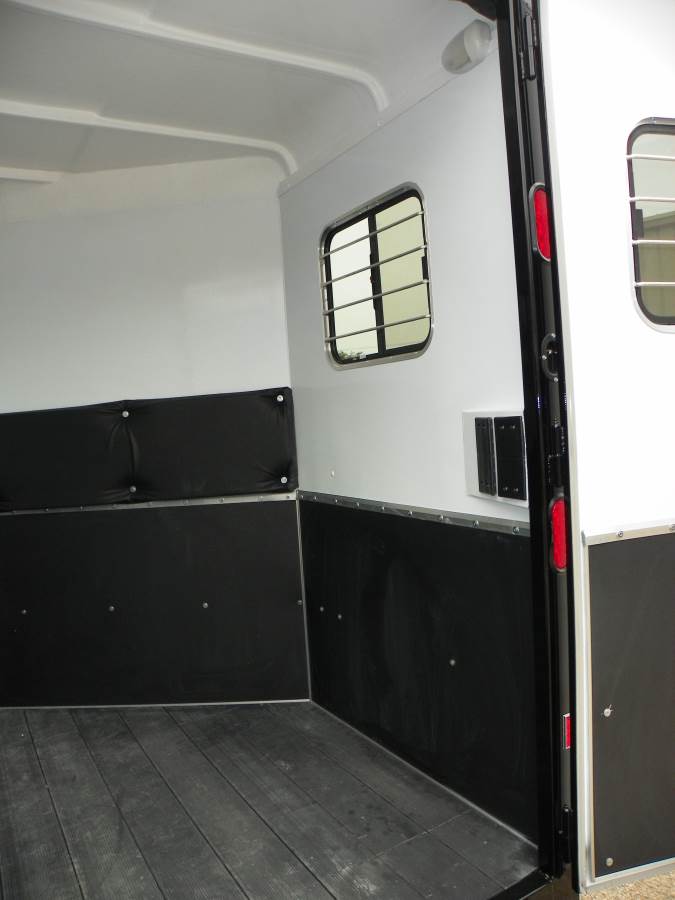

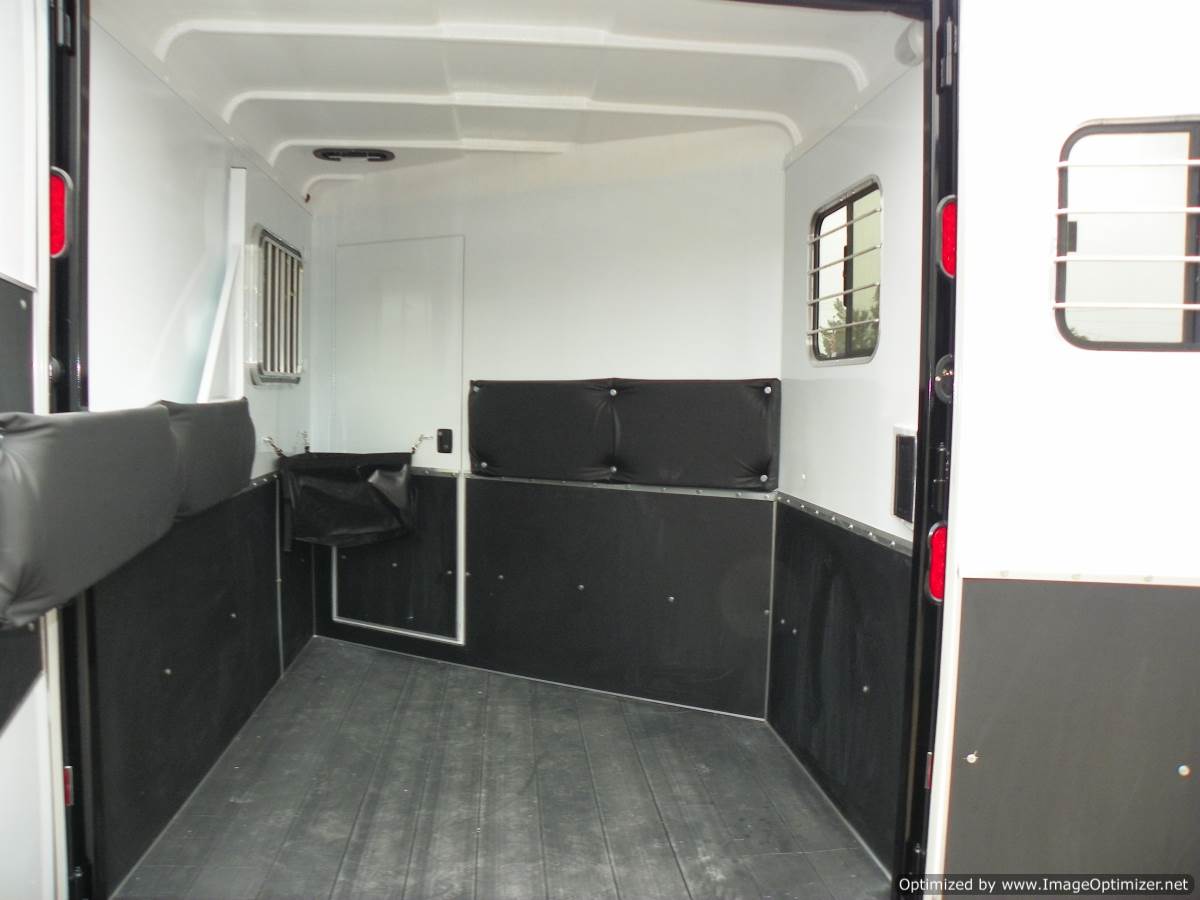

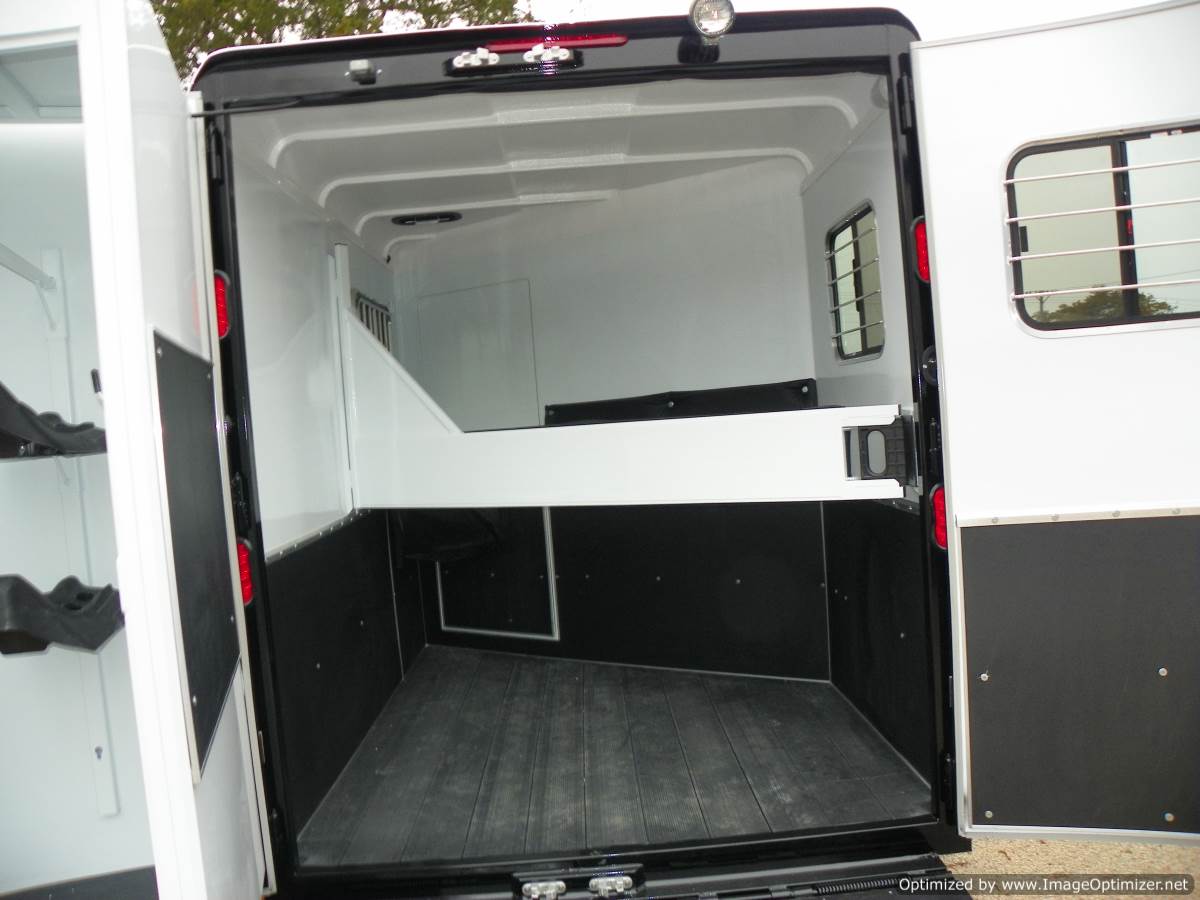

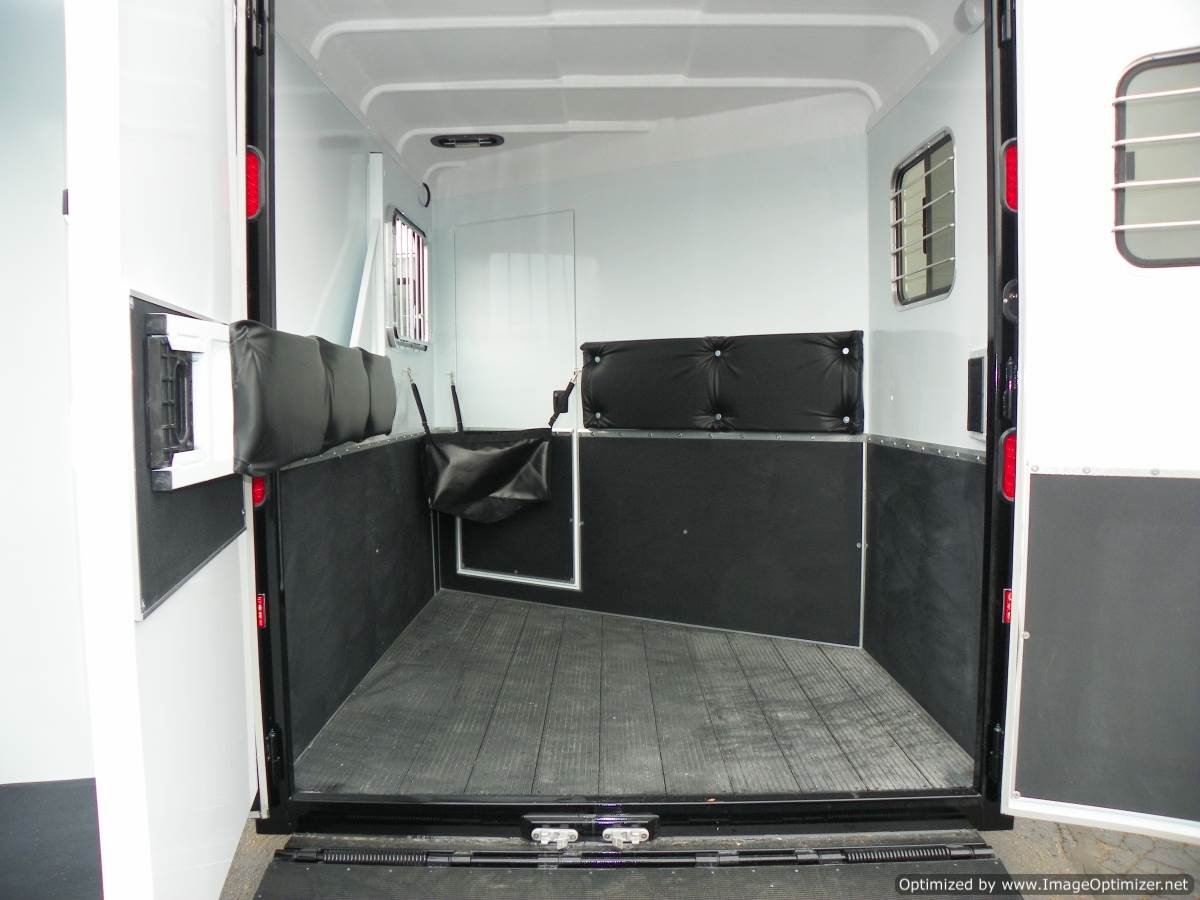

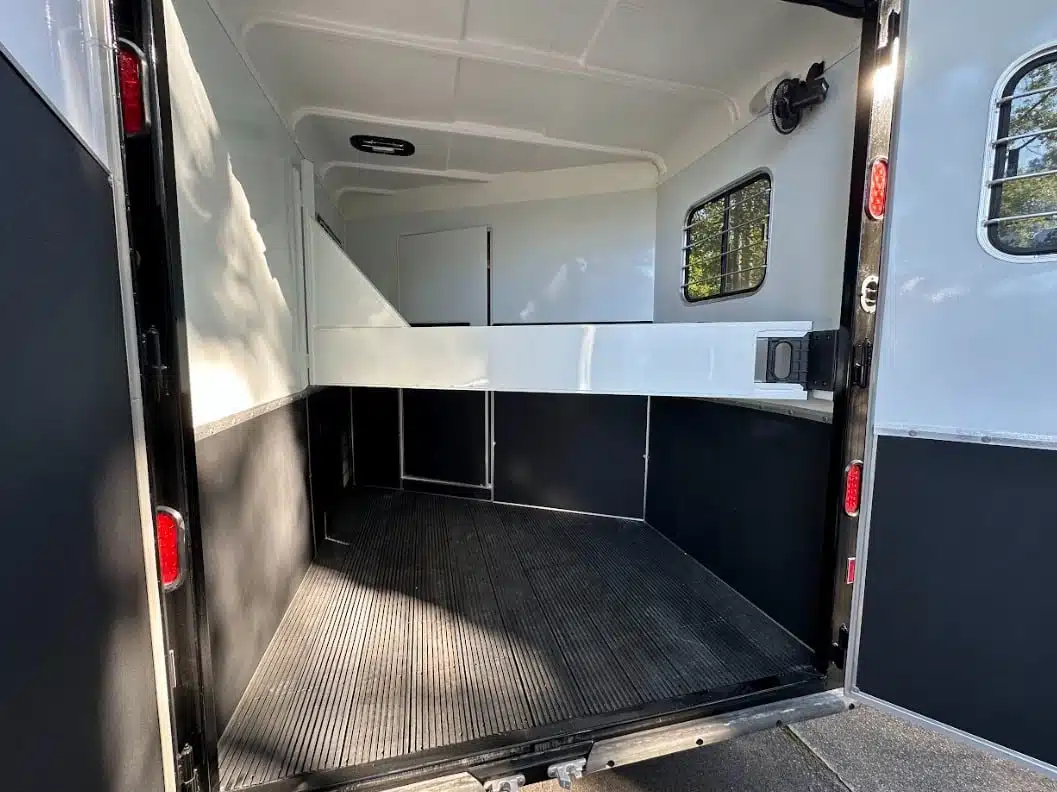

Horse Friendly Interior

We take great pride in making the interior of our horse trailers as “horse friendly” as possible. The 1 horse slant trailer comes with custom handmade padding that is 2" thick. This creates a soft side wall which reduces the risk of your horse getting injured.

The color of the roof of your new horse trailer has been changed to white. Since white reflects more heat than any other color, it makes sense to use on the roof so you do not "bake your horses" while driving.  Don't worry, the painted trim accent around the roof perimeter only covers 6 inches on the curves, white on the flat portion of your roof.

This means the interior of your trailer will be bright and airy without that dark “boxed in feel” common in so many other trailer brands. Also, if your horse decides to kick he will appreciate the SafeKick wall system.

How to Get Your Own Model

If this SafeTack Bumper Pull Trailer with Living Quarters feels like your perfect trailer, go ahead and use our builder tool to get started.  You’ll be able to pick out the features you want so you can customize your exact trailer.

You only pay for those features that you want.  Then, we’ll get started creating a detailed blueprint of your trailer. You’ll be working directly with Double D Trailers owner Brad Heath every step of the way.

It won’t be long until your new trailer is delivered directly to your farm using our nationwide flat rate shipping.  Ready to get started?  Click "Customize Your Trailer" below.



Want options? We've got many. Customize this trailer now with options.

Specifications

Weight  5100 lbs
Interior Skin 16 Gauge Galvalite interior horse area and aluminum exterior
Overall Box Length 16 feet 8 inches plus a 50 inch tongue
Living Quarter Size 8 feet x 12 feet
Inside Height 7'4", optional 7'6"
Coupler 2 5/16" coupler size
Wheels Powder coated gray, optional aluminum
Tire Size 225/75R15 (D) Radial
Brakes 4 wheel
LED Turn Signal Lights on Rear (2) Standard Up High
Saddle Racks 2
Bridle Hooks 3
Interior Tie Rings per Stall 1
Exterior Tie Rings per horse 1
Lights in horse area and saddle compartment 1 each
Axles 7,000 lb suspension Dexter Rubber Torflex with easy lube never adjust brakes

Features

  • Z Frame Technology
  • Walk Through Door to Horse Area in bulk head wall (swings toward horse area)
  • EZ Lube durable never adjust brakes

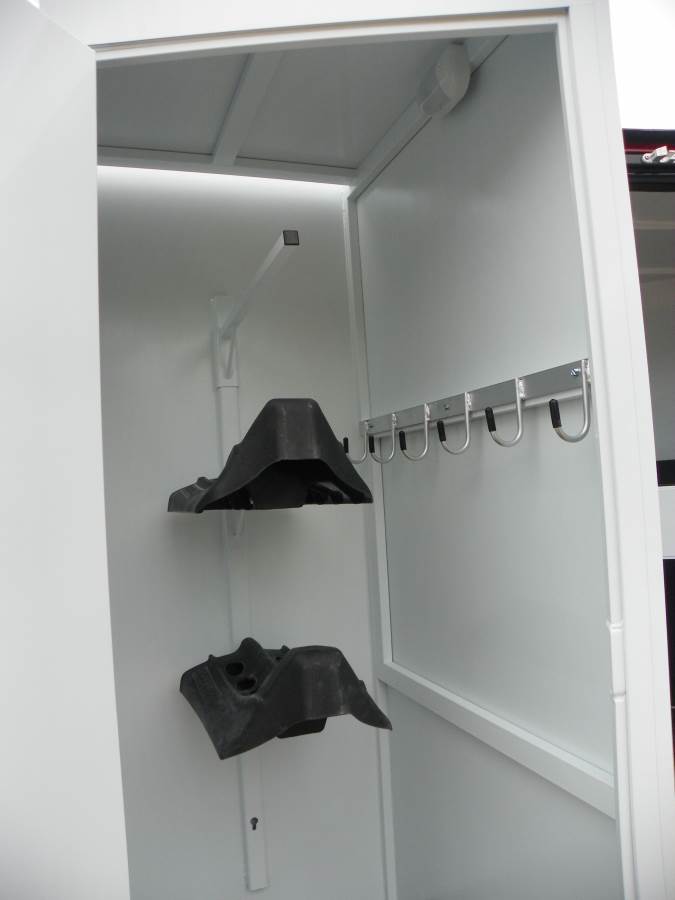

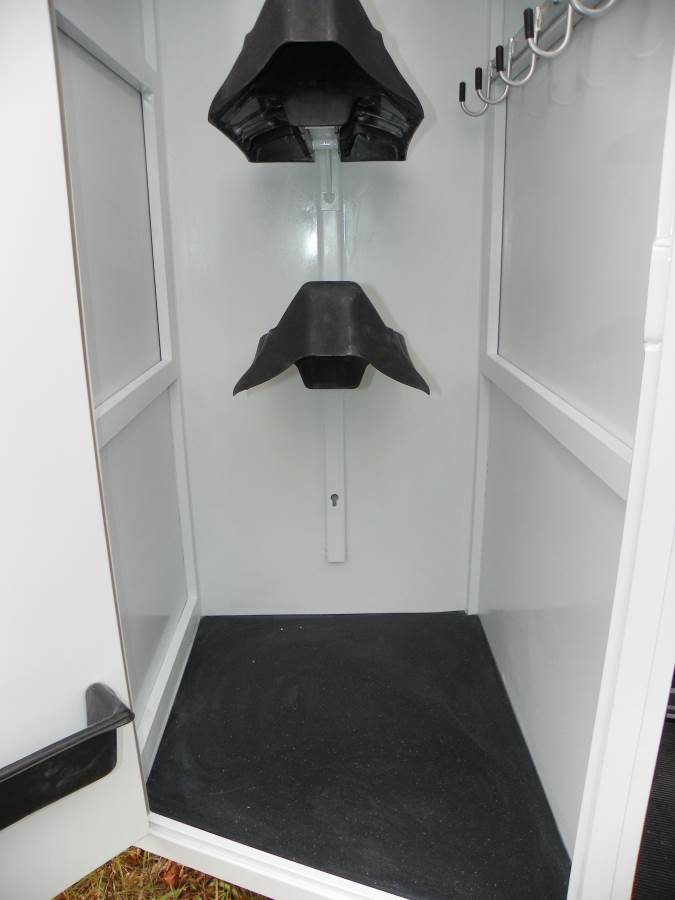

  • Swing out Safetack Saddle compartment

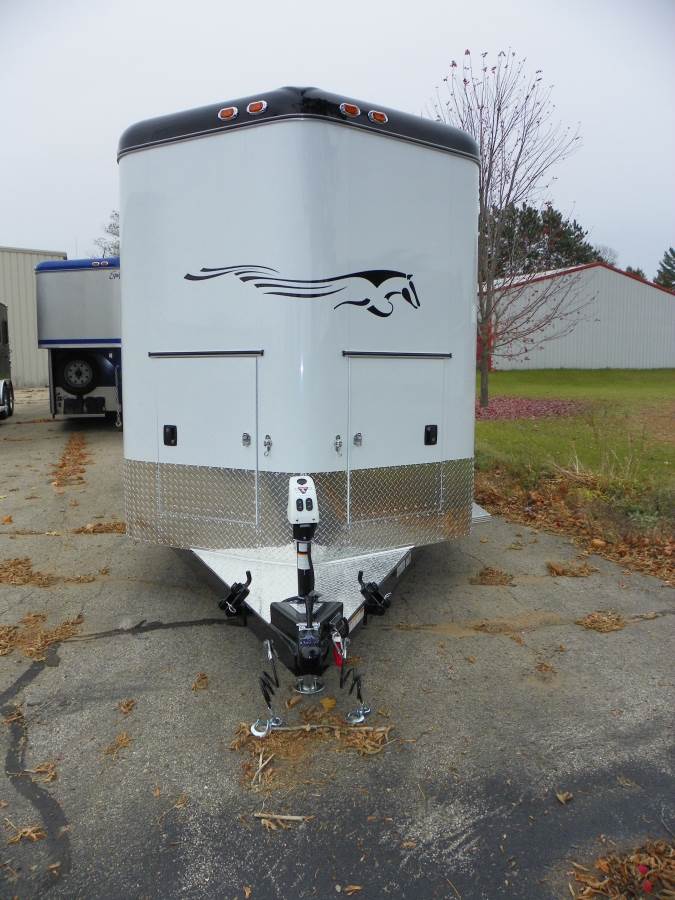

  • Diamond Plate Gravel Guard at Nose
  • Side Wind Jack
  • Marker Lights on Fender
  • Z-Frame divider with hand made padding
  • Spare Tire
  • Custom hand made padding on divider
  • Safekick wall system
  • Heat Reflective insulated one piece fiber composite Roof system
  • Insulated side walls in horse area and living Quarters
  • Floor Mats in horse area with 2"x 8" pressure treated pine.
  • Carpet in Living Quarter floor
  • Rechargeable Emergency Breakaway System
  • 7-Pin RV Style Plug

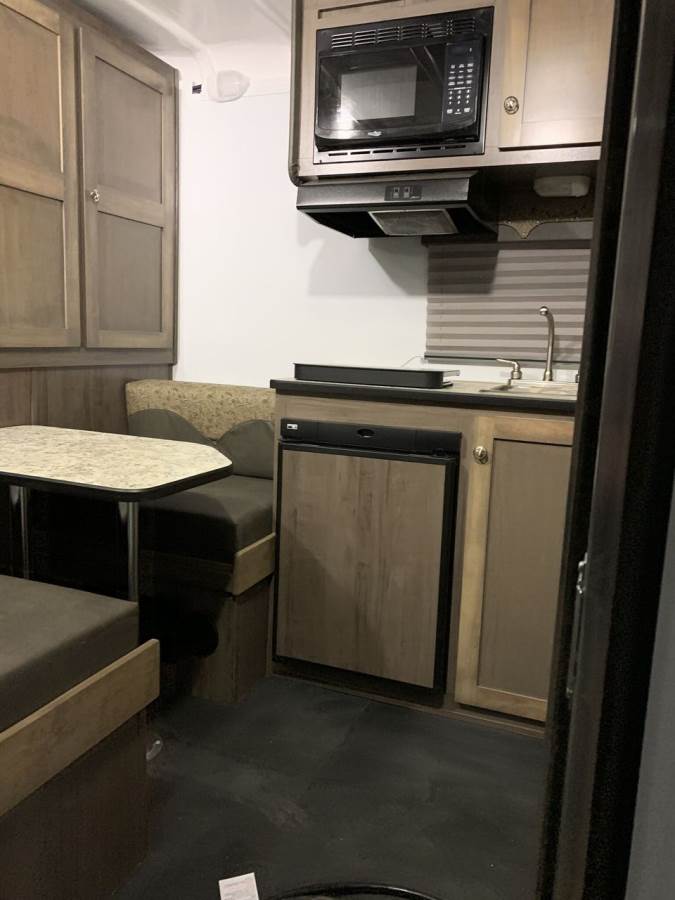

Living Quarter Standard Items

  • Cabinet in Front Middle

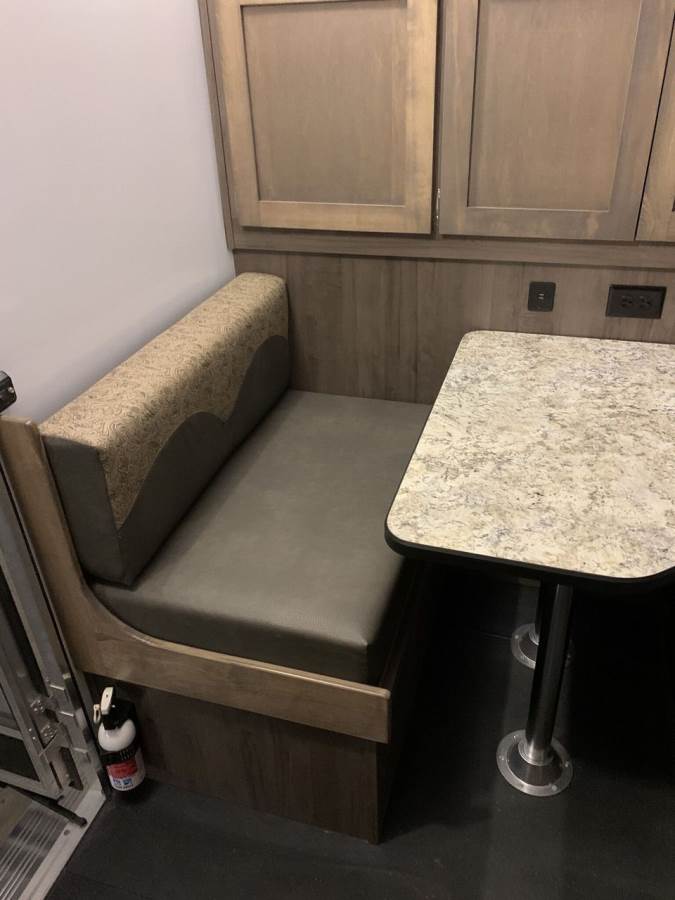

  • Dinette w/OHC (std Fabrics)

  • Wrapped Wood Cabinet& Solid Wood Flat Panel Cabinet Doors w/Door Knobs

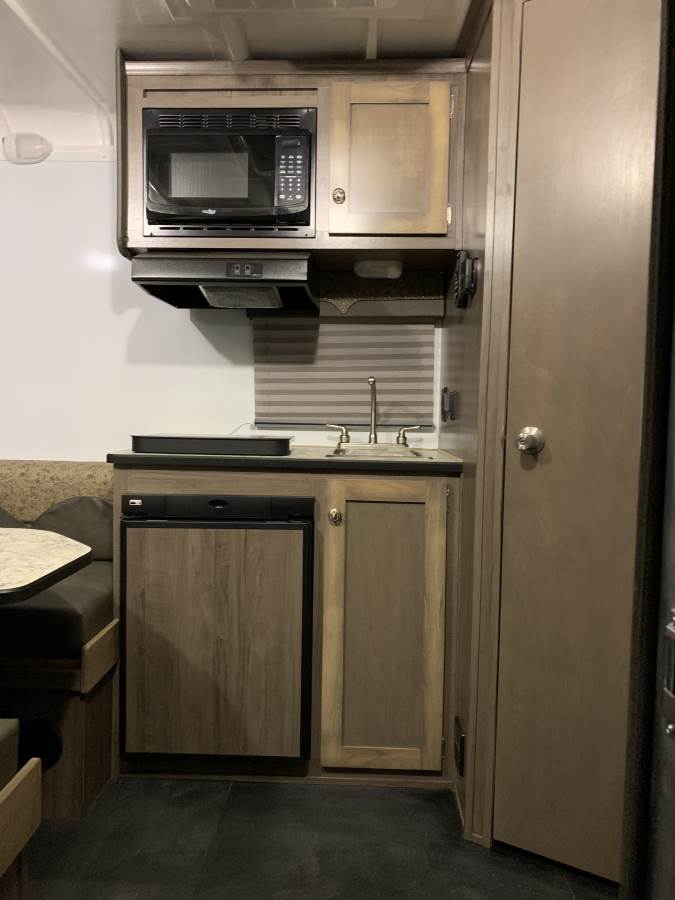

  • Kitchen OHC, Stainless Single Kitchen Sink w/Stainless Faucet

  • Wilsonart Countertop w/T-Molding Edging

  • Black 2 Burner Cook top w/Lid & Black Range Hood

  • Black Built-in Microwave

  • Swing Door (std flat Door)

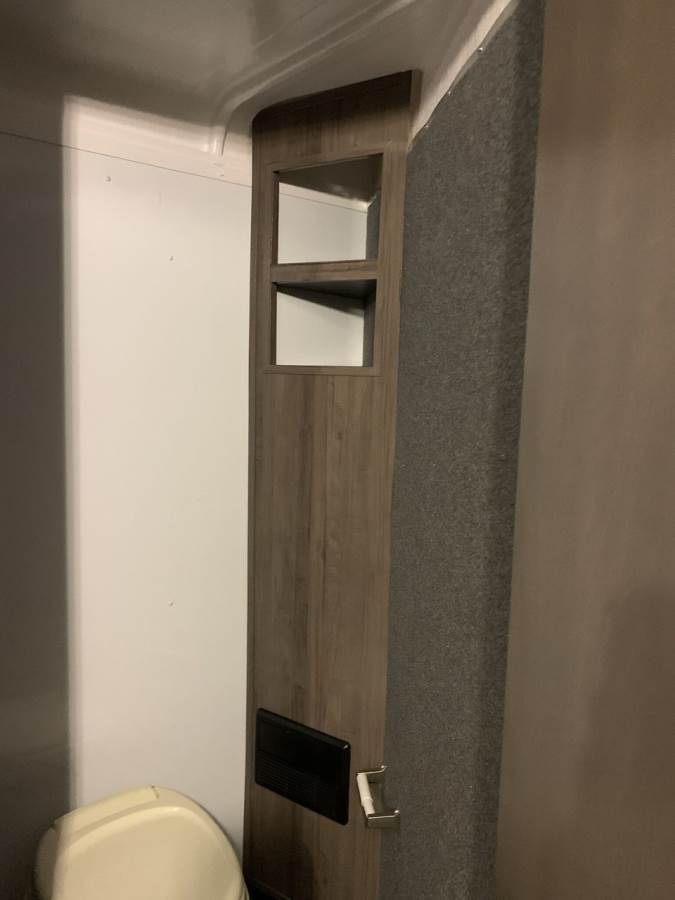

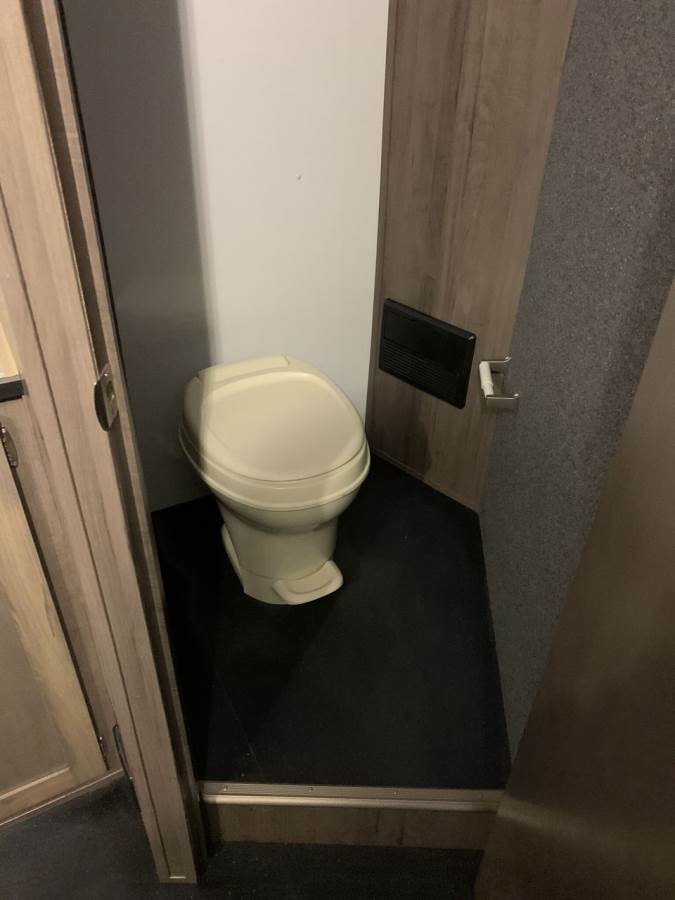

  • Marine Toilet w/Toilet Paper Holder

  • 3 Cubic 2-way Refrigerator

  • 6 gallon Water Heater w/Auto Ignite

  • 13,500 Air Conditioner w/Heat Strip

  • 2 – 20# LP Tanks

  • 12volt Converter 45amp

  • 30 gallon Fresh Water Tank & 12volt ON Demand Water Pump

  • City & Fresh Water Connection

  • 20.5 gallon Black & Grey Holding Tank & 18” Black Sewer Carrier w/Hose

  • 25’ Power Cord w/Adaptor

  • Charge line

  • Monitor Panel

  • 110V Inside & Outside Receptacle & GFI Receptacle

  • Smoke, CO & LP Detector, Fire Extinguisher

  • USB Outlet at Dinette

  • Cowgirls Shower

Warranty

    • (8) Year on Structure
    • (2) Year bumper to bumper
    • (1) Year on non-Double D Manufactured parts

Want options? We've got many. Customize this trailer now with options.

Photos

Click on a photo below to view its larger version.

Want options? We've got many. Customize this trailer now with options.

Videos

Click on a video below to view its larger version.

Customize Your Trailer

Get More Info! You can click on the title of each option to view details and photos for each option.

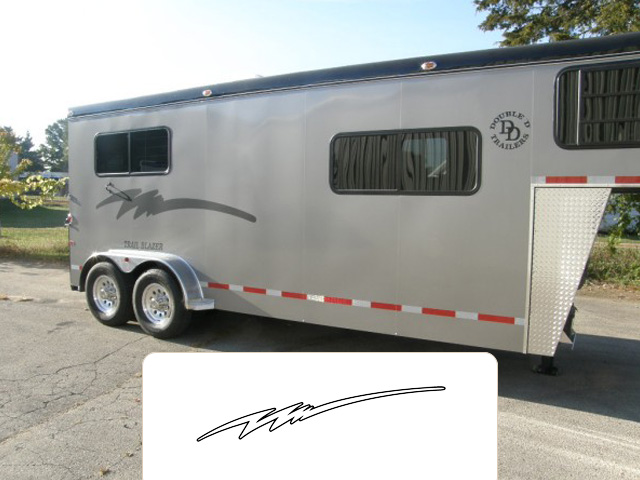

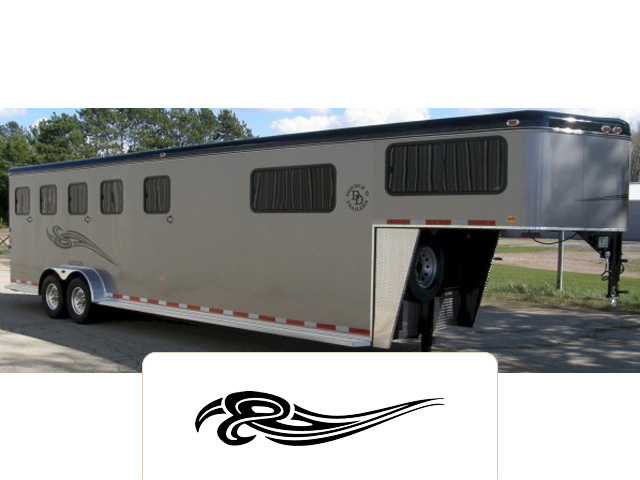

Choose your colour from our Color Guide (PDF) and enter the name of it in the text field below.

061 Black - Free
015 Cardinal Red - Free
083 Sapphire Blue - Free
All others - $125 upcharge

Get More Info! You can click on the title of each option to view details and photos for each option.

  • Aluminum Wheels
    Want to really have an eye catching trailer?  Add aluminum wheels in place of the standard gray painted wheel. Not only do they look sharp but you will have a wheel that doesnt rust and looks great for years to come. Pricing includes five aluminum wheels and a spare tire cover on your spare.
    Want to really have an eye catching trailer? Add aluminum wheels in place of the standard gray painted wheel. Not only do they look sharp but you will have a wheel that doesnt rust and looks great for years to come. Pricing includes five aluminum wheels and a spare tire cover on your spare.
    ($897)

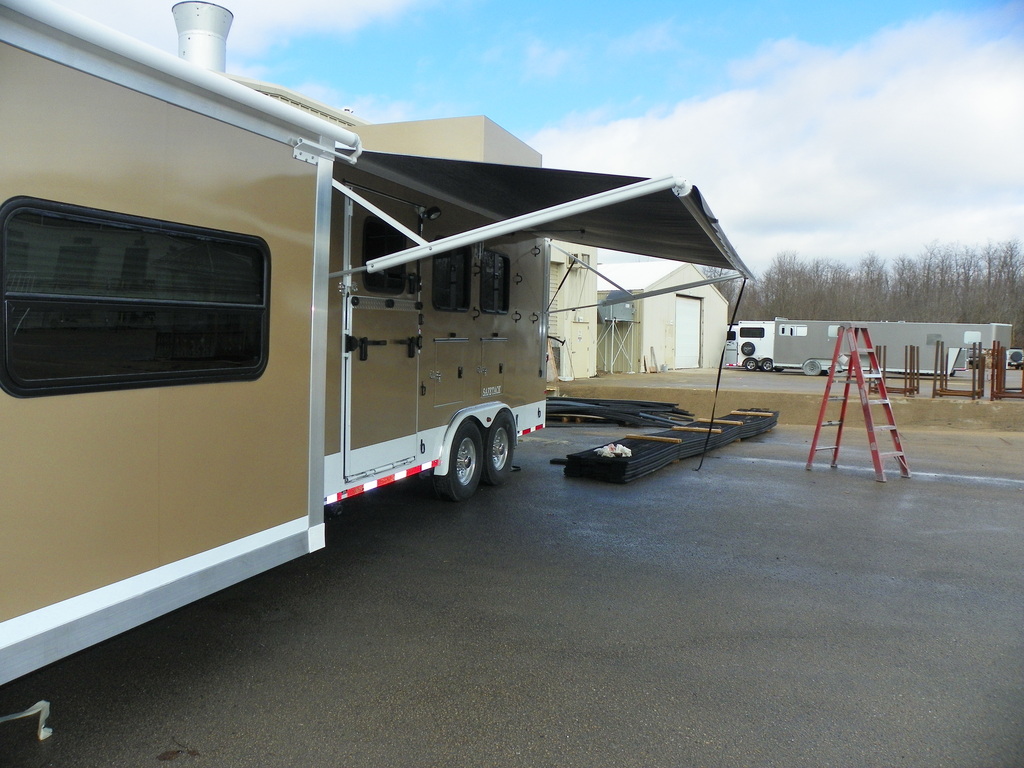

  • Patio Awning
    Enjoy and relax underneath your new patio awning. Awnings are available in a variety of configurations and hardware but we only offer the two step.  Why?  Because it is the easiest to operate and will set up easily. Watch the video.
    Enjoy and relax underneath your new patio awning. Awnings are available in a variety of configurations and hardware but we only offer the two step. Why? Because it is the easiest to operate and will set up easily. Watch the video.
    Video ($2391)
  • Blanket Bar
    Add a blanket bar to your saddle tree (actual bar and design may vary slightly from photo)
    Add a blanket bar to your saddle tree (actual bar and design may vary slightly from photo)
    ($115)
  • Bridle Hooks ($25)
    Add extra bridle hooks to your trailer.  Sold individually, add up to as many as you may need. (specify location when place order)
    Add extra bridle hooks to your trailer. Sold individually, add up to as many as you may need. (specify location when place order)
  • Brush Tray
    Brush Tray on dress door or Tack door.(If you are purchasing a slant load, there is plenty of space to throw in brushes in the rear Safetack. Use this option to add a brush tray on your dressing room door up front or tack door NOTE: Cant be used with screen door option) Brush tray design may vary from photo.
    Brush Tray on dress door or Tack door.(If you are purchasing a slant load, there is plenty of space to throw in brushes in the rear Safetack. Use this option to add a brush tray on your dressing room door up front or tack door NOTE: Cant be used with screen door option) Brush tray design may vary from photo.
    ($74)
  • Camera System
    Being able to monitor your horses while traveling as well as see what is behind your trailer can be beneficial.  Add this feature which includes two cameras (one for your horses, one back up or rear view camera).  Includes a wireless monitor which you plug in to your 12V supply inside your tow vehicle.  Operates wireless.
    Being able to monitor your horses while traveling as well as see what is behind your trailer can be beneficial. Add this feature which includes two cameras (one for your horses, one back up or rear view camera). Includes a wireless monitor which you plug in to your 12V supply inside your tow vehicle. Operates wireless.
    ($1152)

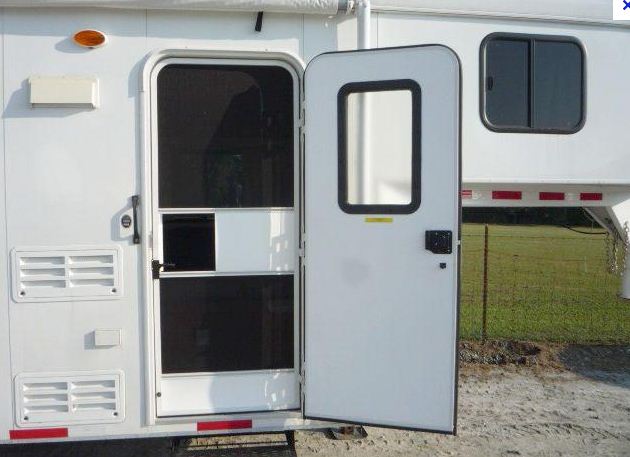

  • Camper door with Screen
    Change out the standard dressing room door and add a rounded corner aircraft style Camper door with a bug screen.  The screen door can be beneficial for keeping bugs out while while your dress door is open, allowing air flow.
    Change out the standard dressing room door and add a rounded corner aircraft style Camper door with a bug screen. The screen door can be beneficial for keeping bugs out while while your dress door is open, allowing air flow.
    ($542)

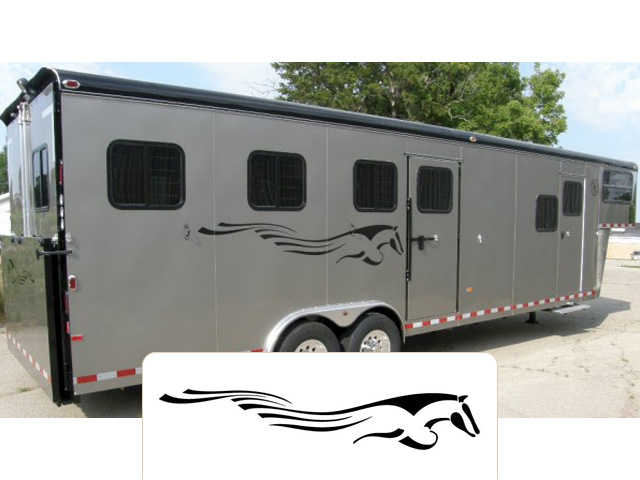

  • Pewter Exterior Color
    Choose this option in place of standard white.
    Choose this option in place of standard white.
    ($539)
  • Feed Bag
    Feed bag works great for feeding while trailering (priced per stall)
    Feed bag works great for feeding while trailering (priced per stall)
    ($84)
  • Grab Handle
    RV grab handle on outside to assist with getting in and out of trailer
    RV grab handle on outside to assist with getting in and out of trailer
    ($42)
  • Hay Bale Holder
    Add a hay bale holder to your Safetack saddle compartment. Works well for storing one bale of hay for short day trips.
    Add a hay bale holder to your Safetack saddle compartment. Works well for storing one bale of hay for short day trips.
    Video ($235)
  • Hay Rack
    6 ft. long Roof mount hay rack with side ladder.  (actual design may vary slightly from photo)
    6 ft. long Roof mount hay rack with side ladder. (actual design may vary slightly from photo)
    ($1966)

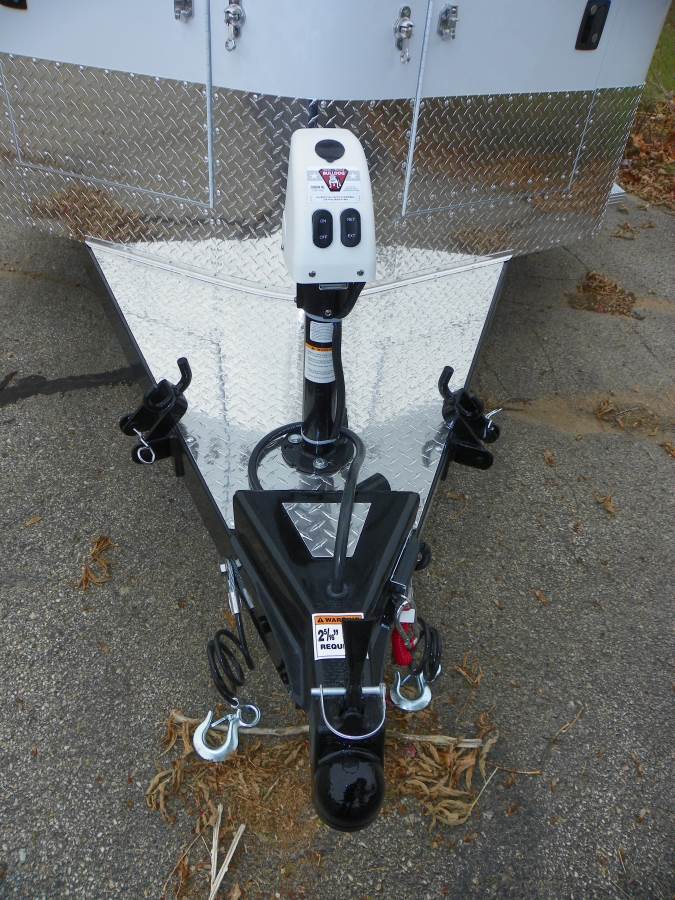

  • Electric Jack
    Add an electric jack in place of the standard. This is a great feature and allows you to raise and lower your trailer quickly with the press of a button.  (requires the auxiliary battery option)
    Add an electric jack in place of the standard. This is a great feature and allows you to raise and lower your trailer quickly with the press of a button. (requires the auxiliary battery option)
    ($558)
  • Exterior Porch Light
    LED Add a light beside your dressing room door.  Includes a remote switch mounted inside your dressing room
    LED Add a light beside your dressing room door. Includes a remote switch mounted inside your dressing room
    ($195)
  • Load Light
    LED Load light on separate switch mounted up high.
    LED Load light on separate switch mounted up high.
    ($227)

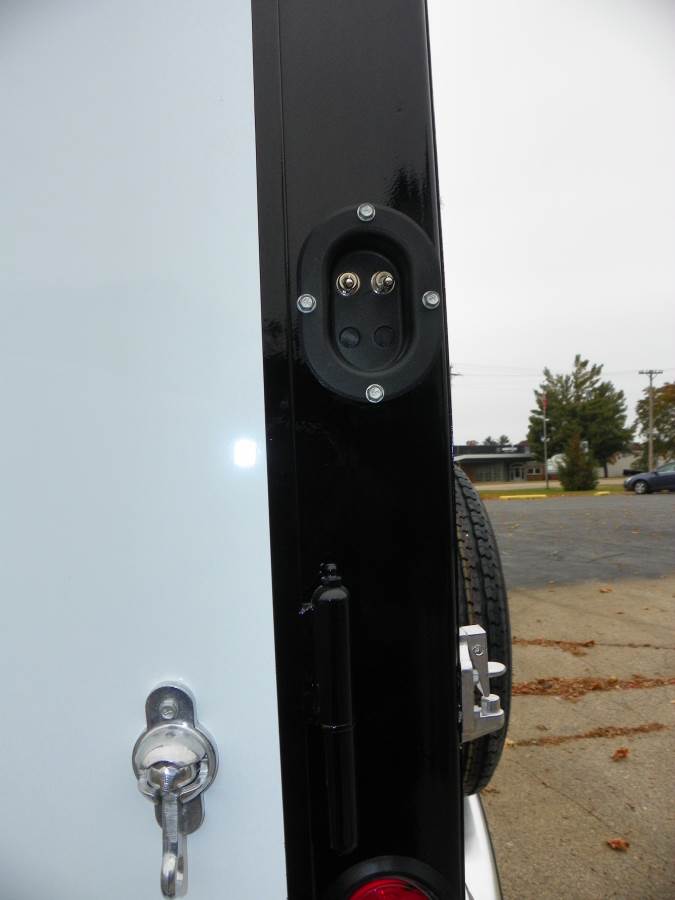

  • Remote Switch for Light
    Your dressing room comes standard with one light over the dress door inside.  Add a wall mount light switch to easily turn your light off or on.  Otherwise, there is a switch on the light itself
    Your dressing room comes standard with one light over the dress door inside. Add a wall mount light switch to easily turn your light off or on. Otherwise, there is a switch on the light itself
    ($80)
  • Running Board
    Running Boards or steps are standard on the dressing room side of your trailer. Add a step to the opposite side in front of the fenders.
    Running Boards or steps are standard on the dressing room side of your trailer. Add a step to the opposite side in front of the fenders.
    ($433)
  • Extra Saddle Racks
    One saddle rack comes standard per horse.  Example: if you are looking at a 3 Horse model, 3 saddle racks are included.  This feature allows you to add an extra saddle rack to your saddle tree, or front dress if saddles are located there.
    One saddle rack comes standard per horse. Example: if you are looking at a 3 Horse model, 3 saddle racks are included. This feature allows you to add an extra saddle rack to your saddle tree, or front dress if saddles are located there.
    ($164)
  • Stainless Nose Sheet
    Stainless nose sheet on V portion of trailer (NOTE: this option has a mirror effect on the front of your trailer, much easier to clean bugs and really adds to the look of the trailer
    Stainless nose sheet on V portion of trailer (NOTE: this option has a mirror effect on the front of your trailer, much easier to clean bugs and really adds to the look of the trailer
    ($1366)
  • Tie Ring Exterior ($51)
    Extra exterior tie ring specify location of additional rings when you order.
    Extra exterior tie ring specify location of additional rings when you order.
  • Wall Organizer Grid
    Most tack rooms are a nightmare when it comes to organization, some even downright junky! (I can see you nodding your head in agreement). Add this wall organizer grid to your new trailer which allows you to utilize the vertical wall space.  No more stuff in the floor.  After you add the grid, you may order separately bins, containers, hooks, racks, mirrors and other accessories that will attach to the grid.  The accessories are very reasonable and available at many online tack store websites.
    Most tack rooms are a nightmare when it comes to organization, some even downright junky! (I can see you nodding your head in agreement). Add this wall organizer grid to your new trailer which allows you to utilize the vertical wall space. No more stuff in the floor. After you add the grid, you may order separately bins, containers, hooks, racks, mirrors and other accessories that will attach to the grid. The accessories are very reasonable and available at many online tack store websites.
    Video ($215)
  • Weight Distribution
    These are installed on your trailer for use with a weight distribution tow system (often referred to as anti-sway bars).
    These are installed on your trailer for use with a weight distribution tow system (often referred to as anti-sway bars).
    ($222)

Get More Info! You can click on the title of each option to view details and photos for each option.

  • Fan in Horse Stall ($163)
    Add a fan per stall for additional comfort for your horses while traveling. Priced each.
    Add a fan per stall for additional comfort for your horses while traveling. Priced each.
  • Remote switch for fans
    If you add fans for the comfort of your horses, add a rear remote switch which allows you to operate all of your fans from a common outside switch.
    If you add fans for the comfort of your horses, add a rear remote switch which allows you to operate all of your fans from a common outside switch.
    ($80)
  • Footage Horse Area
    Add 1 ft. to one horse stall to accomodate larger horses. Recommended on slant loads for horses 16 Hands. Select how many stalls you wish to add footage to. For example, when pricing a 3 Horse slant, you may only want to add footage to only one stall, or all three.
    Add 1 ft. to one horse stall to accomodate larger horses. Recommended on slant loads for horses 16 Hands. Select how many stalls you wish to add footage to. For example, when pricing a 3 Horse slant, you may only want to add footage to only one stall, or all three.
    ($775)
  • Front Stall Escape door
    NOTE: Walk thru door is standard from the horse area to the dressing room. Use this option if you want a door on the front stall, typically used in conjuction with a stud gate for storage (other than the horse)
    NOTE: Walk thru door is standard from the horse area to the dressing room. Use this option if you want a door on the front stall, typically used in conjuction with a stud gate for storage (other than the horse)
    ($707)
  • Height 7 ft. 6 in.
    Increase from the standard 7ft 3 in Height to 7ft 6 in
    Increase from the standard 7ft 3 in Height to 7ft 6 in
    ($805)
  • Tie Ring Interior ($44)
    Extra interior tie ring (one is standard per horse, add a second for tying hay bays -- specify quantity)
    Extra interior tie ring (one is standard per horse, add a second for tying hay bays -- specify quantity)

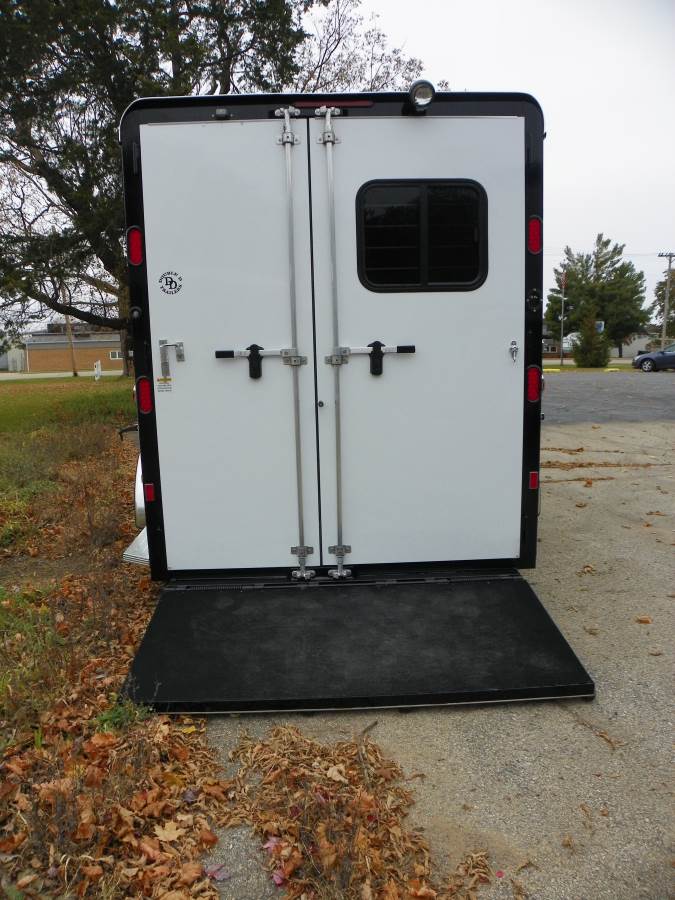

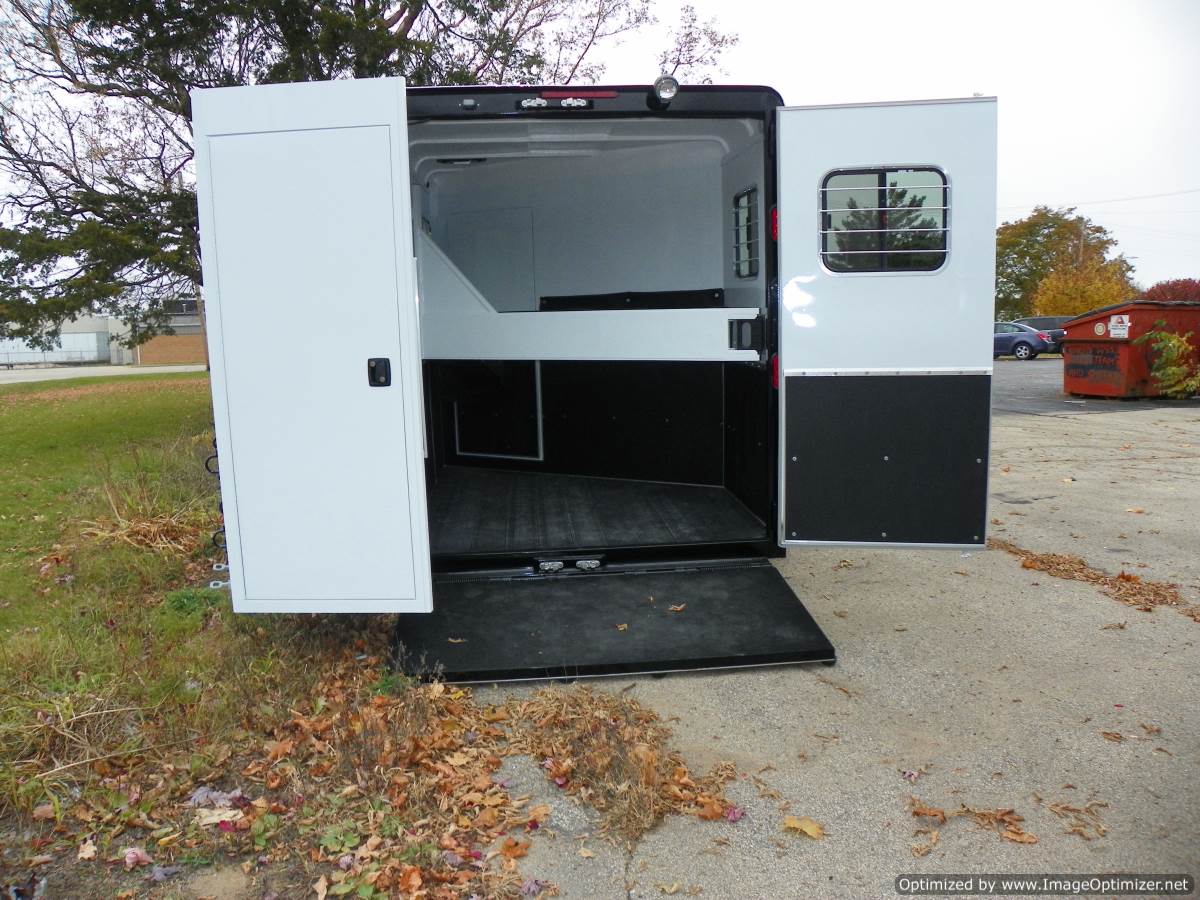

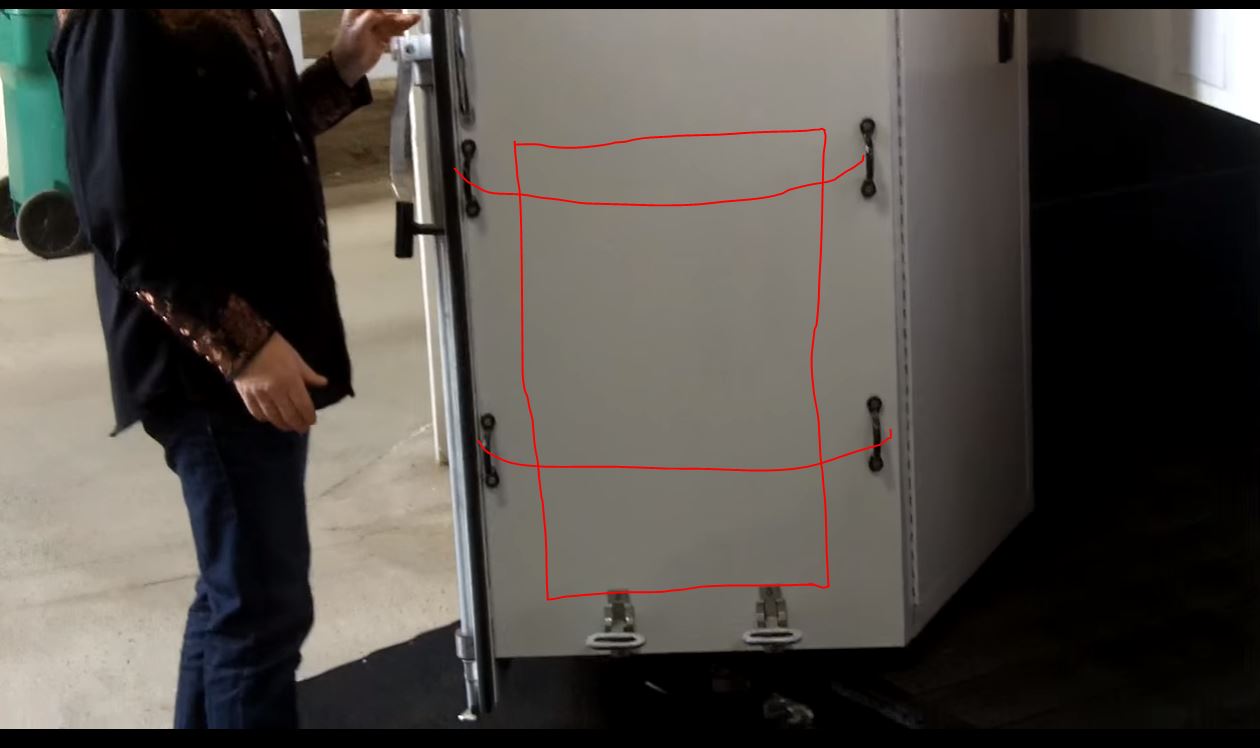

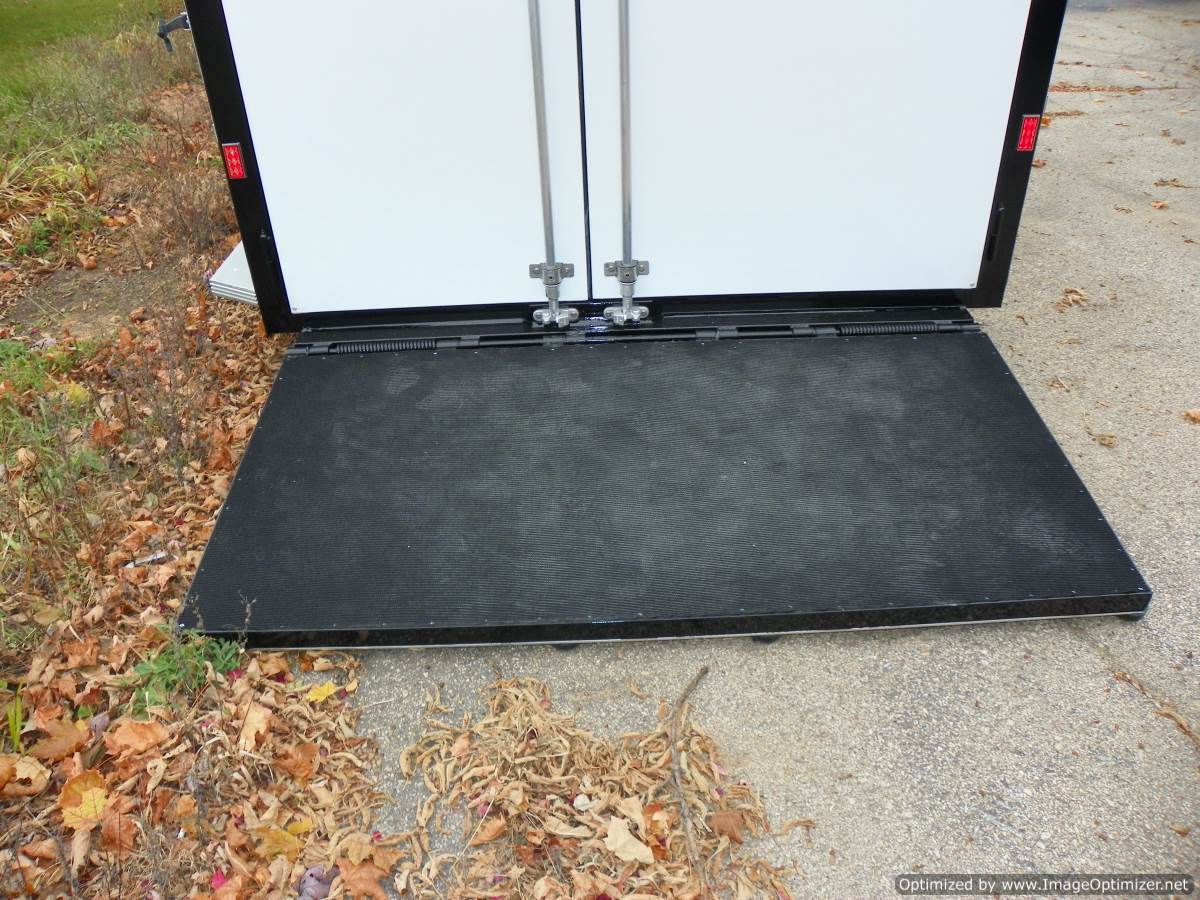

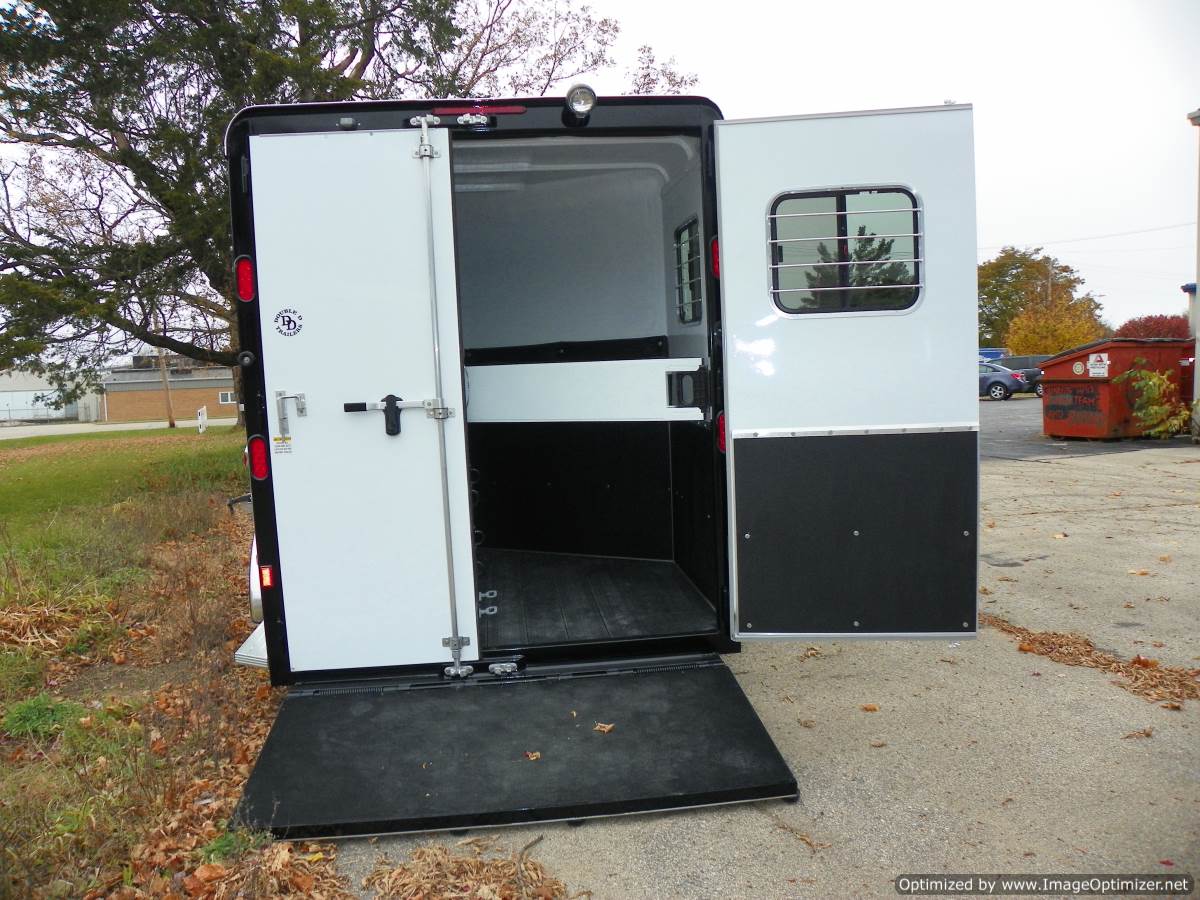

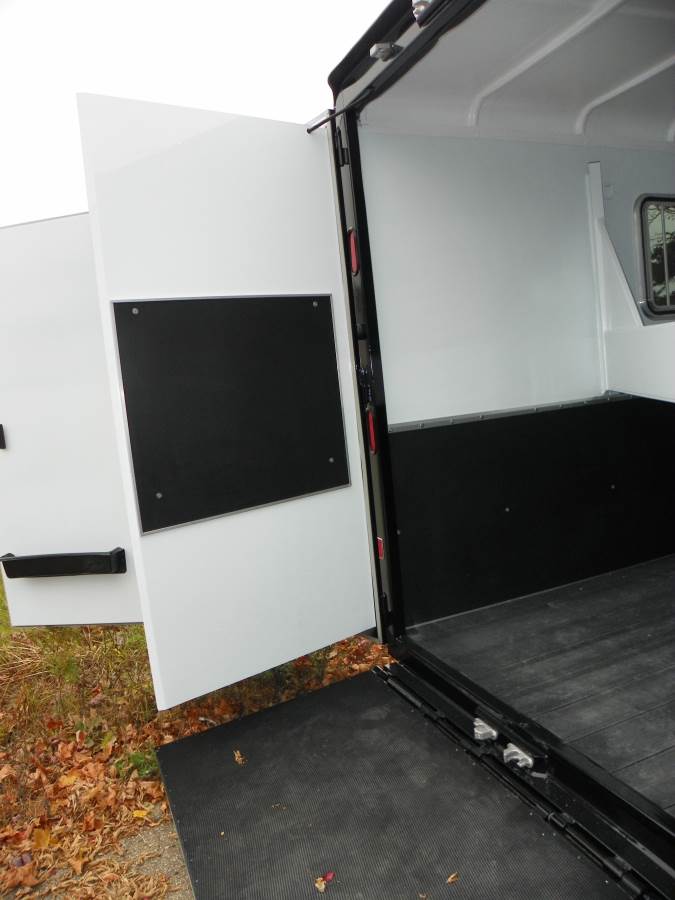

  • Ramp Door
    Ramp Fold up door spring assist covered with black matting,  mounts outside full height rear doors.  Ramps are safer for loading for your horses and offer more protection in case you have a rear end collision.
    Ramp Fold up door spring assist covered with black matting, mounts outside full height rear doors. Ramps are safer for loading for your horses and offer more protection in case you have a rear end collision.
    ($1548)
  • Ramp Diamond Plate
    Add a section of diamond plate to your ramp across the top.  Rubber bumpers are already included but this will help provide additional protection against scratches from use.
    Add a section of diamond plate to your ramp across the top. Rubber bumpers are already included but this will help provide additional protection against scratches from use.
    Video ($75)
  • Storage Manger/Feed Manger
    Used for feeding horses on slant loads, but primary purpose is to create additional storage area) Features an outside access door for each stall (priced per stall)
    Used for feeding horses on slant loads, but primary purpose is to create additional storage area) Features an outside access door for each stall (priced per stall)
    ($1089)

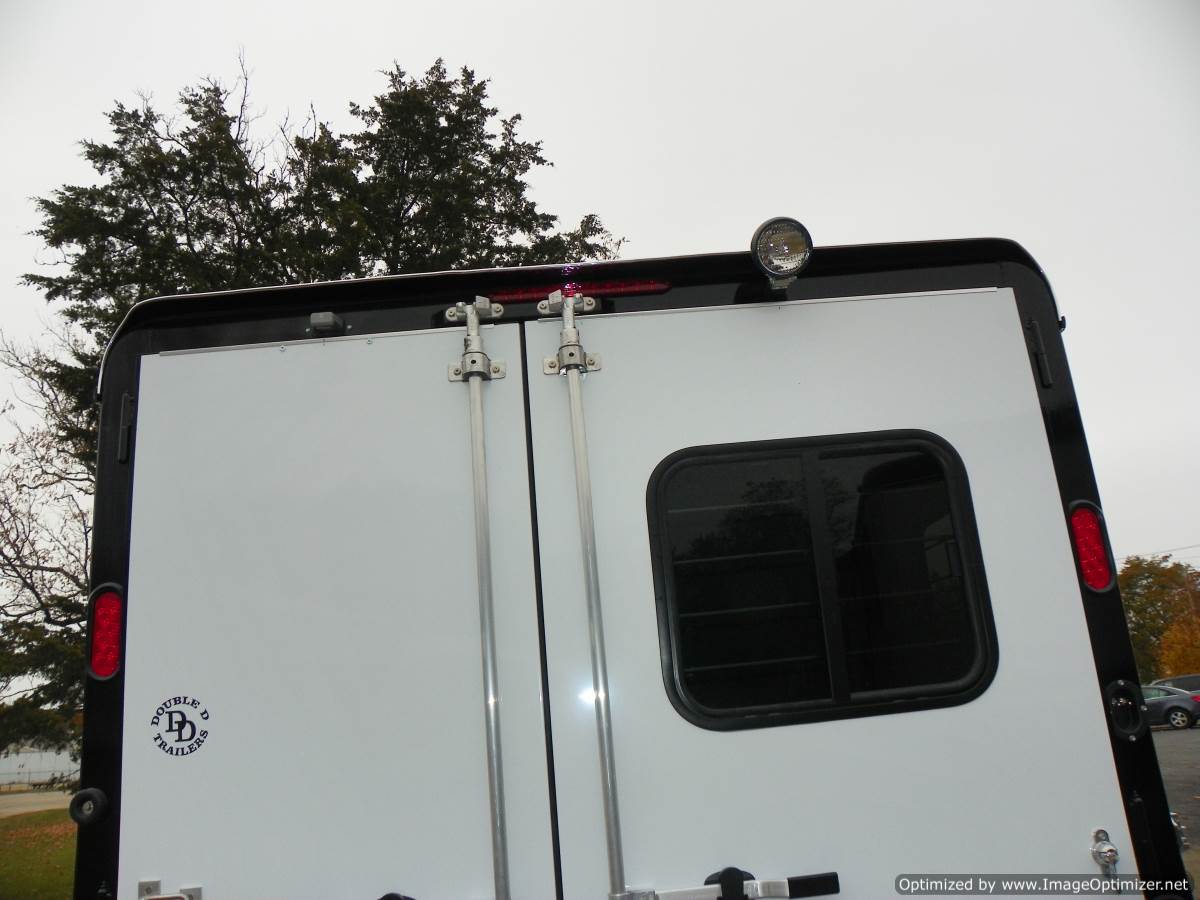

  • Rear Door Window with bars
    Add a window in the rear door of your trailer for additional light and air flow while traveling
    Add a window in the rear door of your trailer for additional light and air flow while traveling
    ($216)
  • Window Screen
    All sliding windows include a screen.  And the sliding portion of your drop down is screened as well. However, when you fold down your window and leave the bars in the folded up position, there is not a screen to protect your horses eyes from debris and bugs.  Select this option to add a screen for your drop down feed windows.  It includes a zipper so you can unzip for feeding if needed. Priced per window.
    All sliding windows include a screen. And the sliding portion of your drop down is screened as well. However, when you fold down your window and leave the bars in the folded up position, there is not a screen to protect your horses eyes from debris and bugs. Select this option to add a screen for your drop down feed windows. It includes a zipper so you can unzip for feeding if needed. Priced per window.
    ($104)

Get More Info! You can click on the title of each option to view details and photos for each option.

  • Furnace
    All living quarter trailers come standard with a roof mount air conditioner which includes a heat strip.  Heat strips work well in mild climates and it is necessary that you have a power source (electricity) to operate heat strips.  In colder climates, a furnace is an nice option to have.  It operates using propane and battery power and will quickly warmp up your interior even in cold weather. If you are doing cold weather camping, a furnace is not a bad thing to have.
    All living quarter trailers come standard with a roof mount air conditioner which includes a heat strip. Heat strips work well in mild climates and it is necessary that you have a power source (electricity) to operate heat strips. In colder climates, a furnace is an nice option to have. It operates using propane and battery power and will quickly warmp up your interior even in cold weather. If you are doing cold weather camping, a furnace is not a bad thing to have.
    ($913)
  • Mat
    Remove the standard carpet in the dress floor and replace with  a stall mat. More durable, easier to clean. Simply remove the mat and hose it off if needed.
    Remove the standard carpet in the dress floor and replace with a stall mat. More durable, easier to clean. Simply remove the mat and hose it off if needed.
    ($121)
  • Microwave Convection Oven
    Want to be able to brown food in your microwave.  Add a convection microwave oven in place of the standard.
    Want to be able to brown food in your microwave. Add a convection microwave oven in place of the standard.
    ($693)
  • Outside Grill
    Add a grill to the outside of your trailer
    Add a grill to the outside of your trailer
    ($712)
  • 30 lb propane cylinder
    Add larger propane tanks in place of the 20 lb cylinders.  NOTE: you can get 20 lb cylinders changed at most convenience stores in the country, but the 30 lb cylinders will have to be filled at a propane filling station.
    Add larger propane tanks in place of the 20 lb cylinders. NOTE: you can get 20 lb cylinders changed at most convenience stores in the country, but the 30 lb cylinders will have to be filled at a propane filling station.
    ($277)
  • Solar Panel
    Used to keep battery charged while in remote areas.
    Used to keep battery charged while in remote areas.
    ($579)
  • Vent with Thermostat control and rain sensor
    These vents move a lot of air and are great for camping when you do not want to use the air conditioner. Ideal for inside your living area.  Features a thermostat control and rain sensor.
    These vents move a lot of air and are great for camping when you do not want to use the air conditioner. Ideal for inside your living area. Features a thermostat control and rain sensor.
    ($657)
  • Water Spigot
    Add an outside water spigot so you can fill buckets for your horses if needed.
    Add an outside water spigot so you can fill buckets for your horses if needed.
    ($151)

Get More Info! You can click on the title of each option to view details and photos for each option.

  • Rumber Flooring for 2H Slant load
    2 x 8 in. pressure pine flooring with mats is a standard feature. You may change to Rumber which is a rubber and made from recycled tires. The dimensions of each board is 2 x 8 in and it is tongue and groove interlocking, solid rubber material.  It is a soft ride with minimal noise and vibration. The neat thing about Rumber is it doesnt require any stall mats  which makes it super easy to clean and maintain.  Plus it has a lifetime warranty, virtually indestructible.
    2 x 8 in. pressure pine flooring with mats is a standard feature. You may change to Rumber which is a rubber and made from recycled tires. The dimensions of each board is 2 x 8 in and it is tongue and groove interlocking, solid rubber material. It is a soft ride with minimal noise and vibration. The neat thing about Rumber is it doesnt require any stall mats which makes it super easy to clean and maintain. Plus it has a lifetime warranty, virtually indestructible.
    Video ($1018)

Your Trailer So Far


Color:

Graphic:

Options:


Total:

*Not including taxes or shipping

Financing Calculator

Number of Payments
Interest Rate
Payment:

Chat With Us Live

Speak with one of our Horse Trailer Experts online now.

Launch Chat Window
Banner 1
-->

© 2020 | All Rights Reserved
