You've chosen the following horse trailer model:

The Basics Living Quarter Horse Trailer. Simple, durable, functional

The Basics LQ photo

Overview

  • Basic needs no frill living quarter
  • Customizable to fit up to a 17.2 Hand Warmblood
  • 4 ft short wall x 8 ft long wall
  • All of the safety features you love on a Double D Trailer:  “No Leak” SafeBump Roof, Z-Frame Technology, SafeKick walls, SafeTack compartment, and extra rear partition.
  • Build this trailer to fit 2 to 4 horses
  • View a similar trailer model in your local area.

The Basics Affordable Living Quarters

Available in a 2 horse, 3 horse, or 4 horse

Many clients reach out to us looking for a simple solution for overnight camping and horse events. That's why we devloped The Basics Living Quarter model.

The Basics Living Quarters Has All of Our Top Safety Features

Living quarters horse trailer

From the structural perspective of the trailer, this model isn't any different in standard amenities compared to our non-living quarter models. It's built with the standard Safetack swing out saddle compartment, Z-Frame technology for a strong and light weight non-rusting chassis, Galvalite interior panels that are safer for horses, and the Safebump one-piece fiber composite mold roof system.

From the living quarter perspective, it's a much smaller and simpler design than a conventional full living quarters. Most living quarters start out around a 7' short wall, which is the minimum length required to fit in a separate bathroom. They have a kitchen, which includes an under the counter mounted refrigerator, cook top, sink, and microwave. There is also a comfortable seating area such as a sofa or dinette. Full living quarters are customizable for colors, walls, ceiling, cabinets and materials along with a host of other available amenities. If this is what you have in mind, then the Basics LQ is NOT for you.

This Model is NOT for you if...

This model is NOT for you if you have your heart set on a traditional full living quarters design.  Just to be clear, most full living quarters start out around a 7' short wall, which is the minimum length required to fit in a separate bathroom. They have a kitchen, which includes an under the counter mounted refrigerator, cook top, sink, and microwave. There is also a comfortable seating area such as a sofa or dinette. Full living quarters are customizable for colors, walls, ceiling, cabinets and materials along with a host of other available amenities.

On the other hand, the Basics Living Quarters trailer is a much smaller and simpler design than a conventional full living quarters. So, if a full living quarters model sounds like what you want, the Basics LQ is NOT for you.

The Basics Living Quarters Model is perfect for you if…

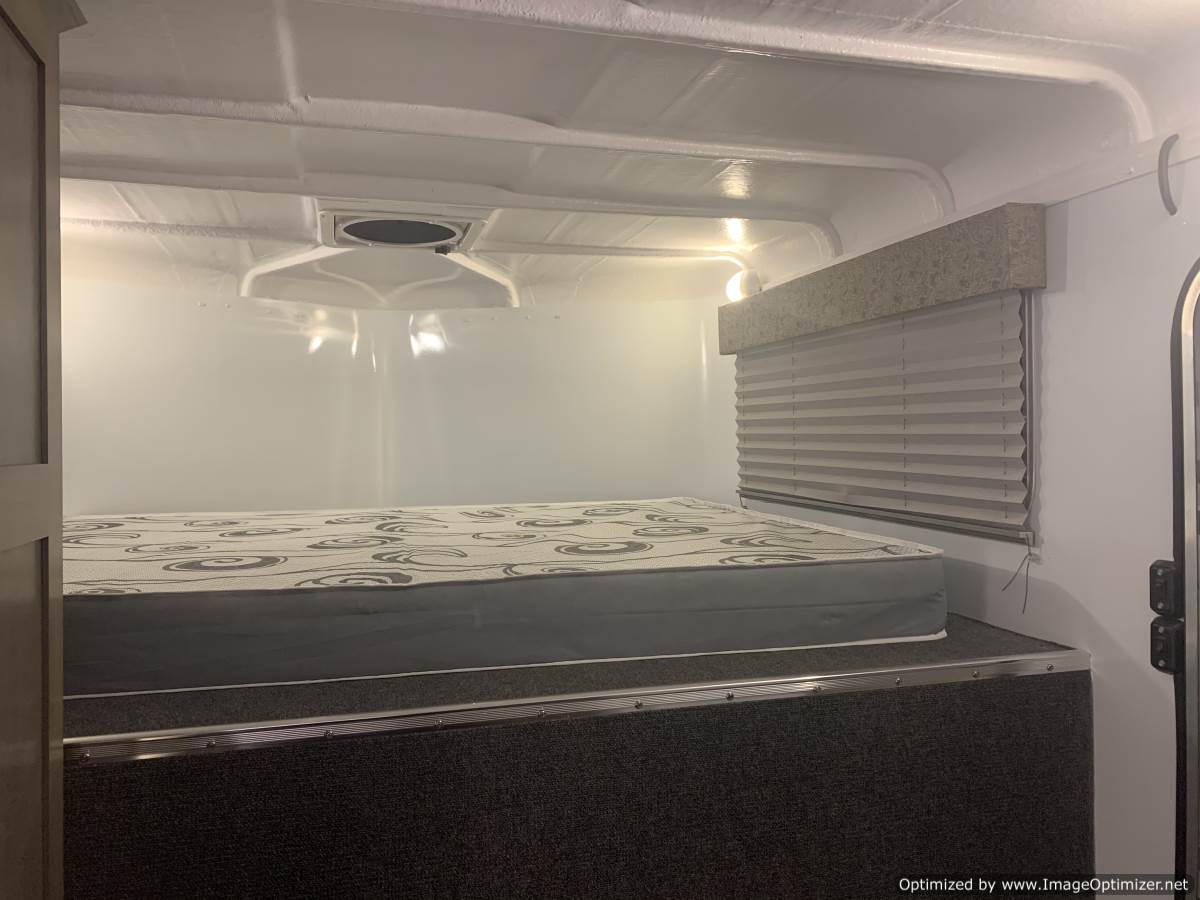

roof vent on horse trailer

The Basics Living Quarter model is designed for clients needing a simple solution for running water (with a hot water heater), ability to shower, space to use the bathroom, and kitchen sink which can be used for cooking, washing your hands and brushing your teeth. Included in the Basics is a closet along with storage cabinets and a bench seat, which works well for putting on socks and shoes. If that sounds more your speed, then the Basics LQ is the model for you.

Available in a four-foot short wall, the walls of the living quarter are bare metal, and the roof is a fiber composite finish with exposed beams, which is the same look as in the horse area. There aren't any paneling or color choices available for the interior walls, and it mirrors the Galvalite material that's in your horse area.

The compact floorplan of this model keeps it lighter in weight, shorter wheelbase, less tongue weight, and much easier to maneuver than conventional longer LQ horse trailers.

Popular options include a small refrigerator mounted underneath the kitchen cabinet, microwave, and cook top. In addition, many clients do not camp when it's really hot outside, or cold...but rather they camp in the milder spring and fall. For this reason, a roof air conditioner isn't added. While it is an add-on option, we recommend a powered roof vent with rain sensor over the bed area instead. It is bi-directional, remote controlled, thermostat controlled, and it automatically closes when it starts to rain. With the gooseneck nose windows open and the fan in operation, a cross breeze is created in the bed area to keep you nice and comfortable.



Want options? We've got many. Customize this trailer now with options.

Specifications

Weight (without added options, 3 Horse) 6,500 lbs
Axle capacity Dexter Rubber Torflex 10,400 lb independent suspension
Interior Horse Height Clearance 7 ft 8 inches
Tongue Weight (in a 3 horse, 4' short wall) 1850 lbs
Skin 16 Gauge Gavalite strong and safe horse area; aluminum exterior
Overall Box Length 18 ft 6 inches
Overall Trailer Length with Gooseneck 26 ft
Overall Trailer Box Width 80 in, available up to 96 inches
Dress Side 4' short wall x 8' long wall
Inside Height 7'8"
Stall Size Standard fits up to a 15.2 1100 lb smaller breed
Optional Stall Size Customizeable to fit a 17.2+ Warmblood
Coupler 2 5/16" adjustable height coupler
Wheels Powder coated gray, optional aluminum
Tire Size 225/75R15 (D) Radial
Brakes 4 wheel
LED Turn Signal Lights on Rear (2) Standard up high
Windows in Gooseneck (2) sliding with screens
Windows in Stall Area
(2 per horse - drop down with bars on head side and butt side. Windows and bars fold independent, features mid-latch easy to reach system)
24"x30"
Hauling Direction Forward facing only, optional reverse load
Saddle Racks 3
Bridle Hooks 3
Custom Hand Made Padding on
Dividers
2" Standard
Interior Tie Rings per Stall (one on each end) 1
Exterior Tie Rings per horse 1
Lights in Horse Area on Remote Switch 2

Features

  • Z Frame Technology
  • Swing out Safetack Saddle compartment
  • 30x24 inch drop down window at each horse head
  • 2”x 8” Pressure Treated Pine Flooring on 16” Cross Members
  • Two speed gooseneck jack
  • Walk Through Door to Horse Area from living quarters.
  • EZ Lube Durable Never Adjust Brakes, 10,400 independent suspension system
  • Full Height Rear Doors with SafeTack Design
  • 18” Diamond Plate Gravel Guard at Nose
  • Running board step at LQ door
  • SafeTack® Slant Load Design
  • Forward facing configuration in the horse area, optional reverse load
  • Marker Lights on Fender
  • Extra divider on rear stall to prevent horses from backing out when rear doors are opened
  • Spare Tire
  • Z-Frame Slant dividers with handmade padding and quiet slam latch feature
  • Horse Area Roof Vents, one per stall aluminum

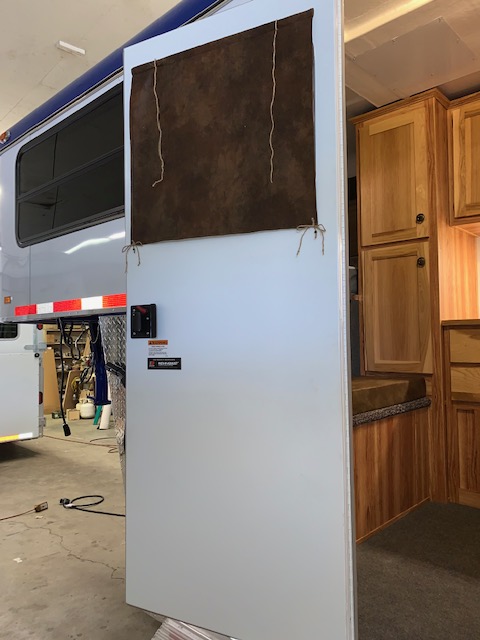

  • 30” Dress Door Factory Built Door with window
  • SafeKick® Wall System
  • Heat Reflective SafeBump® Roof System
  • Insulated side walls and roof in horse area for maximum temperature protection and safe, quiet ride
  • Floor Mats in Horse Area
  • Rechargeable Emergency Breakaway System
  • 7-Pin RV Style Plug
  • Painted White Horse area

Living Quarters Features

Standard Features:

  • Vinyl Wrapped cabinets with flat panel doors and knobs

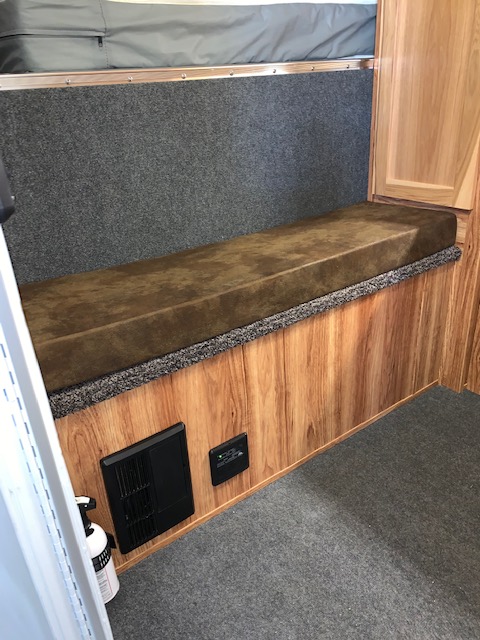

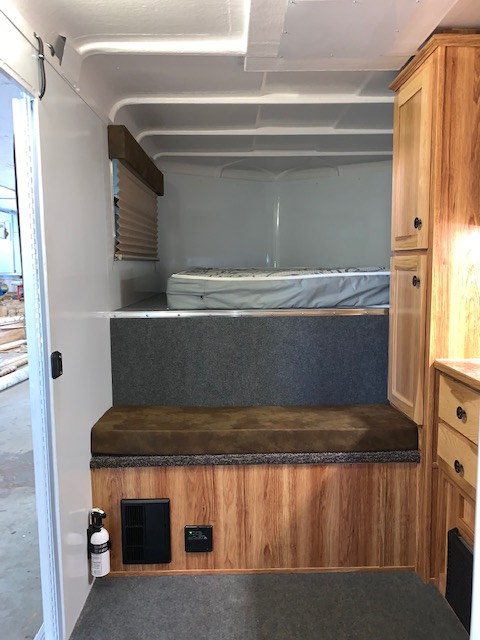

  • Bench seat with cushion
  • Galvalite metal interior walls
  • Fibercomposite roof with exposed beams (It looks identical to the roof in the horse area)

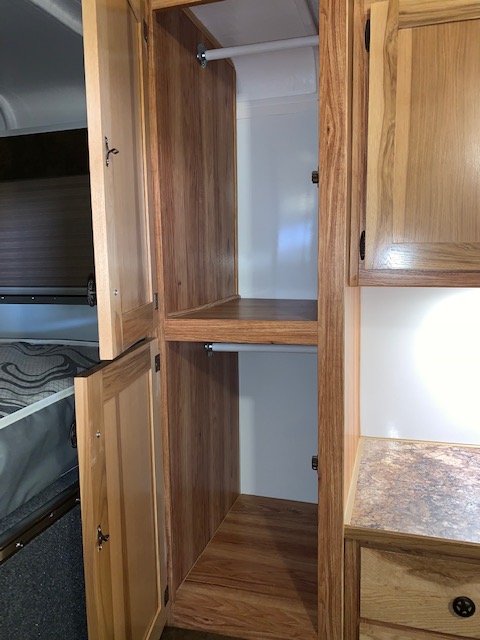

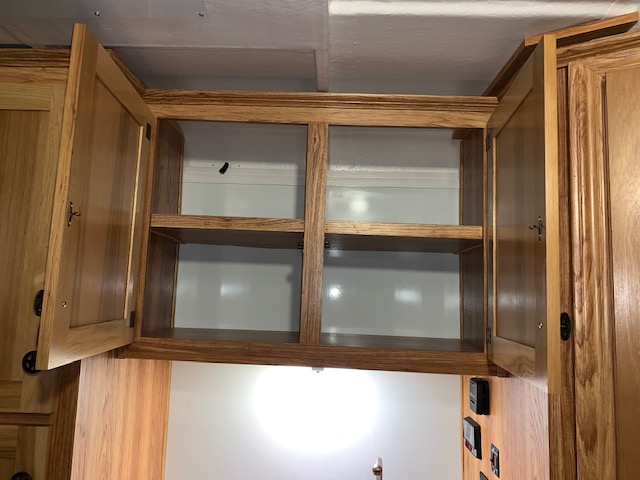

  • Small amount of cabinet storage including a decent size closet for hanging

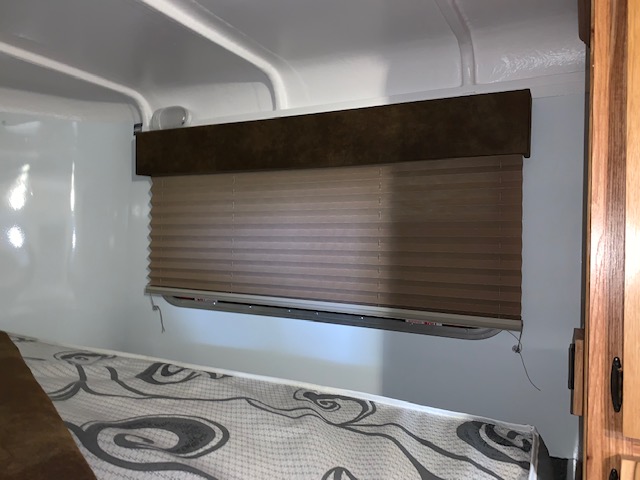

  • Shades for windows
  • 25' 30 amp power cord with 15 amp adapter
  • LP Gas leak detector
  • Carpet on slant divider wall at bathroom
  • Mat in dress floor

Appliances and Electrical:

  • Single kitchen style sink

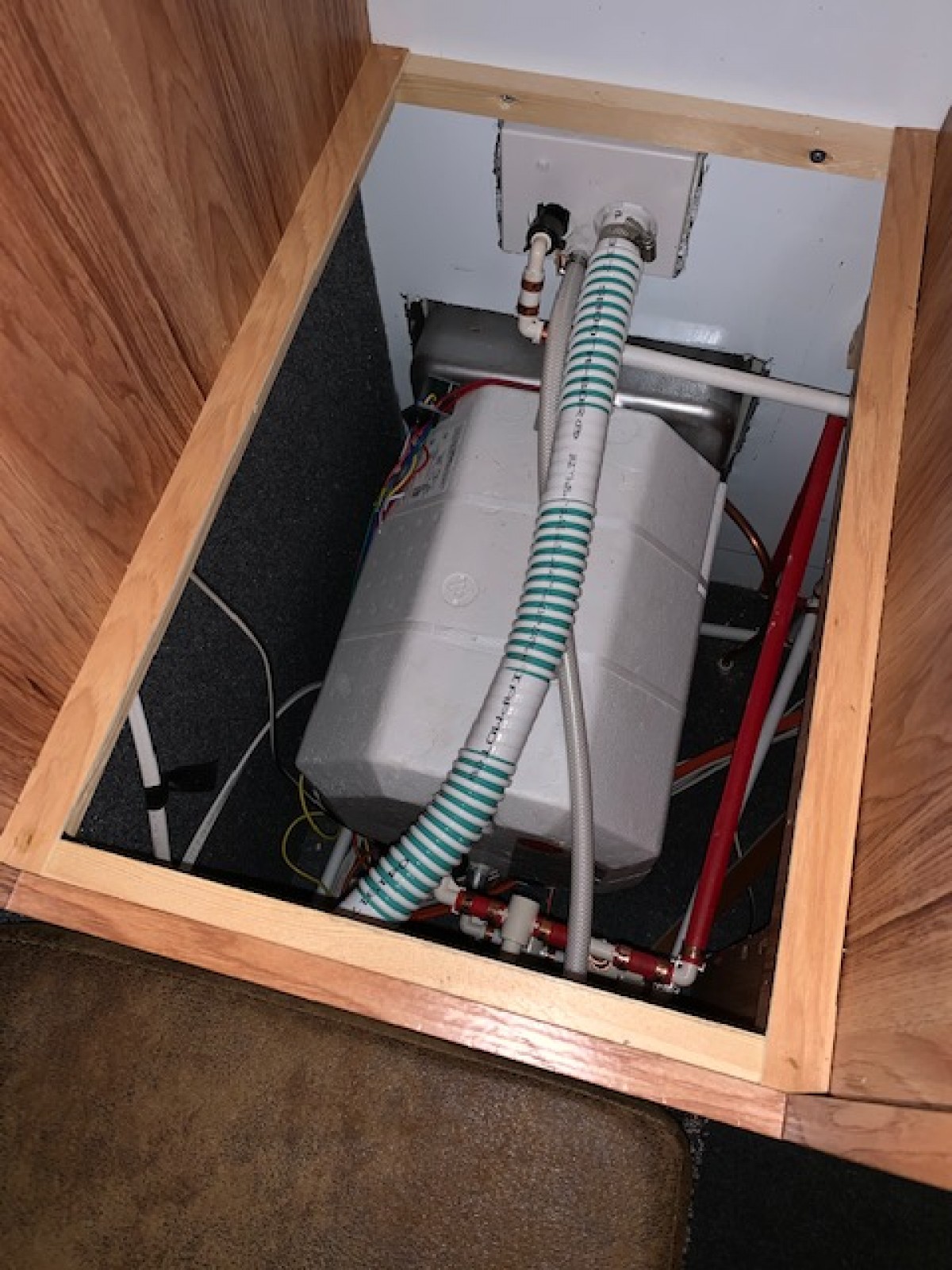

  • 6 gal. propane hot water heater, direct spark ignition
  • 12V deep cycle battery and disconnect switch

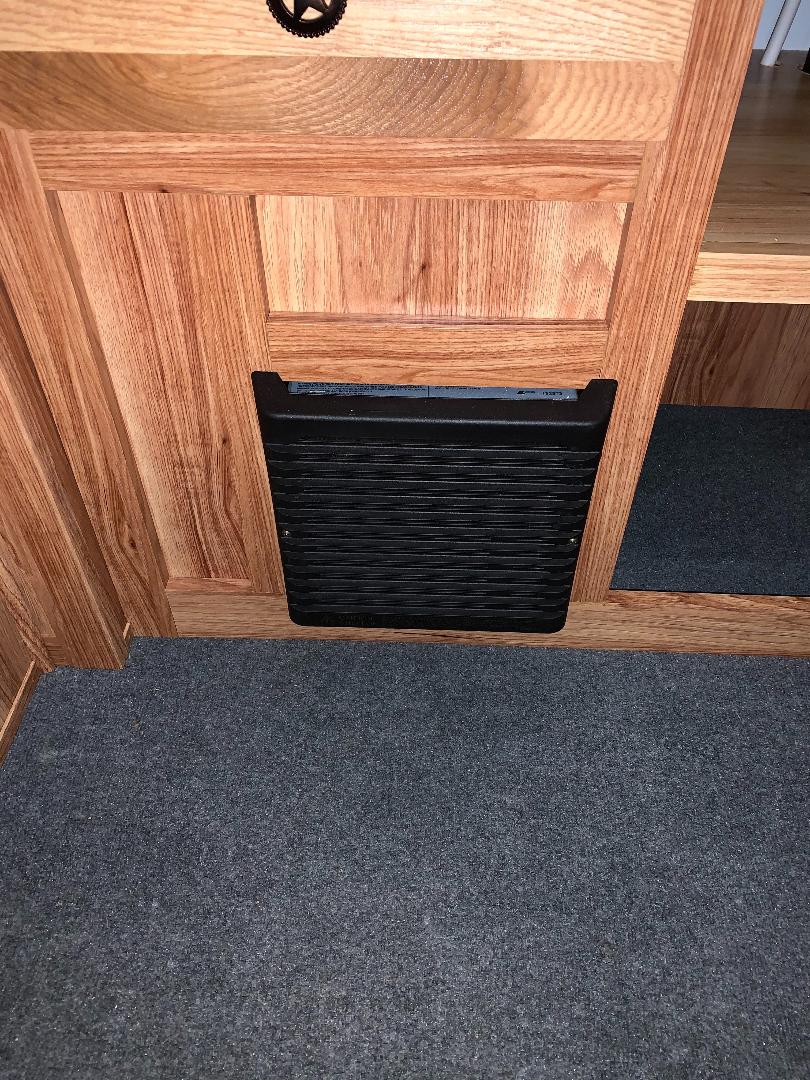

  • 40 amp power converter with battery charger
  • Interior outlets and exterior receptacle
  • 25' power cord with adapter
  • Monitor panel for fresh water tank, black, and battery power
  • CO2 and LP Gas detector
  • Fire Extinguisher

 Plumbing:

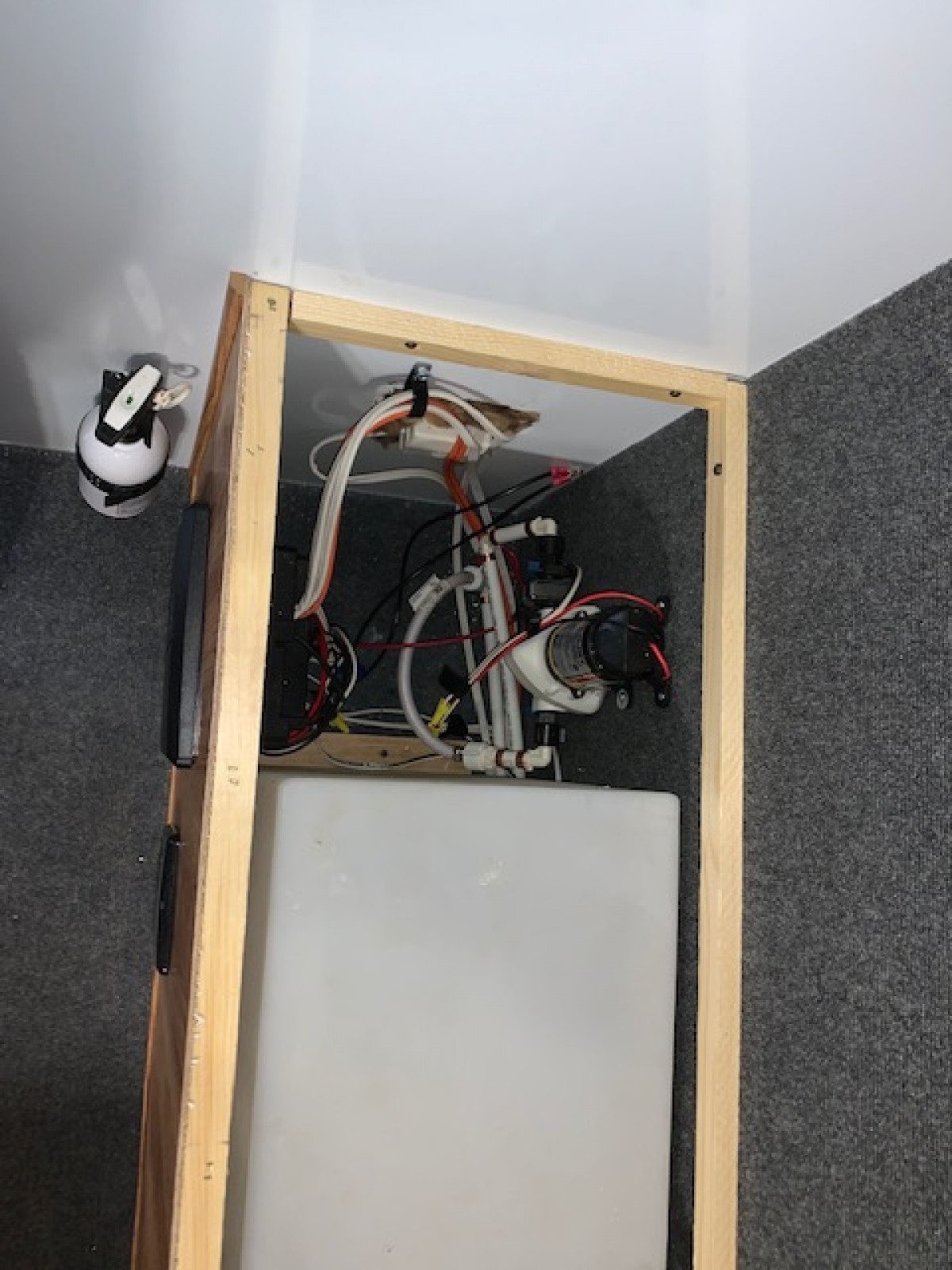

  • 30 Ga. Freshwater supply tank with 12-volt demand water pump super quiet pump
  • Wastewater holding tank for toilet

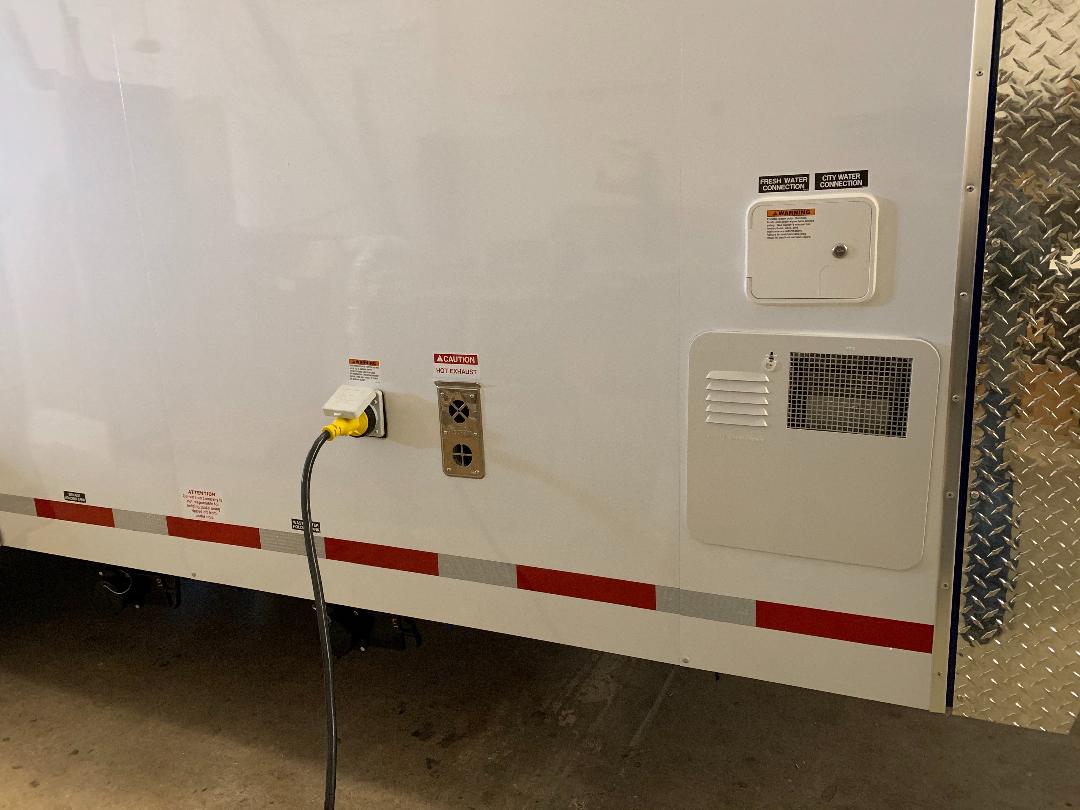

  • City water hook up and fresh water connection

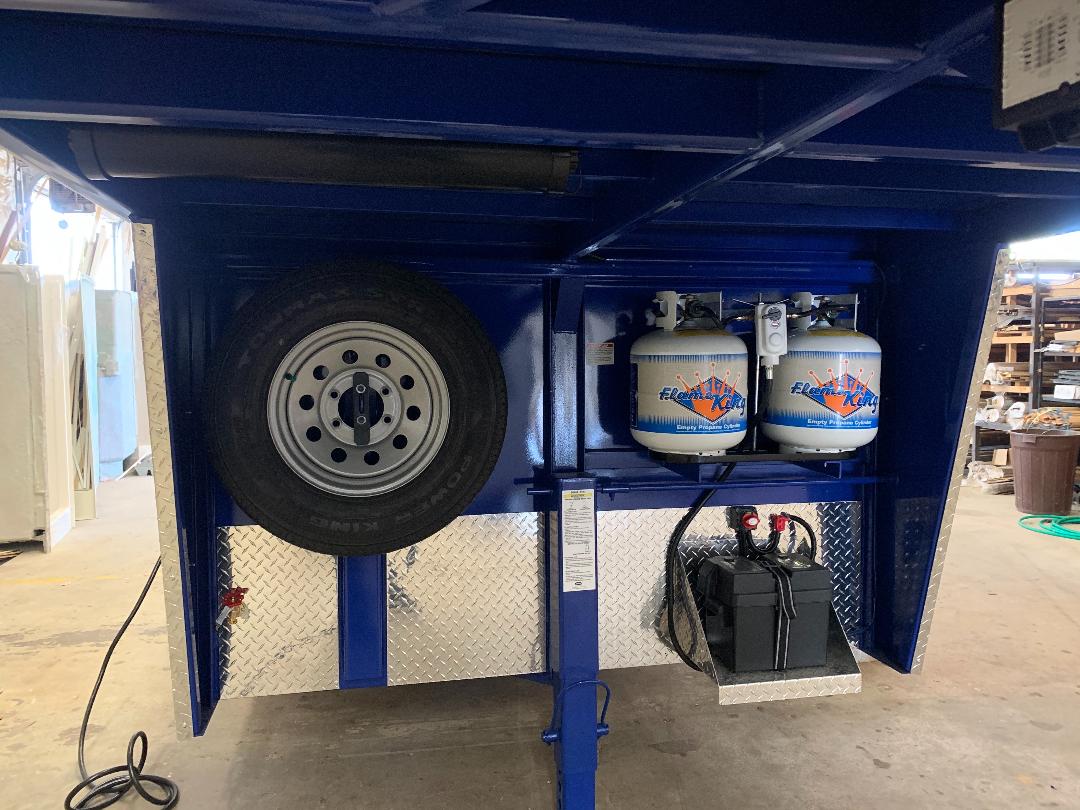

  • (1) 20-lb. LP tank, two are included with a refrigerator upgrade

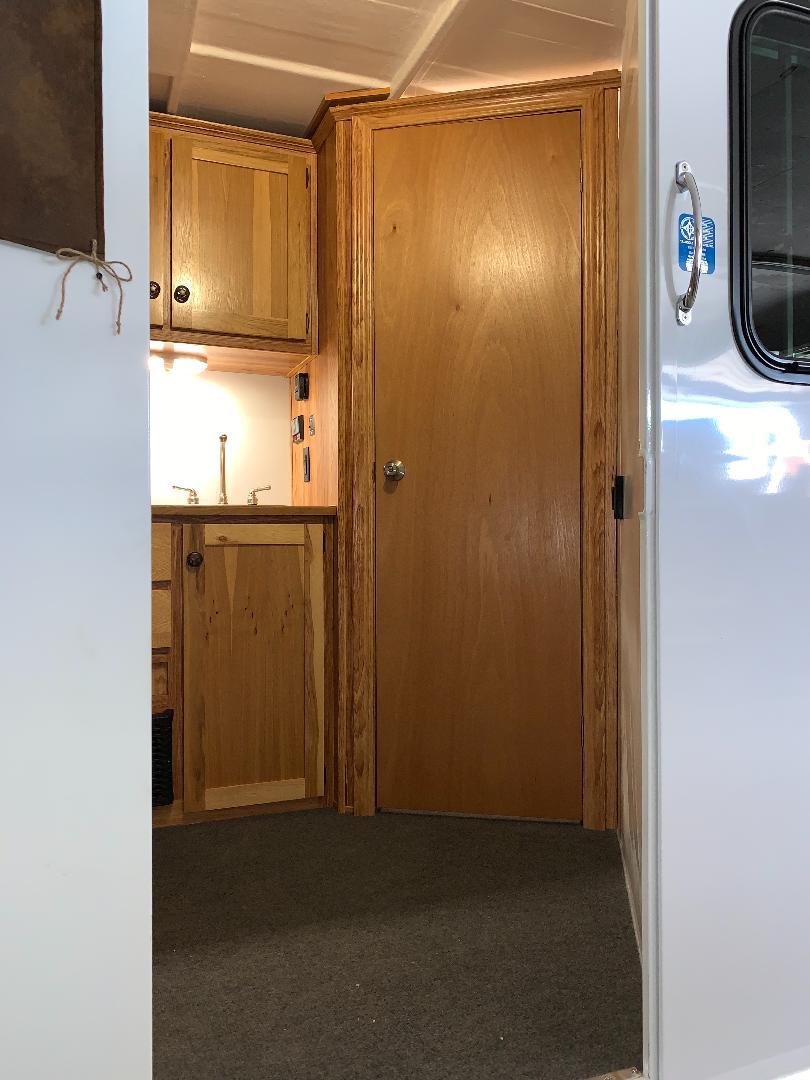

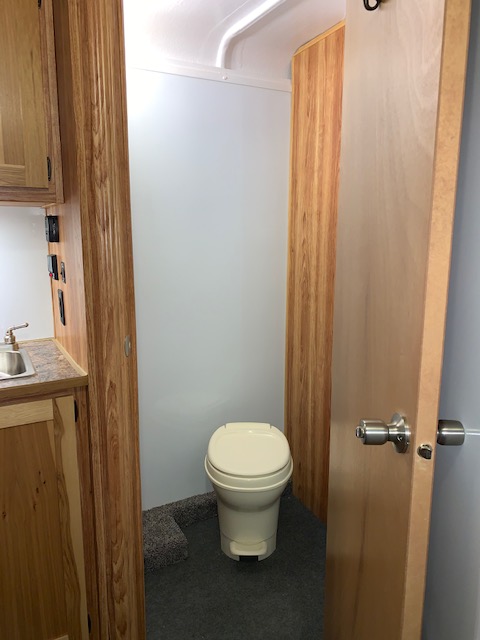

  • Thetford toilet in enclosed space
  • 6-gal. gas water heater quick recovery, direct spark ignition
  • Storage cabinets
  • Tank Monitors Standard

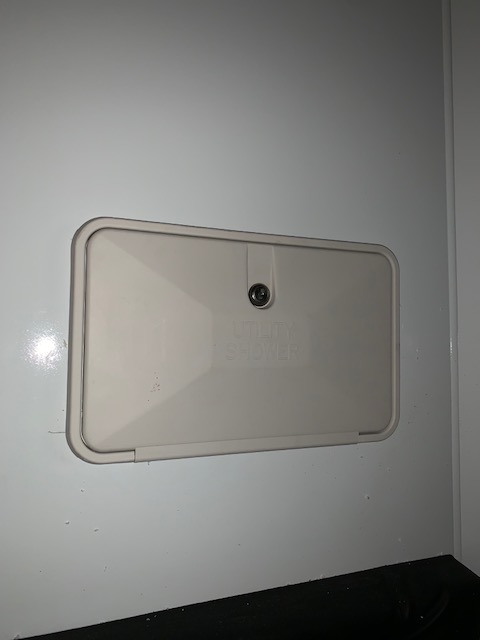

  • Cowgirls shower. This is a plumbing fixture flush mounted in the front horse stall for bathing. (works great)
  • Sewage hose carrier

Warranty

  • (8) Year on Structure
  • (2) Year bumper to bumper
  • (1) Year on non-Double D Manufactured parts

Want options? We've got many. Customize this trailer now with options.

Photos

Click on a photo below to view its larger version.

Want options? We've got many. Customize this trailer now with options.

Videos

Click on a video below to view its larger version.

Customize Your Trailer

Get More Info! You can click on the title of each option to view details and photos for each option.

Choose your colour from our Color Guide (PDF) and enter the name of it in the text field below.

061 Black - Free
015 Cardinal Red - Free
083 Sapphire Blue - Free
All others - $125 upcharge

Get More Info! You can click on the title of each option to view details and photos for each option.

  • Aluminum Wheels
    Want to really have an eye catching trailer?  Add aluminum wheels in place of the standard gray painted wheel. Not only do they look sharp but you will have a wheel that doesnt rust and looks great for years to come. Pricing includes five aluminum wheels and a spare tire cover on your spare.
    Want to really have an eye catching trailer? Add aluminum wheels in place of the standard gray painted wheel. Not only do they look sharp but you will have a wheel that doesnt rust and looks great for years to come. Pricing includes five aluminum wheels and a spare tire cover on your spare.
    ($593)
  • Patio Awning
    Enjoy and relax underneath your new patio awning. Awnings are available in a variety of configurations and hardware but we only offer the manual version with a metal weathershield. It's a very clean mount, no arms bolted to the sidewall of the trailer.  Easy to set up and simple with very little maintenance.
    Enjoy and relax underneath your new patio awning. Awnings are available in a variety of configurations and hardware but we only offer the manual version with a metal weathershield. It's a very clean mount, no arms bolted to the sidewall of the trailer. Easy to set up and simple with very little maintenance.
    ($3599)
  • Blanket Bar ($173)
    Add a blanket bar to your saddle tree (actual bar and design may vary slightly from photo)
    Add a blanket bar to your saddle tree (actual bar and design may vary slightly from photo)
  • Bridle hooks extra ($39)
    Add extra bridle hooks to your trailer.  Sold individually, add up to as many as you may need. (specify location when place order)
    Add extra bridle hooks to your trailer. Sold individually, add up to as many as you may need. (specify location when place order)
  • Brush Tray ($112)
    Brush Tray on dress door or Tack door.(If you are purchasing a slant load, there is plenty of space to throw in brushes in the rear Safetack. Use this option to add a brush tray on your dressing room door up front or tack door NOTE: Cant be used with screen door option) Brush tray design may vary from photo.
    Brush Tray on dress door or Tack door.(If you are purchasing a slant load, there is plenty of space to throw in brushes in the rear Safetack. Use this option to add a brush tray on your dressing room door up front or tack door NOTE: Cant be used with screen door option) Brush tray design may vary from photo.
  • Camera System
    Being able to monitor your horses while traveling as well as see what is behind your trailer can be beneficial.  Add this feature which includes two cameras (one for your horses, one back up or rear view camera).  Includes a wireless monitor which you plug in to your 12V supply inside your tow vehicle.  Operates wireless.
    Being able to monitor your horses while traveling as well as see what is behind your trailer can be beneficial. Add this feature which includes two cameras (one for your horses, one back up or rear view camera). Includes a wireless monitor which you plug in to your 12V supply inside your tow vehicle. Operates wireless.
    ($1735)
  • Feed Bag ($125)
    Feed bag works great for feeding while trailering (priced per stall)
    Feed bag works great for feeding while trailering (priced per stall)
  • Grab Handle ($63)
    RV grab handle on outside to assist with getting in and out of trailer
    RV grab handle on outside to assist with getting in and out of trailer
  • Hay Bale Holder
    Add a hay bale holder to your Safetack saddle compartment. Works well for storing one bale of hay for short day trips.
    Add a hay bale holder to your Safetack saddle compartment. Works well for storing one bale of hay for short day trips.
    Video ($355)
  • Hay Rack
    6 ft. long Roof mount hay rack with side ladder.  (actual design may vary slightly from photo)
    6 ft. long Roof mount hay rack with side ladder. (actual design may vary slightly from photo)
    ($2957)
  • Hi-Tie Exterior Video ($794)
    Tying horses to the exterior of your new trailer is a recipe for damage.  If you add a hi-tie, it will move the horse away from the sidewall of your trailer which is safer for the horse, and safer for the trailer as well.
    Tying horses to the exterior of your new trailer is a recipe for damage. If you add a hi-tie, it will move the horse away from the sidewall of your trailer which is safer for the horse, and safer for the trailer as well.
  • Gooseneck Hook up light
    LED mounted underneath the gooseneck, works well when hooking up at night, includes a separate remote switch located on the side of the trailer for easy operation
    LED mounted underneath the gooseneck, works well when hooking up at night, includes a separate remote switch located on the side of the trailer for easy operation
    ($295)
  • Exterior Porch Light
    LED Add a light beside your dressing room door.  Includes a remote switch mounted inside your dressing room
    LED Add a light beside your dressing room door. Includes a remote switch mounted inside your dressing room
    ($295)
  • Load Light ($340)
    LED Load light on separate switch mounted up high.
    LED Load light on separate switch mounted up high.
  • Hydraulic Jack
    Add a hydraulic jack in place of the standard Jack.  These systems are very reliable and you can raise and lower your trailer at the touch of a button.  (requires single battery option) Note the video shows dual batteries which is not necessary
    Add a hydraulic jack in place of the standard Jack. These systems are very reliable and you can raise and lower your trailer at the touch of a button. (requires single battery option) Note the video shows dual batteries which is not necessary
    Video ($3017)
  • Extra running Board
    Running Boards or steps are standard on the dressing room side of your trailer. Add a step to the opposite side in front of the fenders.
    Running Boards or steps are standard on the dressing room side of your trailer. Add a step to the opposite side in front of the fenders.
    ($651)
  • Screen Door
    AirCraft Style Rounded Corner RV door with Bug Screen In place of standard door
    AirCraft Style Rounded Corner RV door with Bug Screen In place of standard door
    ($788)
  • Wall Organizer Grid
    Most tack rooms are a nightmare when it comes to organization, some even downright junky! (I can see you nodding your head in agreement). Add this wall organizer grid to your new trailer which allows you to utilize the vertical wall space.  No more stuff in the floor.  After you add the grid, you may order separately bins, containers, hooks, racks, mirrors and other accessories that will attach to the grid.  The accessories are very reasonable and available at many online tack store websites.
    Most tack rooms are a nightmare when it comes to organization, some even downright junky! (I can see you nodding your head in agreement). Add this wall organizer grid to your new trailer which allows you to utilize the vertical wall space. No more stuff in the floor. After you add the grid, you may order separately bins, containers, hooks, racks, mirrors and other accessories that will attach to the grid. The accessories are very reasonable and available at many online tack store websites.
    Video ($324)

Get More Info! You can click on the title of each option to view details and photos for each option.

  • Safetack Reverse (Forward & Rear Facing 2 Horse)
    Recent research suggests horses tend to have less stress in a rear facing design. This option includes 1 ft. in front stall for wider entrance and larger horses, side load or unload ramp, Double hinged divider that allows you to pivot from both ends, two extra drop down windows (Road and Ditch side), Two extra pop up roof vents for total of four, Extra Interior tie loop per horse Road and ditch side, Safety Escape door on ditch side over fender.
    Recent research suggests horses tend to have less stress in a rear facing design. This option includes 1 ft. in front stall for wider entrance and larger horses, side load or unload ramp, Double hinged divider that allows you to pivot from both ends, two extra drop down windows (Road and Ditch side), Two extra pop up roof vents for total of four, Extra Interior tie loop per horse Road and ditch side, Safety Escape door on ditch side over fender.
    Video ($7755)
  • Safetack Reverse (Forward & Rear Facing 3 Horse)
    Recent research suggests horses tend to have less stress in a rear facing design. This option includes 1 ft. in front stall for wider entrance and larger horses, side load or unload ramp, Double hinged divider that allows you to pivot from both ends, three extra drop down windows (Road and Ditch side), three extra pop up roof vents for total of six, Extra Interior tie loop per horse Road and ditch side, Safety Escape door on ditch side over fender.
(video shows a 2 Horse but the 3 Horse functions in the same manner)
    Recent research suggests horses tend to have less stress in a rear facing design. This option includes 1 ft. in front stall for wider entrance and larger horses, side load or unload ramp, Double hinged divider that allows you to pivot from both ends, three extra drop down windows (Road and Ditch side), three extra pop up roof vents for total of six, Extra Interior tie loop per horse Road and ditch side, Safety Escape door on ditch side over fender. (video shows a 2 Horse but the 3 Horse functions in the same manner)
    Video ($8681)
  • Safetack Reverse (Forward & Rear Facing 4 Horse)
    Recent research suggests horses tend to have less stress in a rear facing design. This option includes 1 ft. in front stall for wider entrance and larger horses, side load or unload ramp, Double hinged divider(s) that allows you to pivot from both ends, four extra drop down windows (Road and Ditch side), four extra pop up roof vents for total of eight, Extra Interior tie loop per horse Road and ditch side, Safety Escape door on ditch side over fender.
(drawing and video shows a 2-3 Horse but the 4 Horse functions in the same manner)
    Recent research suggests horses tend to have less stress in a rear facing design. This option includes 1 ft. in front stall for wider entrance and larger horses, side load or unload ramp, Double hinged divider(s) that allows you to pivot from both ends, four extra drop down windows (Road and Ditch side), four extra pop up roof vents for total of eight, Extra Interior tie loop per horse Road and ditch side, Safety Escape door on ditch side over fender. (drawing and video shows a 2-3 Horse but the 4 Horse functions in the same manner)
    Video ($9649)

Get More Info! You can click on the title of each option to view details and photos for each option.

  • Make this a Two Horse
    Decrease to a 2H rather than a 3H, decrease the overall length of the trailer by 40 inches.
    Decrease to a 2H rather than a 3H, decrease the overall length of the trailer by 40 inches.
    ($-3222)
  • Four Horse Slant
    Increase from a Three Horse slant load model to a four horse slant load.  Adds 40 inches to overall length of trailer and tire axle upgrade
    Increase from a Three Horse slant load model to a four horse slant load. Adds 40 inches to overall length of trailer and tire axle upgrade
    ($6125)
  • Fan in Horse Stall ($245)
    Add a fan per stall for additional comfort for your horses while traveling. Priced each.
    Add a fan per stall for additional comfort for your horses while traveling. Priced each.
  • Remote switch for fans
    If you add fans for the comfort of your horses, add a rear remote switch which allows you to operate all of your fans from a common outside switch.
    If you add fans for the comfort of your horses, add a rear remote switch which allows you to operate all of your fans from a common outside switch.
    ($119)
  • Front Stall Escape door
    NOTE: Walk thru door is standard from the horse area to the dressing room. Use this option if you want a door on the front stall, typically used in conjuction with a stud gate for storage (other than the horse)
    NOTE: Walk thru door is standard from the horse area to the dressing room. Use this option if you want a door on the front stall, typically used in conjuction with a stud gate for storage (other than the horse)
    ($1063)
  • Front Stall Storage Partition
    Front Stall Partition used for Storage.  Often times this is referred to as a Stud Gate.  It works well for separating horses that may try to kick each other. It also works well such as on a 3 Horse slant load using the front stall for a storage area.
    Front Stall Partition used for Storage. Often times this is referred to as a Stud Gate. It works well for separating horses that may try to kick each other. It also works well such as on a 3 Horse slant load using the front stall for a storage area.
    Video ($1026)
  • Extra Tie Ring Exterior ($76)
    Extra exterior tie ring specify location of additional rings when you order.
    Extra exterior tie ring specify location of additional rings when you order.
  • Extra Tie Ring Interior ($65)
    Extra interior tie ring (one is standard per horse, add a second for tying hay bays -- specify quantity)
    Extra interior tie ring (one is standard per horse, add a second for tying hay bays -- specify quantity)
  • Ramp Door
    Ramp Fold up door spring assist covered with black matting,  mounts outside full height rear doors.  Ramps are safer for loading for your horses and offer more protection in case you have a rear end collision.
    Ramp Fold up door spring assist covered with black matting, mounts outside full height rear doors. Ramps are safer for loading for your horses and offer more protection in case you have a rear end collision.
    ($2328)
  • Ramp Diamond Plate Video ($113)
    Add a section of diamond plate to your ramp across the top.  Rubber bumpers are already included but this will help provide additional protection against scratches from use.
    Add a section of diamond plate to your ramp across the top. Rubber bumpers are already included but this will help provide additional protection against scratches from use.
  • Tire 16 Inch upgrade
    Your trailer comes standard with a 15 inch tire size, Upgrade to a larger 16 inch tire and wheel for greater capacity. Suggestion: Thicker tires means less chance of a blow out while traveling!
    Your trailer comes standard with a 15 inch tire size, Upgrade to a larger 16 inch tire and wheel for greater capacity. Suggestion: Thicker tires means less chance of a blow out while traveling!
    ($1170)
  • Window Screen ($158)
    All sliding windows include a screen.  And the sliding portion of your drop down is screened as well. However, when you fold down your window and leave the bars in the folded up position, there is not a screen to protect your horses eyes from debris and bugs.  Select this option to add a screen for your drop down feed windows.  It includes a zipper so you can unzip for feeding if needed. Priced per window.
    All sliding windows include a screen. And the sliding portion of your drop down is screened as well. However, when you fold down your window and leave the bars in the folded up position, there is not a screen to protect your horses eyes from debris and bugs. Select this option to add a screen for your drop down feed windows. It includes a zipper so you can unzip for feeding if needed. Priced per window.

Get More Info! You can click on the title of each option to view details and photos for each option.

  • Rumber Flooring for 2H Slant load
    2 x 8 in. pressure pine flooring with mats is a standard feature. You may change to Rumber which is a rubber and made from recycled tires. The dimensions of each board is 2 x 8 in and it is tongue and groove interlocking, solid rubber material.  It is a soft ride with minimal noise and vibration. The neat thing about Rumber is it doesnt require any stall mats  which makes it super easy to clean and maintain.  Plus it has a lifetime warranty, virtually indestructible.
    2 x 8 in. pressure pine flooring with mats is a standard feature. You may change to Rumber which is a rubber and made from recycled tires. The dimensions of each board is 2 x 8 in and it is tongue and groove interlocking, solid rubber material. It is a soft ride with minimal noise and vibration. The neat thing about Rumber is it doesnt require any stall mats which makes it super easy to clean and maintain. Plus it has a lifetime warranty, virtually indestructible.
    Video ($1532)
  • Rumber Flooring for 3H Slant Load
    2 x 8 in. pressure pine flooring with mats is a standard feature. You may change to Rumber which is a rubber and made from recycled tires. The dimensions of each board is 2 x 8 in and it is tongue and groove interlocking, solid rubber material.  It is a soft ride with minimal noise and vibration. The neat thing about Rumber is it doesnt require mats which have to normally be removed to keep your trailer clean.
    2 x 8 in. pressure pine flooring with mats is a standard feature. You may change to Rumber which is a rubber and made from recycled tires. The dimensions of each board is 2 x 8 in and it is tongue and groove interlocking, solid rubber material. It is a soft ride with minimal noise and vibration. The neat thing about Rumber is it doesnt require mats which have to normally be removed to keep your trailer clean.
    Video ($2144)
  • Rumber Flooring for 4H Slant Load
    2 x 8 in. pressure pine flooring with mats is a standard feature. You may change to Rumber which is a rubber and made from recycled tires. The dimensions of each board is 2 x 8 in and it is tongue and groove interlocking, solid rubber material.  It is a soft ride with minimal noise and vibration. The neat thing about Rumber is it doesnt require mats which have to normally be removed to keep your trailer clean.
    2 x 8 in. pressure pine flooring with mats is a standard feature. You may change to Rumber which is a rubber and made from recycled tires. The dimensions of each board is 2 x 8 in and it is tongue and groove interlocking, solid rubber material. It is a soft ride with minimal noise and vibration. The neat thing about Rumber is it doesnt require mats which have to normally be removed to keep your trailer clean.
    Video ($2499)

Get More Info! You can click on the title of each option to view details and photos for each option.

  • 15.2 hands or under
    A standard stall will comfortably fit up to a 15.2 hand, 1100 lb smaller breed horse such as an arabian
    A standard stall will comfortably fit up to a 15.2 hand, 1100 lb smaller breed horse such as an arabian
    ($0)
  • 15.2 Up to a 16.2 Hand 2 horse ($1241)
    If your horses are larger than 15.2 hands 1,100 lbs adding 1' of overall trailer length to one stall will fit up to a 16.2 Thoroughbred, 1200 lb range.

Specify # of horses over 15.2 for this option, not to exceed 16.2
    If your horses are larger than 15.2 hands 1,100 lbs adding 1' of overall trailer length to one stall will fit up to a 16.2 Thoroughbred, 1200 lb range. Specify # of horses over 15.2 for this option, not to exceed 16.2
  • 16.2 hands up to 17 hands 2H
    A standard size stall will fit up to a 15.2 hand horse, 1100 lb range smaller breed.  This option includes 1' added to one stall, 90 inch exterior box width for additional nose to butt length in place of the standard as well as 7 ft 6 inch height.  An axle upgrade is also required and included in the option price.  With these dimensions, you can fit up to a 17 Hand horse.
    A standard size stall will fit up to a 15.2 hand horse, 1100 lb range smaller breed. This option includes 1' added to one stall, 90 inch exterior box width for additional nose to butt length in place of the standard as well as 7 ft 6 inch height. An axle upgrade is also required and included in the option price. With these dimensions, you can fit up to a 17 Hand horse.
    ($6501)
  • 17 hand up to 17.2 hand 2 Horse
    A standard size stall will fit up to a 15.2 hand horse, 1100 lb range smaller breed.  This option includes 1' added to one stall, 96 inch exterior box width for additional nose to butt length in place of the standard as well as 7 ft 8 inch height.  An axle upgrade is also required and included in the option price.  With these dimensions, you can fit up to a 17.2 Hand Warmblood
    A standard size stall will fit up to a 15.2 hand horse, 1100 lb range smaller breed. This option includes 1' added to one stall, 96 inch exterior box width for additional nose to butt length in place of the standard as well as 7 ft 8 inch height. An axle upgrade is also required and included in the option price. With these dimensions, you can fit up to a 17.2 Hand Warmblood
    ($9582)
  • Over 17.2 Hand 2 horse
    A standard size stall will fit up to a 15.2 hand horse, 1100 lb range smaller breed.  This option includes 15 inches added to one stall, maximum legal width of 102 inch exterior box width for additional nose to butt length in place of the standard as well as 7 ft 8 inch height.  An axle upgrade is also required and included in the option price.  These dimensions will comfortably fit a horse 17.2 hands and larger.
    A standard size stall will fit up to a 15.2 hand horse, 1100 lb range smaller breed. This option includes 15 inches added to one stall, maximum legal width of 102 inch exterior box width for additional nose to butt length in place of the standard as well as 7 ft 8 inch height. An axle upgrade is also required and included in the option price. These dimensions will comfortably fit a horse 17.2 hands and larger.
    ($11878)
  • 15.2 Up to a 16.2 Hand 3 horse ($1241)
    If your horses are larger than 15.2 hands 1,100 lbs adding 1' of overall trailer length to one stall will fit up to a 16.2 Thoroughbred, 1200 lb range.

Specify # of horses over 15.2 for this option, not to exceed 16.2
    If your horses are larger than 15.2 hands 1,100 lbs adding 1' of overall trailer length to one stall will fit up to a 16.2 Thoroughbred, 1200 lb range. Specify # of horses over 15.2 for this option, not to exceed 16.2
  • 16.2 hands up to 17 hands 3H
    A standard size stall will fit up to a 15.2 hand horse, 1100 lb range smaller breed.  This option includes 1' added to one stall, 90 inch exterior box width for additional nose to butt length in place of the standard as well as 7 ft 6 inch height.  An axle upgrade is also required and included in the option price.  With these dimensions, you can fit up to a 17 Hand horse.
    A standard size stall will fit up to a 15.2 hand horse, 1100 lb range smaller breed. This option includes 1' added to one stall, 90 inch exterior box width for additional nose to butt length in place of the standard as well as 7 ft 6 inch height. An axle upgrade is also required and included in the option price. With these dimensions, you can fit up to a 17 Hand horse.
    ($7078)
  • 17 hand up to 17.2 hand 3 Horse
    A standard size stall will fit up to a 15.2 hand horse, 1100 lb range smaller breed.  This option includes 1' added to one stall, 96 inch exterior box width for additional nose to butt length in place of the standard as well as 7 ft 8 inch height.  An axle upgrade is also required and included in the option price.  With these dimensions, you can fit up to a 17.2 Hand Warmblood
    A standard size stall will fit up to a 15.2 hand horse, 1100 lb range smaller breed. This option includes 1' added to one stall, 96 inch exterior box width for additional nose to butt length in place of the standard as well as 7 ft 8 inch height. An axle upgrade is also required and included in the option price. With these dimensions, you can fit up to a 17.2 Hand Warmblood
    ($10492)
  • Over 17.2 Hand 3 horse
    A standard size stall will fit up to a 15.2 hand horse, 1100 lb range smaller breed.  This option includes 15 inches added to one stall, maximum legal width of 102 inch exterior box width for additional nose to butt length in place of the standard as well as 7 ft 8 inch height.  An axle upgrade is also required and included in the option price.  These dimensions will comfortably fit a horse 17.2 hands and larger.
    A standard size stall will fit up to a 15.2 hand horse, 1100 lb range smaller breed. This option includes 15 inches added to one stall, maximum legal width of 102 inch exterior box width for additional nose to butt length in place of the standard as well as 7 ft 8 inch height. An axle upgrade is also required and included in the option price. These dimensions will comfortably fit a horse 17.2 hands and larger.
    ($12967)
  • 15.2 Up to a 16.2 Hand 4 horse ($1241)
    If your horses are larger than 15.2 hands 1,100 lbs adding 1' of overall trailer length to one stall will fit up to a 16.2 Thoroughbred, 1200 lb range.

Specify # of horses over 15.2 for this option, not to exceed 16.2
    If your horses are larger than 15.2 hands 1,100 lbs adding 1' of overall trailer length to one stall will fit up to a 16.2 Thoroughbred, 1200 lb range. Specify # of horses over 15.2 for this option, not to exceed 16.2
  • 16.2 hands up to 17 hands 4 Horse
    A standard size stall will fit up to a 15.2 hand horse, 1100 lb range smaller breed.  This option includes 1' added to one stall, 90 inch exterior box width for additional nose to butt length in place of the standard as well as 7 ft 6 inch height.  With these dimensions, you can fit up to a 17 Hand Warmblood max.
    A standard size stall will fit up to a 15.2 hand horse, 1100 lb range smaller breed. This option includes 1' added to one stall, 90 inch exterior box width for additional nose to butt length in place of the standard as well as 7 ft 6 inch height. With these dimensions, you can fit up to a 17 Hand Warmblood max.
    ($6364)
  • 17 hand up to 17.2 hand 4 Horse
    A standard size stall will fit up to a 15.2 hand horse, 1100 lb range smaller breed.  This option includes 1' added to one stall, 96 inch exterior box width for additional nose to butt length in place of the standard as well as 7 ft 8 inch height.  An axle upgrade is also required and included in the option price.  With these dimensions, you can fit up to a 17.2 Hand Warmblood Max
    A standard size stall will fit up to a 15.2 hand horse, 1100 lb range smaller breed. This option includes 1' added to one stall, 96 inch exterior box width for additional nose to butt length in place of the standard as well as 7 ft 8 inch height. An axle upgrade is also required and included in the option price. With these dimensions, you can fit up to a 17.2 Hand Warmblood Max
    ($11239)
  • Over 17.2 Hand 4 horse
    A standard size stall will fit up to a 15.2 hand horse, 1100 lb range smaller breed.  This option includes 15 inches added to one stall, maximum legal width of 102 inch exterior box width for additional nose to butt length in place of the standard as well as 7 ft 8 inch height.  An axle upgrade is also required and included in the option price.  These dimensions will comfortably fit a horse 17.2 hands and larger.
    A standard size stall will fit up to a 15.2 hand horse, 1100 lb range smaller breed. This option includes 15 inches added to one stall, maximum legal width of 102 inch exterior box width for additional nose to butt length in place of the standard as well as 7 ft 8 inch height. An axle upgrade is also required and included in the option price. These dimensions will comfortably fit a horse 17.2 hands and larger.
    ($16016)

Get More Info! You can click on the title of each option to view details and photos for each option.

  • Air Conditioner
    13,500 BTU with heat strip roof mount. Includes electrical panel box and additional roof bracing.
    13,500 BTU with heat strip roof mount. Includes electrical panel box and additional roof bracing.
    ($2793)
  • Two-burner Stainless Cook Top
    Two-burner Stainless Cook Top.  Includes range hood with built in tank monitor control panel.  (tank monitors tell you how much water is in your black/gray and fresh water tank.  It also indicates battery power)
    Two-burner Stainless Cook Top. Includes range hood with built in tank monitor control panel. (tank monitors tell you how much water is in your black/gray and fresh water tank. It also indicates battery power)
    ($904)
  • Mattress
    Mattress in the bed area 4 in. foam covered. These are very comfortable and we have never had complaints about the quality of the mattress (they are firm).  The largest size that will fit in a standard trailer is 60 in. x 72 in. running length of the trailer
    Mattress in the bed area 4 in. foam covered. These are very comfortable and we have never had complaints about the quality of the mattress (they are firm). The largest size that will fit in a standard trailer is 60 in. x 72 in. running length of the trailer
    ($542)
  • microwave
    Add an RV style Microwave to your living quarters. These are designed for the abuse and movement of the road and are properly vented to avoid overheating by being mounted inside of a cabinet. Available in Black, white and gray (stainless looking color upgrade) Requires overhead cabinet at least 2 feet in length for installation.
    Add an RV style Microwave to your living quarters. These are designed for the abuse and movement of the road and are properly vented to avoid overheating by being mounted inside of a cabinet. Available in Black, white and gray (stainless looking color upgrade) Requires overhead cabinet at least 2 feet in length for installation.
    ($486)
  • Furnace
    All living quarter trailers come standard with a roof mount air conditioner which includes a heat strip.  Heat strips work well in mild climates and it is necessary that you have a power source (electricity) to operate heat strips.  In colder climates, a furnace is an nice option to have.  It operates using propane and battery power and will quickly warmp up your interior even in cold weather. If you are doing cold weather camping, a furnace is not a bad thing to have.
    All living quarter trailers come standard with a roof mount air conditioner which includes a heat strip. Heat strips work well in mild climates and it is necessary that you have a power source (electricity) to operate heat strips. In colder climates, a furnace is an nice option to have. It operates using propane and battery power and will quickly warmp up your interior even in cold weather. If you are doing cold weather camping, a furnace is not a bad thing to have.
    ($1376)
  • Camper door with Screen
    Change out the standard dressing room door and add a rounded corner aircraft style Camper door with a bug screen.  The screen door can be beneficial for keeping bugs out while while your dress door is open, allowing air flow.
    Change out the standard dressing room door and add a rounded corner aircraft style Camper door with a bug screen. The screen door can be beneficial for keeping bugs out while while your dress door is open, allowing air flow.
    ($814)
  • Vent with 12V Fan
    Add a 14 inch size exhaust vent with a 12 Volt fan inside your living quarters.  Popular areas include inside the bathroom or in the main living area.  (You may specify your location)or install more than one.
    Add a 14 inch size exhaust vent with a 12 Volt fan inside your living quarters. Popular areas include inside the bathroom or in the main living area. (You may specify your location)or install more than one.
    ($457)
  • Grab Handle Illuminated
    Add an illuminated grab handle beside your dress door to assist getting in and out of your trailer. Lights up at night using a fiber LED lighting system.
    Add an illuminated grab handle beside your dress door to assist getting in and out of your trailer. Lights up at night using a fiber LED lighting system.
    ($293)
  • Electric Hot Water Heater
    Your water heater operates on propane and heats up very quickly.  Add this option so you may use electricity in case you run out of propane.
    Your water heater operates on propane and heats up very quickly. Add this option so you may use electricity in case you run out of propane.
    ($280)
  • Water Spigot
    Add an outside water spigot so you can fill buckets for your horses if needed.
    Add an outside water spigot so you can fill buckets for your horses if needed.
    ($229)
  • Vent with Thermostat control and rain sensor
    These vents move a lot of air and are great for camping when you do not want to use the air conditioner. Ideal for inside your living area.  Features a thermostat control and rain sensor.
    These vents move a lot of air and are great for camping when you do not want to use the air conditioner. Ideal for inside your living area. Features a thermostat control and rain sensor.
    ($988)
  • Footage to Hang Out LQ
    Add footage to your base 4 ft short wall Hang Out package.  Includes base and overhead cabinet.
    Add footage to your base 4 ft short wall Hang Out package. Includes base and overhead cabinet.
    ($2580)
  • Refrigerator 3.0
    Add a RV style refrigerator to your living quarters. Since it operates on battery power or propane, it works well to maintain your food cold while traveling.  This option requires  at least 2 feet of base cabinet as well as Package plumbing package #3.
    Add a RV style refrigerator to your living quarters. Since it operates on battery power or propane, it works well to maintain your food cold while traveling. This option requires at least 2 feet of base cabinet as well as Package plumbing package #3.
    ($3262)
  • Cook top two burner
    Two-burner cook top black or white (available in stainless upgrade).  requires 2 foot base cabinet and plumbing package #3.
    Two-burner cook top black or white (available in stainless upgrade). requires 2 foot base cabinet and plumbing package #3.
    ($904)
  • Furnace
    works well for staying warm in the winter time.  Requires base cabinets and plumbing package #3 along with electrical package.
    works well for staying warm in the winter time. Requires base cabinets and plumbing package #3 along with electrical package.
    ($1376)

Your Trailer So Far


Color:

Graphic:

Options:


Total:

*Not including taxes or shipping

Financing Calculator

Number of Payments
Interest Rate
Payment:

© 2022 | All Rights Reserved
