You've chosen the following horse trailer model:

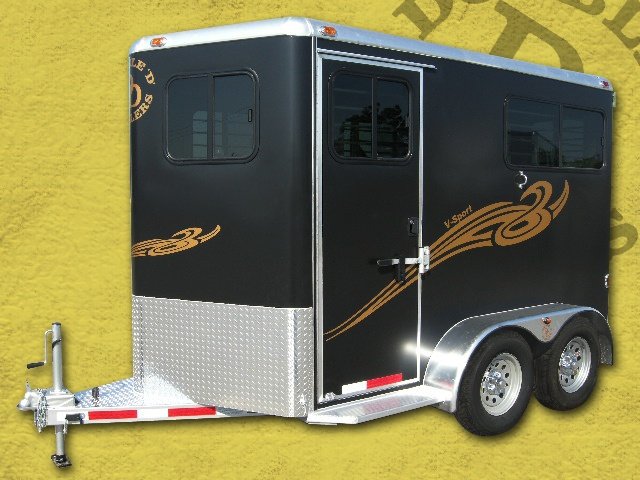

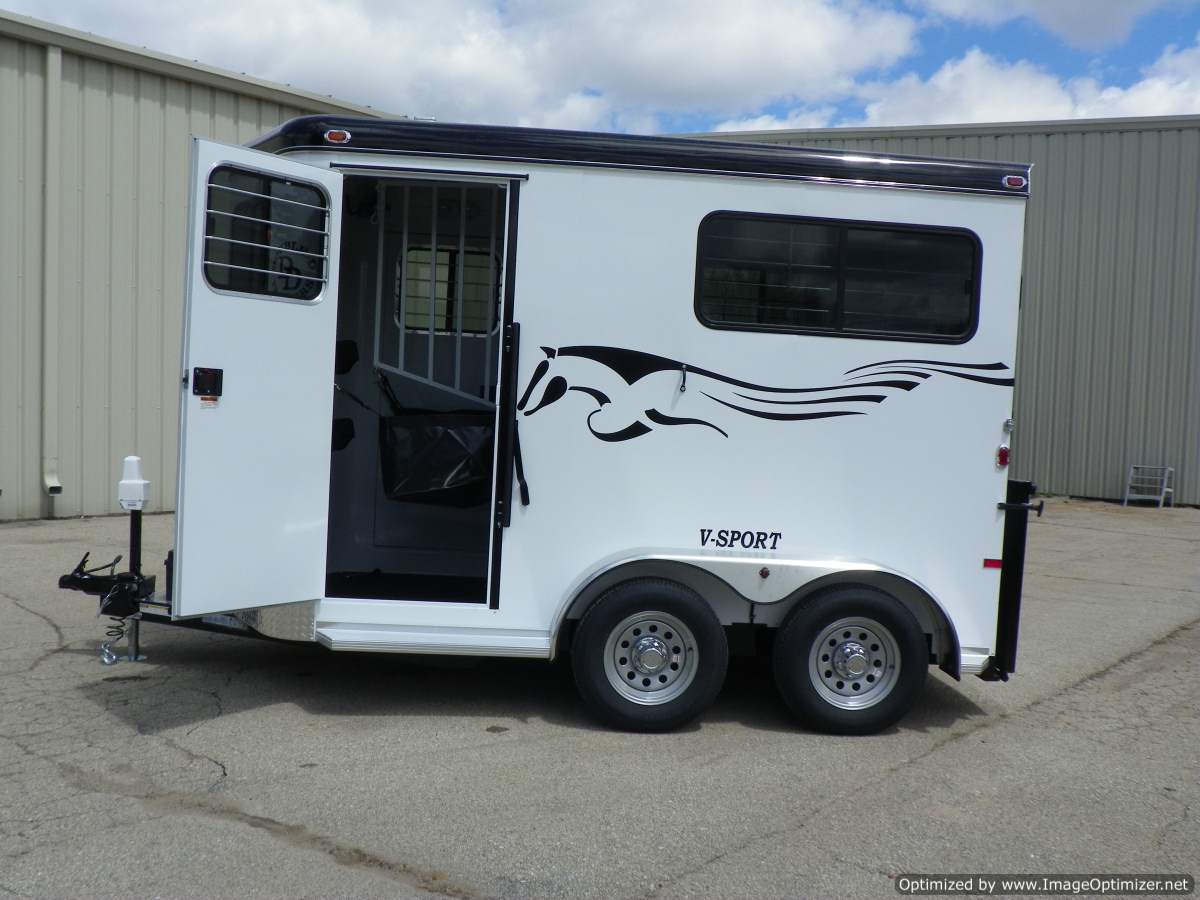

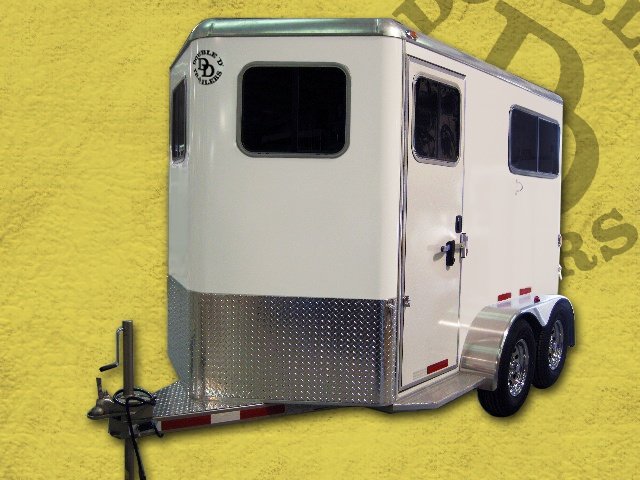

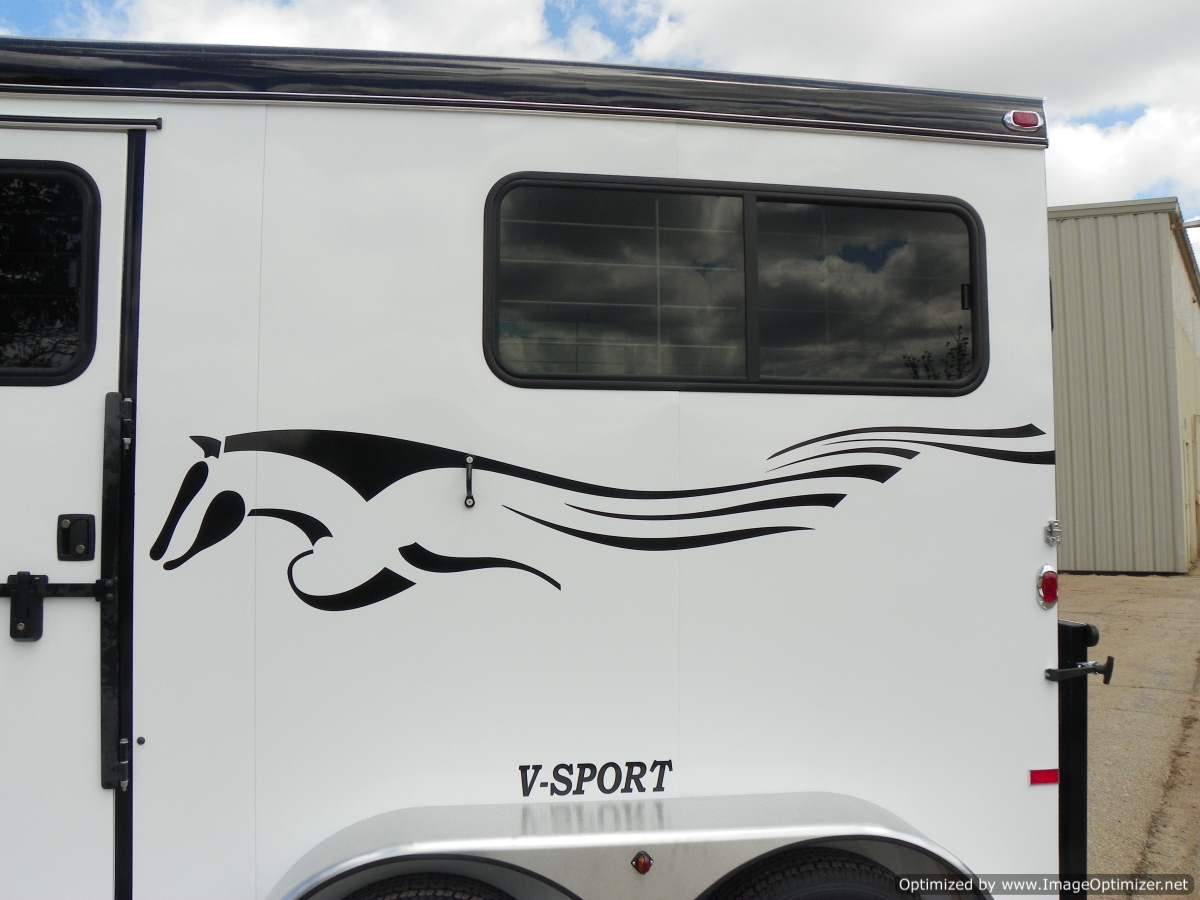

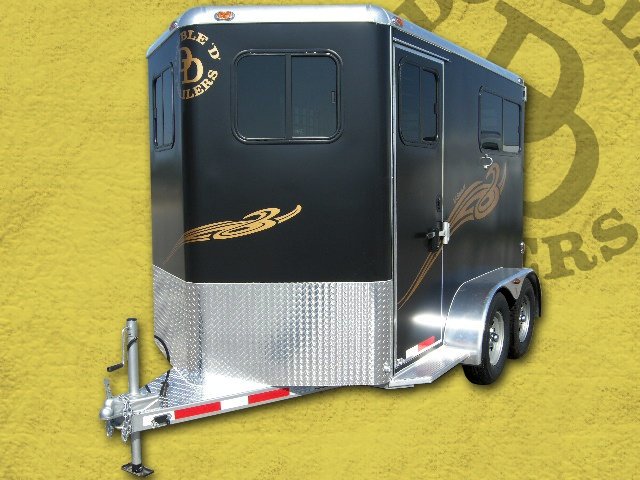

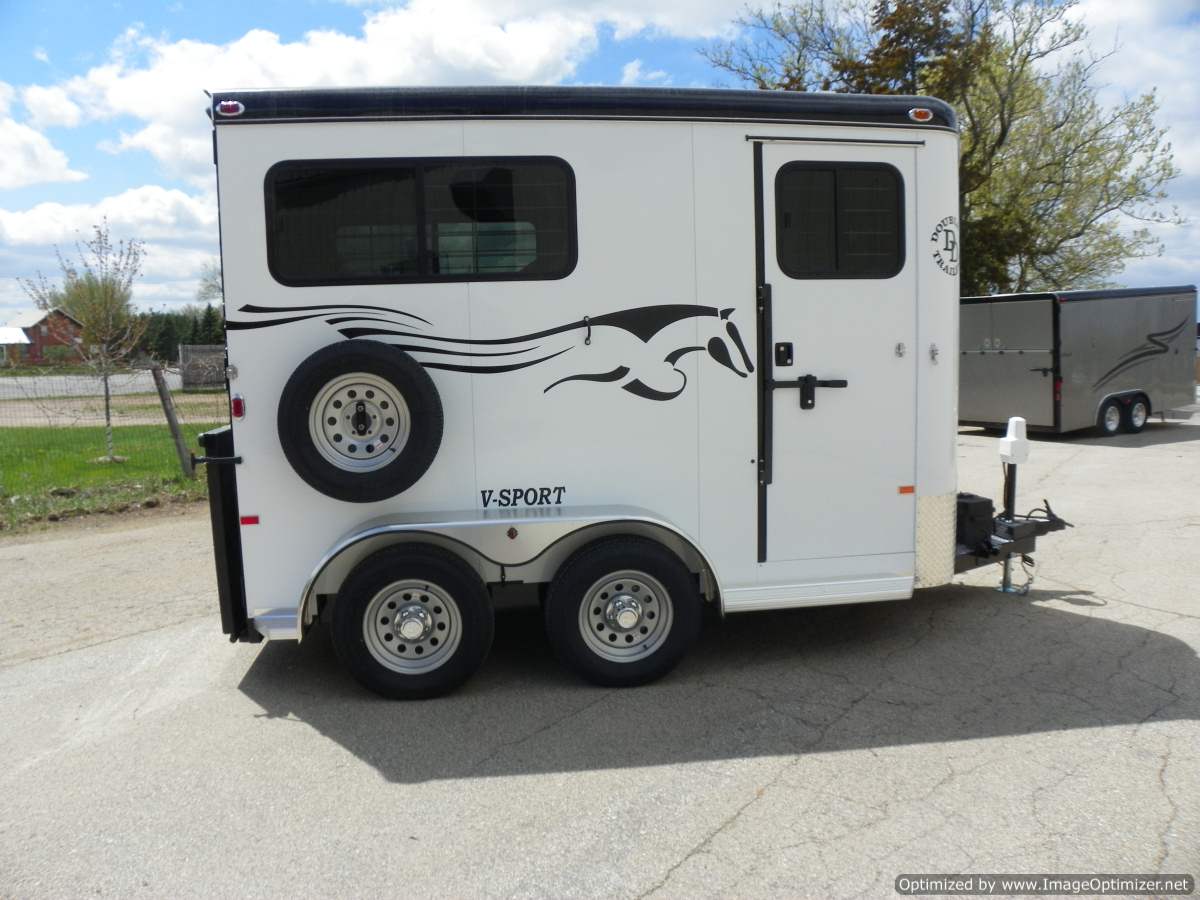

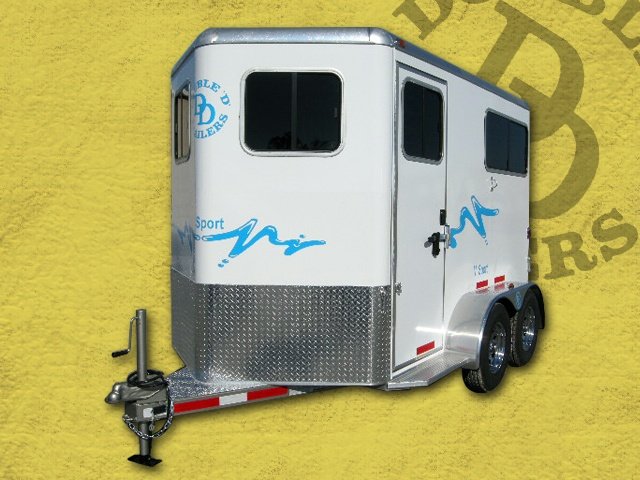

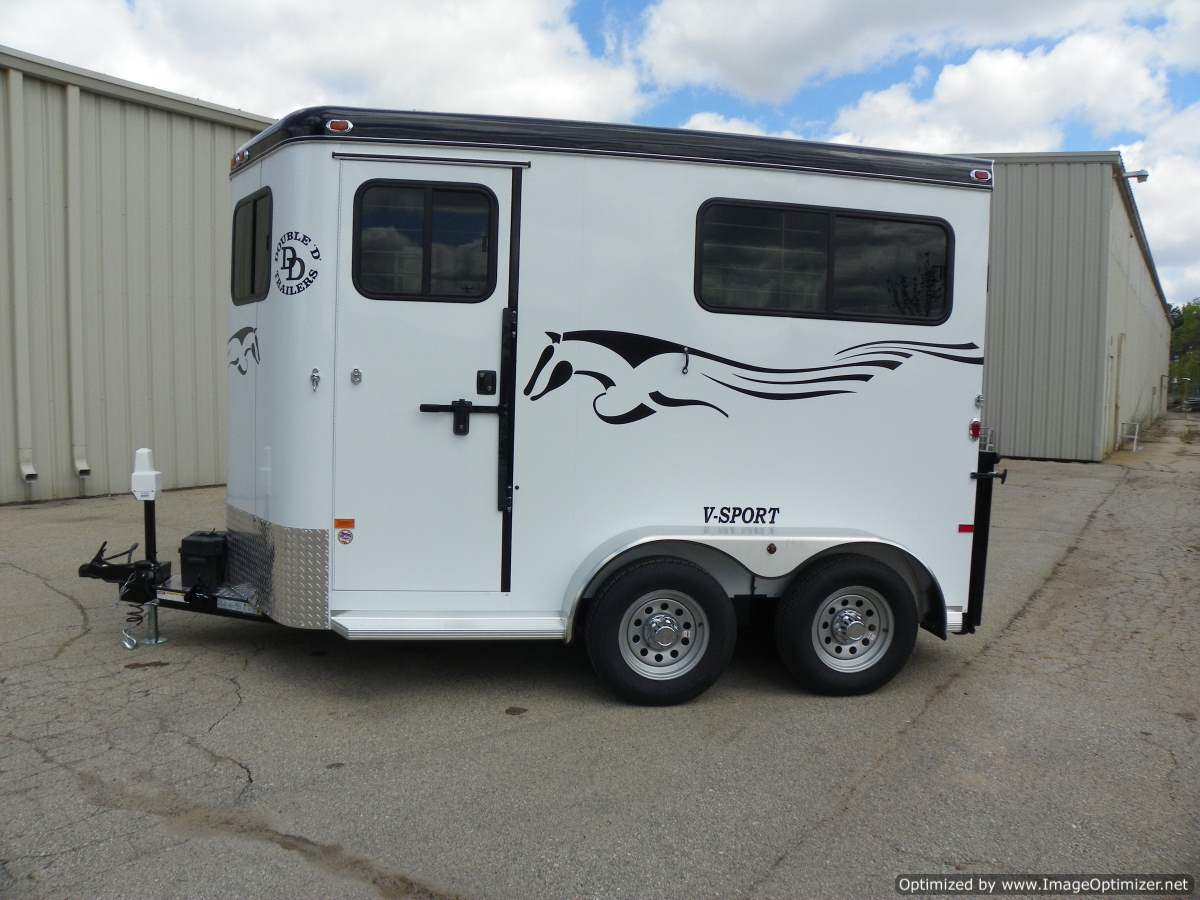

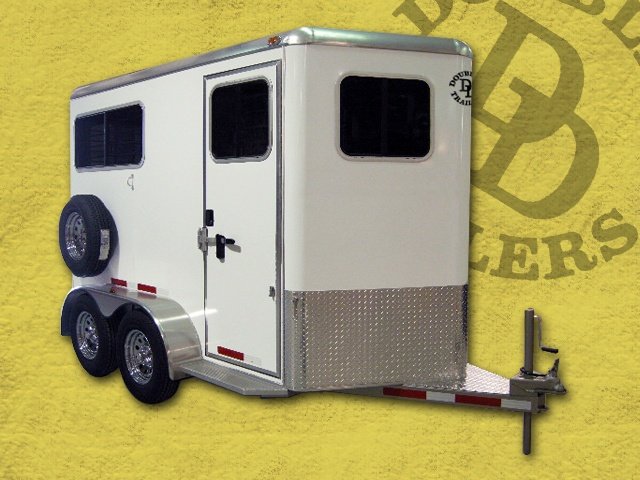

Two Horse Bumper Pull Straight Load (V-Sport)
When it comes to straight load bumper pull horse trailers, this is one of the most classic designs you’ll see. But the safety features we cram into this V-Sport 2 horse trailer are decidedly uncommon.
Unlike similar models from other brands, our V-Sport trailer comes with Z-Frame technology for a lightweight and strong exterior. Double layer insulation and a SafeBump fiber-composite leak-proof roof mean your horse enjoy comfortable temperatures regardless of the season.
The V-sport two horse bumper pull trailer has two straight load stalls with a V-nose for maximum space and aerodynamics. It comes with an optional pair of saddle racks at the trailer’s forward tip.
Plus, it comes standard with lockable doors, SafeKick walls, and a horse friendly interior. It’s a delightful little trailer for any horseman or horsewoman!
A Trailer Easy to Tow with Most Any Vehicle!
Whether you’re making a quick trip to the vet’s office or headed away for a week-long show, the V-Sport is extremely versatile. Since it weighs only 2700 lbs, you will be able to tow with most any vehicle. The shorter wheel base means it can easily be maneuvered by even the newest of drivers.
The rear door configuration can be configured several different ways for safety. Choose from two full-height doors with a step-up, a ramp with top Dutch doors, or full height rear doors with and outside ramp. We recommend the last option because it provides an extra layer of protection in the case of a rear end collision.

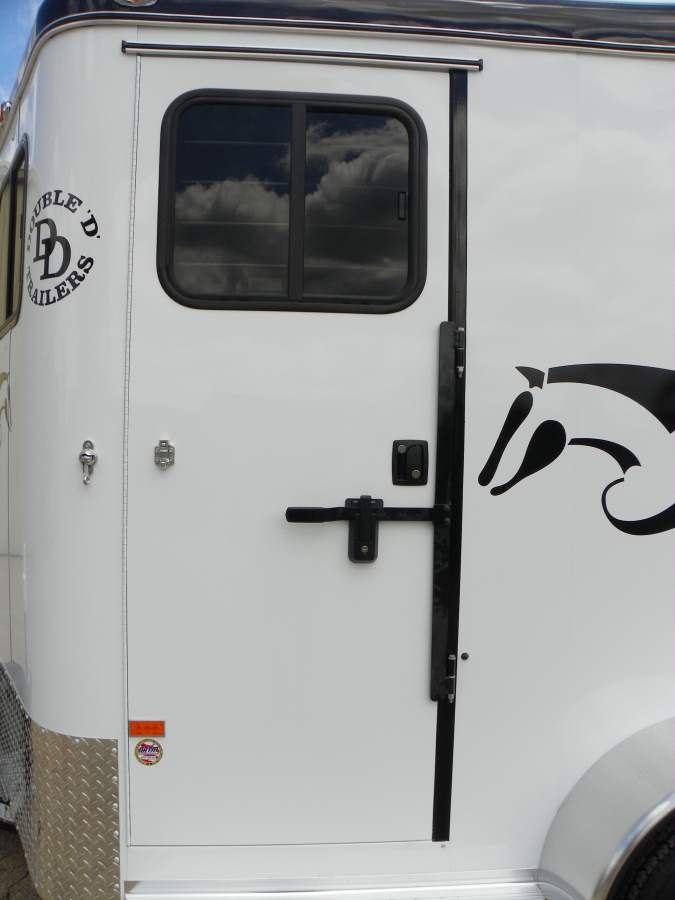

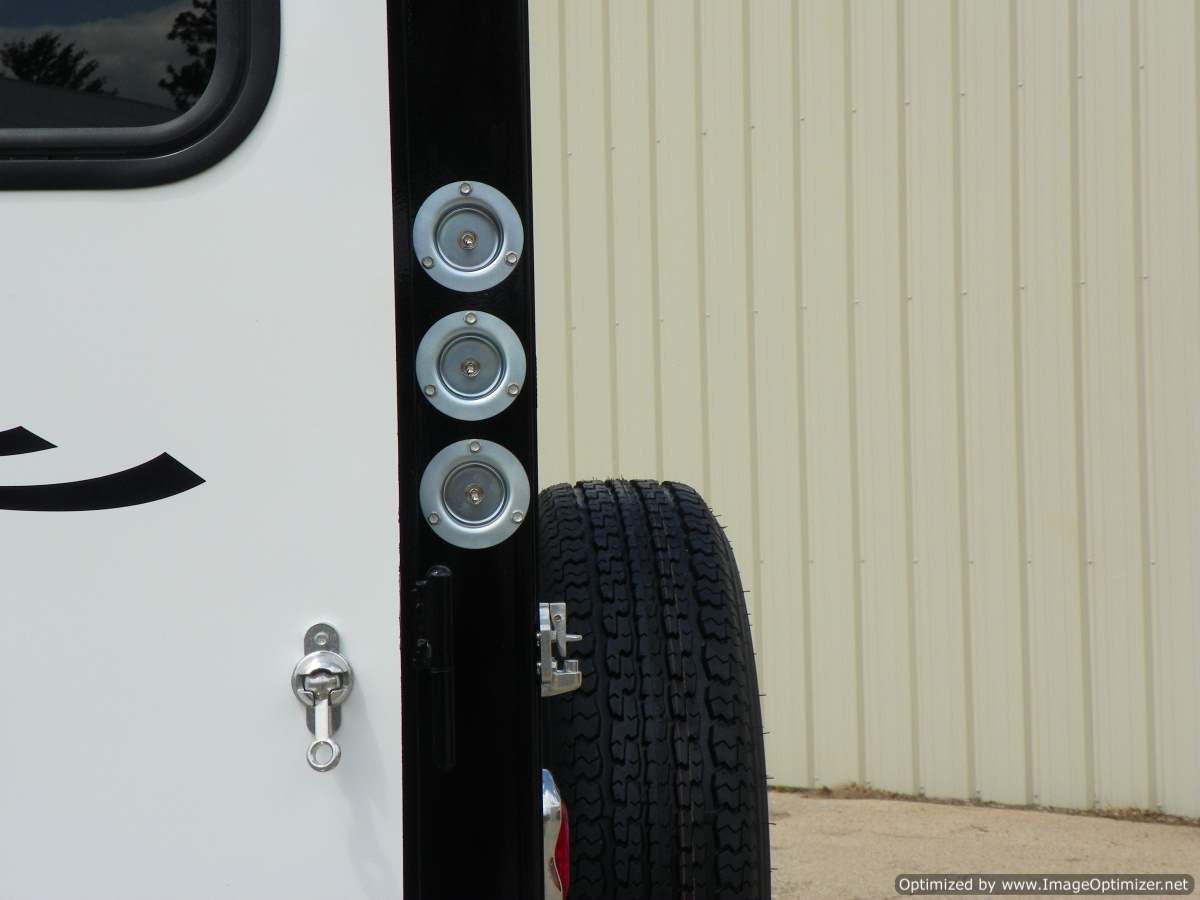

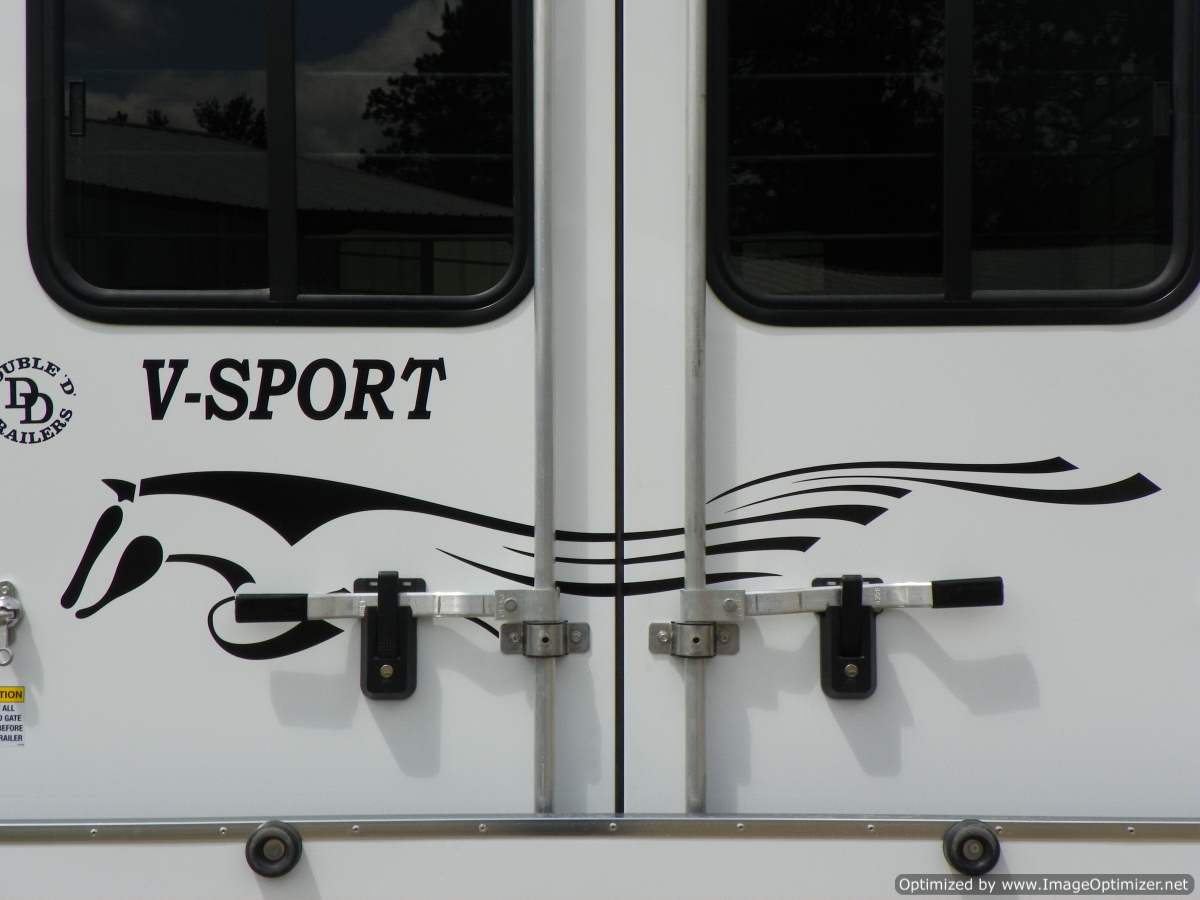

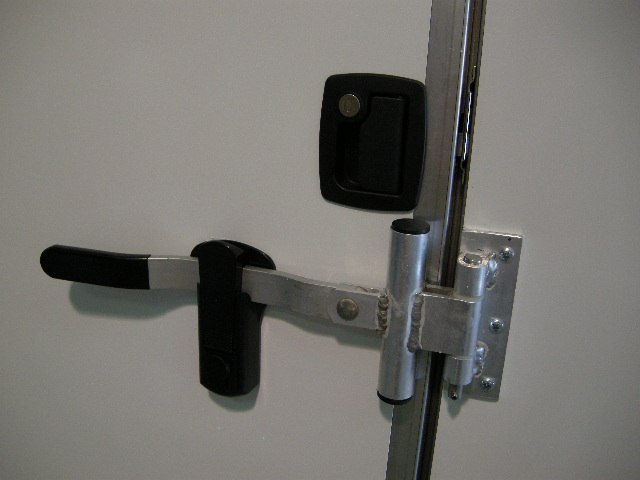

As a final note on towing, this model comes with lockable rear and side entry doors. This gives you added security, so you can be confident in leaving valuable equipment inside your trailer while away.
Customize the Trailer to Fit Your Preferences
As with all of our trailers, the V-Sport two horse bumper pull trailer can be fully customized to match you and your horse’s personality. Many of our customers will choose to paint the exterior trim of their trailer a fun color to match their tow vehicle or farm colors – red, purple, blue – we’ve seen it all!
You can also customize the size of the horse stalls to match the specific sizes of your two horses. The V-Sport comes standard at 72” wide with a 7’6” height. This works well for horses up to 16.2 hands. However, if you have larger horses – such as warmbloods – the height and width of the trailer can easily be increased.
This model only comes with a forward facing orientation, but you may want to check out our popular SafeTack slant load models if you are looking for a reverse load trailer.
A Horse Friendly Design Makes for Easier Loading
Usually, there’s a very good reason why your horse doesn’t want to load onto a trailer. These animals are naturally claustrophobic and they see a horse trailer as a big scary metal box – a place they will be trapped and uncomfortable.
In order to reduce stress on your horses, we’ve taken several measures to make the V-Sport two horse trailer more horse friendly:
- We use a rivet-free design which reduces trailer noise while driving on the highway.
- We paint the inside of the trailer white for a bright and open interior.
- Our insulated walls and roof help control the temperature much better than single-layered aluminum horse trailers.

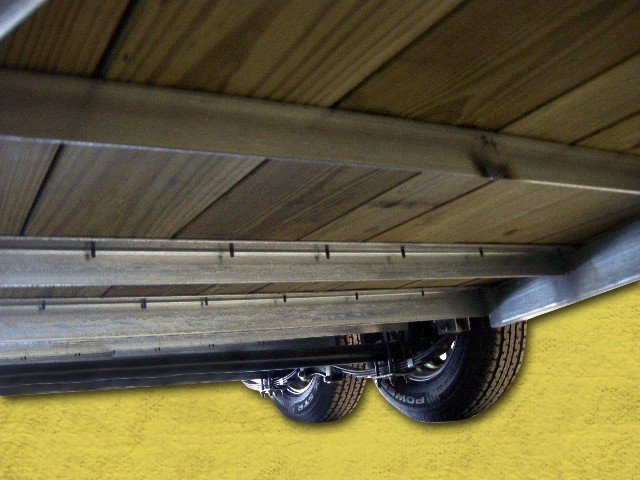

We use treated pine boards or synthetic Rumber flooring to reduce heat, noise, and vibration transfer up from the roadway.- We install tubular head dividers and windows for maximum air and light flow.

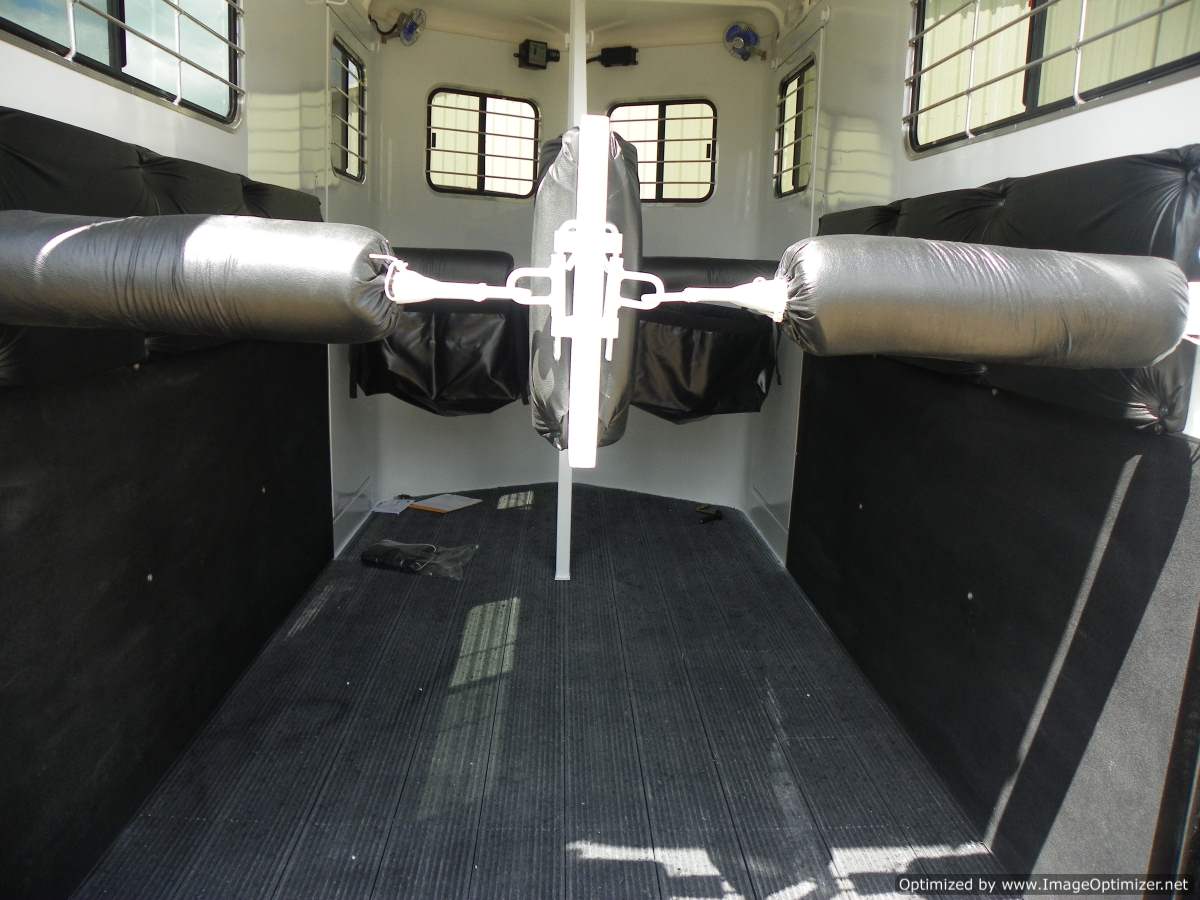

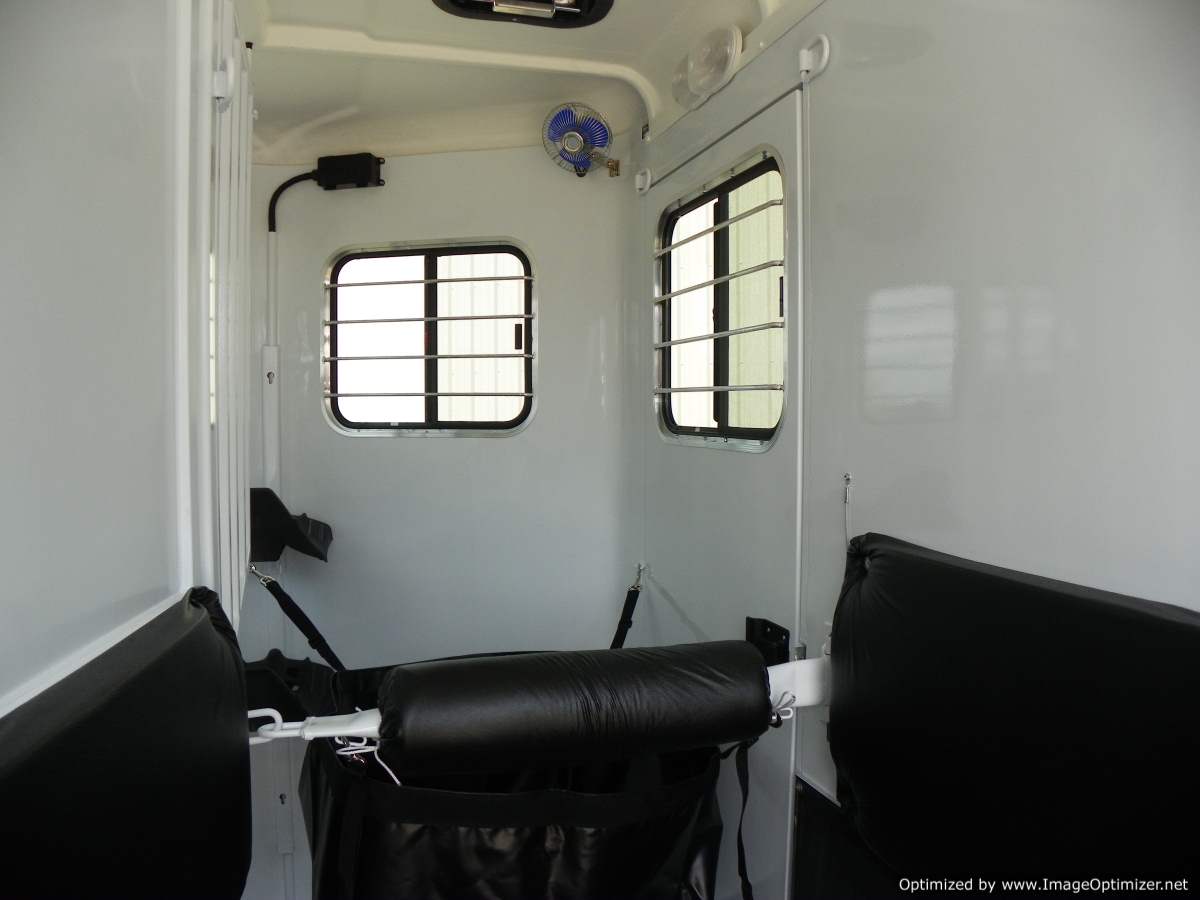

- We have well-padded butt and chest bars – along with 2” handmade padding on the center divider.

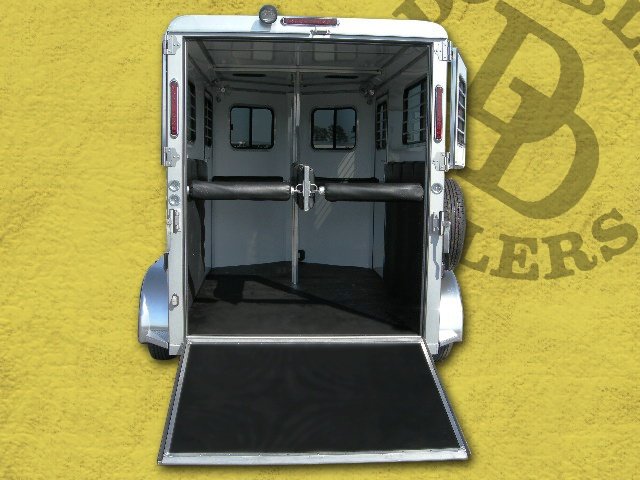

- Our ramps are attached at a lower angle making for an easier walk up into the trailer.

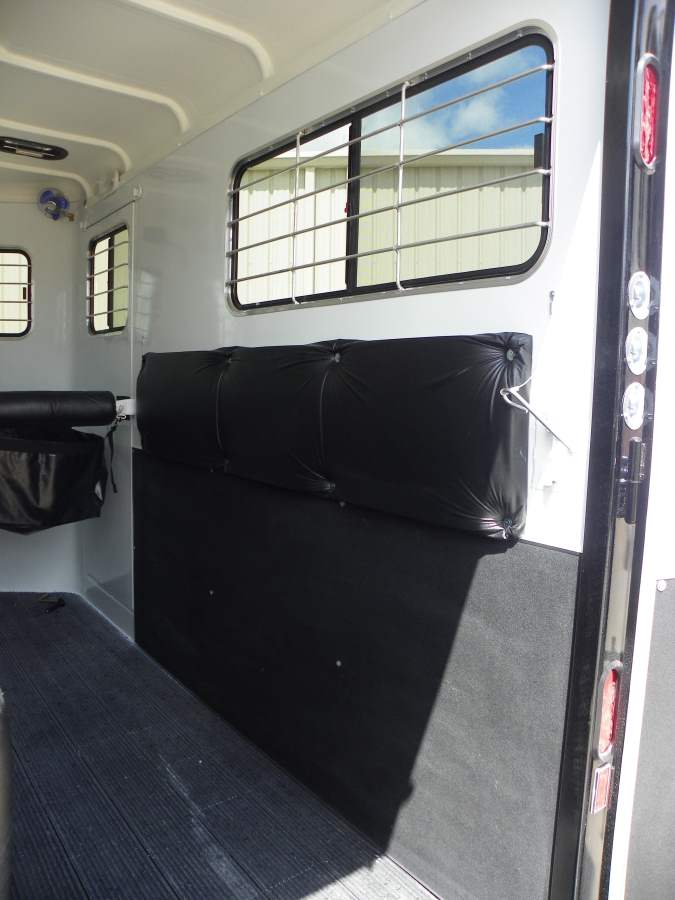

- Our SafeKick walls flex when kicked to cushion your horse’s delicate legs.
All put together, these features set our trailers apart from other 2 horse trailers on the market. Best of all, every horse trailer is custom built-to-order. Once your trailer is complete, it can be delivered directly to your home or farm for one low flat-rate fee.
If you’re ready to start designing your very own V-Sport two horse trailer, then click “Customize Your Trailer” below. The process is easy… and dare we say… fun! Brad is on hand to answer any questions you may have.
Want options? We've got many. Customize this trailer now with options.
Specifications
| Weight (without added options) | 2780 lbs |
| Skin | 16 Gauge Galvalite strong and safe; aluminum exterior |
| Overall Box Length | 12' |
| Overall Trailer Length | 14' 10" |
| Stall Length | 7' |
| Head Area | 5' |
| Inside Height | 7'6" |
| Coupler | 2 5/16" ball |

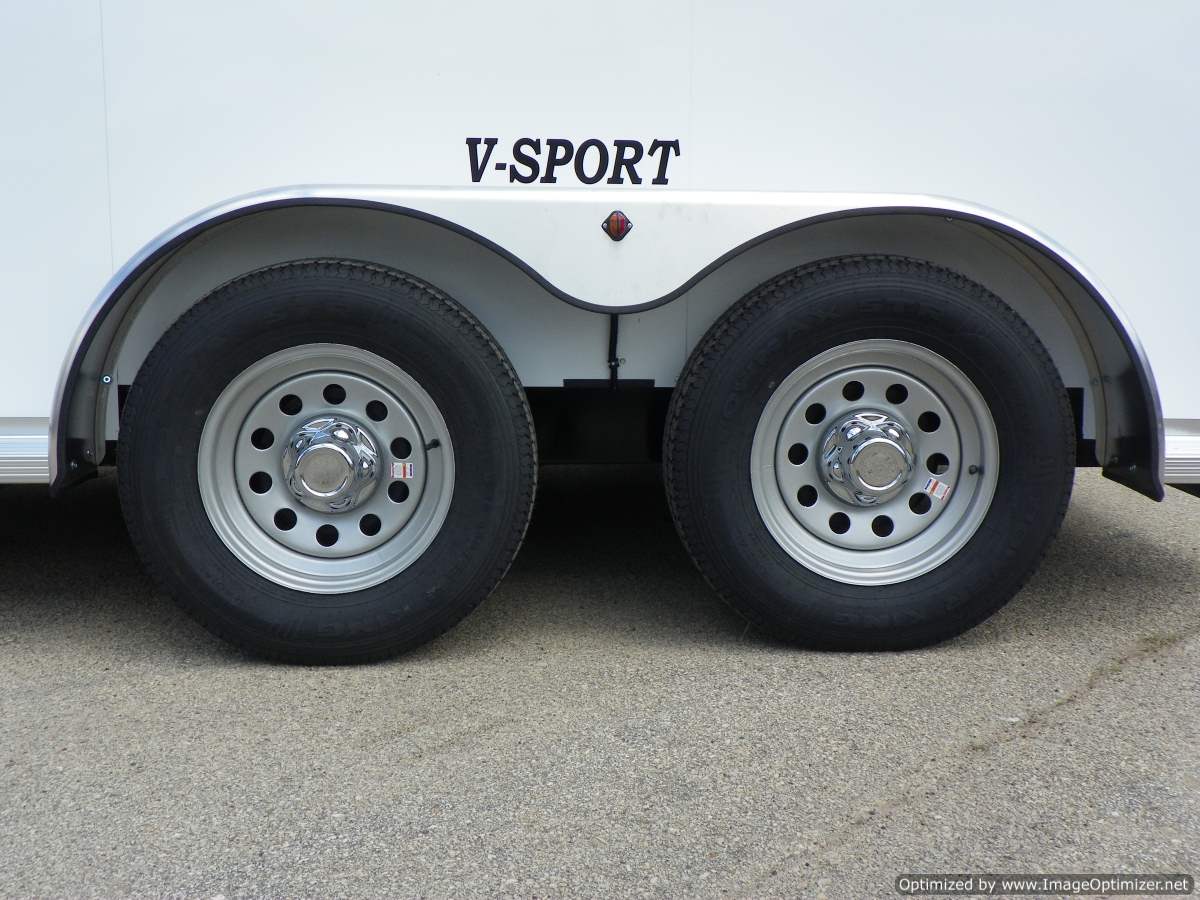

| Wheels | Powder coated gray, optional aluminum |
| Tire Size | 205/75R15 (C) Radial |
| Brakes | 4 wheel |
| LED Turn Signal Lights on Rear | one per side standard |
| Saddle Racks | Optional |
| Bridle Hooks | Optional |
| Interior Tie Rings per Stall | 1 |
| Exterior Tie Rings per horse | 1 |
| Lights in Horse Area on remote switch | 2 |
Features
- Z Frame Technology

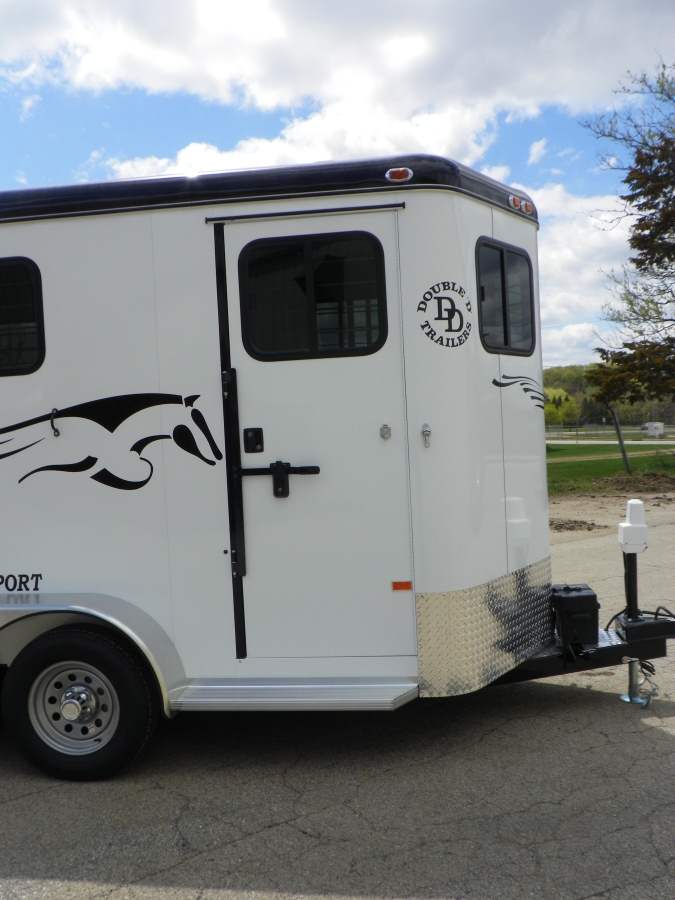

- 30" Escape doors on both sides with Safety latches
- EZ Lube durable never adjust brakes

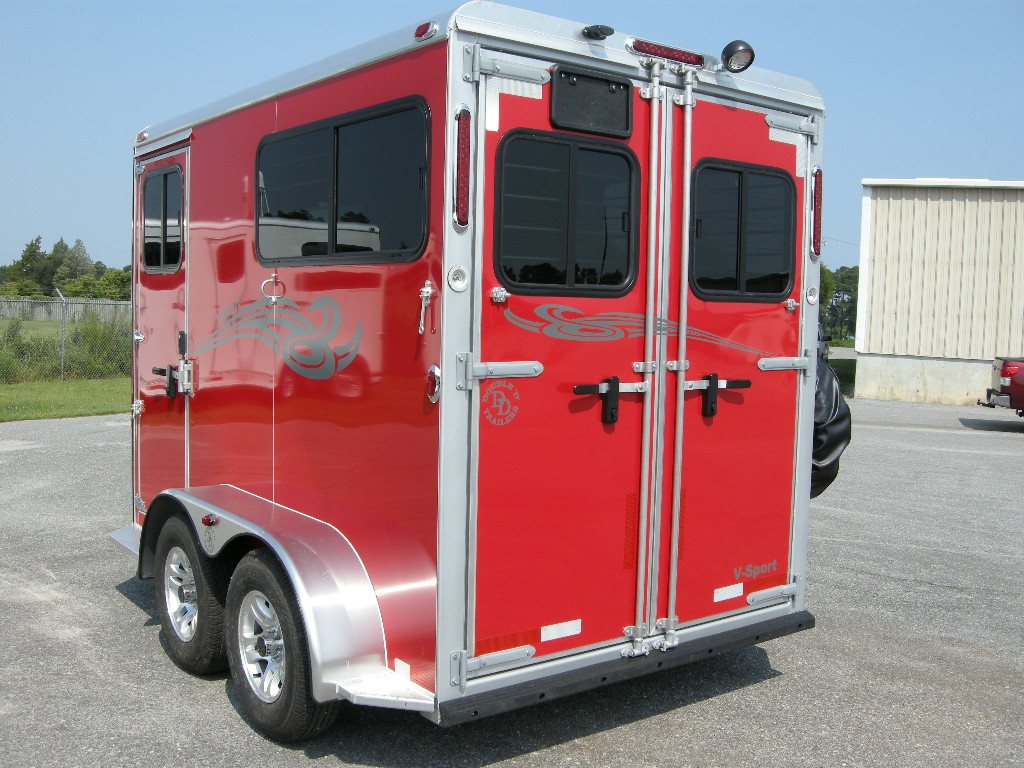

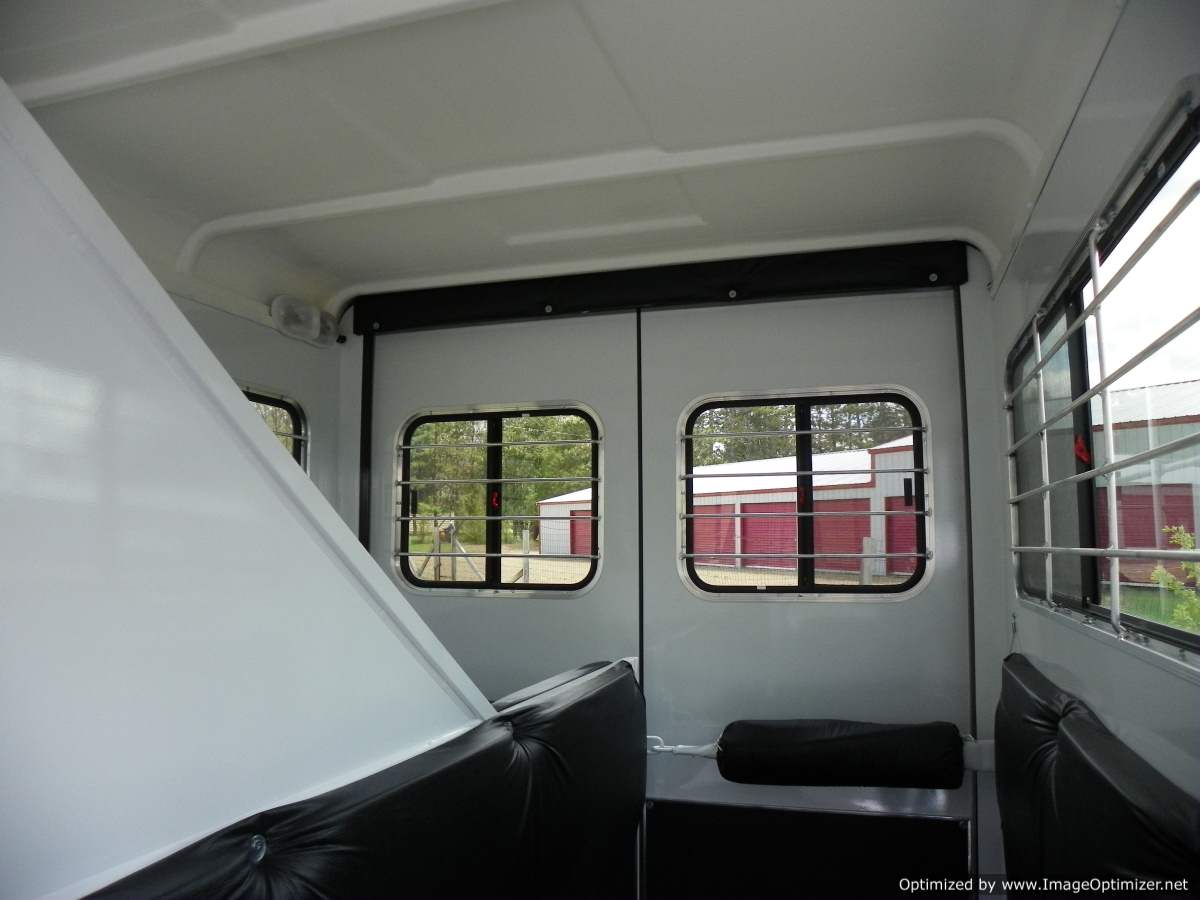

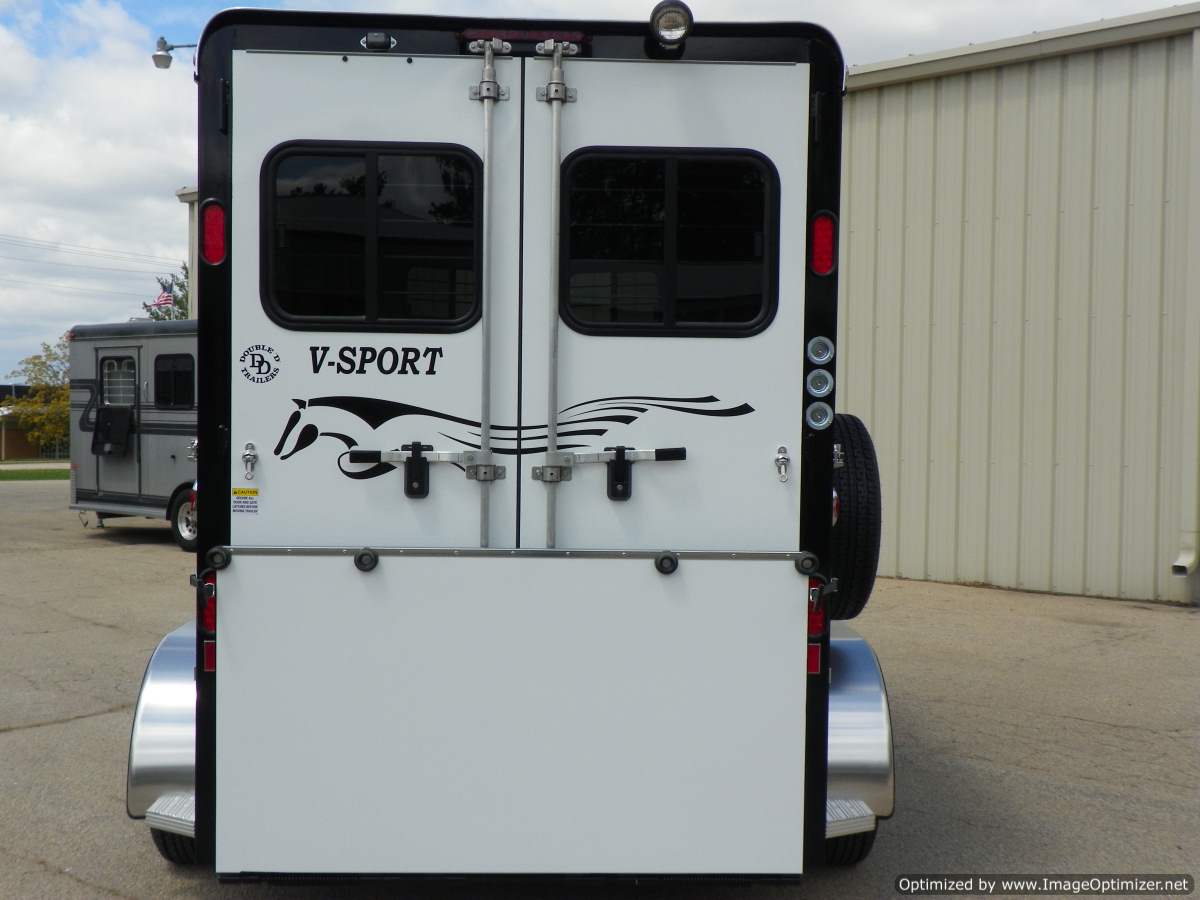

- Full Height rear doors with windows, step up
- 18” Diamond Plate Gravel Guard at Nose
- Running board steps down both sides
- Mat in Horse Area
- Side Wind Jack
- Marker Lights on Fender
- One Piece butt and breast bar pins with safety holder

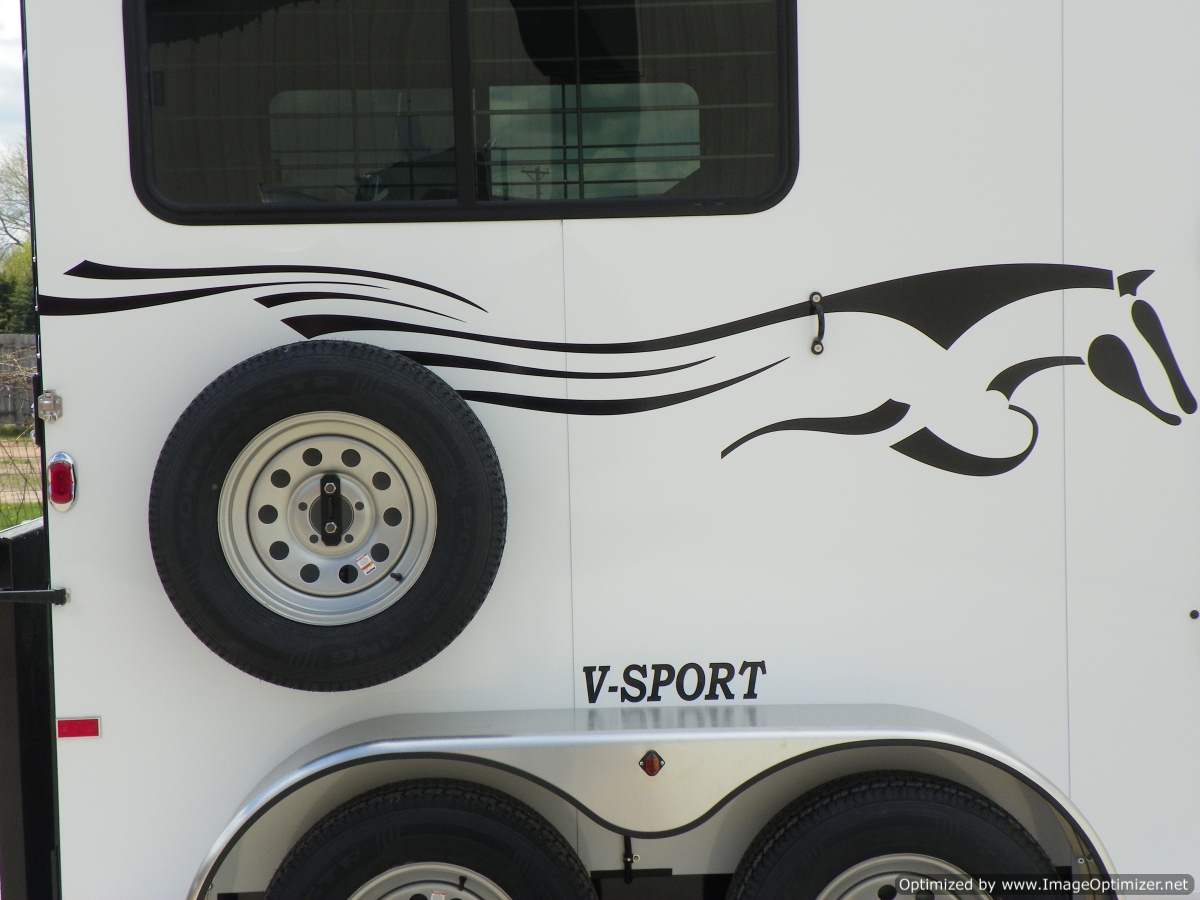

- Spare Tire mounted inside

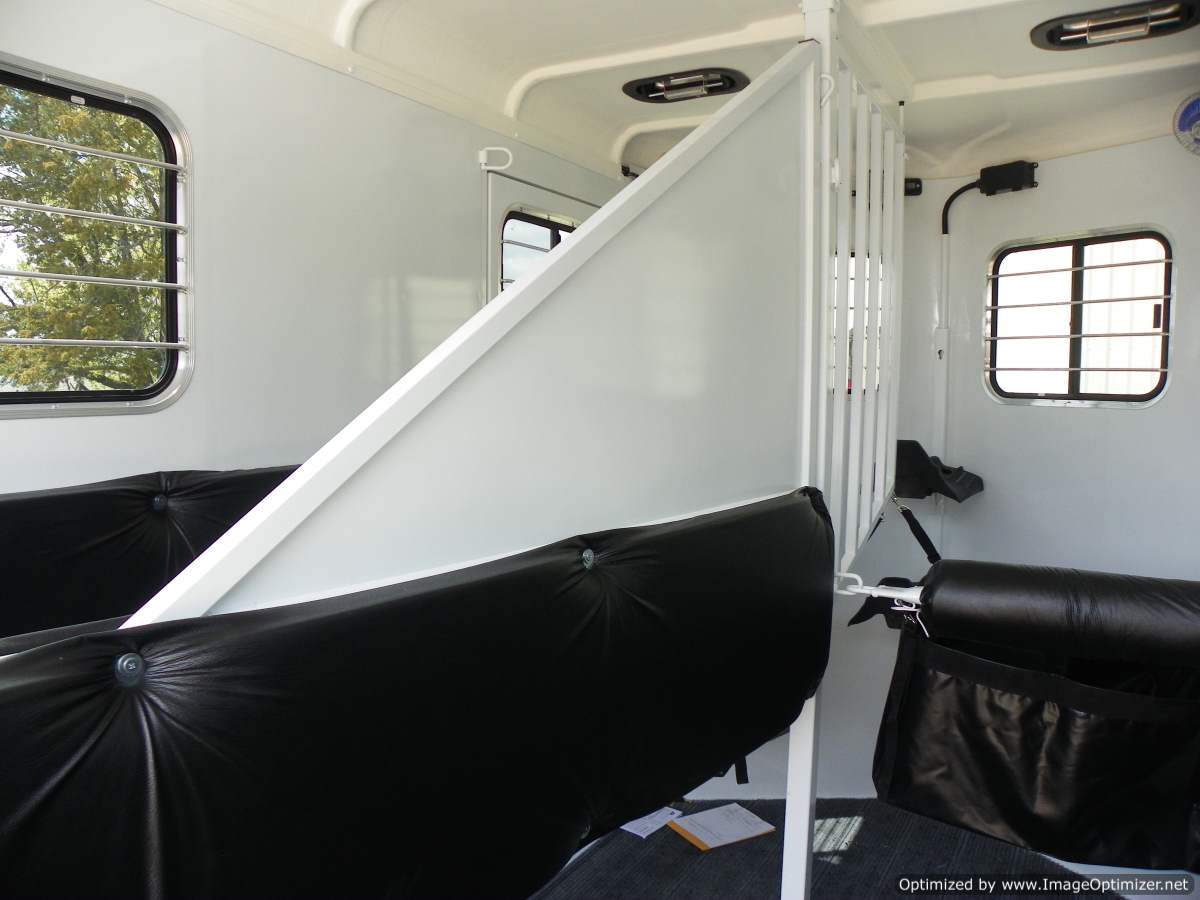

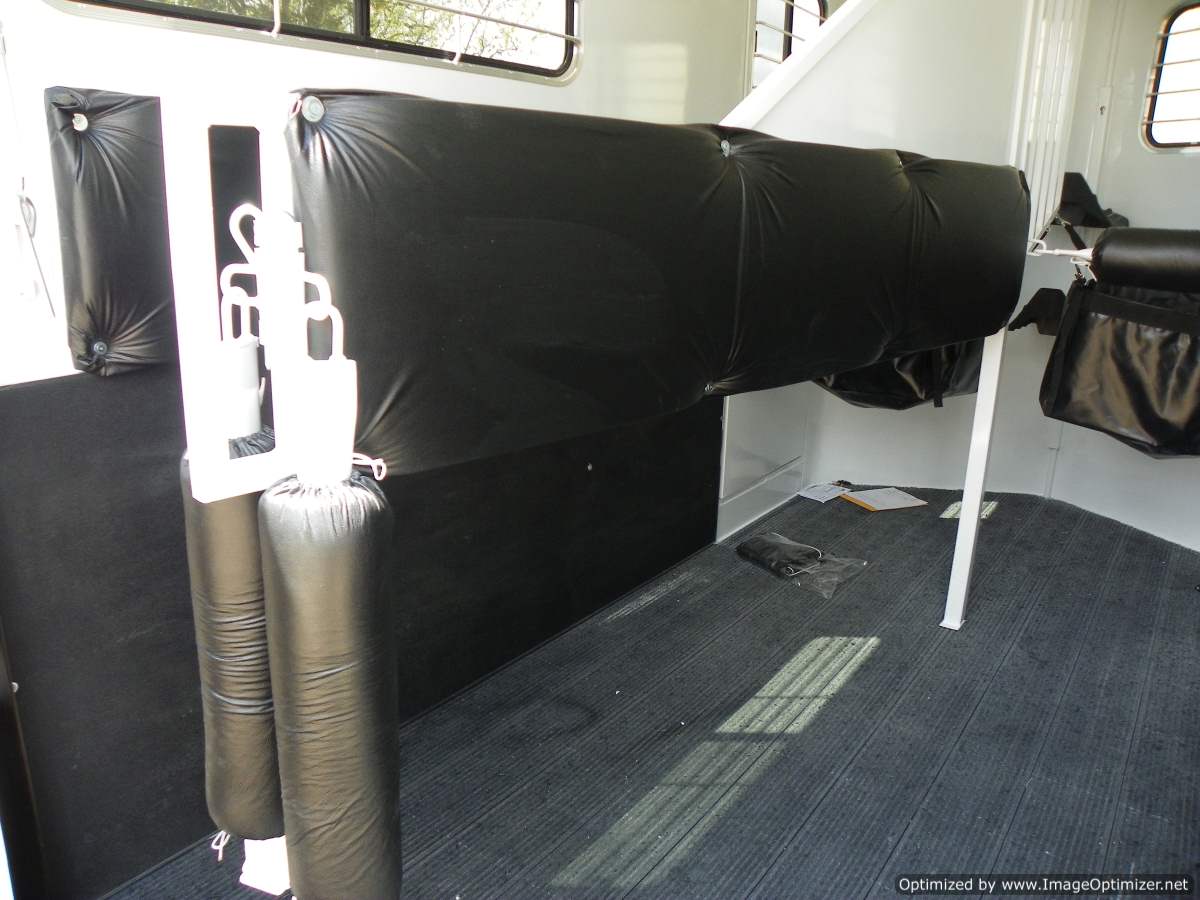

- Z-Frame center divider with hand made padding, fully removable
- Tubular see through head divider
- SafeKick® Wall System

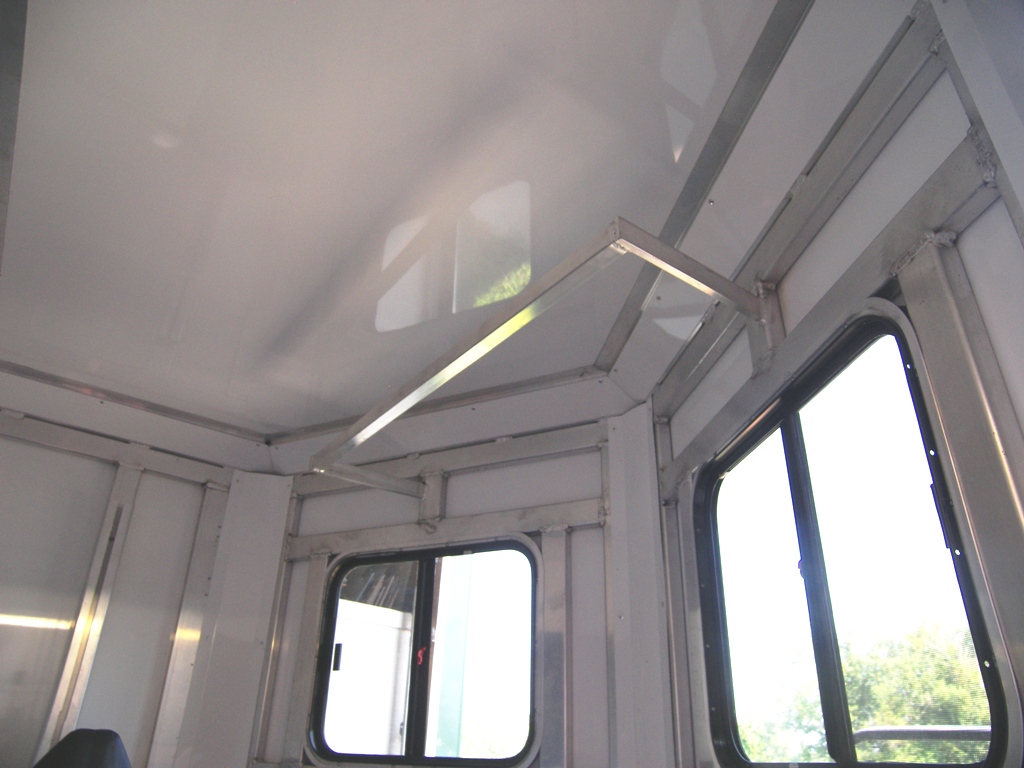

- Heat reflective SafeBump® Roofsystem
- Insulated side walls in entire trailer front to rear
- Horse Area Roof Vents one per horse
- Rechargeable Emergency Breakaway System
- 7-Pin RV Style Plug
Warranty
- (8) Year on Structure
- (2) Year bumper to bumper
- (1) Year on non-Double D Manufactured parts
Want options? We've got many. Customize this trailer now with options.
Photos
Click on a photo below to view its larger version.
Facebook Photos
V-Sport Bumper Pull trailer delivered to Kerri in Broomfield, CO. #12617
V-Sport bumper pull trailer delivered to Richard in Tulare CA. #11497
V-Sport Bumper Pull Trailer delivered to Barbara in Fillmore, CA. #11628
Horse Trailer in Emporium, PA #11106
Want options? We've got many. Customize this trailer now with options.
Videos
Click on a video below to view its larger version.
Want options? We've got many. Customize this trailer now with options.

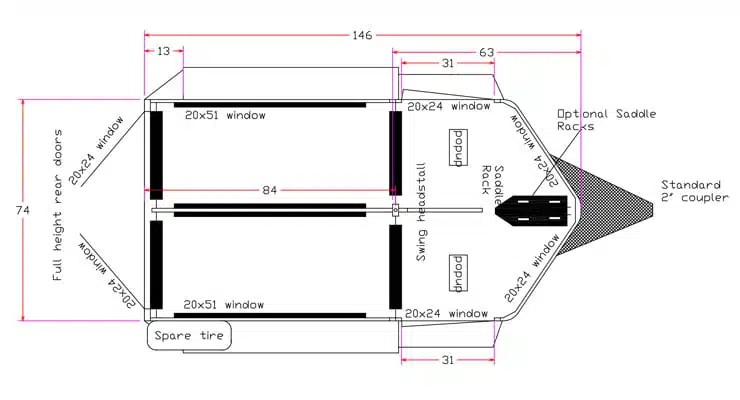

Floorplans
Download this Floorplan (PDF Document)
Customize Your Trailer
Get More Info! You can click on the title of each option to view details and photos for each option.
Choose your colour from our Color Guide (PDF) and enter the name of it in the text field below.
061 Black - Free
015 Cardinal Red - Free
083 Sapphire Blue - Free
All others - $125 upcharge
Get More Info! You can click on the title of each option to view details and photos for each option.
-
Rumber Flooring Straight Load
Video ($1018)2 x 8 in. pressure pine flooring with mats is a standard feature. You may change to Rumber which is a rubber and made from recycled tires. The dimensions of each board is 2 x 8 in and it is tongue and groove interlocking, solid rubber material. It is a soft ride with minimal noise and vibration. The neat thing about Rumber is it doesnt require any stall mats which makes it super easy to clean and maintain. Plus it has a lifetime warranty, virtually indestructable.
![2 x 8 in. pressure pine flooring with mats is a standard feature. You may change to Rumber which is a rubber and made from recycled tires. The dimensions of each board is 2 x 8 in and it is tongue and groove interlocking, solid rubber material. It is a soft ride with minimal noise and vibration. The neat thing about Rumber is it doesnt require any stall mats which makes it super easy to clean and maintain. Plus it has a lifetime warranty, virtually indestructable.]()
Get More Info! You can click on the title of each option to view details and photos for each option.
-
Aluminum Wheels
($897)Want to really have an eye catching trailer? Add aluminum wheels in place of the standard gray painted wheel. Not only do they look sharp but you will have a wheel that doesnt rust and looks great for years to come. Pricing includes five aluminum wheels and a spare tire cover on your spare.
![Want to really have an eye catching trailer? Add aluminum wheels in place of the standard gray painted wheel. Not only do they look sharp but you will have a wheel that doesnt rust and looks great for years to come. Pricing includes five aluminum wheels and a spare tire cover on your spare.]()
-
Auxiliary battery

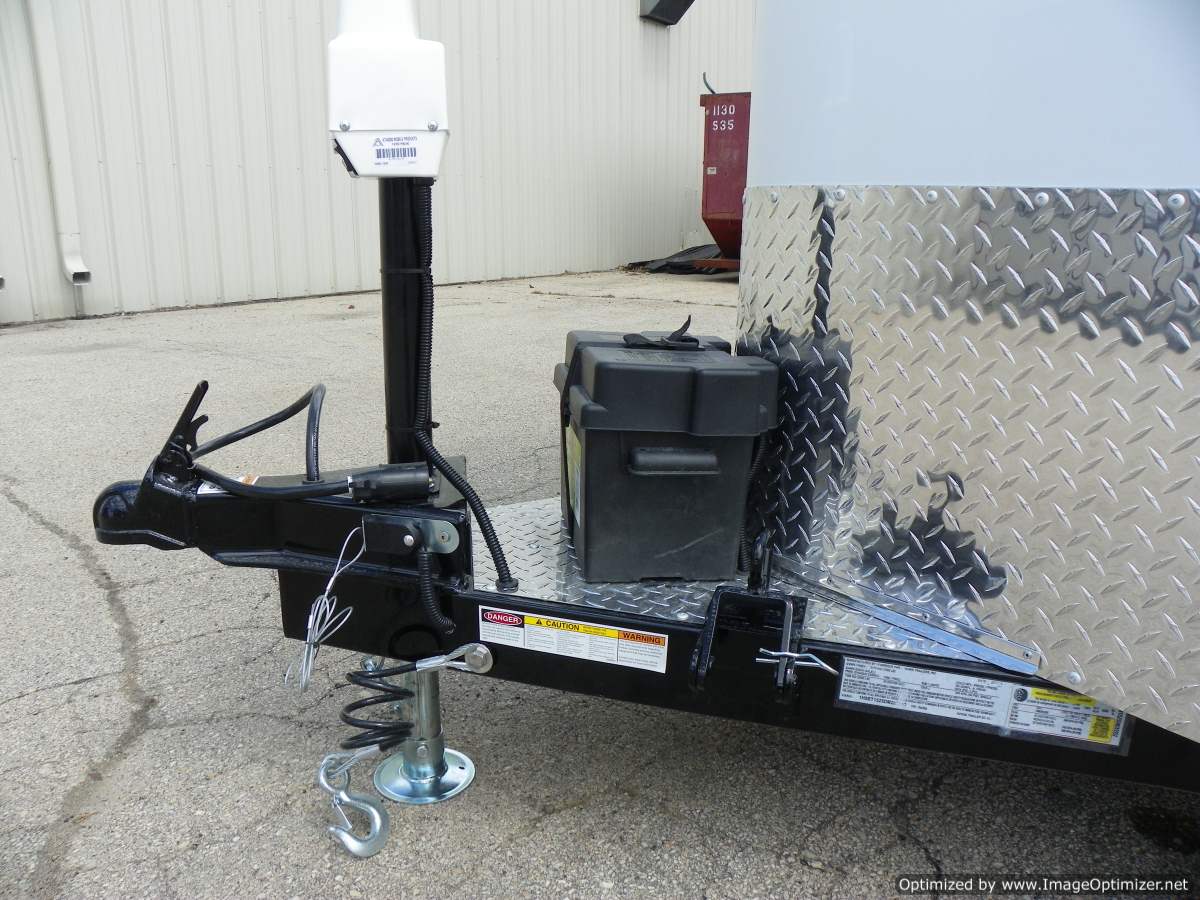

($355)Battery—Interior deep cell 12 Volt wired to charge from your tow vehicle. This is installed inside the dressing room and powers your interior lights, fans, and load lights, without being plugged into your truck. It is wired so that your tow vehicle will trickle charge it when driving. NOTE: You may elect to have your battery installed on the tongue.
![Battery—Interior deep cell 12 Volt wired to charge from your tow vehicle. This is installed inside the dressing room and powers your interior lights, fans, and load lights, without being plugged into your truck. It is wired so that your tow vehicle will trickle charge it when driving. NOTE: You may elect to have your battery installed on the tongue.]()
-
Electric Jack
($558)Add an electric jack in place of the standard. This is a great feature and allows you to raise and lower your trailer quickly with the press of a button. (requires the auxiliary battery option)
![Add an electric jack in place of the standard. This is a great feature and allows you to raise and lower your trailer quickly with the press of a button. (requires the auxiliary battery option)]()
-
Blanket Bar
($115)Add a blanket bar to your saddle tree (actual bar and design may vary slightly from photo)
![Add a blanket bar to your saddle tree (actual bar and design may vary slightly from photo)]()
-
Bridle Hooks ($25)
Add extra bridle hooks to your trailer. Sold individually, add up to as many as you may need. (specify location when place order)
-
Brush Tray
($74)Brush Tray on dress door or Tack door.(If you are purchasing a slant load, there is plenty of space to throw in brushes in the rear Safetack. Use this option to add a brush tray on your dressing room door up front or tack door NOTE: Cant be used with screen door option) Brush tray design may vary from photo.
![Brush Tray on dress door or Tack door.(If you are purchasing a slant load, there is plenty of space to throw in brushes in the rear Safetack. Use this option to add a brush tray on your dressing room door up front or tack door NOTE: Cant be used with screen door option) Brush tray design may vary from photo.]()
-
Clothes Bar
($115)Add a clothes bar in the wedge nose of your bumper pull, up high for hanging
![Add a clothes bar in the wedge nose of your bumper pull, up high for hanging]()
-
Pewter Exterior Color
($539)Choose this option in place of standard white.
![Choose this option in place of standard white.]()
-

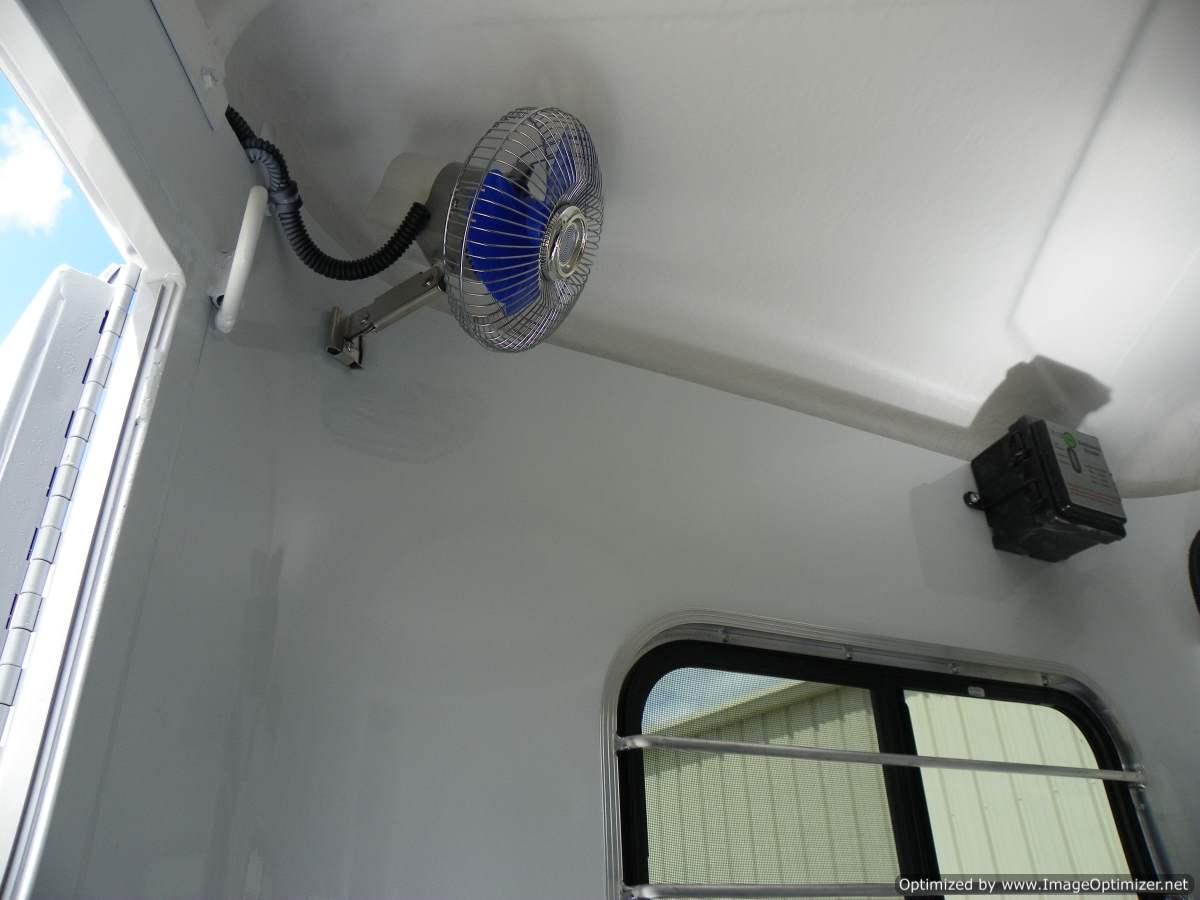

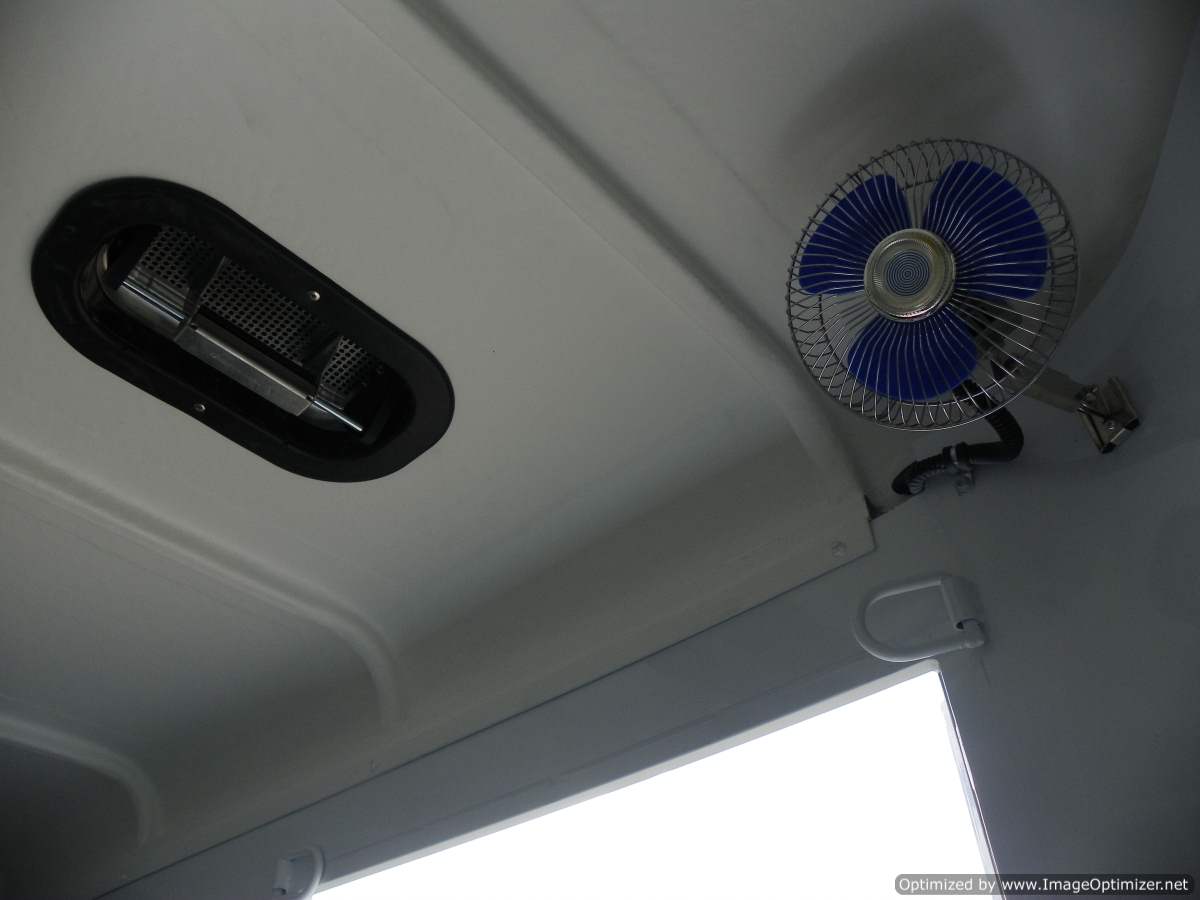

Fan in Horse Stall ($163)
Add a fan per stall for additional comfort for your horses while traveling. Priced each.
-
Remote switch for fans
($80)If you add fans for the comfort of your horses, add a rear remote switch which allows you to operate all of your fans from a common outside switch.
![If you add fans for the comfort of your horses, add a rear remote switch which allows you to operate all of your fans from a common outside switch.]()
-
Grab Handle ($42)
RV grab handle on outside to assist with getting in and out of trailer
-
Exterior Porch Light ($195)
LED Add a light beside your dressing room door. Includes a remote switch mounted inside your dressing room
-
Load Light
($227)LED Load light on separate switch mounted up high.
![LED Load light on separate switch mounted up high.]()
-
Roadside Assistance
Video ($390)What happens when your vehicle breaks down while towing your horse trailer? For $390 annual membership, TrailGuard will come to you 24 hours per day, tow your vehicle to the nearest vehicle dealership repair. And tow your horses inside your trailer to your home, or local boarding facility. Watch the video for exactly what is covered.
![What happens when your vehicle breaks down while towing your horse trailer? For $390 annual membership, TrailGuard will come to you 24 hours per day, tow your vehicle to the nearest vehicle dealership repair. And tow your horses inside your trailer to your home, or local boarding facility. Watch the video for exactly what is covered.]()
-

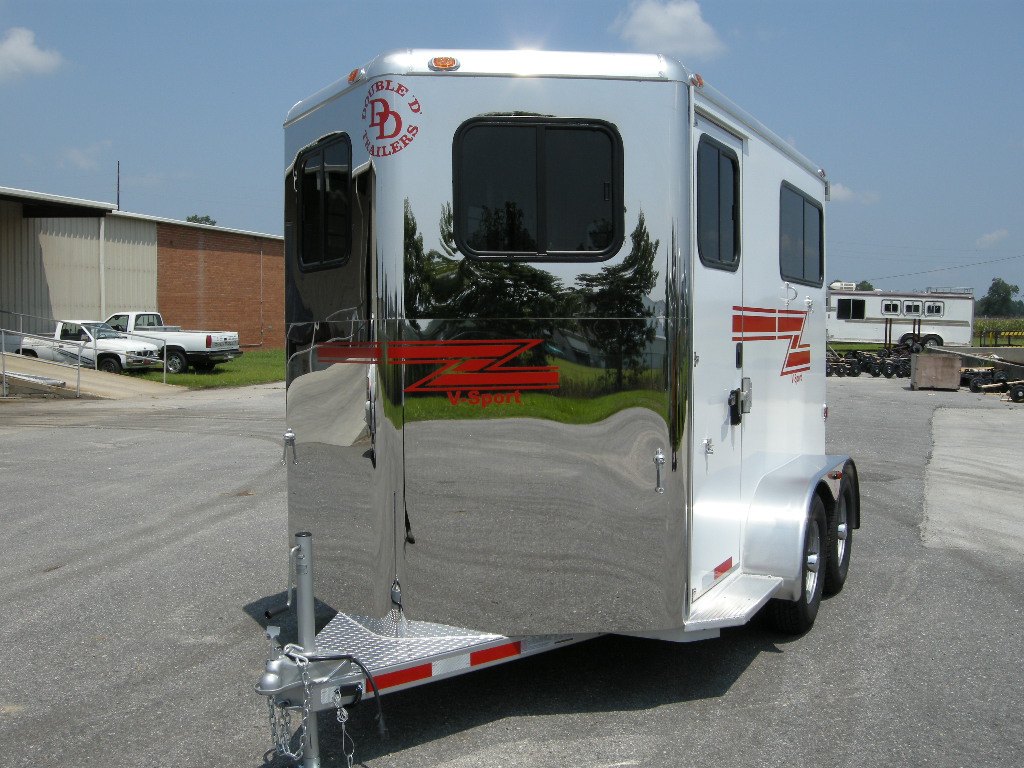

Stainless Nose Sheet
($1366)Stainless nose sheet on V portion of trailer (NOTE: this option has a mirror effect on the front of your trailer, much easier to clean bugs and really adds to the look of the trailer
![Stainless nose sheet on V portion of trailer (NOTE: this option has a mirror effect on the front of your trailer, much easier to clean bugs and really adds to the look of the trailer]()
-
Weight Distribution
($222)These are installed on your trailer for use with a weight distribution tow system (often referred to as anti-sway bars).
![These are installed on your trailer for use with a weight distribution tow system (often referred to as anti-sway bars).]()
Get More Info! You can click on the title of each option to view details and photos for each option.
-
Camera System
($1152)Being able to monitor your horses while traveling as well as see what is behind your trailer can be beneficial. Add this feature which includes two cameras (one for your horses, one back up or rear view camera). Includes a wireless monitor which you plug in to your 12V supply inside your tow vehicle. Operates wireless.
![Being able to monitor your horses while traveling as well as see what is behind your trailer can be beneficial. Add this feature which includes two cameras (one for your horses, one back up or rear view camera). Includes a wireless monitor which you plug in to your 12V supply inside your tow vehicle. Operates wireless.]()
-
Chest Gate ($430)
Chest Gate: NOTE: if you want to haul a mare and foal, this additional safety gate prevents your baby from getting injured on the front area of the trailer. It also provides a neat additional storage area up front and keeps items from rolling underneath your horses feet.
-
Feed Bag ($84)
Feed bag works great for feeding while trailering (priced per stall)
-
Footage Horse Area Straight ($775)
Add 6 inches to horse area. You may specify in the Horse chest area or horse head area. Add additional footage where needed.
-
Height 7 ft. 8 in.
($436)Additional height can serve several purposes. It will allow more head room when hauling larger horses such as 17.2 Hand and taller. It can make your trailer feel larger for your horse and cause less stress during loading. 7ft 6 in is standard, add 2 inches additional
![Additional height can serve several purposes. It will allow more head room when hauling larger horses such as 17.2 Hand and taller. It can make your trailer feel larger for your horse and cause less stress during loading. 7ft 6 in is standard, add 2 inches additional]()
-

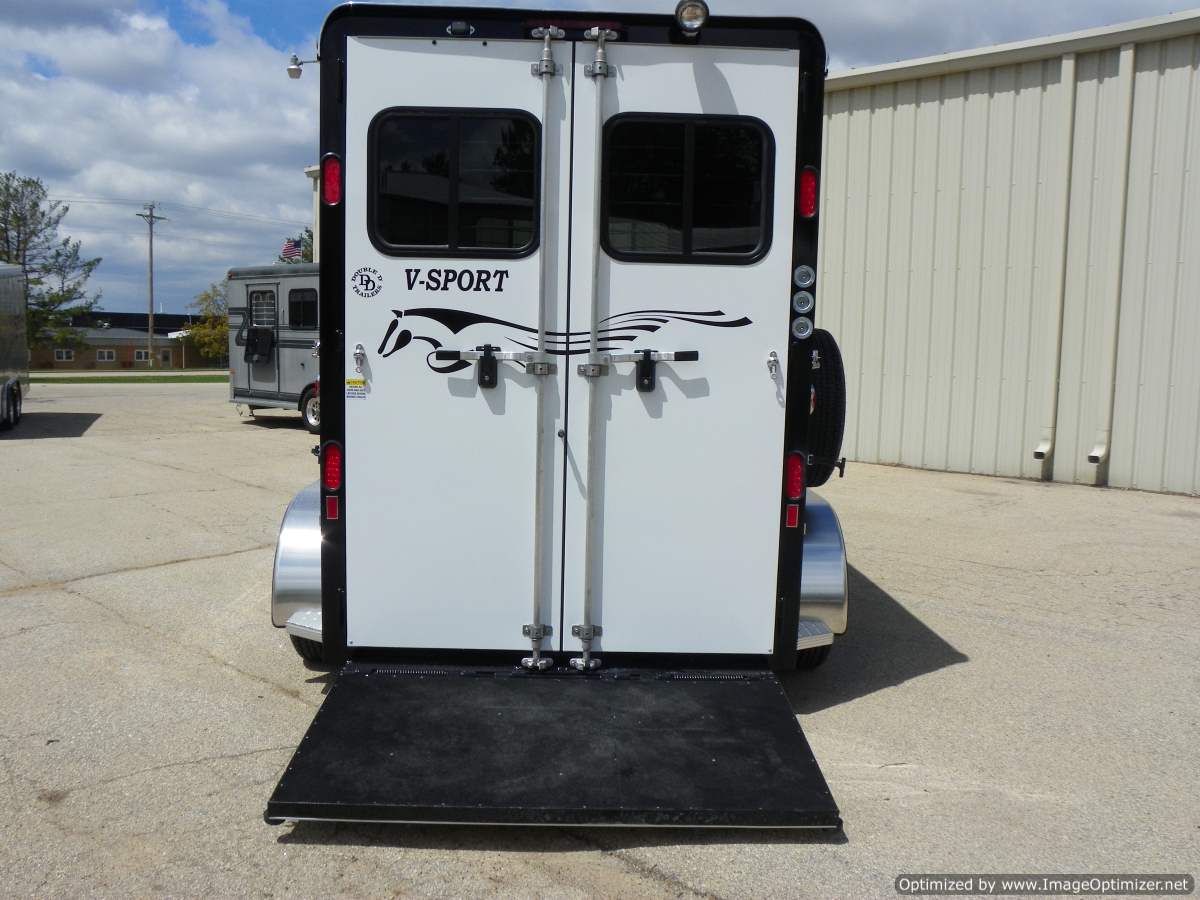

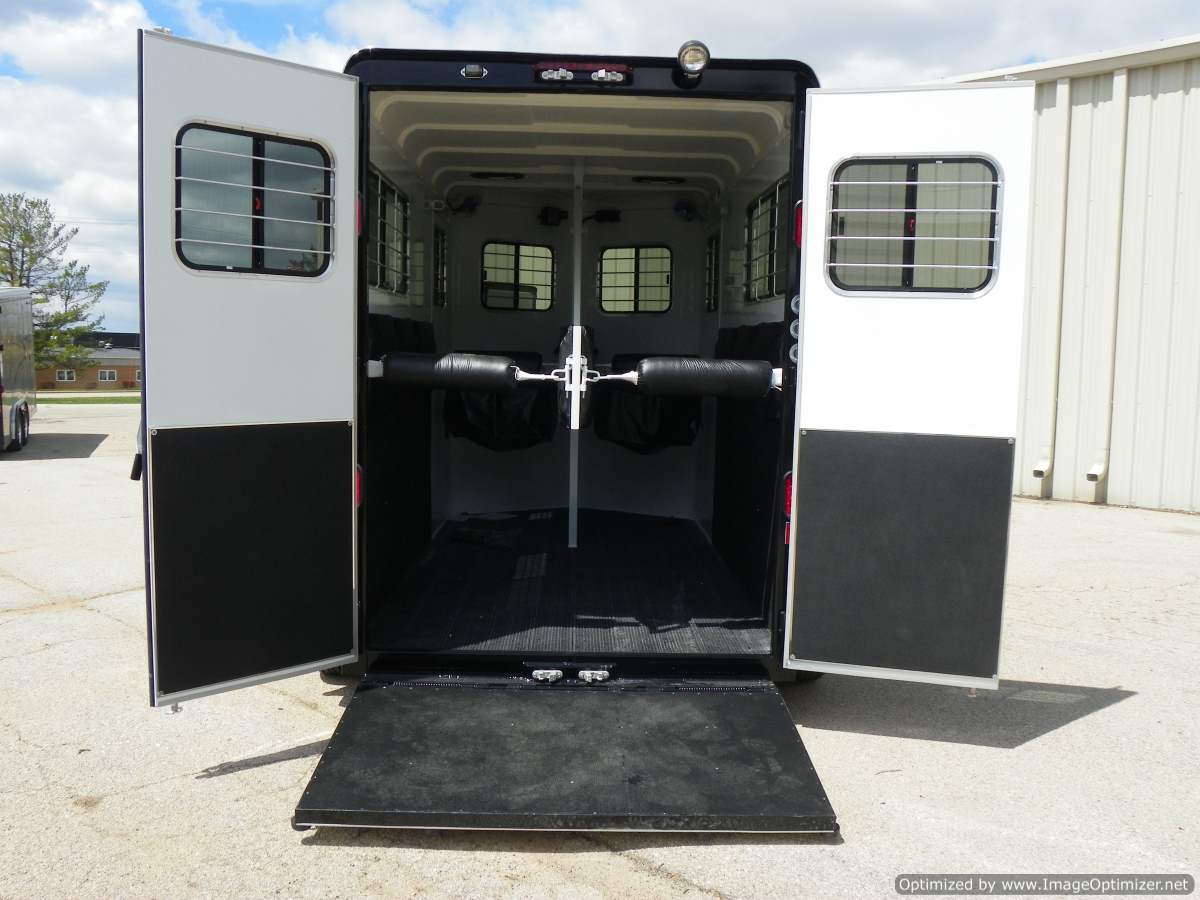

Ramp Door

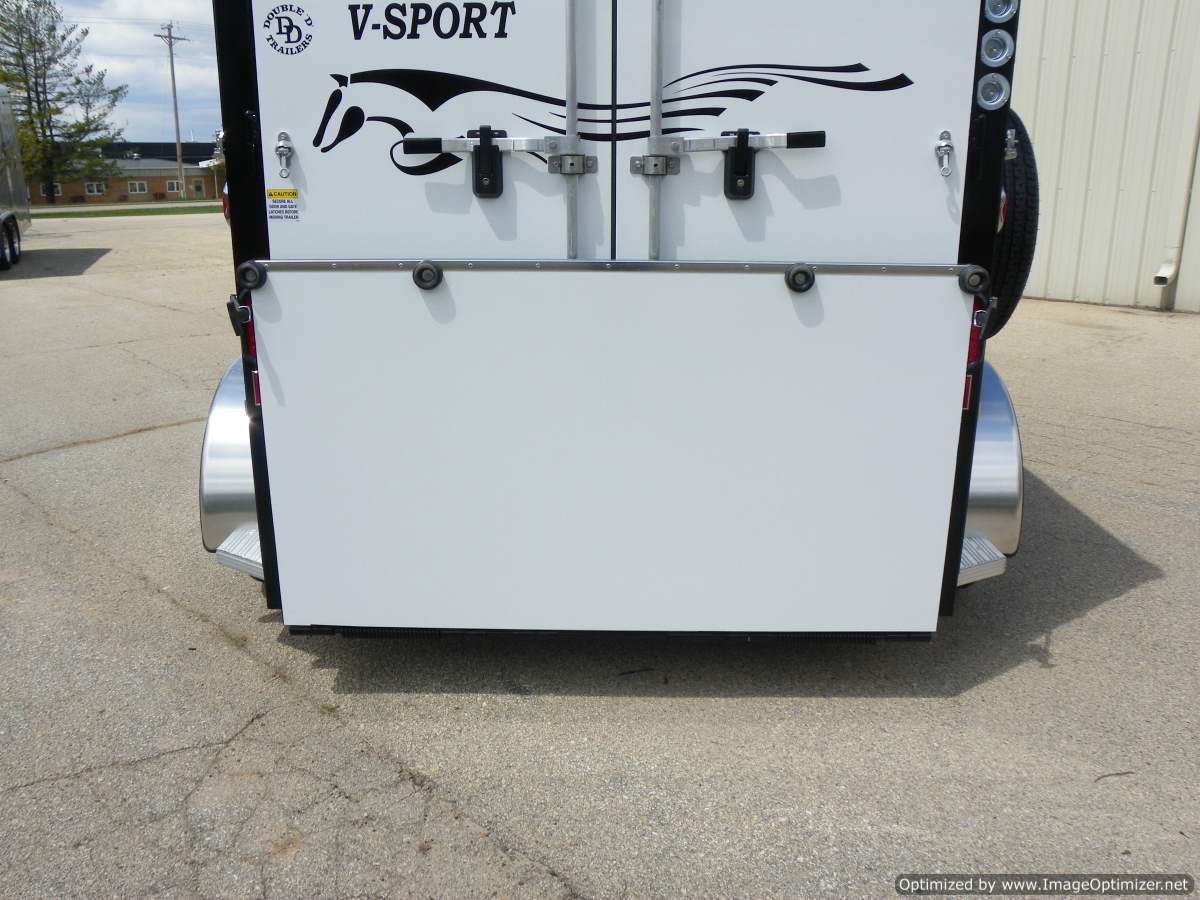

($1100)Use this feature to replace your full height rear doors with a ramp at the bottom and folding dutch style doors at the top.
![Use this feature to replace your full height rear doors with a ramp at the bottom and folding dutch style doors at the top.]()
-
Ramp Door

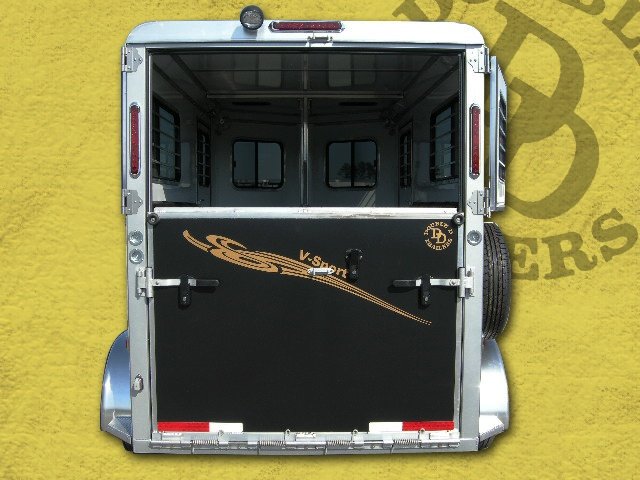

($1548)Ramp Fold up door spring assist covered with black matting, mounts outside full height rear doors. Ramps are safer for loading for your horses and offer more protection in case you have a rear end collision.
![Ramp Fold up door spring assist covered with black matting, mounts outside full height rear doors. Ramps are safer for loading for your horses and offer more protection in case you have a rear end collision.]()
-

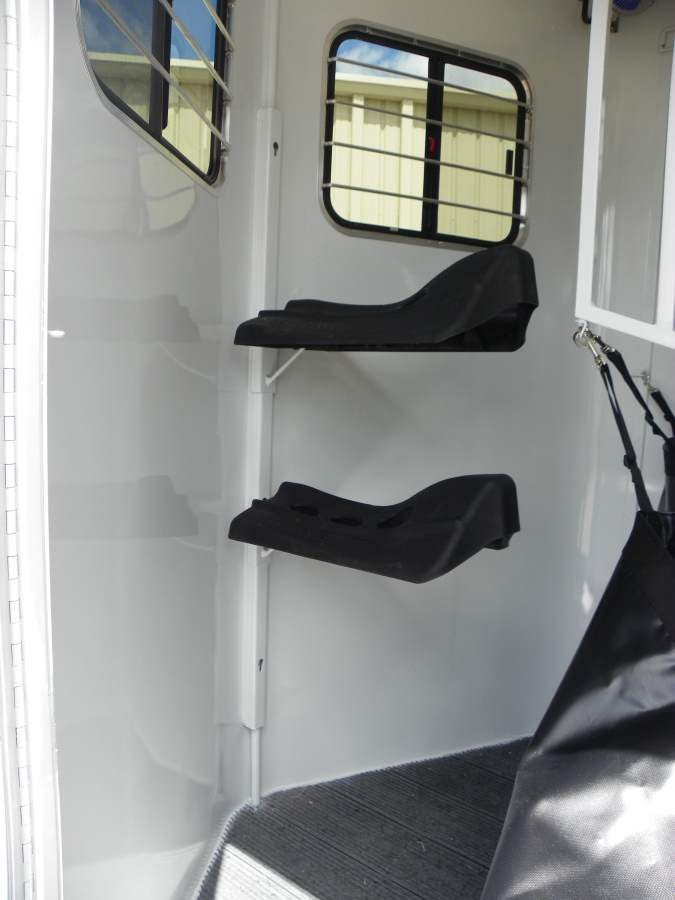

Saddle Rack
($471)Add a two tier saddle rack which includes the saddle post
![Add a two tier saddle rack which includes the saddle post]()
-
Stock Side Trailer
($377)Make this a stock side trailer (open slatted) rather than enclosed with windows. Suggestion: we do recommend against open sided trailers since they are not water tight and allow rain to get inside your trailer on the flooring, walls and padding. However, some customers want open stock style trailers, so this option is available. Pricing does not include the Plexiglass. Many customers feel open sided trailers are cooler but this is not the case. Since all Safetacks are insulated in the side walls, insulated in the roof, and use not heat transferring property materials, your horses will ride very comfortable in a fully enclosed trailer with windows and vents for air flow.
![Make this a stock side trailer (open slatted) rather than enclosed with windows. Suggestion: we do recommend against open sided trailers since they are not water tight and allow rain to get inside your trailer on the flooring, walls and padding. However, some customers want open stock style trailers, so this option is available. Pricing does not include the Plexiglass. Many customers feel open sided trailers are cooler but this is not the case. Since all Safetacks are insulated in the side walls, insulated in the roof, and use not heat transferring property materials, your horses will ride very comfortable in a fully enclosed trailer with windows and vents for air flow.]()
-
Tie Ring Exterior ($51)
Extra exterior tie ring specify location of additional rings when you order.
-
Tie Ring Interior ($44)
Extra interior tie ring (one is standard per horse, add a second for tying hay bays -- specify quantity)
-

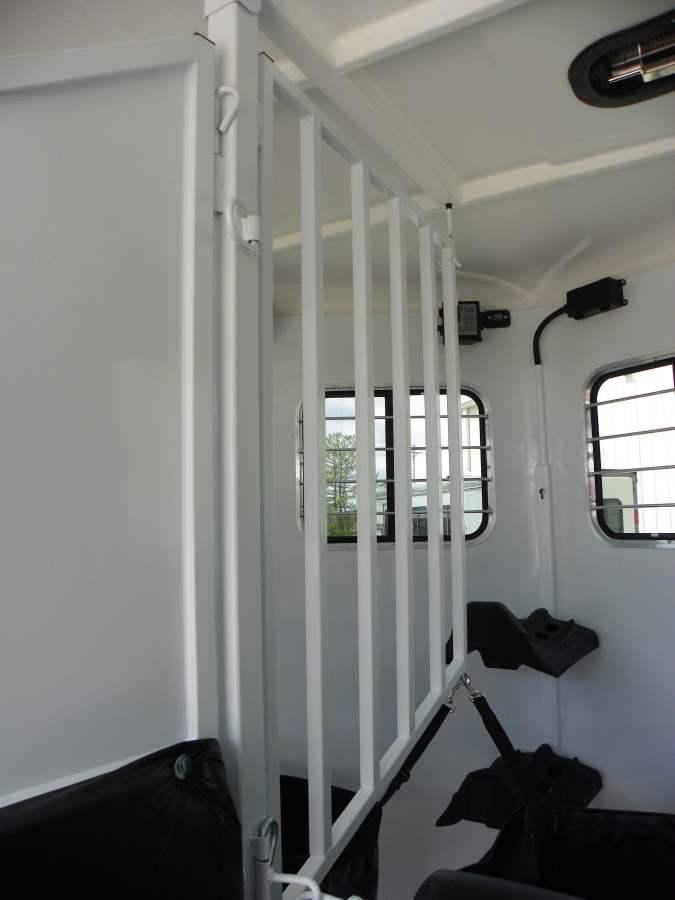

Tubular Head divider
($192)Swinging barred head divider (Note: easier access to horses head in left stall, comes standard non-swinging and solid sheeted)
![Swinging barred head divider (Note: easier access to horses head in left stall, comes standard non-swinging and solid sheeted)]()
-
Width 80 in
($842)Increase width to 80 inches for larger horses or draft size breeds
![Increase width to 80 inches for larger horses or draft size breeds]()
