You've chosen the following horse trailer model:

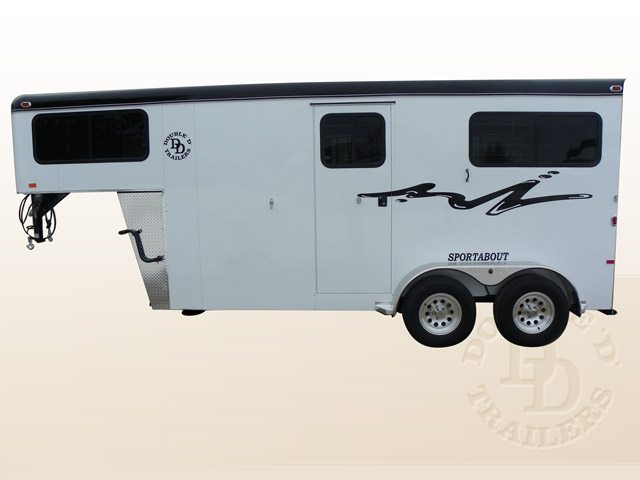

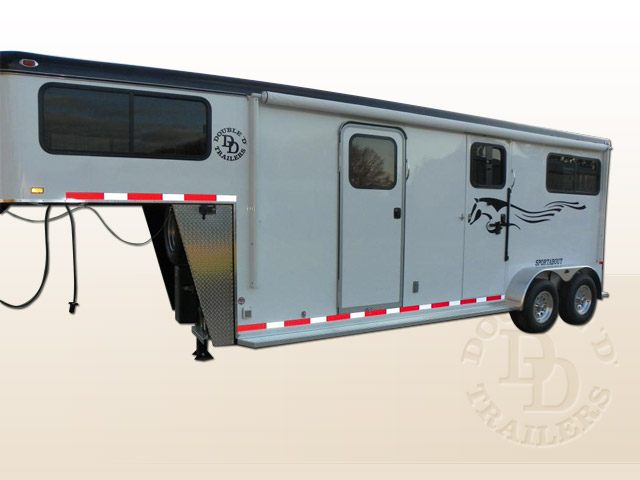

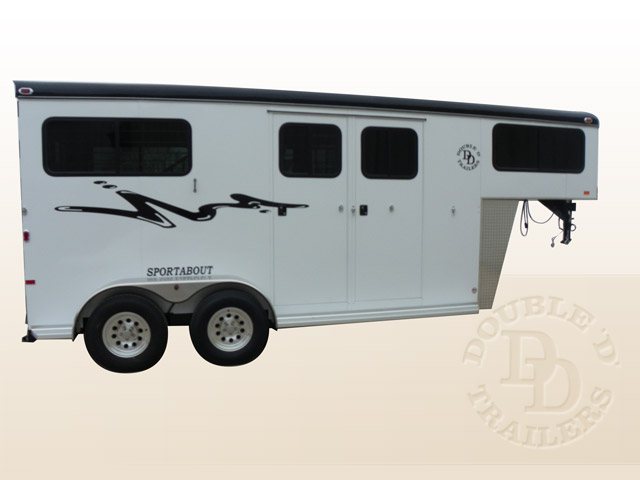

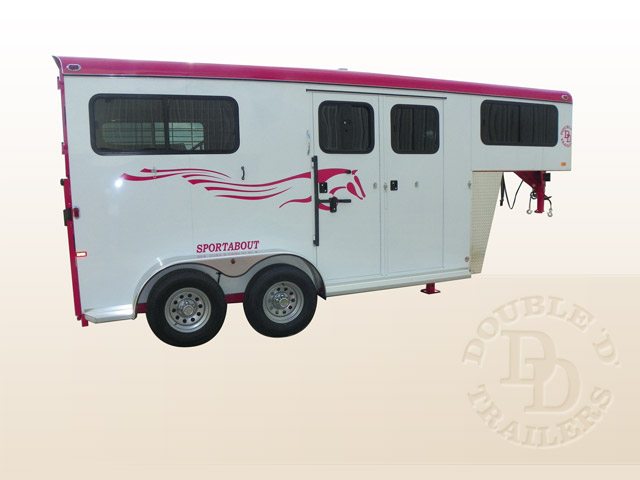

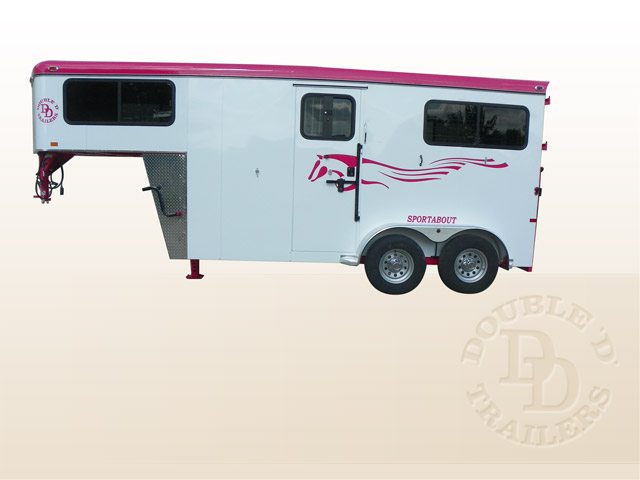

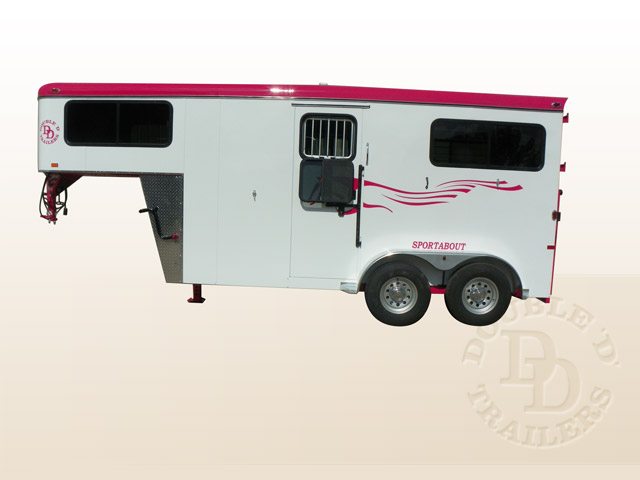

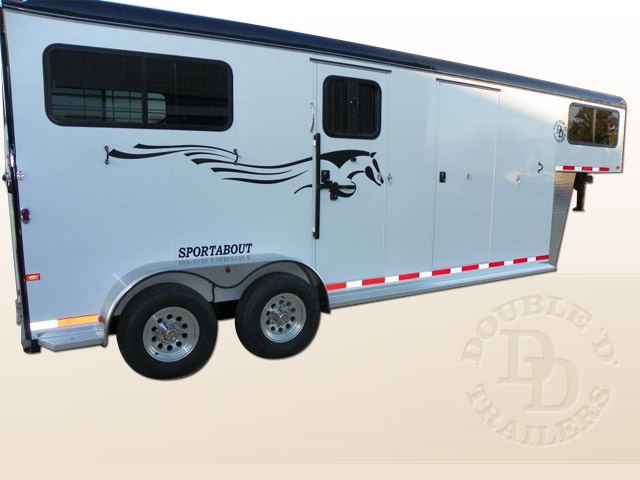

Gooseneck 2 Horse Straight Load Trailers photo

This two horse trailer comes standard 7'6" tall, has lined and padded stalls, and is fully enclosed. Loading is very easy in this trailer because when loading the second horse, you can exit through the walk through door to the dressing room and not have to climb out of a small door on the side. The swinging stall divider also works well for loading, plus it can be easily removed for other hauling purposes such as moving hay to the barn. Whether showing or trail riding, the "Sportabout" is an all-around trailer for everyone. The 4' dressing room provides plenty of space upfront for overnight stays, and an awning and A/C can easily be installed for more comfort and style.

Recently, the more popular version of the Sportabout is to add dual escape doors on either side. This layout seems to work best for folks at shows who are not using the trailer to sleep or camp inside.  The 7'6" height option is a very popular option for the larger horses.

Many breeds of horses today are very large, particularly in states such as New York, Maryland, Pennsylvania and Ohio.  We have sold a number of Sportabout models in those states with Delivery to any of those.

Weight of trailer is 4100 lbs approximately and can be towed with most any 1500 series half ton pick up truck.

#10510 (2+1 Model) Sold in Waterloo, Ontario Canada



Want options? We've got many. Customize this trailer now with options.

Specifications

Weight (without added options) 4100lbs
Overall Box Length 14'
Overall Trailer Length with Gooseneck 21'6"
Trailer Box Width 72"
Dress Side 4' x 6'
Inside Height 7'6"
Stall Length 7' for horse body and 3' for head
Stall Width 36"

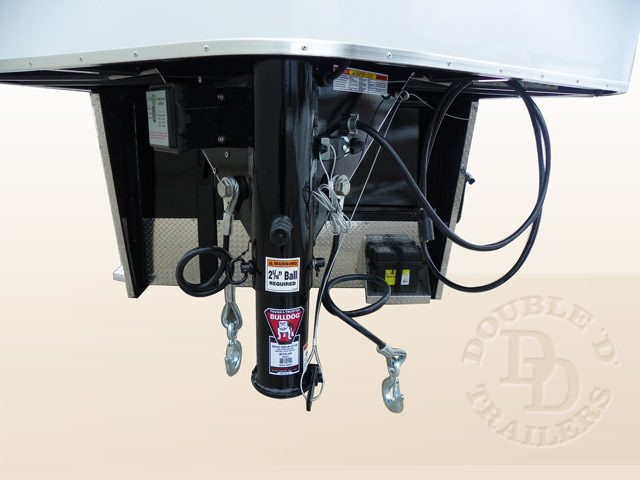

Coupler 2 5/16" adjustable height coupler

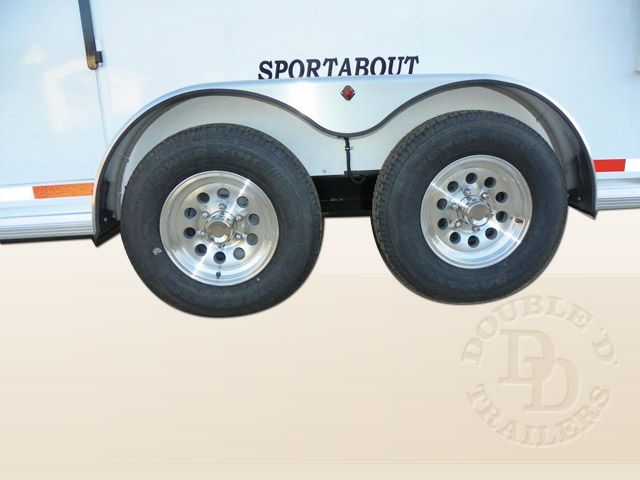

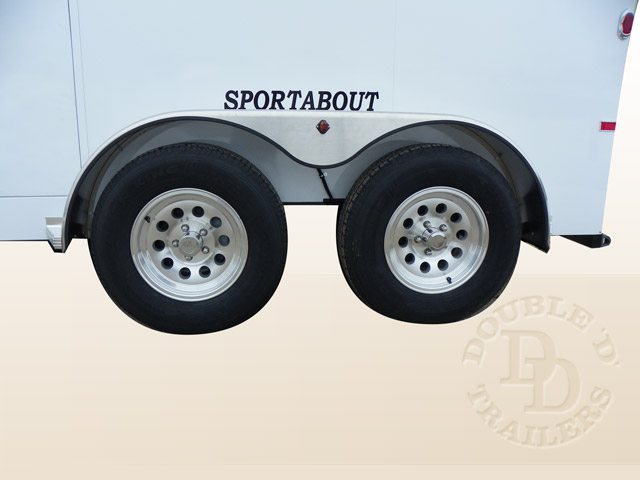

Wheels Powder coated gray, optional aluminum
Tire Size 225/75R15 (D) Radial
Brakes 4 wheel
LED Turn Signal Lights on Rear (2) Standard up high

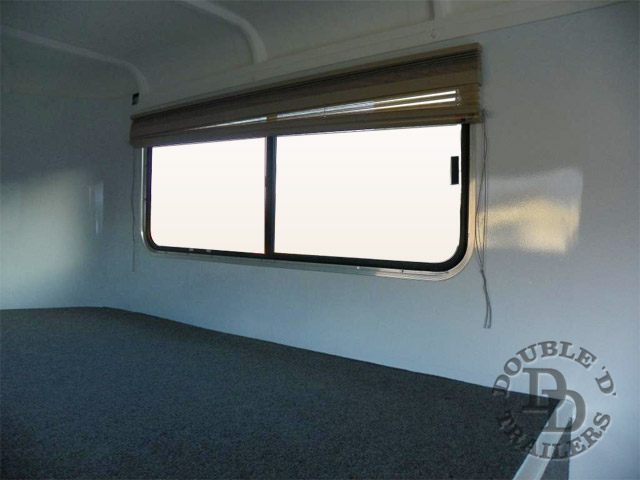

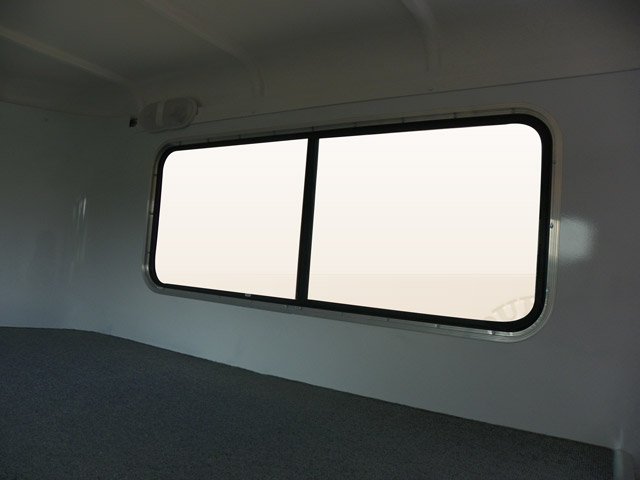

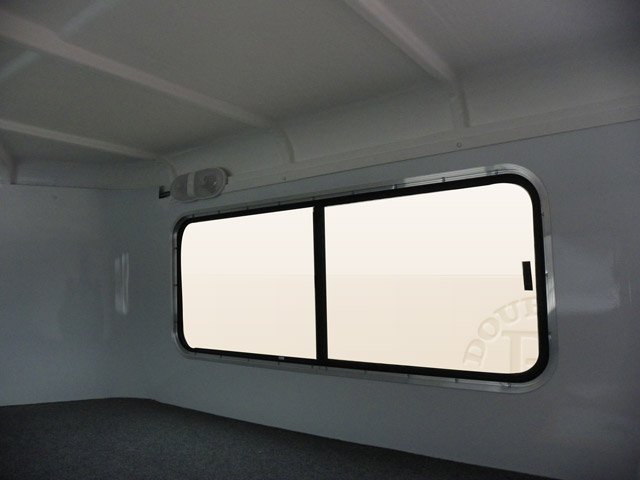

Windows in Gooseneck
(2 - sliding with screens)
20"x51"

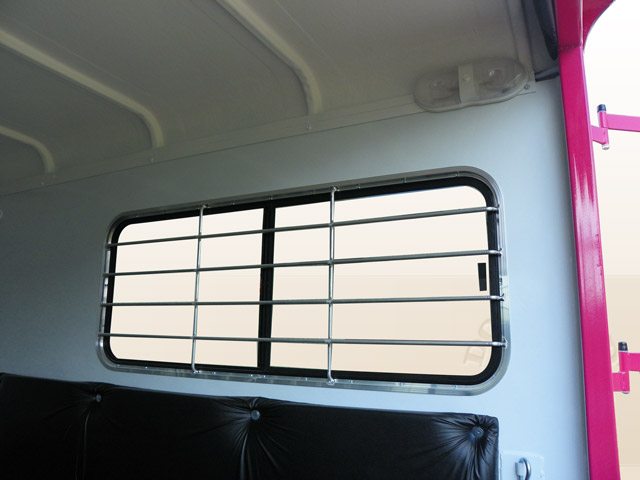

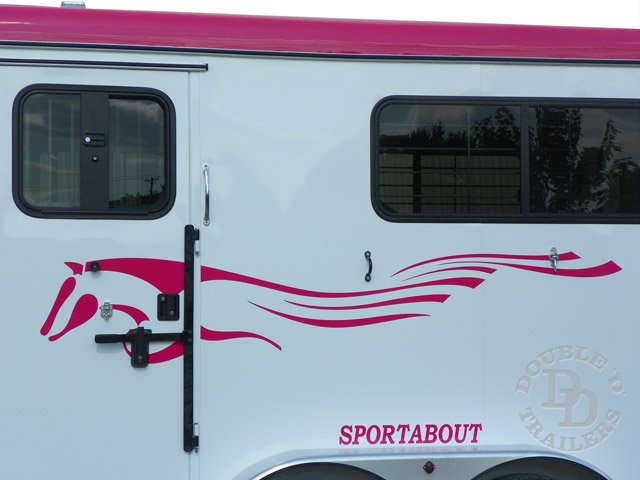

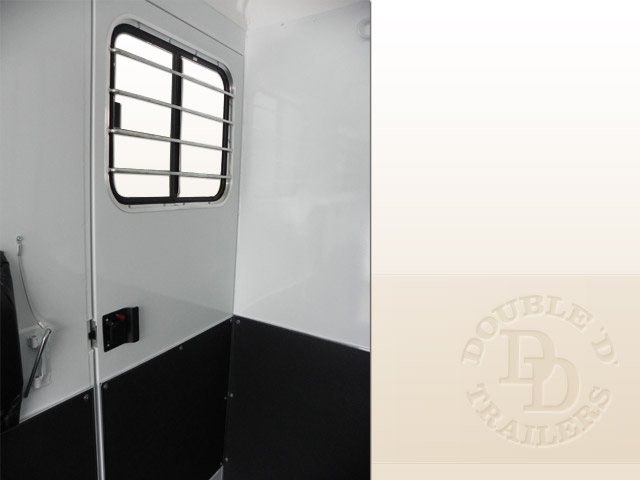

Windows in Stall Area
(2 - sliders per stall)
20"x51"
Windows on Rear Door
(2)
20"x24"

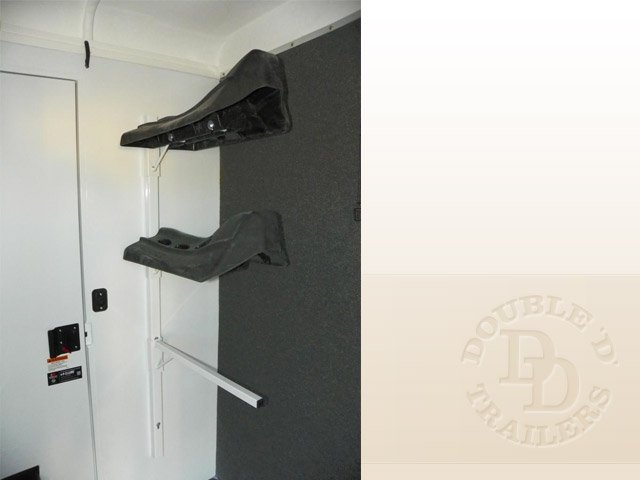

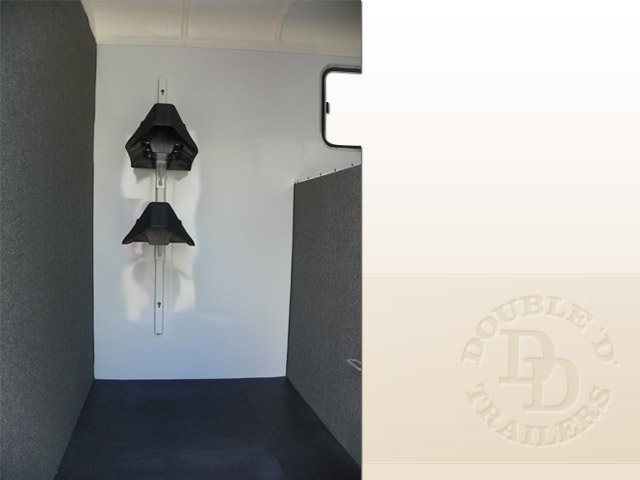

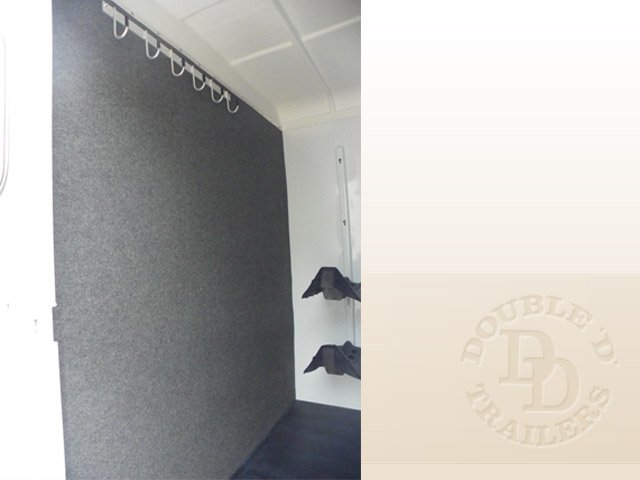

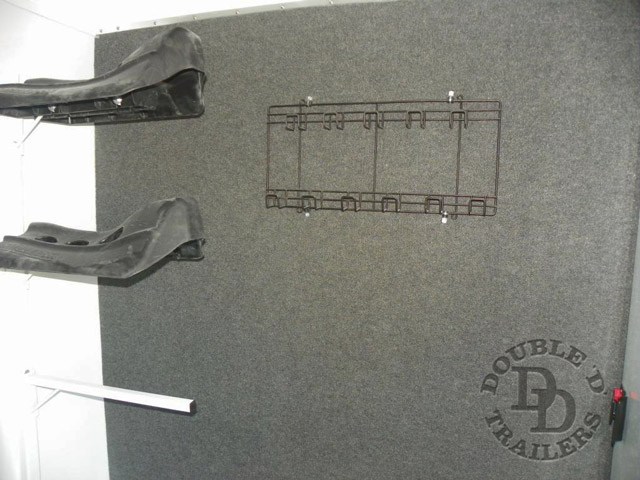

Saddle Racks 2
Bridle Hooks 3

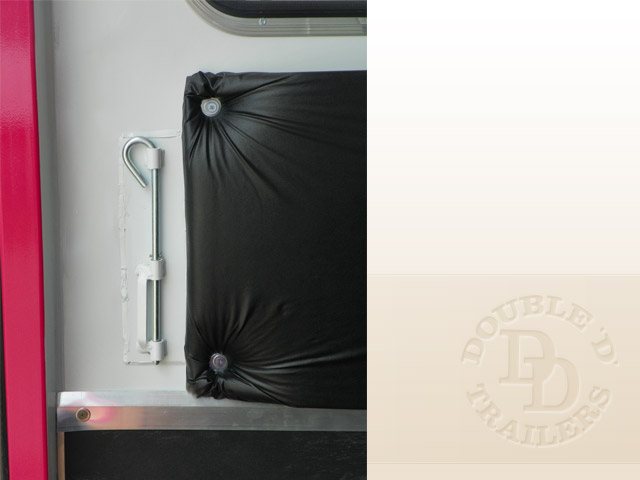

Custom Hand Made Padding on
Dividers and Bulk Head Wall
2" Standard
Interior Tie Rings per Stall 1
Exterior Tie Rings per horse 1
Lights in Horse Area on Remote Switch 1
Lights in Dress Area 2

Features

  • Z Frame Construction Technology
  • 2”x 8” Pressure Treated Pine Flooring on 16” Cross Members

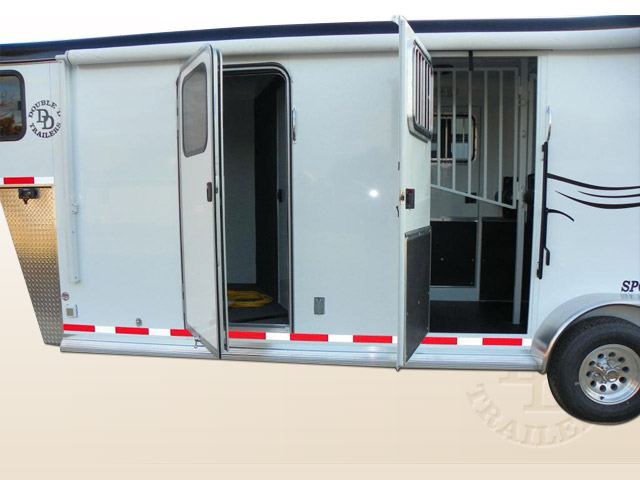

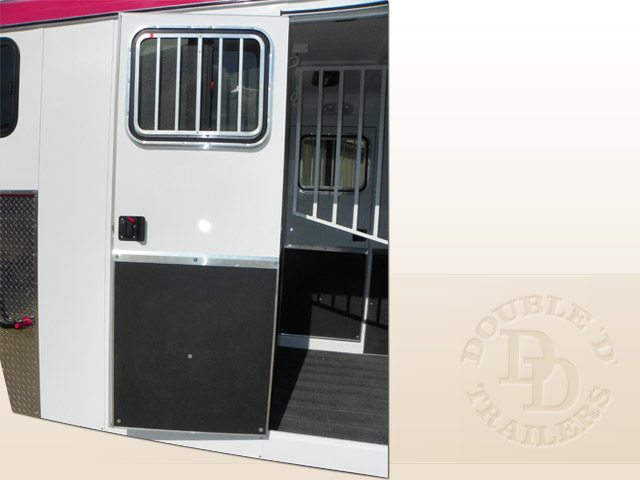

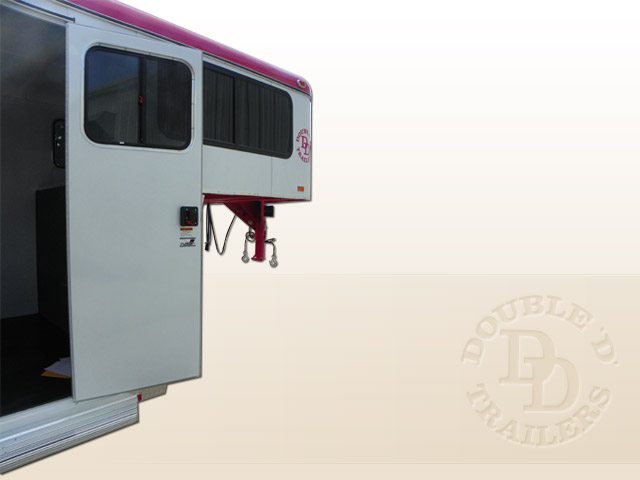

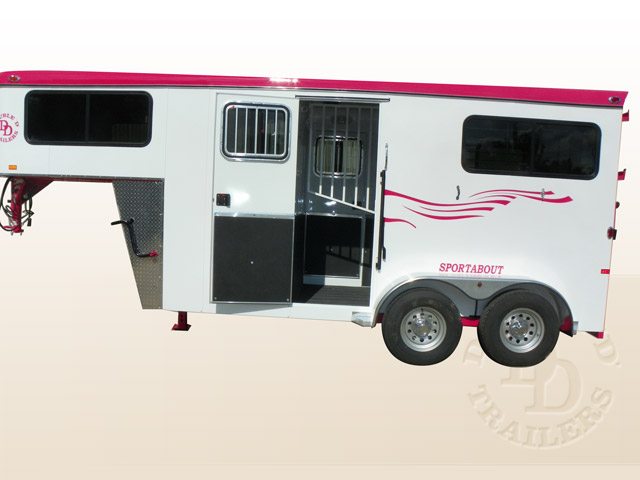

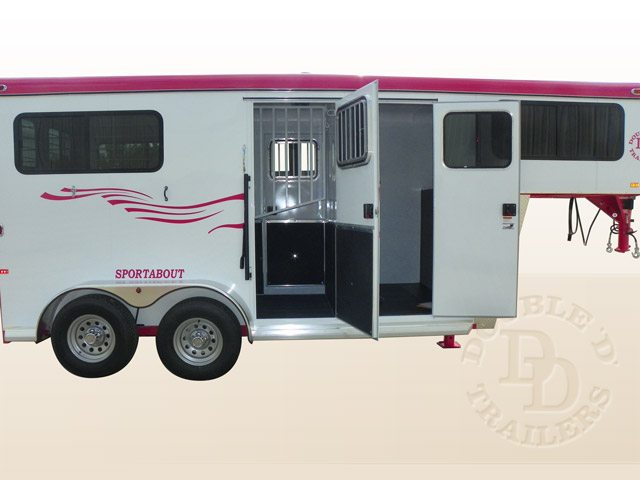

  • Walk Thru Door to Horse Area from dressing room
  • EZ Lube Durable Never Adjust Brakes,7,000 lb suspension system

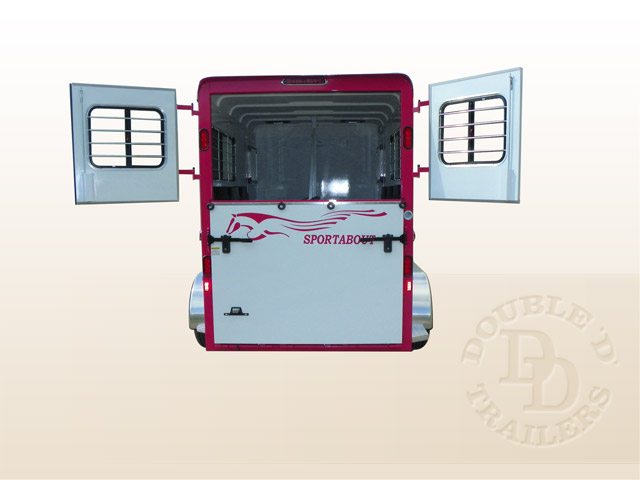

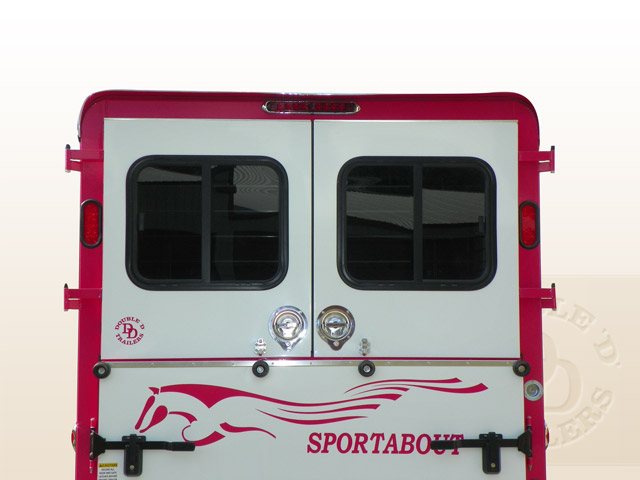

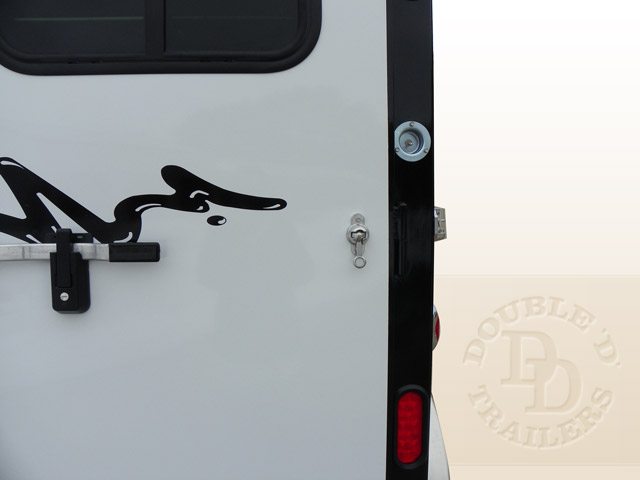

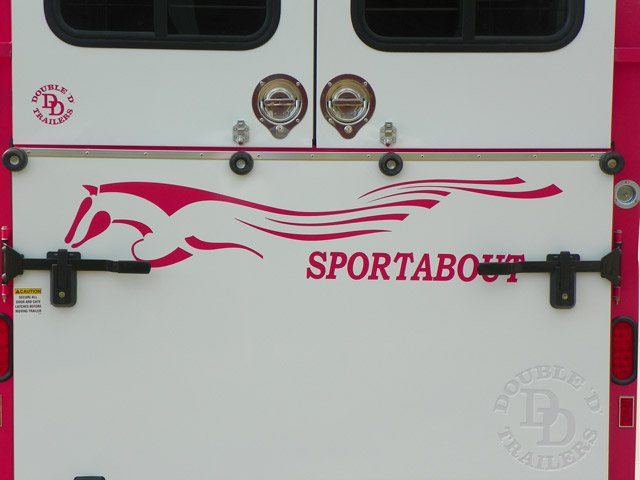

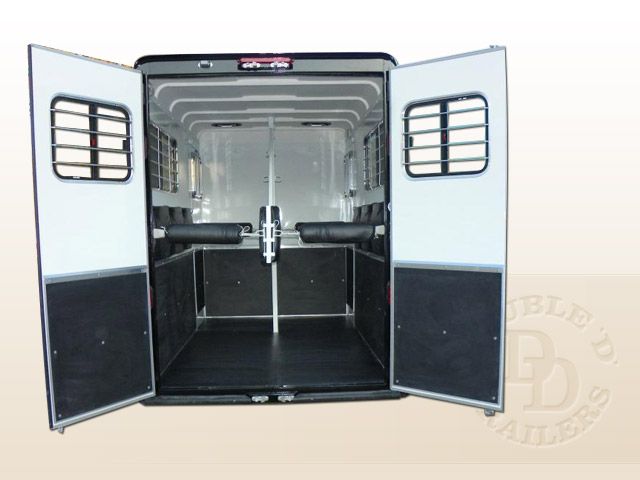

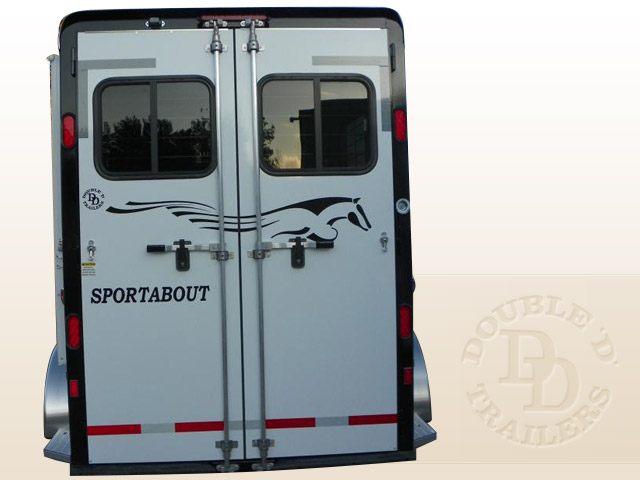

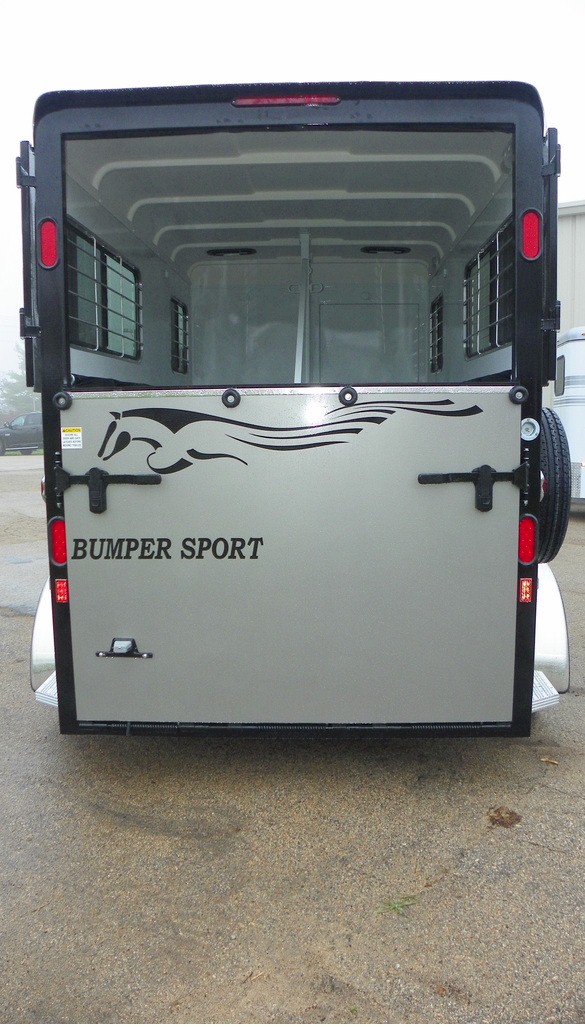

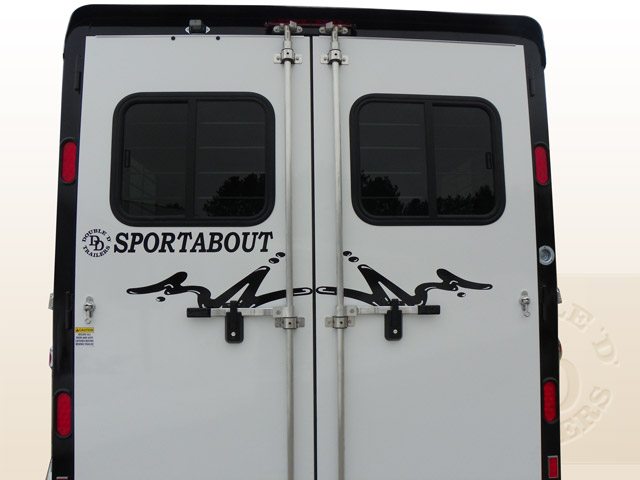

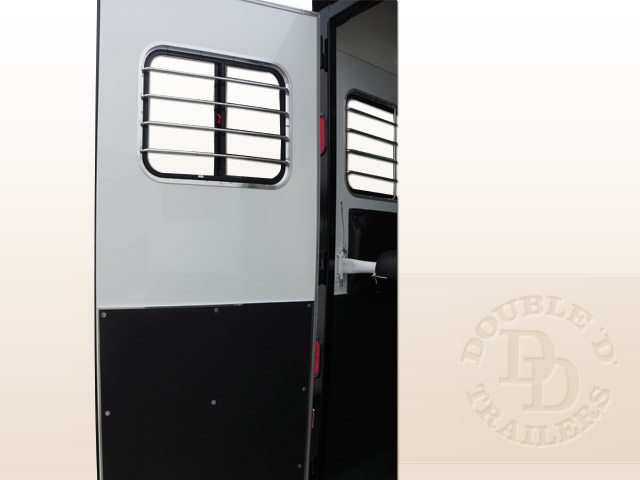

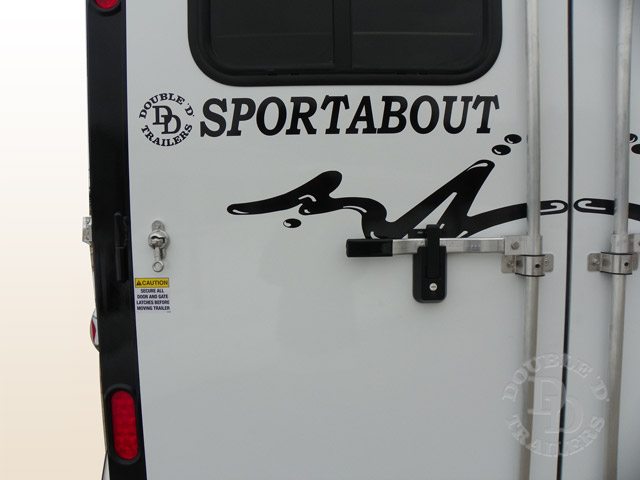

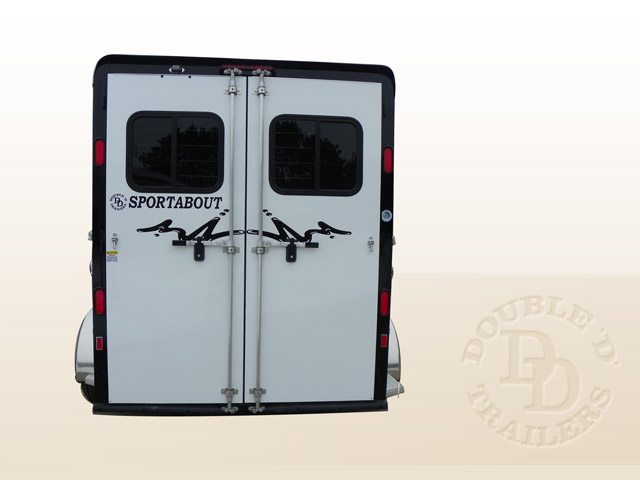

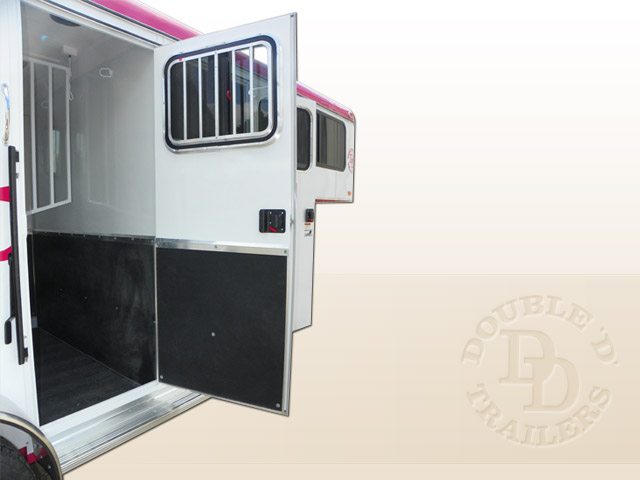

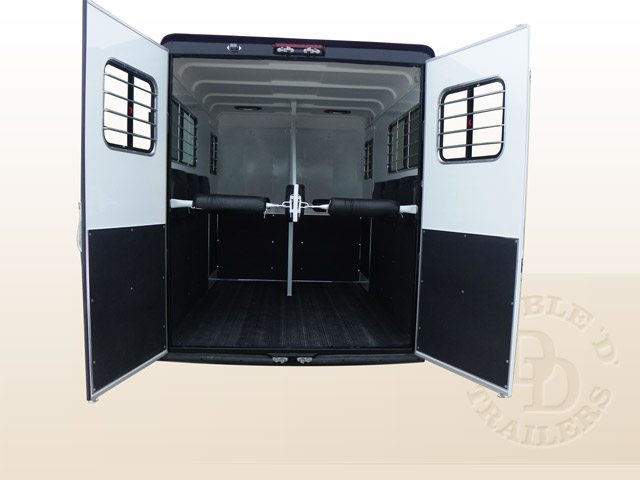

  • Split rear doors with aluminum lockable cam latch on each door

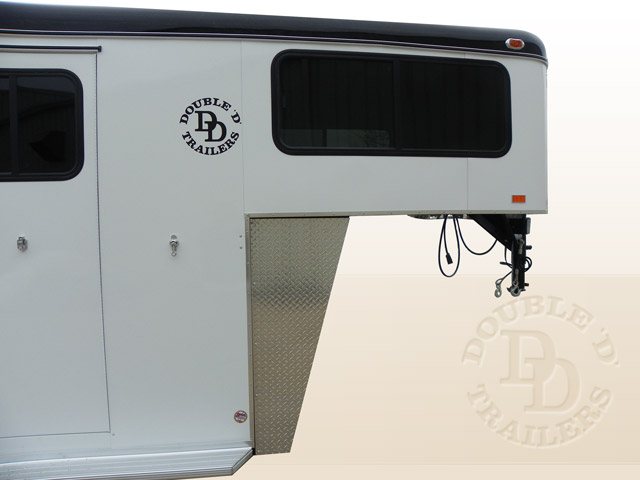

  • 24” Diamond Plate Gravel Guard at Nose
  • Running Board Steps Down Dressing Room Side

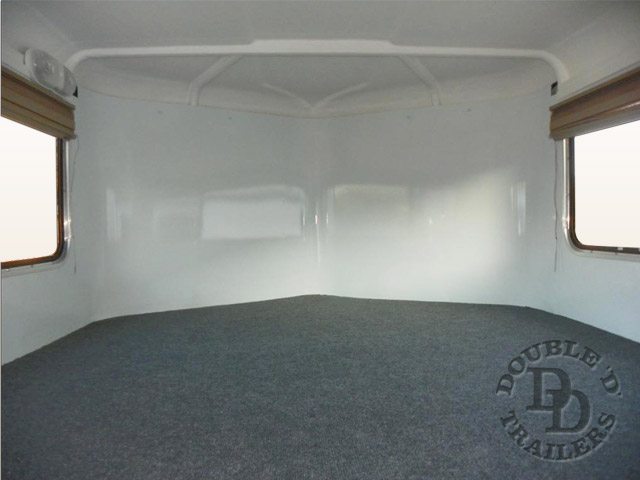

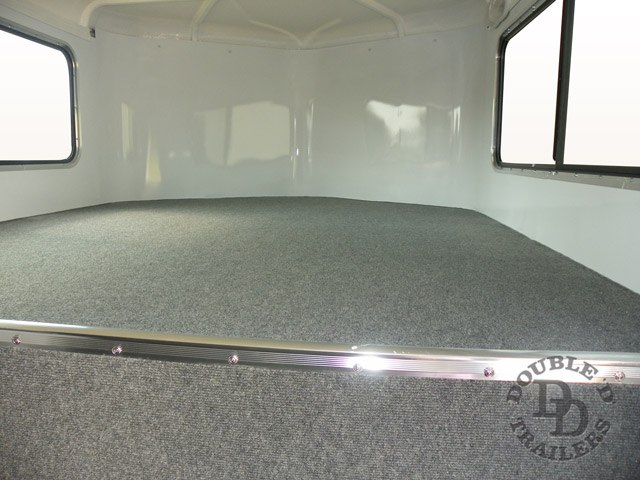

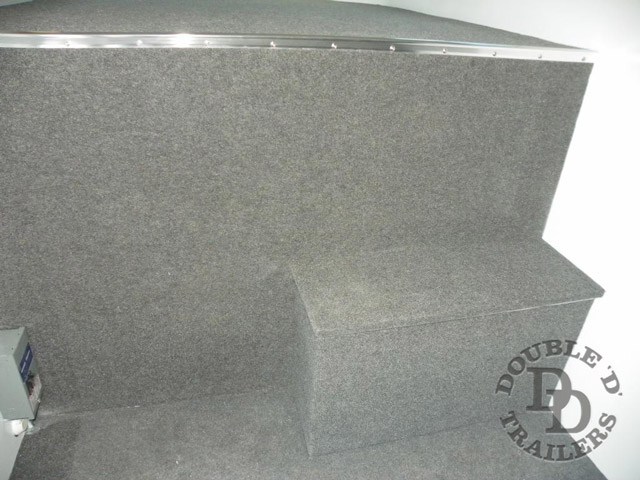

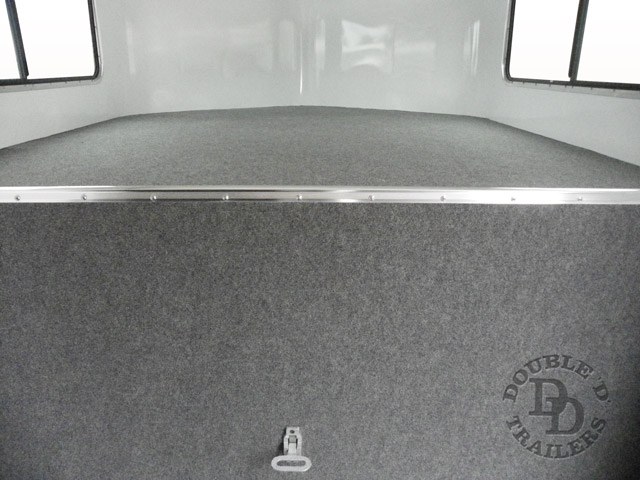

  • Carpet in Dressing Room Floor
  • Spring Loaded Drop Leg Jack
  • Marker Lights on Fender

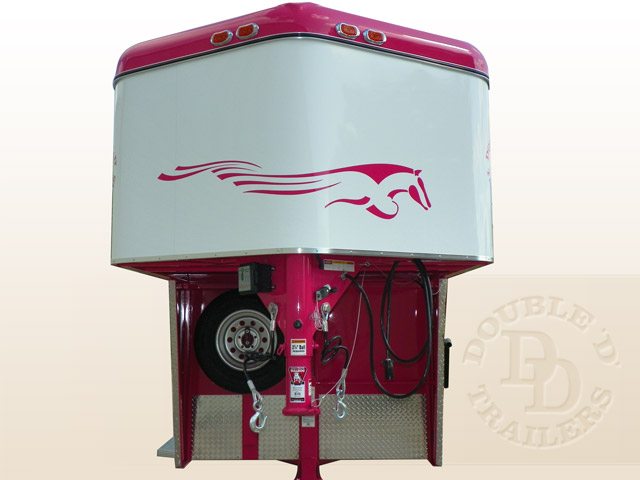

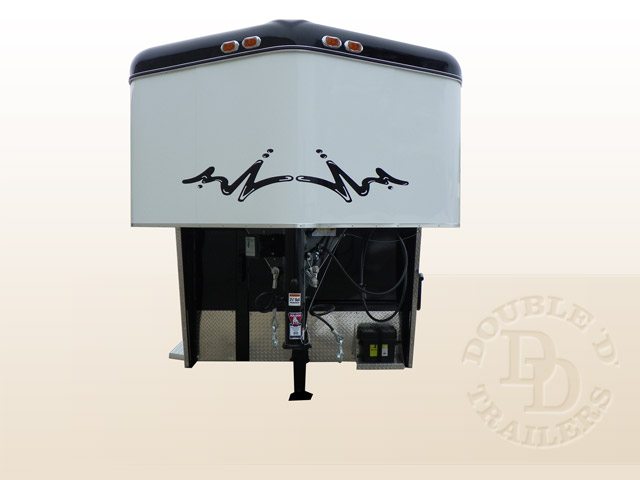

  • Spare Tire under gooseneck

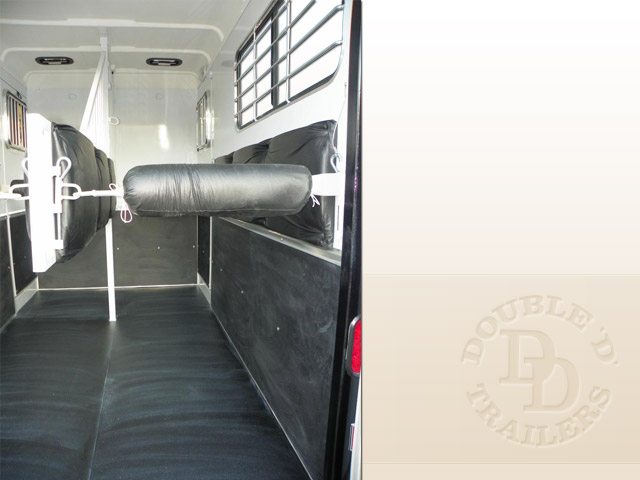

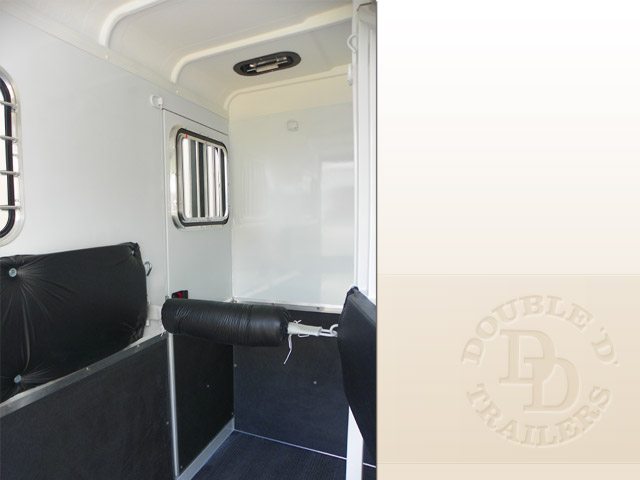

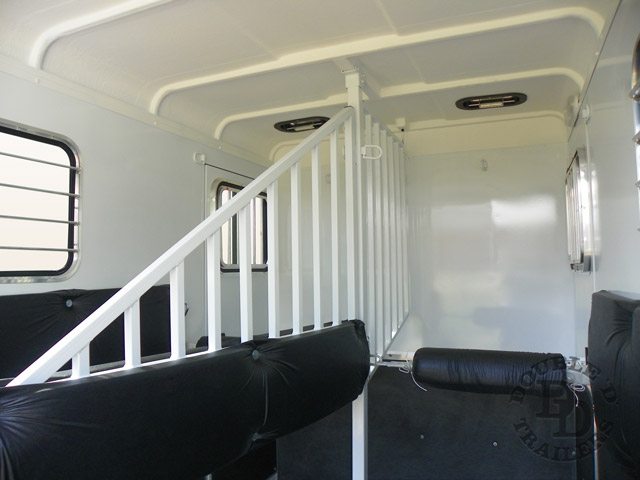

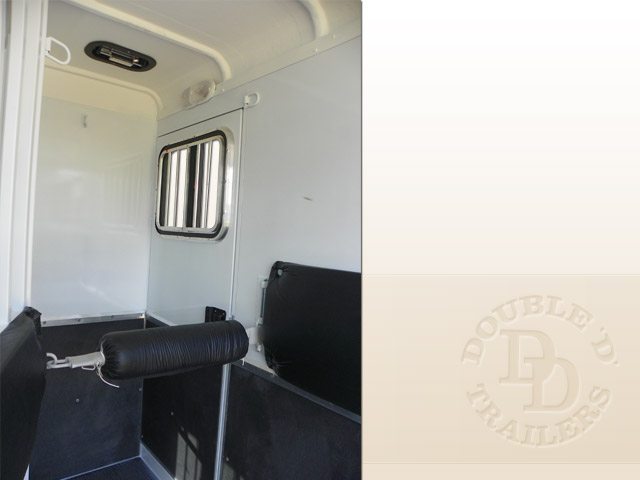

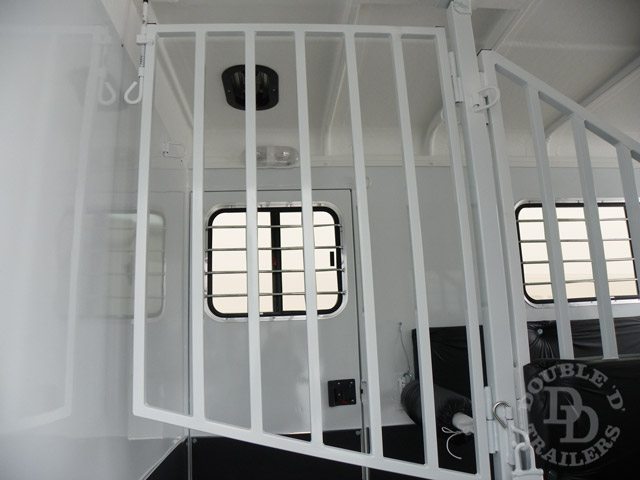

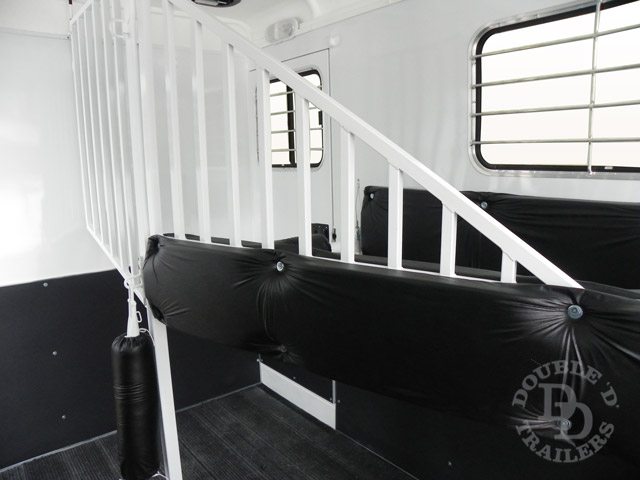

  • Z-Frame divider with handmade padding

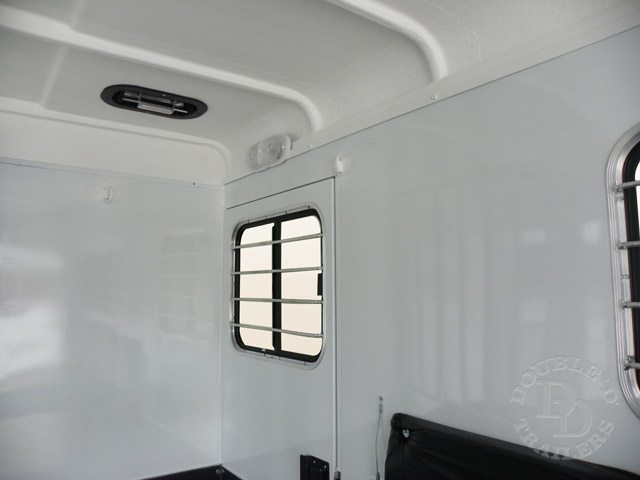

  • Horse Area Roof Vents, one per stall aluminum

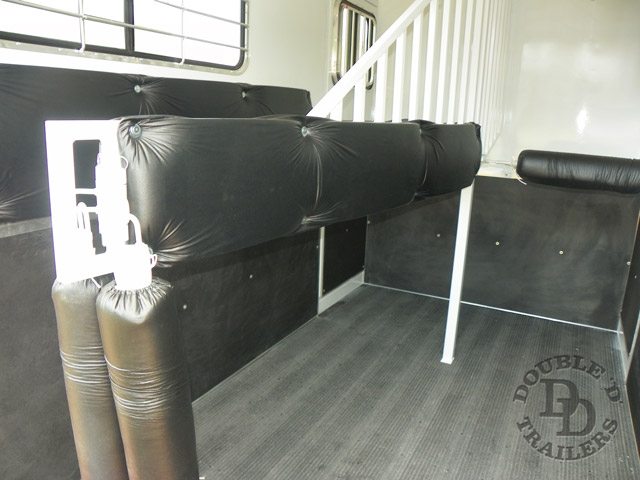

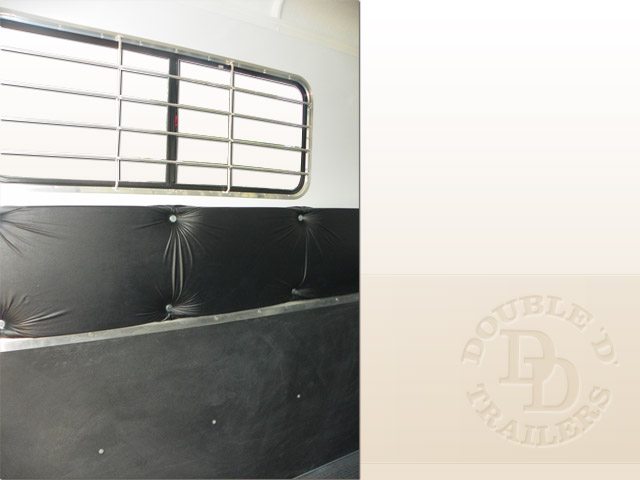

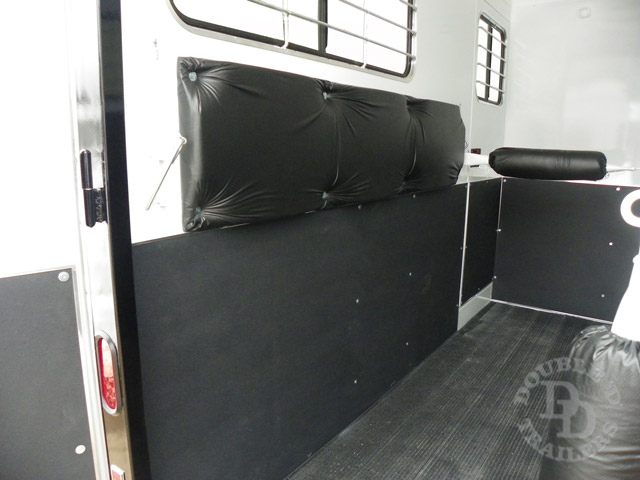

  • Custom hand made padding on dividers and slant wall

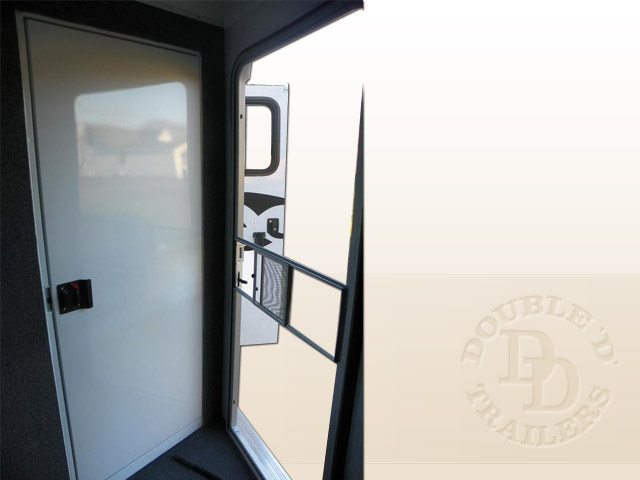

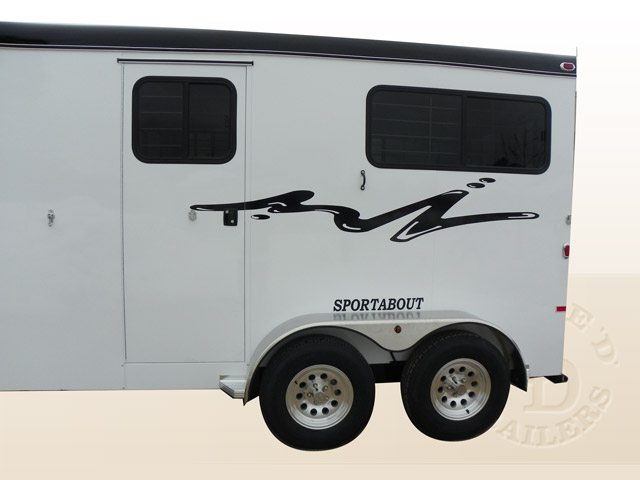

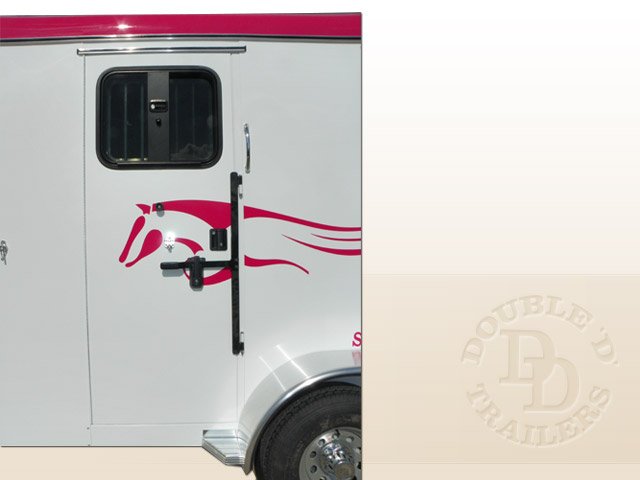

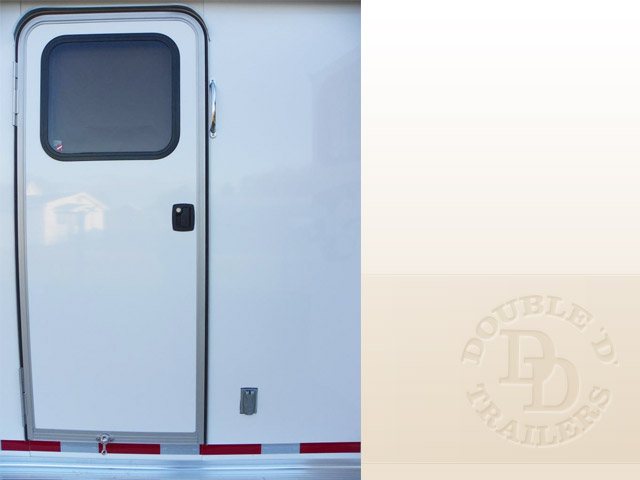

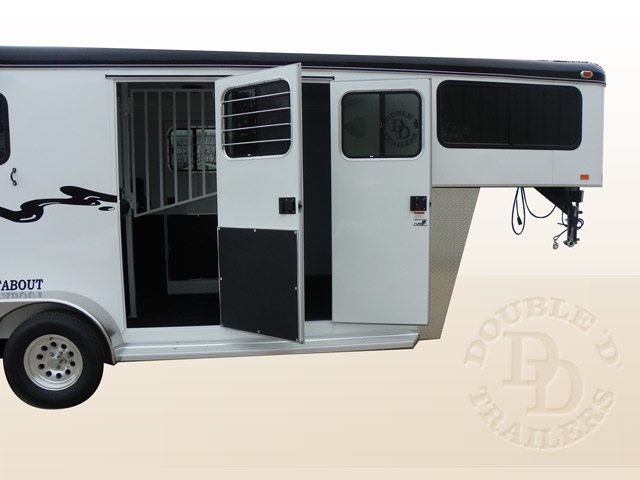

  • 30” Dress Door Factory Built Door (more durable than a conventional RV/Camper style door)
  • SafeKick® Wall System
  • Self Insulating SafeBump® Roof System with Fiber Composite One Piece, No Leak Molded Panel
  • Insulated side walls and roof in horse area for maximum temperature protection and safe, quiet ride

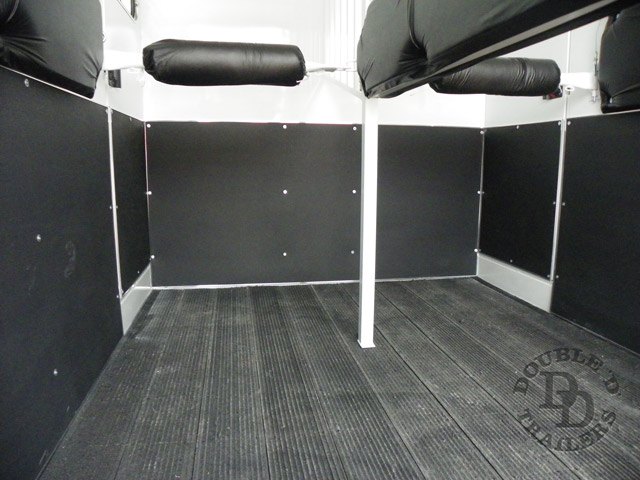

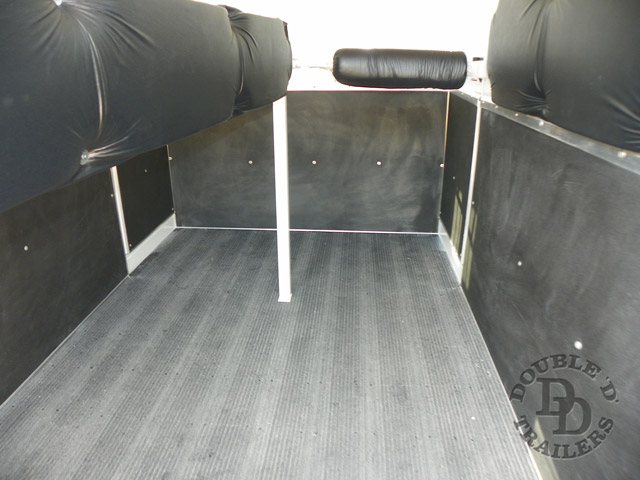

  • Floor Mats in Horse Area
  • Horse Area Roof Vents (One Per Horse)
  • Rechargeable Emergency Breakaway System
  • 7-Pin RV Style Plug

Warranty

  • (8) Year on Structure
  • (2) Year bumper to bumper
  • (1) Year on non-Double D Manufactured parts

Want options? We've got many. Customize this trailer now with options.

Photos

Click on a photo below to view its larger version.

Want options? We've got many. Customize this trailer now with options.

Videos

Click on a video below to view it's larger version.

Customize Your Trailer

Get More Info! You can click on the title of each option to view details and photos for each option.

Choose your colour from our Color Guide (PDF) and enter the name of it in the text field below.

061 Black - Free
015 Cardinal Red - Free
083 Sapphire Blue - Free
All others - $125 upcharge

Get More Info! You can click on the title of each option to view details and photos for each option.

  • Air Conditioner
    13,500 BTU with heat strip roof mount. Includes electrical panel box and additional roof bracing.
    ($1811)

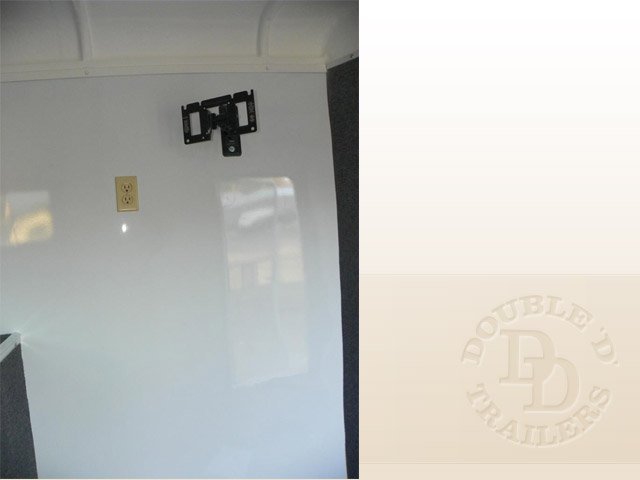

  • 110V electrical system
    Includes (1) breaker box (2) inside 110V outlets and connector plug exterior
    ($698)
  • Patio Awning
    Enjoy and relax underneath your new patio awning. Awnings are available in a variety of configurations and hardware but we only offer the two step. Why? Because it is the easiest to operate and will set up easily. Watch the video.
    Video ($2333)
  • Battery
    Battery Interior deep cell 12 Volt wired to charge from your truck. This deep is installed inside the dressing room and powers your interior lights, fans, and load lights, without being plugged into your truck. It is wired so that your tow vehicle will trickle charge it when driving. You may add the exterior battery bracket if you prefer it to be mounted outside.
    ($346)

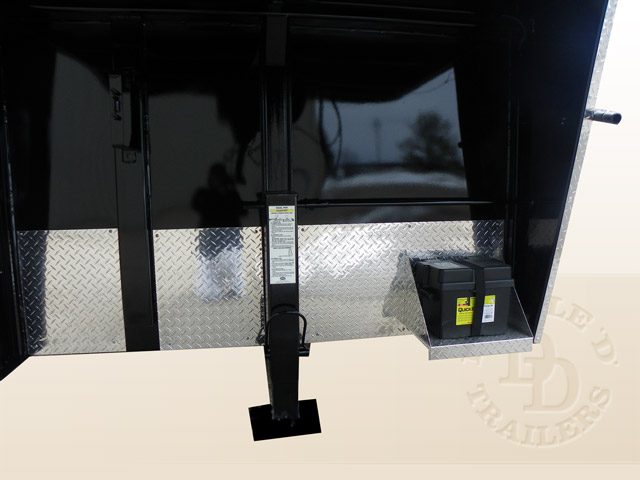

  • Battery Bracket
    Add a battery bracket for mounting an exterior auxiliary battery. (Use the Auxiliary battery option in conjunction with this feature)
    ($72)
  • Blanket Bar
    Add a blanket bar to your saddle tree (actual bar and design may vary slightly from photo)
    ($112)
  • Bridle Hooks ($24)
    Add extra bridle hooks to your trailer. Sold individually, add up to as many as you may need. (specify location when place order)
  • Brush Tray
    Brush Tray on dress door or Tack door.(If you are purchasing a slant load, there is plenty of space to throw in brushes in the rear Safetack. Use this option to add a brush tray on your dressing room door up front or tack door NOTE: Cant be used with screen door option) Brush tray design may vary from photo.
    ($72)

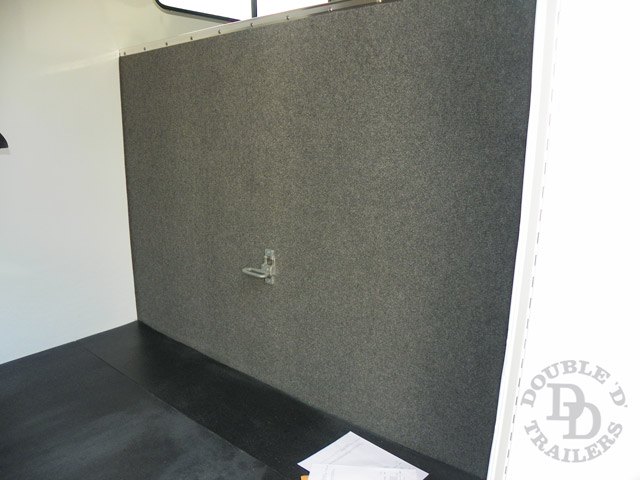

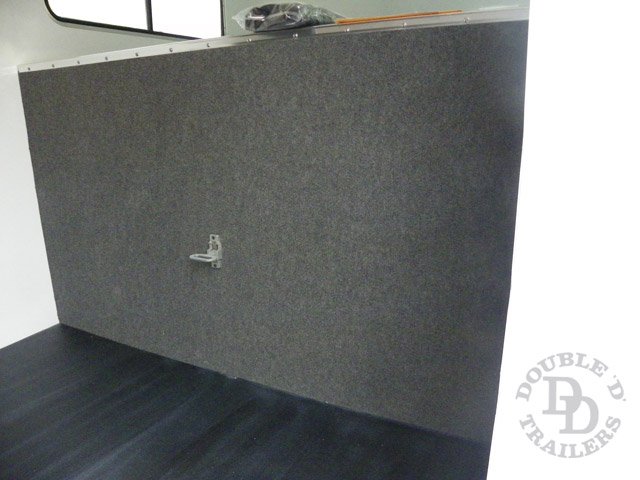

  • Carpet Bulk Head Wall
    If you are using the inside of your dressing room for a tack area, you may want to add some bridle hooks or hangers on your wall that separates your room from your horses. Carpet this wall to prevent bridles and other items from scratching as well as providing a noise dampener
    ($364)

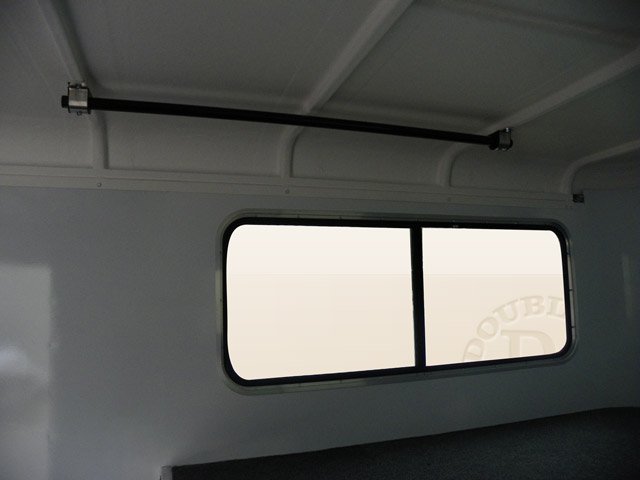

  • Clothes Bar
    Add a clothes bar mounted up high for hanging clothes in your dressing room.
    ($112)
  • Pewter Exterior Color
    Choose this option in place of standard white.
    ($526)
  • Fan in Horse Stall ($159)
    Add a fan per stall for additional comfort for your horses while traveling. Priced each.
  • Footage Dressing Room ($756)
    Add additional length to your dressing room for more space. Priced per foot.
  • Gooseneck Gate
    Suggestion: This small 6in tall gate is located on the wall just below the gooseneck and flips up to form a barrier that will keep items from sliding out of the GN onto the floor. Works well if you are planning to store items in your Gooseneck area. (actual design may vary slightly from photo)
    ($319)
  • Grab Handle
    RV grab handle on outside to assist with getting in and out of trailer
    ($41)
  • Grab Handle Illuminated
    Add an illuminated grab handle beside your dress door to assist getting in and out of your trailer. Lights up at night using a fiber LED lighting system.
    ($189)
  • Hay Rack
    6 ft. long Roof mount hay rack with side ladder. (actual design may vary slightly from photo)
    ($1918)
  • Hay Pod
    Enclosed Roof Pod 6 ft in length.
    ($5877)
  • Hydraulic Jack
    Add a hydraulic jack in place of the standard Jack. These systems are very reliable and you can raise and lower your trailer at the touch of a button. (requires single battery option) Note the video shows dual batteries which is not necessary
    Video ($1958)
  • Electric Jack
    If you want to upgrade from your standard hand crank jack, and you do not want to spend the extra money for the hydraulic jack, the electric jack may be a good fit for you. They do operate slower than the hydraulic but will get the job done. (requires battery feature if on a non-living quarter trailer)
    ($1432)
  • Two Speed Jack
    Used in place of a standard gooseneck jack, two speed jacks work well as an alternative to a hydraulic jack and can be used for lifting heavy loads. By offering two gear ratios, lighter loads are faster to lift and heavier loads take more revolutions. You can add on an electric motor in the future with this feature. (note: the spring loaded feature on the jack foot is not available on a two speed jack)
    ($303)
  • Gooseneck Hook up light
    mounted underneath the gooseneck, works well when hooking up at nigh), includes a separate remote switch located on the side of the trailer for easy operation
    ($134)
  • Exterior Porch Light
    Add a light beside your dressing room door. Includes a remote switch mounted inside your dressing room
    ($134)
  • Load Light
    55 Watt Halogen Load light on separate switch mounted up high.
    ($165)
  • Mat
    Remove the standard carpet in the dress floor and replace with a stall mat. More durable, easier to clean. Simply remove the mat and hose it off if needed.
    ($118)

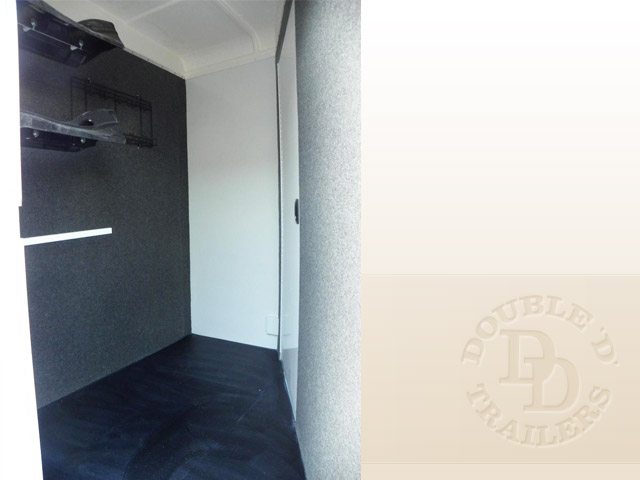

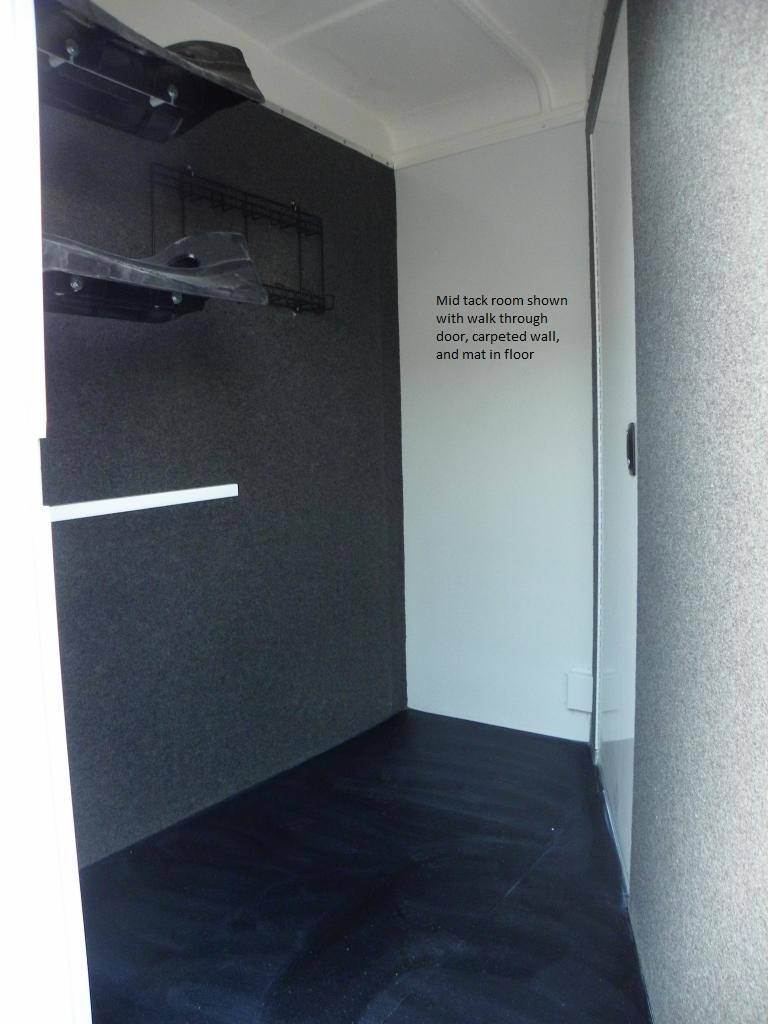

  • Mid Tack
    3 foot mid tack, includes entrance door with window and separator wall. Additional footage required.
    ($2244)
  • Remote switch for fans
    If you add fans for the comfort of your horses, add a rear remote switch which allows you to operate all of your fans from a common outside switch.
    ($78)
  • Running Board
    Running Boards or steps are standard on the dressing room side of your trailer. Add a step to the opposite side in front of the fenders.
    ($422)
  • Extra Saddle Racks ($160)
    One saddle rack comes standard per horse. Example: if you are looking at a 3 Horse model, 3 saddle racks are included. This feature allows you to add an extra saddle rack to your saddle tree, or front dress if saddles are located there.
  • Solar Panel
    Used to keep battery charged while in remote areas.
    ($565)
  • Stainless Nose Sheet
    Added to V portion of trailer (NOTE: this option has a mirror effect on the front of your trailer, much easier to clean bugs and really adds to the look of the trailer
    ($666)
  • Storage Chest
    Gooseneck step and storage chest: This storage trunk and combination carpeted seat, is installed against the jack sheet wall and runs the full width of the trailer or 3/4 width depending on your layout. It also provides an easy step up into the gooseneck area. This storage bin/seat takes up 1 foot of depth in the floor space. Optional footage (at least one foot of length) is often added to the dressing room to better accommodate this addition without using up floor space.
    ($542)
  • Vent 14 in
    Add a 14 inch crank out vent for air flow and exhaust
    ($181)
  • Vent with 12V Fan
    add a 14 inch vent with fan inside your dressing room
    ($297)
  • Axle 10400 lb
    Upgrade from combined 7000 lb capacity axles to 10400 lb, recommended when adding footage to trailer on Gooseneck models or bumper pull models. Pricing includes upgrade to 15 inch D rated tires also in place of standard 15 inch C rated tires.
    ($1290)
  • Water tank 25 gallon upright
    Water Tank-25 gallon triangle with stand for inside the dressing room.Suggestion: This smaller water tank (14 in per side of triangle and 56 in. tall) easily tucks into corner of the dressing room. You may fill your tank from the top and use your water from gravity feed. All you need is a water hose.
    ($392)
  • Wall Organizer Grid Video ($210)
    Most tack rooms are a nightmare when it comes to organization, some even downright junky! (I can see you nodding your head in agreement). Add this wall organizer grid to your new trailer which allows you to utilize the vertical wall space. No more stuff in the floor. After you add the grid, you may order separately bins, containers, hooks, racks, mirrors and other accessories that will attach to the grid. The accessories are very reasonable and available at many online tack store websites.

Get More Info! You can click on the title of each option to view details and photos for each option.

  • Camera System
    Being able to monitor your horses while traveling as well as see what is behind your trailer can be beneficial. Add this feature which includes two cameras (one for your horses, one back up or rear view camera). Includes a wireless monitor which you plug in to your 12V supply inside your tow vehicle. Operates wireless.
    ($1124)
  • Feed Bag ($82)
    Feed bag works great for feeding while trailering (priced per stall)
  • Footage Horse Area Straight ($756)
    Add 6 inches to horse area. You may specify in the Horse chest area or horse head area. Add additional footage where needed.
  • Front Stall Escape door ($690)

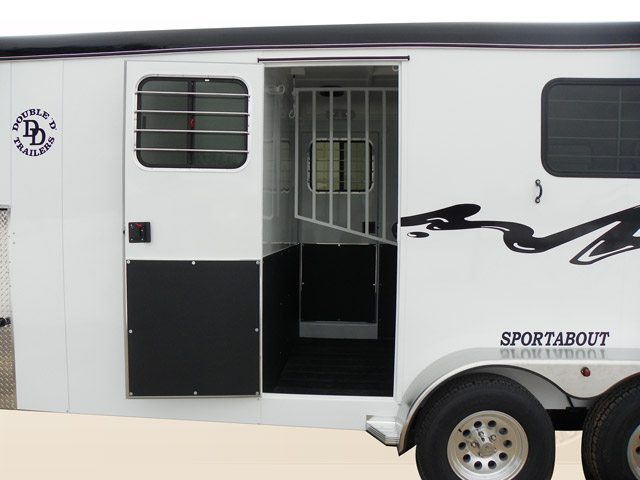

    Front stall escape door (NOTE: Walk thru door is standard from the horse area to the dressing room. Use this option if you want a door at the horses head, typically used at shows for accessing horses) specify one door on one side or one door on each side for a total of (2) doors

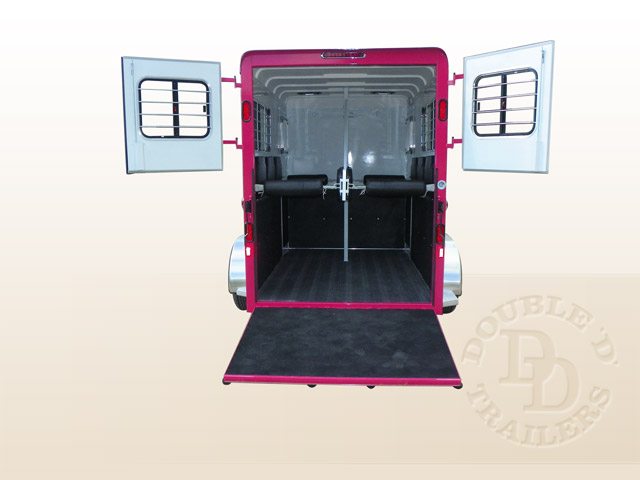

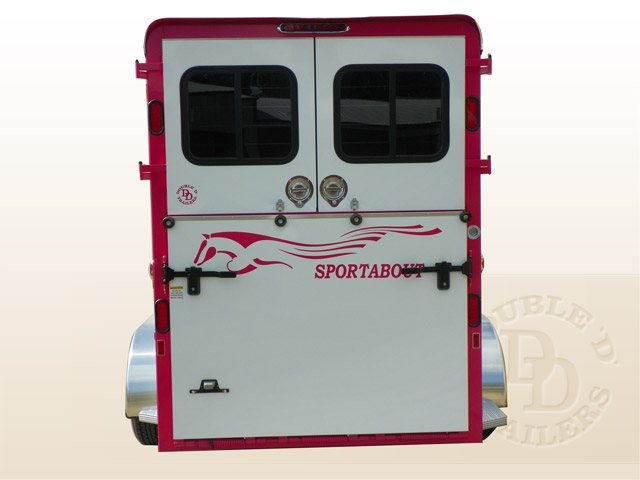

  • Ramp Door
    Use this feature to replace your full height rear doors with a ramp at the bottom and folding dutch style doors at the top.
    ($1073)
  • Ramp Door
    Ramp Fold up door spring assist covered with black matting, mounts outside full height rear doors. Ramps are safer for loading for your horses and offer more protection in case you have a rear end collision.
    ($1510)
  • Window Screen ($101)
    All sliding windows include a screen. And the sliding portion of your drop down is screened as well. However, when you fold down your window and leave the bars in the folded up position, there is not a screen to protect your horses eyes from debris and bugs. Select this option to add a screen for your drop down feed windows. It includes a zipper so you can unzip for feeding if needed. Priced per window.
  • Side Unload Ramp
    side ramp for unloading (NOTE this feature allows you walk off your horses using a front side ramp) Pricing includes side ramp and 1 foot of additional space and slanting the dress wall
    ($3138)
  • Ramp Diamond Plate Video ($73)
    Add a section of diamond plate to your ramp across the top. Rubber bumpers are already included but this will help provide additional protection against scratches from use.
  • Stock Side Trailer
    Make this a stock side trailer (open slatted) rather than enclosed with windows. Suggestion: we do recommend against open sided trailers since they are not water tight and allow rain to get inside your trailer on the flooring, walls and padding. However, some customers want open stock style trailers, so this option is available. Pricing does not include the Plexiglass. Many customers feel open sided trailers are cooler but this is not the case. Since all Safetacks are insulated in the side walls, insulated in the roof, and use not heat transferring property materials, your horses will ride very comfortable in a fully enclosed trailer with windows and vents for air flow.
    ($368)
  • Tie Ring Exterior ($50)
    Extra exterior tie ring specify location of additional rings when you order.
  • Tie Ring Interior ($43)
    Extra interior tie ring (one is standard per horse, add a second for tying hay bays -- specify quantity)

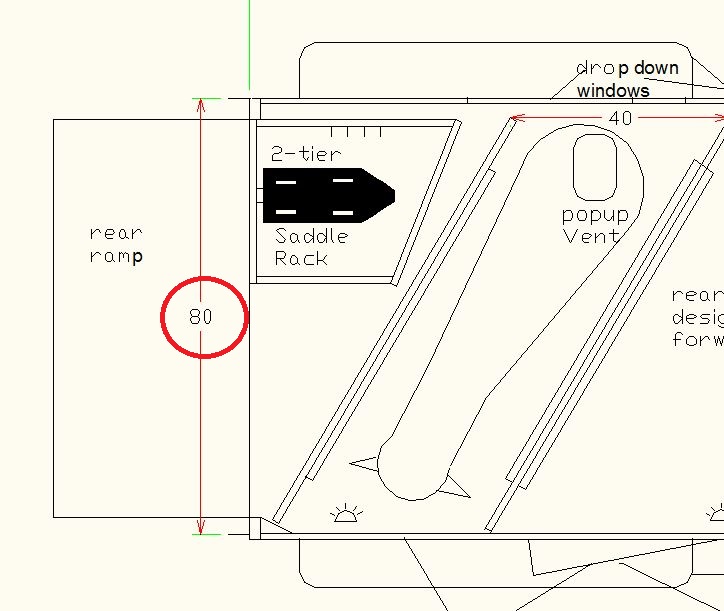

  • Increase width to 80 inches
    Recommended for larger horses or draft size breeds 16 Hands and over.
    ($1411)
  • Window at Horse Head ($211)
    Add a 20 inch x 24 inch sliding window at each horses head for additional light and air flow.

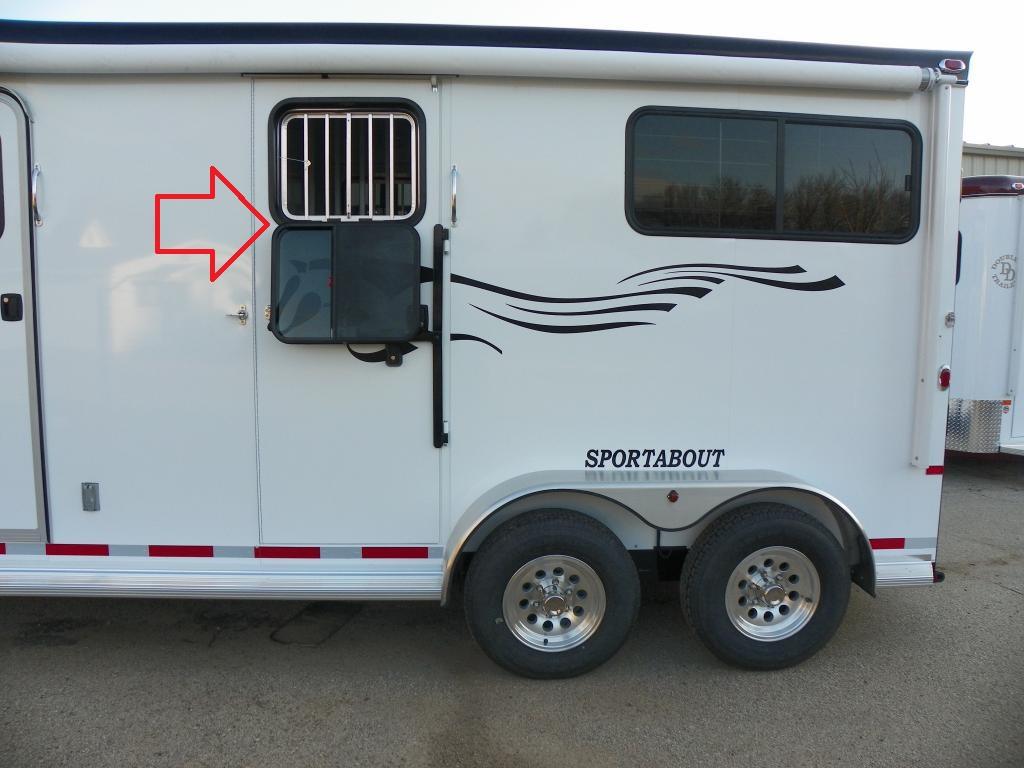

  • Drop down Feed window 24 in x 30 in ($374)
    Add a drop down feed window at your horses head

Get More Info! You can click on the title of each option to view details and photos for each option.

  • Rumber Flooring Straight Load
    2 x 8 in. pressure pine flooring with mats is a standard feature. You may change to Rumber which is a rubber and made from recycled tires. The dimensions of each board is 2 x 8 in and it is tongue and groove interlocking, solid rubber material. It is a soft ride with minimal noise and vibration. The neat thing about Rumber is it doesnt require any stall mats which makes it super easy to clean and maintain. Plus it has a lifetime warranty, virtually indestructable.
    Video ($993)

Get More Info! You can click on the title of each option to view details and photos for each option.

  • Hang Out LQ Package (you must select this option first)
    Up to a 4 foot short wall. Standard Amenities Listed Below Night Pleated Shades w/Valances Bench w/Cushion Wrapped Wood Cabinet& Solid Wood Flat Panel Cabinet Doors w/Door Knobs w/Crown Molding around Cabinets Kitchen Overhead Cabinet, Stainless Single Kitchen Sink w/Stainless Faucet Wilsonart Countertop w/T-Molding Edging Swing Door w/Std Flat Door to toilet area Marine Toilet w/Toilet Paper Holder 6 gallon Water Heater w/Auto Ignite 2 – 20# LP Tanks 12 volt Converter 45amp 30 gallon Fresh Water Tank & 12volt ON Demand Water Pump City & Fresh Water Connection 20.5 gallon Black Holding Tank & 18” Black Sewer Carrier w/Hose 25’ Power Cord w/Adaptor Charge line Monitor Panel 110V Inside & Outside Receptacle & GFI Receptacle Smoke, CO & LP Detector, Fire Extinguisher USB Outlets in GN Grab Handle Cowboy/cowgirl Shower
    ($9510)
  • Footage to Hang Out LQ ($1672)
    Add footage to your base 4 ft short wall Hang Out package. Includes base and overhead cabinet.
  • Vent with Thermostat control and rain sensor
    These vents move a lot of air and are great for camping when you do not want to use the air conditioner. Ideal for inside your living area. Features a thermostat control and rain sensor.
    ($641)

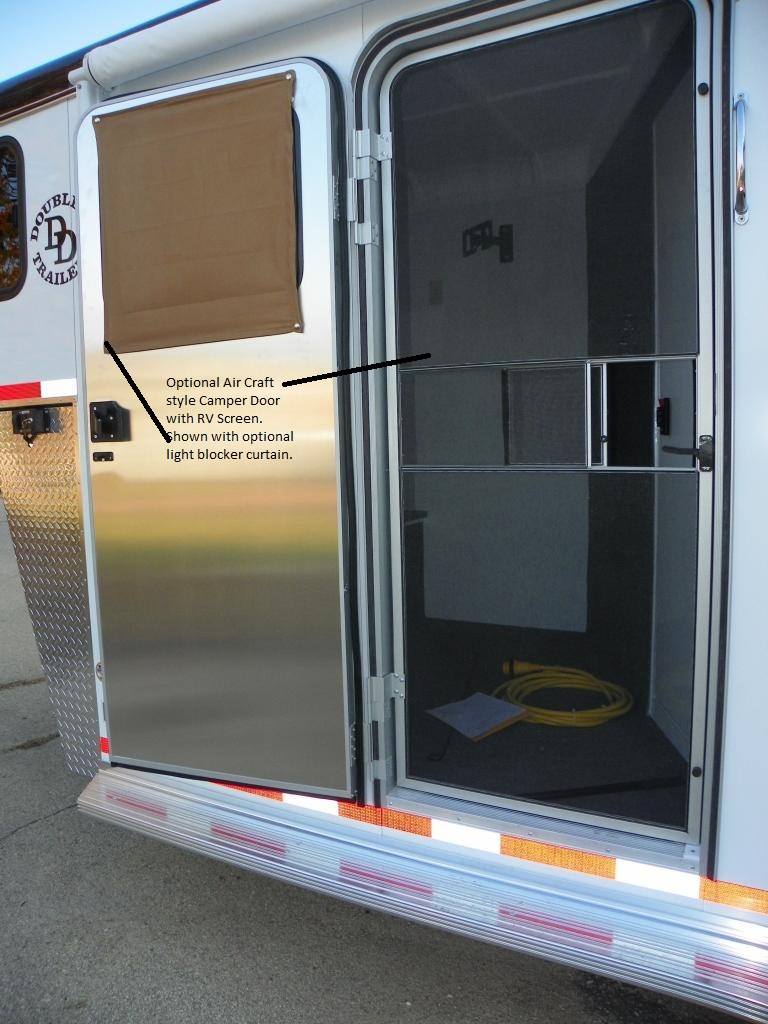

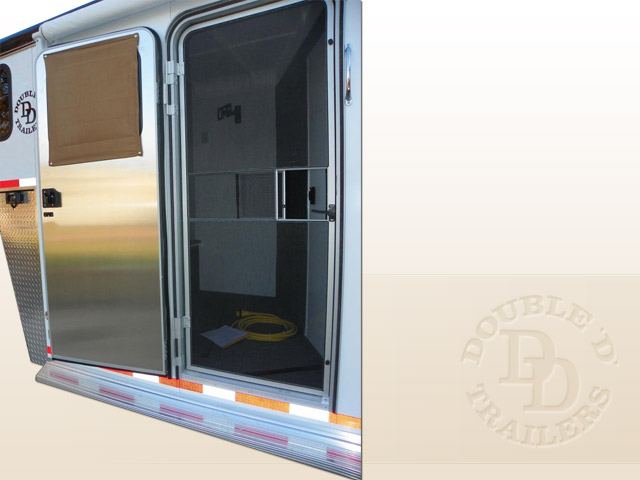

  • Camper door with Screen
    Change out the standard dressing room door and add a rounded corner aircraft style Camper door with a bug screen. The screen door can be beneficial for keeping bugs out while while your dress door is open, allowing air flow.
    ($529)
  • Folding Ladder
    A ladder to get up in the bed area is included or steps depending on your layout. You may add a folding ladder that folds against the wall when not in use or is removable to store on the bed when not in use. Recommended to create additional floor space. Photo shown is folding ladder
    ($332)
  • Front Nose Wardrobe
    works well for hanging clothing or utilizing the front area for additional storage of hats, boots, bed linens or other items.
    ($560)
  • Closet
    Up to 18 Inch size closet installed at the jack sheet wall
    ($560)
  • Refrigerator 3.0
    Add a RV style refrigerator to your living quarters. Since it operates on battery power or propane, it works well to maintain your food cold while traveling. This option requires at least 2 feet of base cabinet as well as Package plumbing package #3.
    ($2116)
  • Cook top two burner
    Two-burner cook top black or white (available in stainless upgrade). requires 2 foot base cabinet and plumbing package #3.
    ($585)
  • Furnace
    works well for staying warm in the winter time. Requires base cabinets and plumbing package #3 along with electrical package.
    ($891)
  • microwave
    Add an RV style Microwave to your living quarters. These are designed for the abuse and movement of the road and are properly vented to avoid overheating by being mounted inside of a cabinet. Available in Black, white and gray (stainless looking color upgrade) Requires overhead cabinet at least 2 feet in length for installation.
    ($316)
