You've chosen the following horse trailer model:

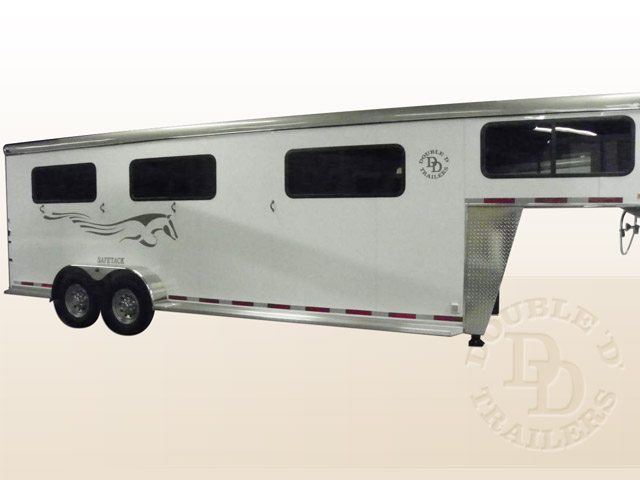

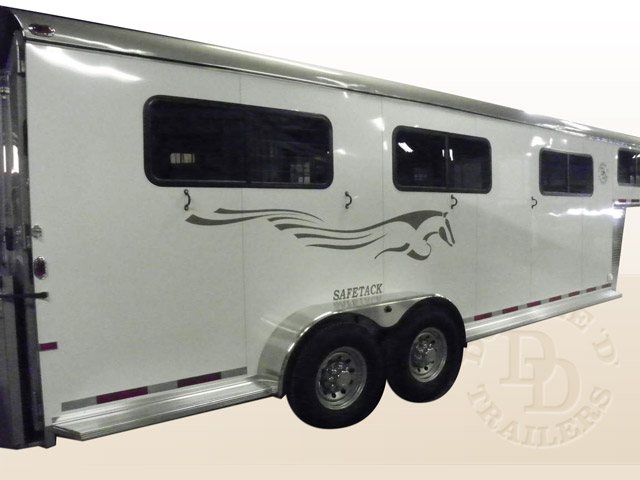

Gooseneck 4 Horse Slant Load Trailers photo

Overview

  • Easily towed with a short bed 3/4 ton truck
  • Customize to haul up to a 17Hand Plus size horse
  • Enjoy the carpeted and fully insulated dressing room
  • Add a side ramp for "walk on and walk off" feature

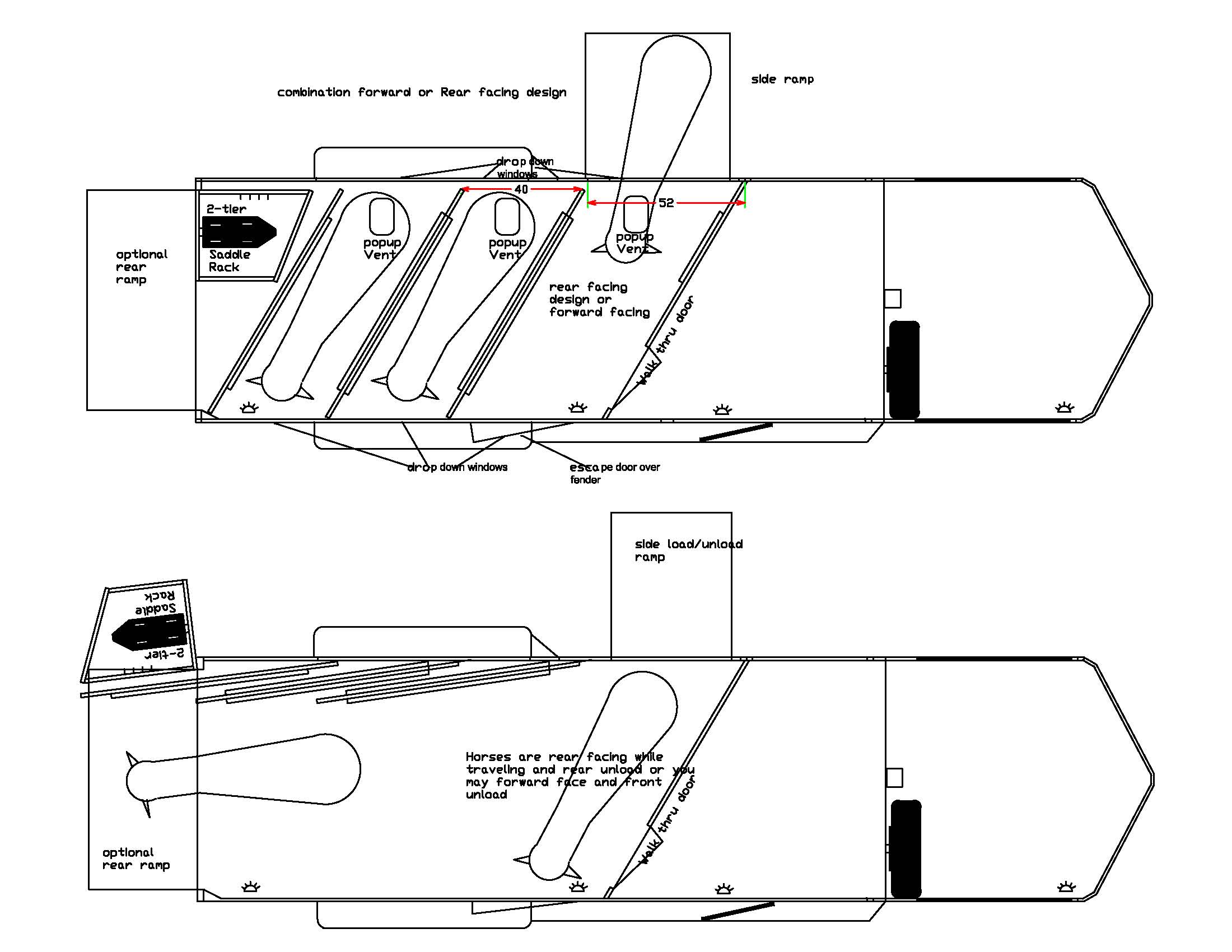

  • 4 Horse Reverse Slant Design available (Often referred to as rear facing)

Our 4 Horse Trailer For Sale Offers a Slant Load Design That Keeps Your Horses Safe With Easier Towing

When you finally buy your 4 horse trailer, don’t deal with the hassle of maneuvering a long straight load design over busy highways and through windy country roads.  This can be both a safety hazard and a major headache.  The 4 horse trailer for sale from Double D Trailers is a better and safer option with its smartly designed SafeTack system.  Avoid the stress and enjoy the top safety features that set this trailer apart.

Easier Towing With This Slant Load Trailer Design

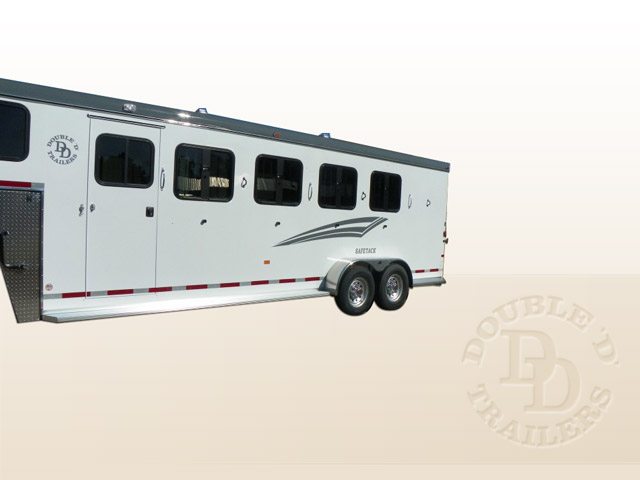

This 4 horse trailer for sale from Double D Trailers is built with a slant load configuration to minimize the overall length of the vehicle.  This will increase your visibility and provide an overall easier hauling experience than many 4 horse straight load designs.  The aerodynamic V-shaped nose design on this trailer provides plenty of clearance during turning even with your short-bed truck.  Its Z-Frame technology provides superior strength without excess weight, so this trailer can be towed with most 3/4 ton trucks.

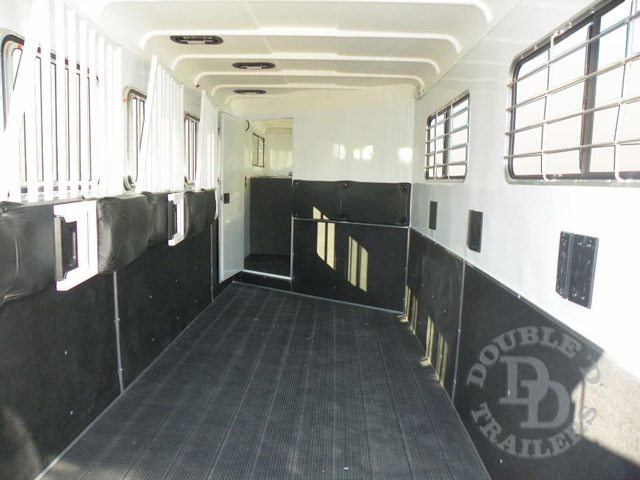

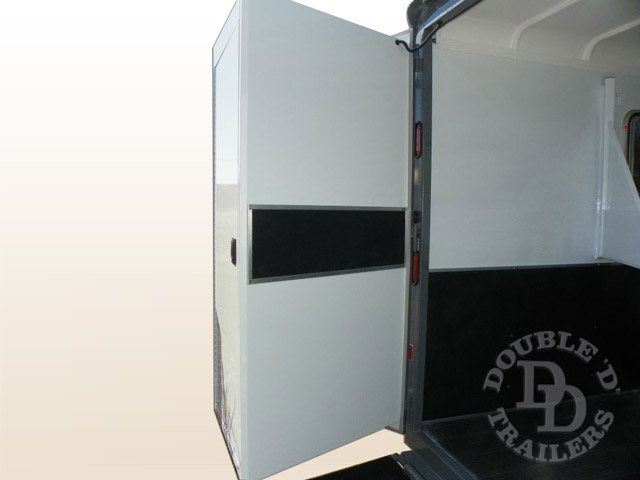

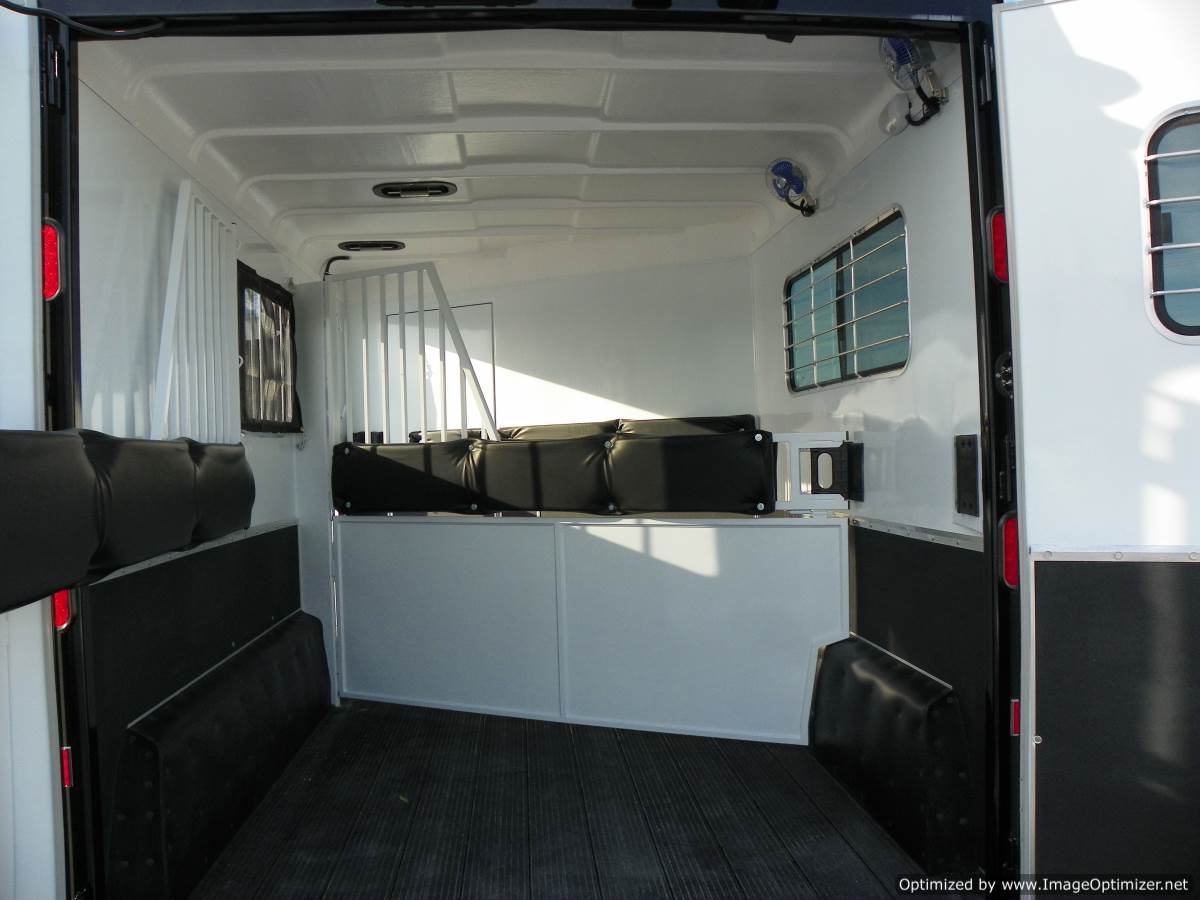

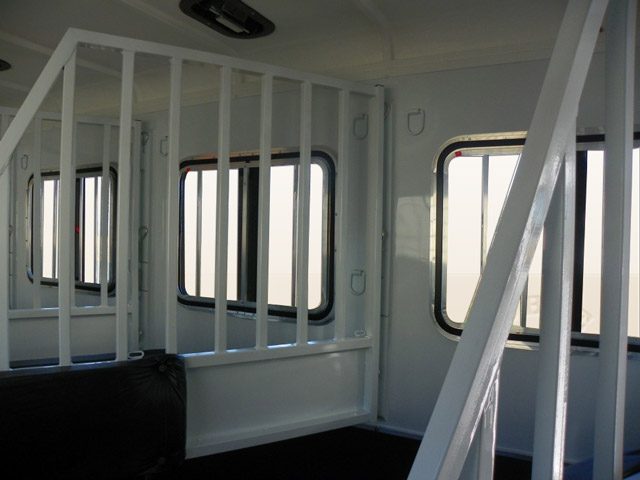

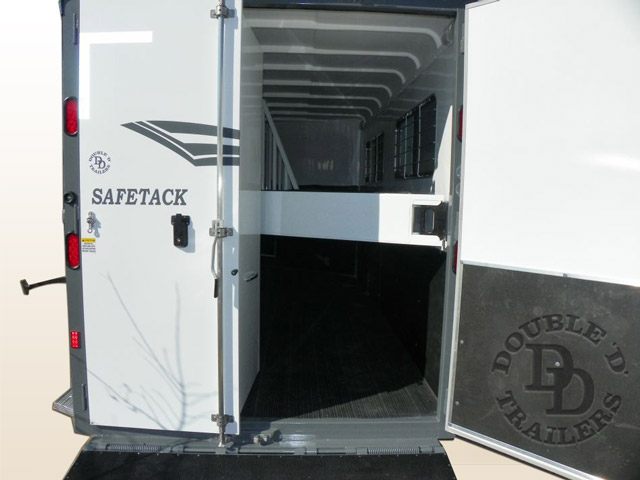

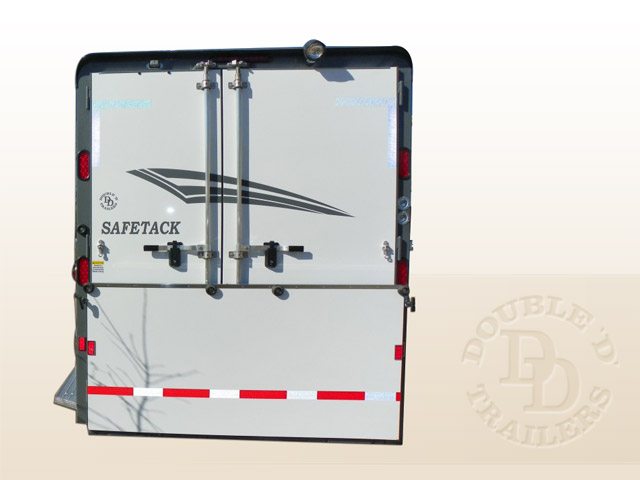

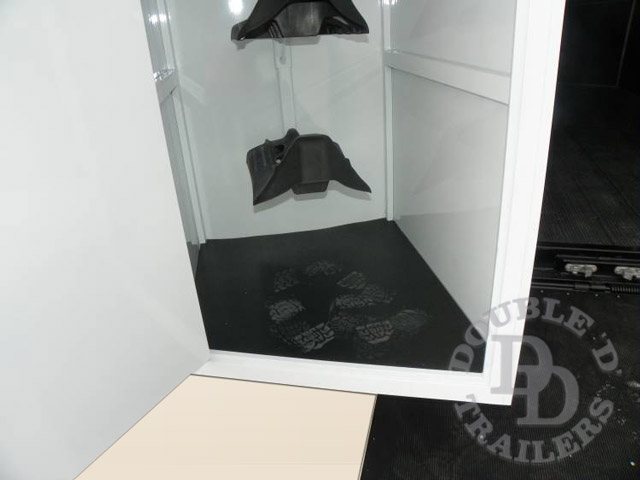

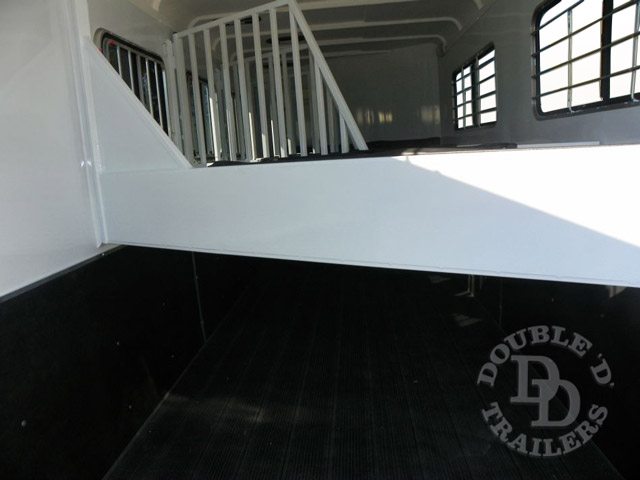

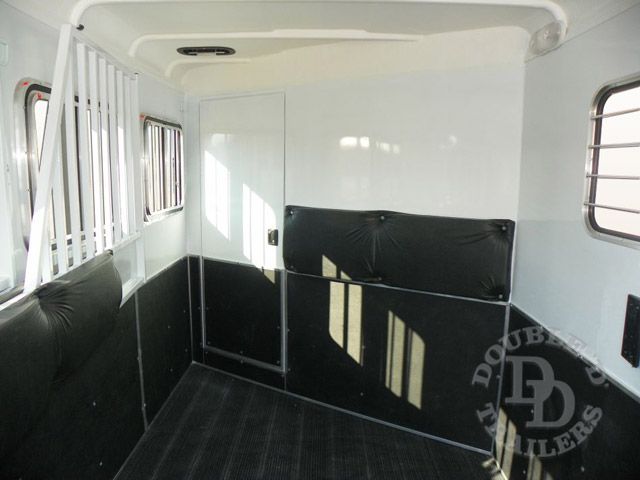

Aside from the ease of towing, this trailer is packed with safety features to protect your horses.  The rear SafeTack compartment swings out like a second door to allow your horse a wide open entrance for loading.  Once inside, they will be protected by strong Z-Frame dividers, custom 2” handmade padding, and SafeKick walls that flex on impact to protect delicate legs. Many horses suffer from claustrophobia inside trailers and overheating is a danger especially in hot summer months.  To solve this problem, this 4 horse trailer for sale has tubular head dividers, a Heat Reflective SafeBump® Roof System, and an air vent over the head of each horse.  Large, bar-reinforced windows are easy to open and latch with just one hand.

A Living Quarter Horse Trailer Perfect For Long Weekend Shows or Rodeos

Take a break from your busy day at the show grounds to relax in the spacious living quarters of your 4 horse trailer.   Ceiling-based air conditioning can easily be installed without additional reinforcement to provide a cool escape from the hot summer days.  For rainy fall days, you’ll be glad that you have a warm and dry haven inside your trailer.  An interior door from the living quarters provides easy access directly into the horse area so you can easily store additional supplies in the back.

Several popular options are available for this trailer including rumber flooring to minimize the road heat and noise transfer.  You may also choose to customize the individual stall sizes within the trailer to fit your large warmblood right beside your daughter’s hunter pony.  Be sure to click on the “Customize Your Trailer” button to start planning your dream show trailer below.











Want options? We've got many. Customize this trailer now with options.

Specifications

Weight (without added options) 6300lbs
Overall Box Length 21'6"
Overall Trailer Length with Gooseneck 29'
Dress Side 48" short wall x 96" long wall
Inside Height 7'4", optional 7'6"
Stall Length 117" diagonal, 92" divider length
Stall Width 40" on center measured at window, 31" approx between pads

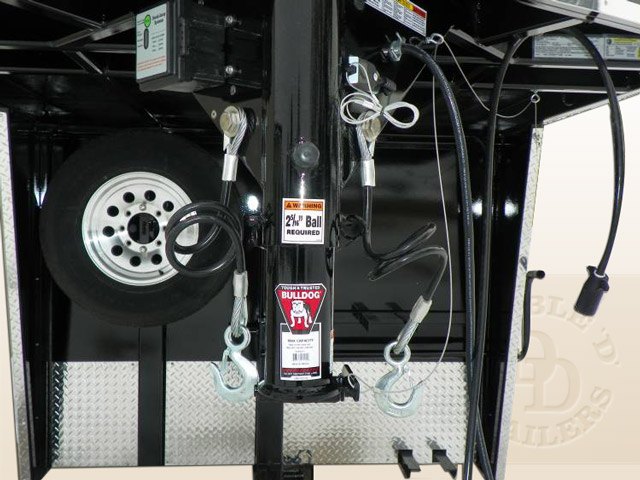

Coupler 2 5/16" adjustable height coupler

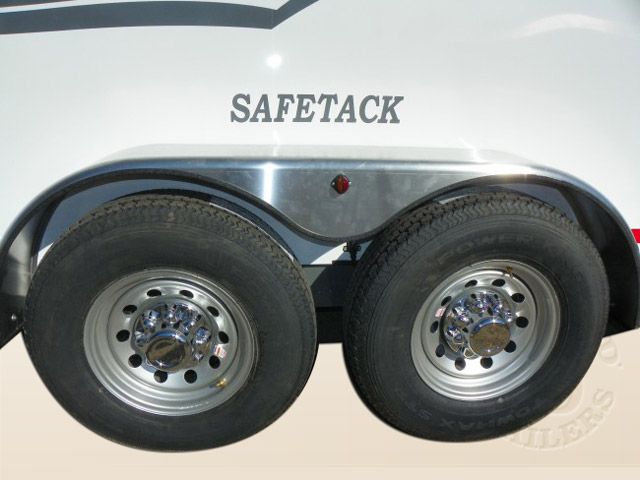

Wheels Powder coated gray, optional aluminum
Tire Size 235/75R16 (E) Radial
Brakes 4 wheel
LED Turn Signal Lights on Rear (2) Standard up high

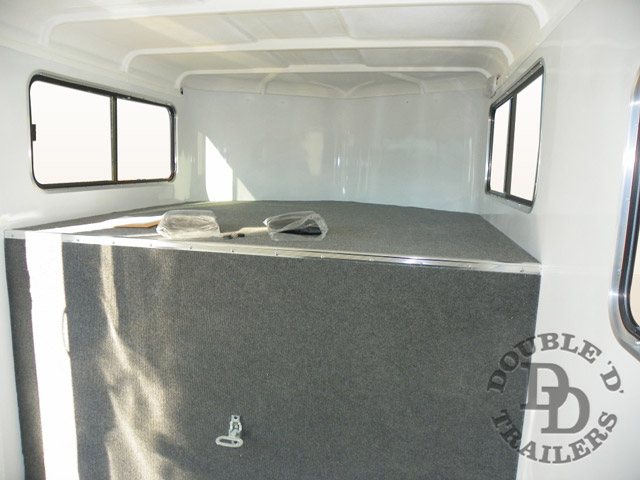

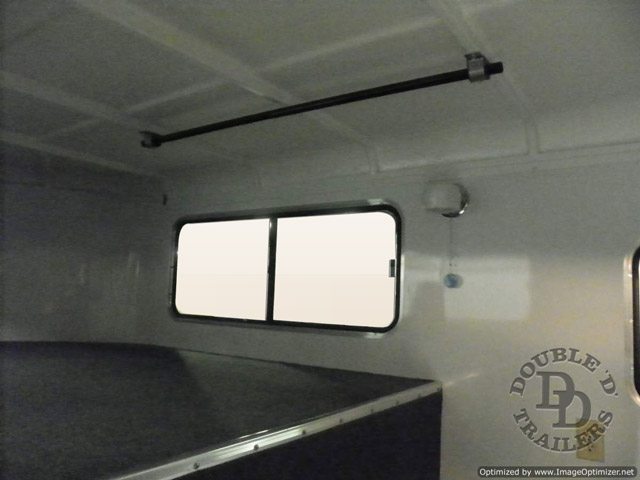

Windows in Gooseneck
(2 - sliding with screens)
20"x51"

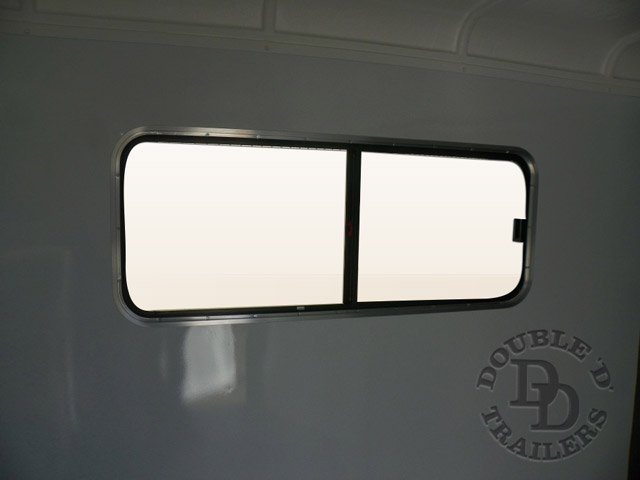

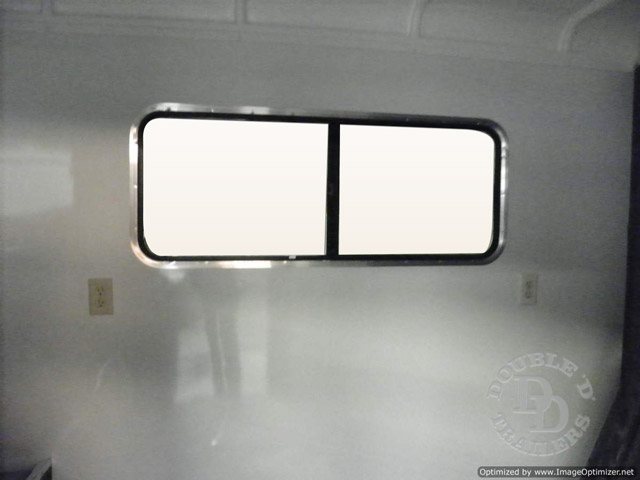

Picture Window in Dressing Room on Long Wall
(1)
20"x51"

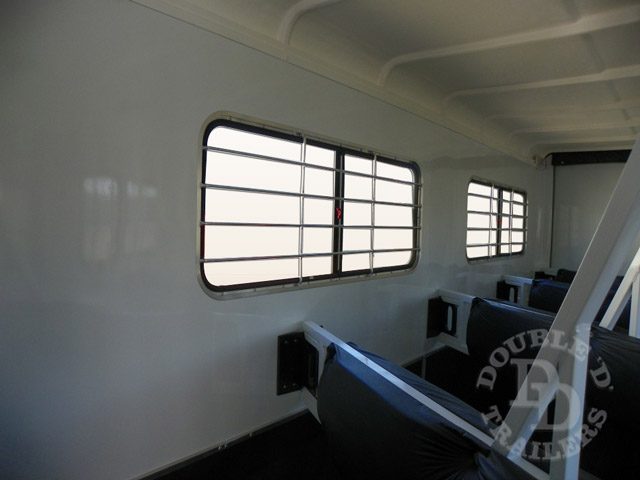

Windows in Stall Area
(1 per horse - dropdown with bars)
24"x30"
Windows on Butt Side
(2 - sliding with screen)
20"x51"

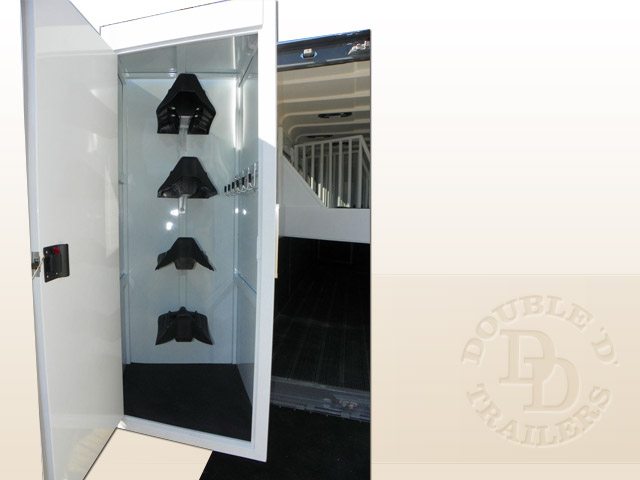

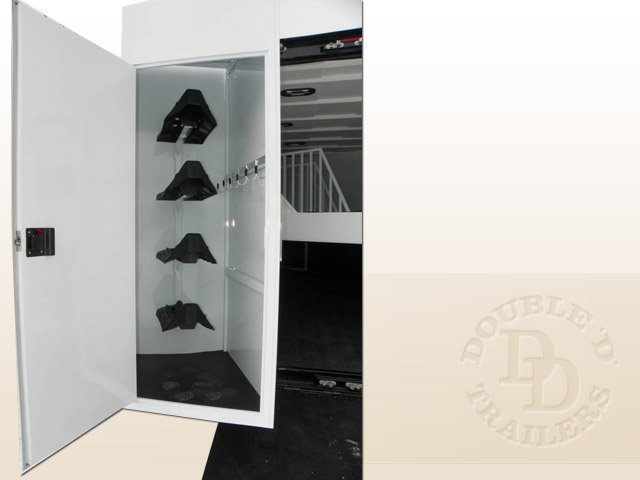

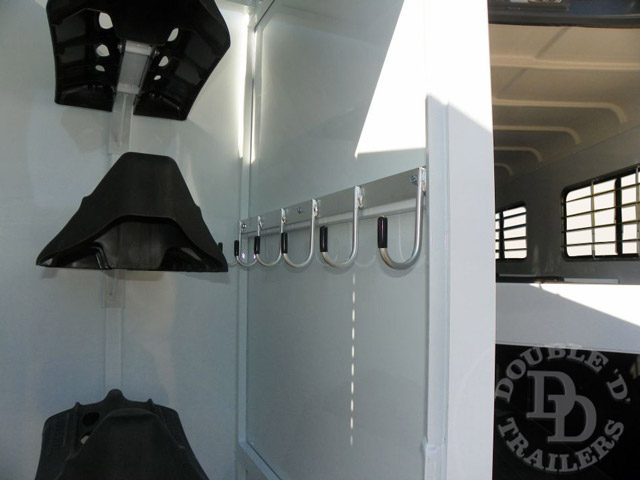

Saddle Racks 4

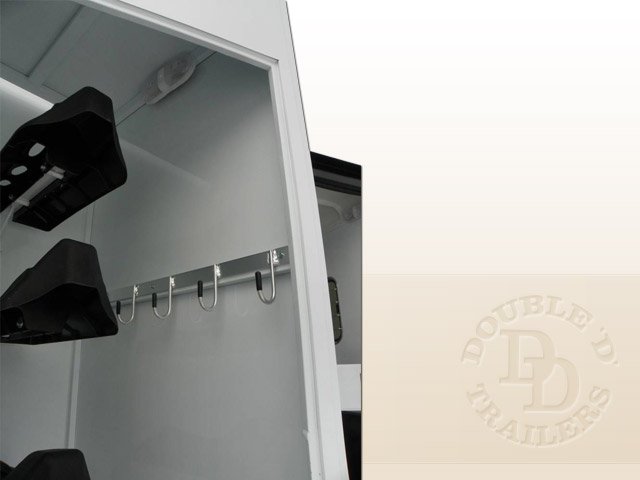

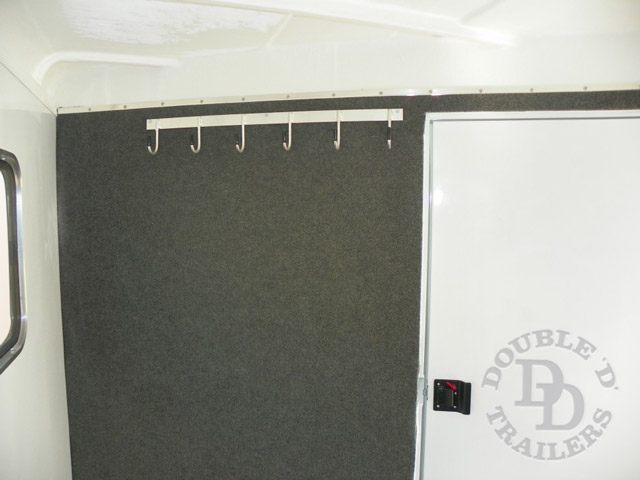

Bridle Hooks 4
Custom Hand Made Padding on
Dividers and Slant Wall
2" Standard
Interior Tie Rings per Stall 1
Exterior Tie Rings per horse 1
Lights in Horse Area on Remote Switch 3
Lights in Dress Area on wall mount switch 2

Features

  • Z Frame Technology
  • 2”x 8” Pressure Treated Pine Flooring on 16” Cross Members

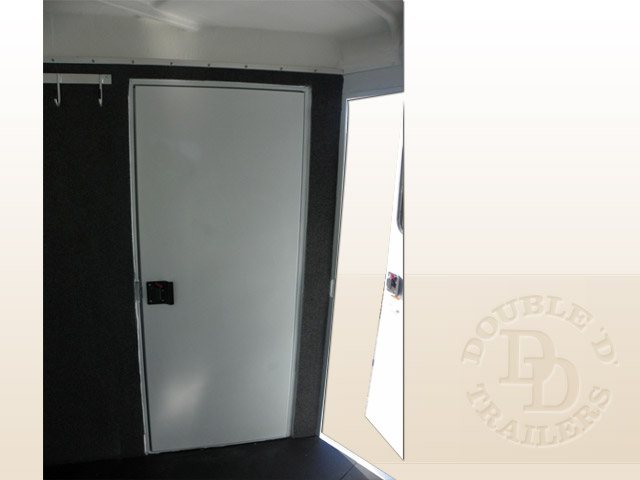

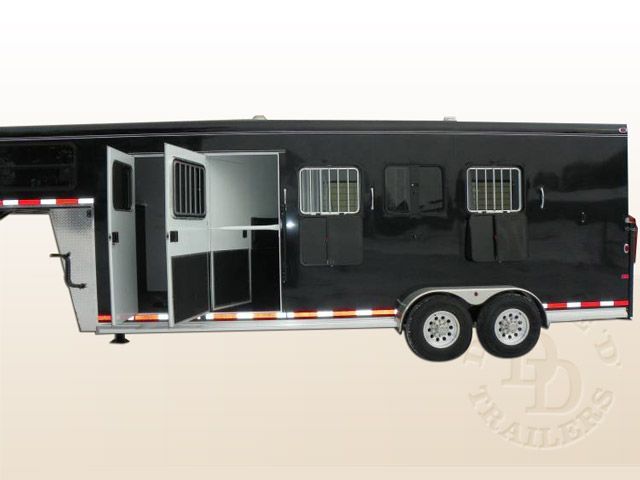

  • Walk Thru Door to Horse Area
  • EZ Lube Durable Never Adjust Brakes, 12,000 lb axle suspension

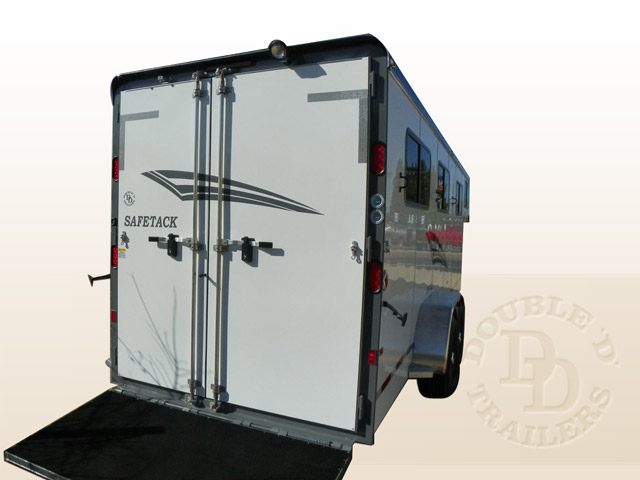

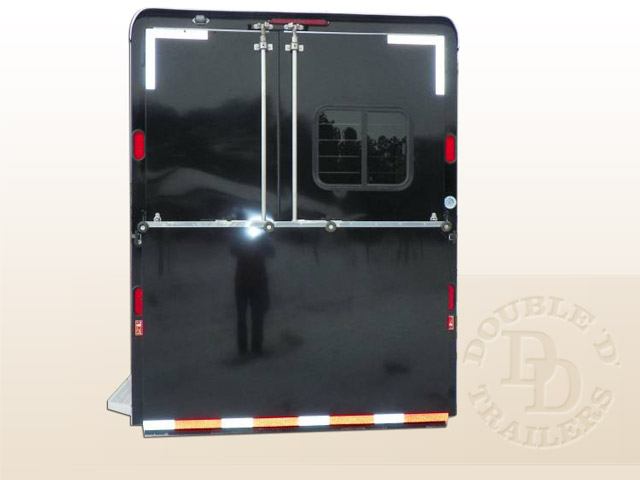

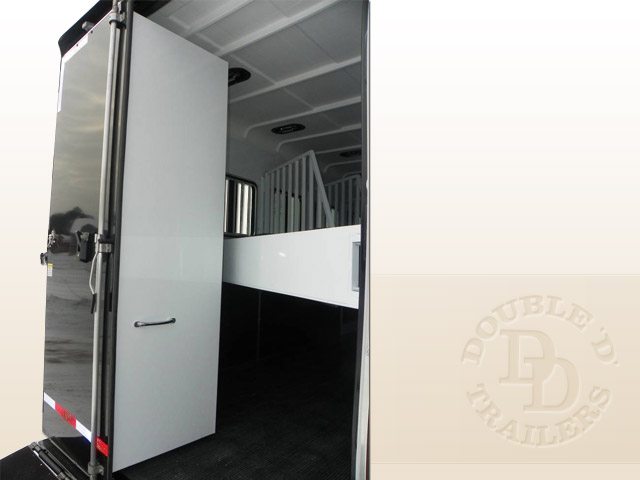

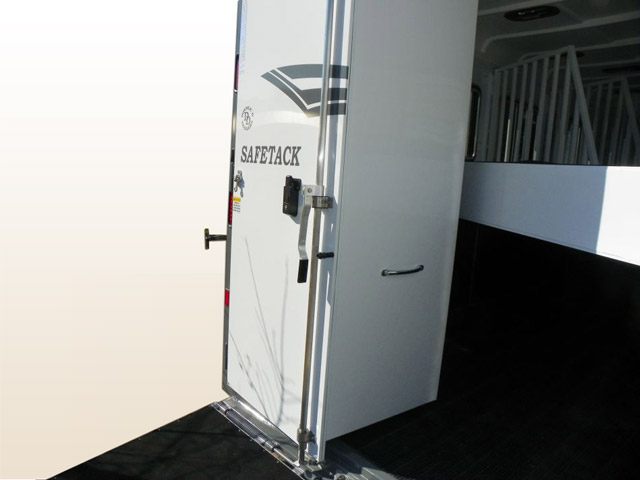

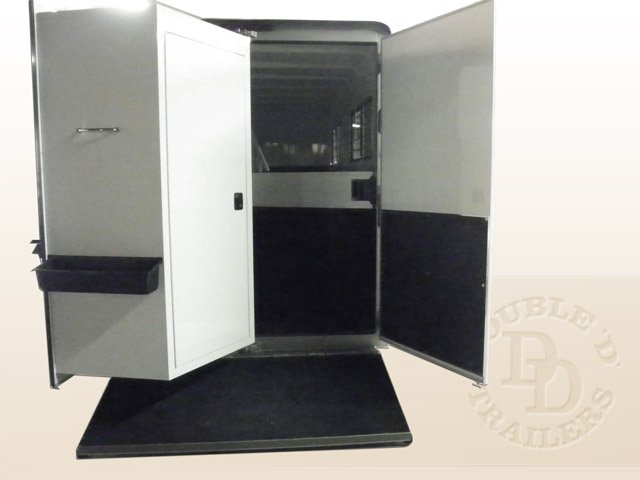

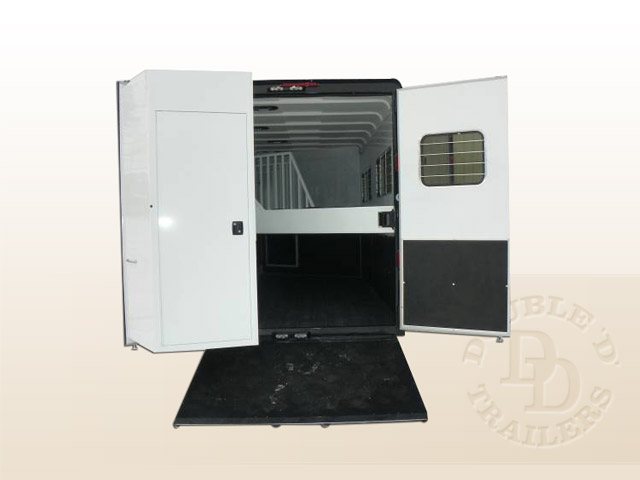

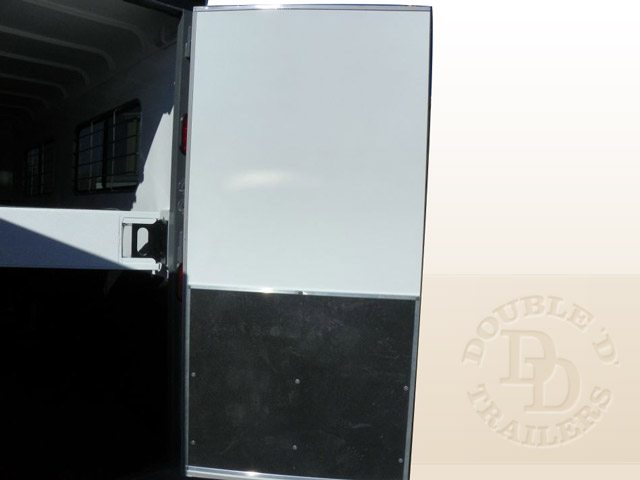

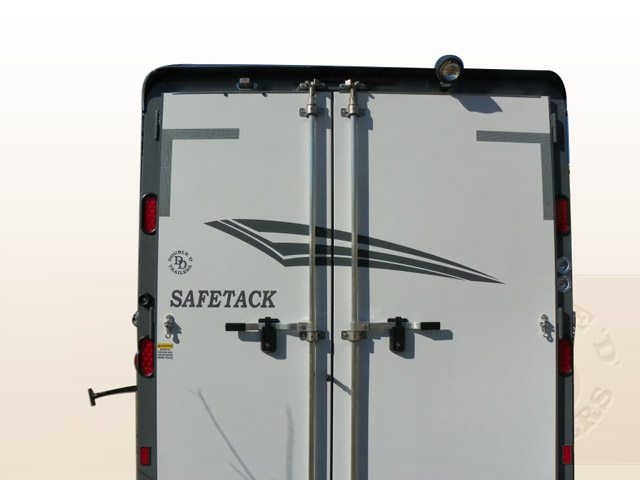

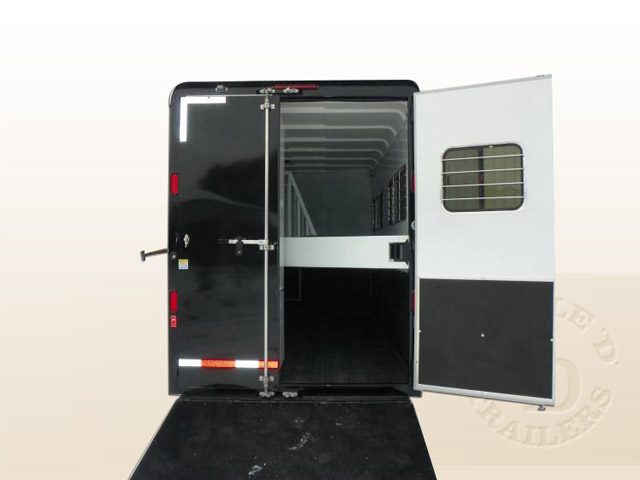

  • Full Height Rear Doors with SafeTack Design

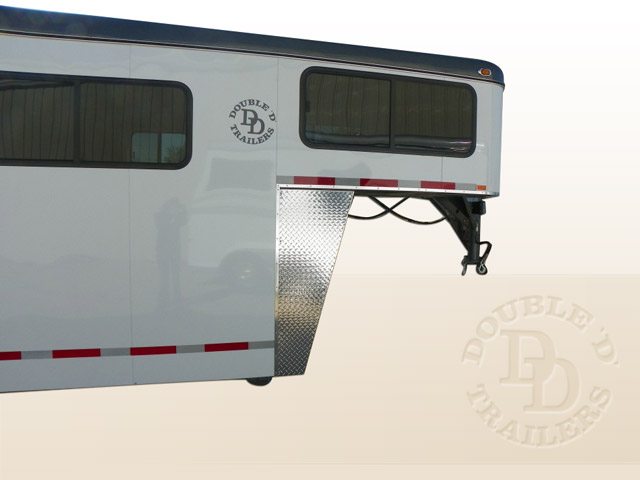

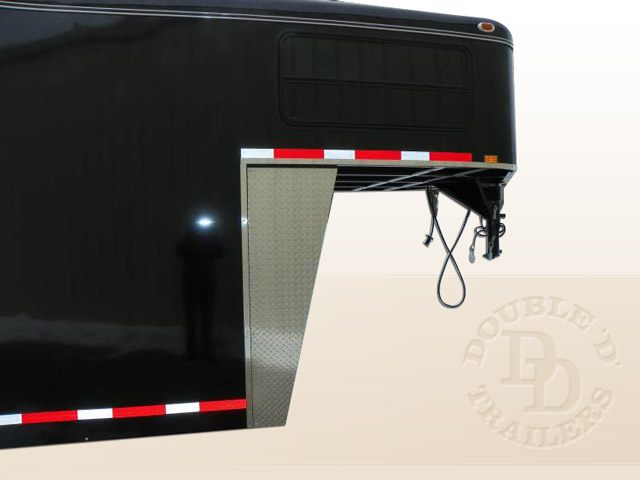

  • 24” Diamond Plate Gravel Guard at Nose
  • Running Board Step Down Dressing Room Side
  • Carpet in Dressing Room Floor
  • SafeTack® Slant Load Design
  • Spring Loaded Drop Leg Jack (NOTE: Jack has two speed gearing on this trailer)
  • Marker Lights on Fender
  • Extra divider on rear stall to prevent horses from backing out when rear doors are opened

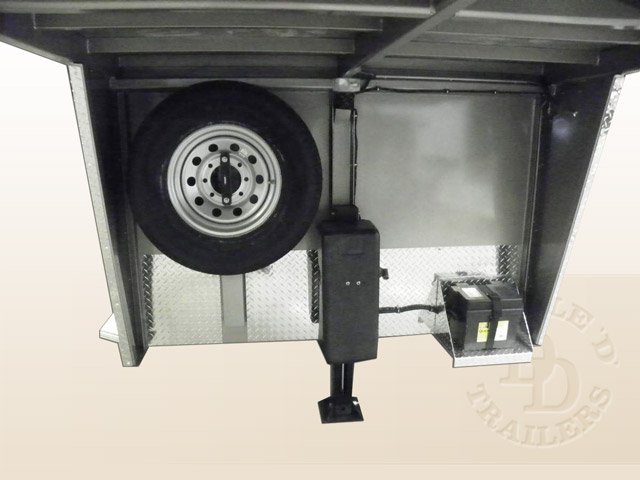

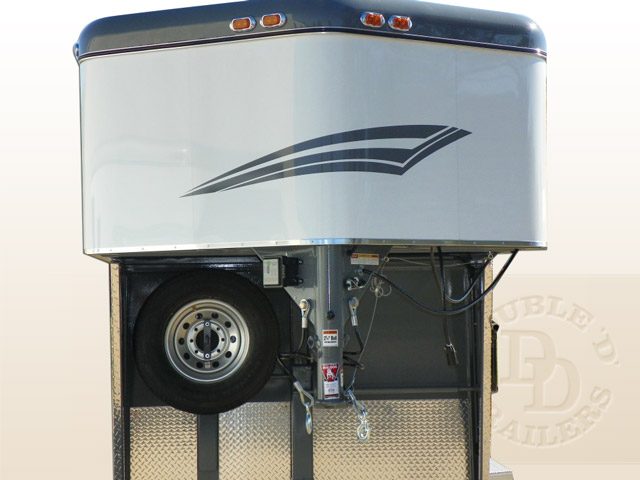

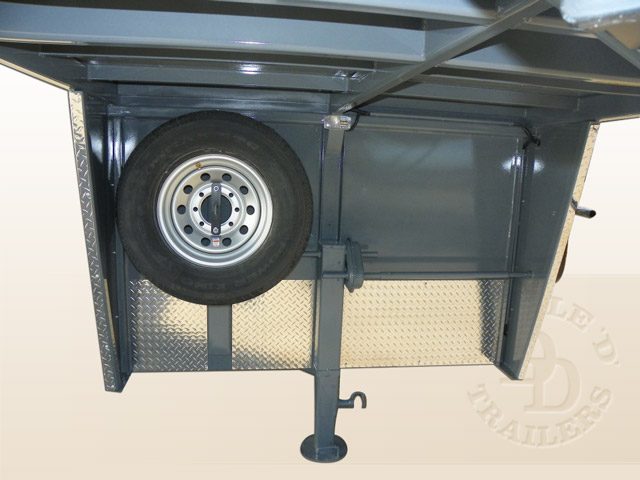

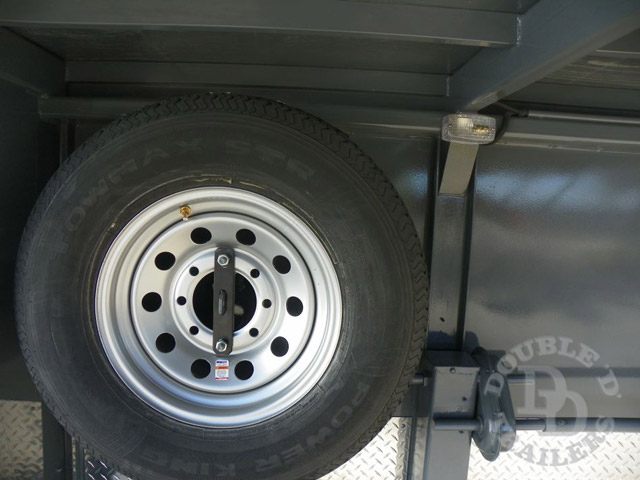

  • Spare Tire underneath gooseneck

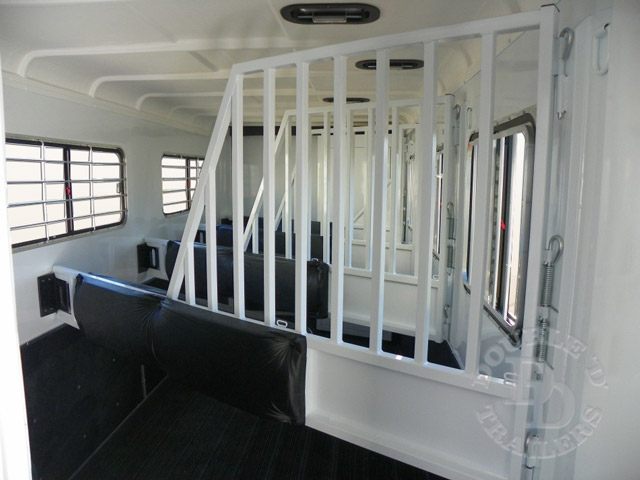

  • Z-Frame® slant dividers with hand made padding and safety quiet slam latches
  • 24” Walk Through from your dressing room to your horse area

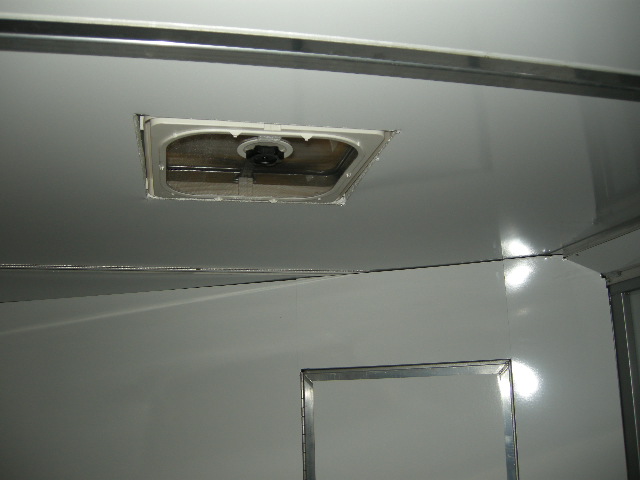

  • Horse Area Roof Vents, one per stall aluminum

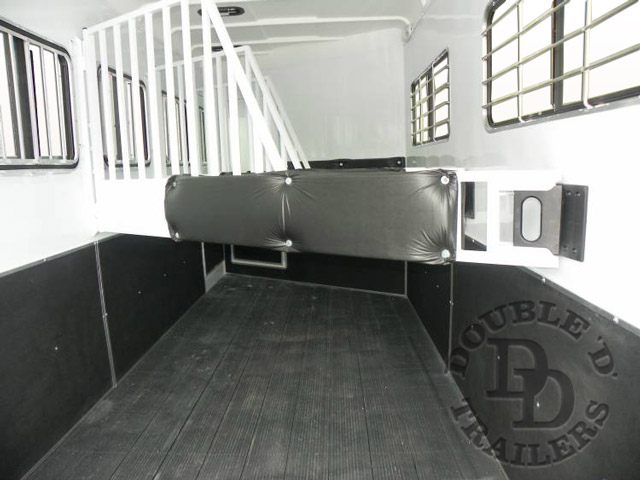

  • Custom hand made padding on dividers and slant wall
  • 30” Dress Door Factory Built (more durable than a conventional RV/Camper style door)
  • SafeKick® Wall System

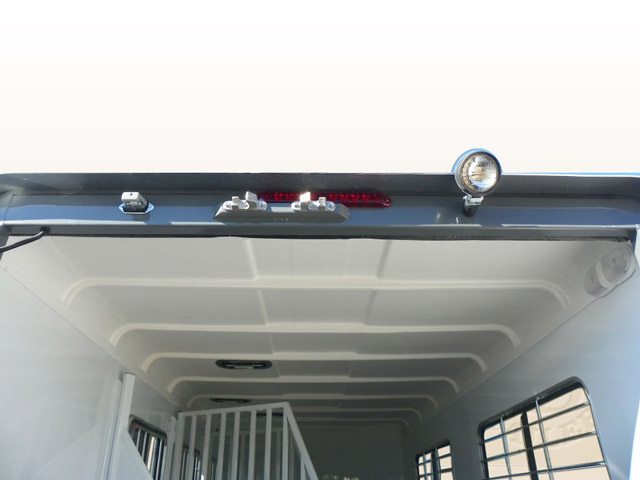

  • Heat Reflective SafeBump® Roof System with Fiber Composite One Piece, No Leak Panel
  • Insulated side walls in horse area for maximum temperature protection and safe, quiet ride
  • Floor Mats in Horse Area
  • Rechargeable Emergency Breakaway System
  • 7-Pin RV Style Plug

Warranty

  • (8) Year on Structure
  • (2) Year bumper to bumper
  • (1) Year on non-Double D Manufactured parts
